Problem: Faded Output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
Problem: Faint Characters on Printouts
Printouts have faint characters / letters appearing down the page
Resolution
- Print 15-20 pages and see if the problem persists.
Problem: Streaks on Printouts
Printouts have streaks appearing down the page
Resolution
- Remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- Carefully clean the drum roller to remove any excess toner.
- Re-insert the cartridge into the printer and print a test page.
- If the problem persists, repeat the previous steps.
Problem: Error (Cartridge is not compatible)
The compatible cartridge has been installed correctly and the error message (Cartridge is not compatible) has appeared
Resolution
- Remove the affected cartridge/cartridges from the printer.
- Turn the printer off and wait for 2 minutes.
- Turn your printer back on and wait for a further 2 minutes.
- Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time.
Problem: Cartridge not recognised
The compatible cartridge has been installed correctly but the printer is not registering it as installed
Resolution
- Remove the affected cartridge/cartridges from the printer.
- Turn the printer off and wait for 2 minutes.
- Turn your printer back on and wait for a further 2 minutes.
- Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time.
|

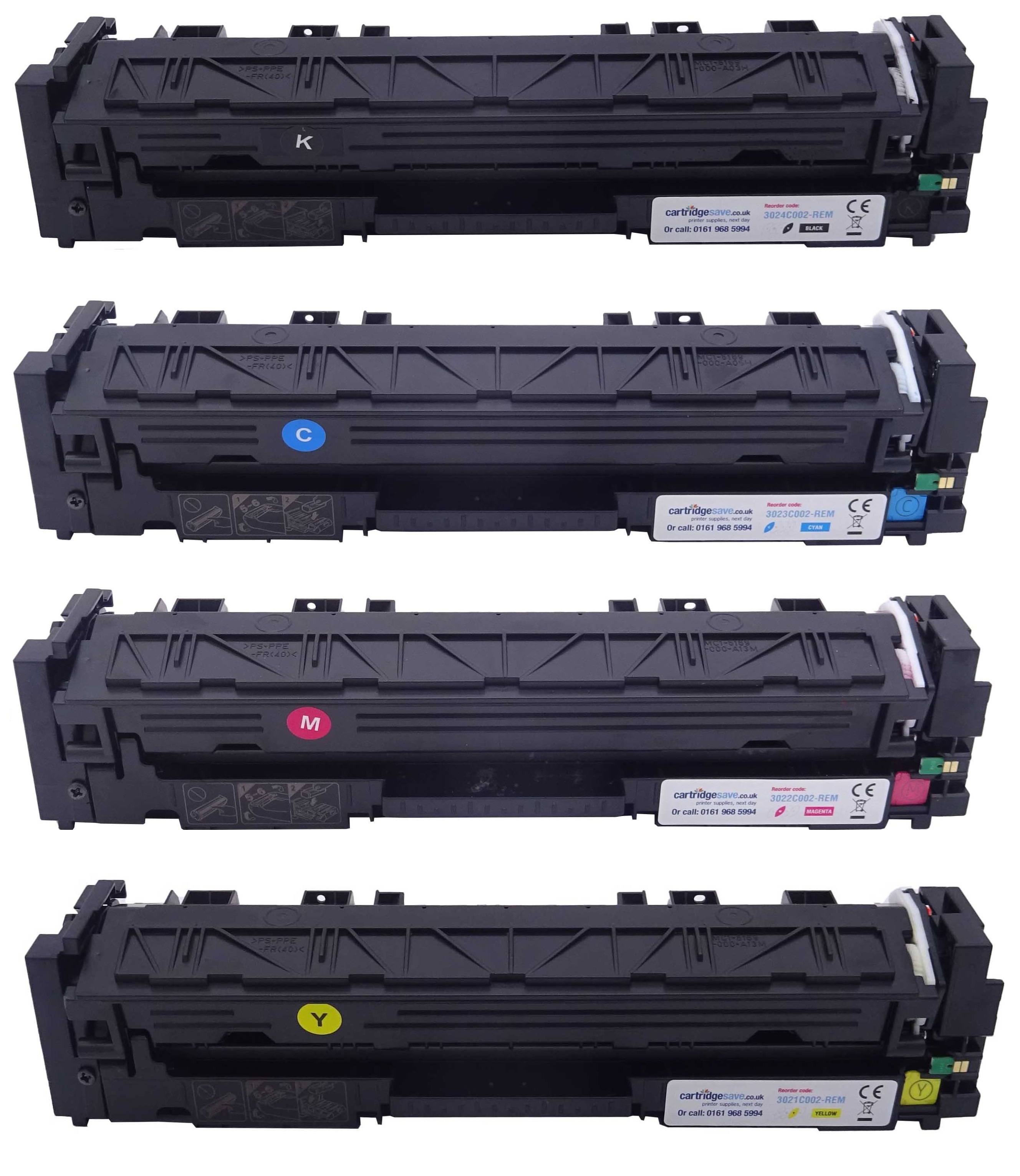

This image shows the front of the cartridges, match the colour to the slot on the printer.
|
|
|
|

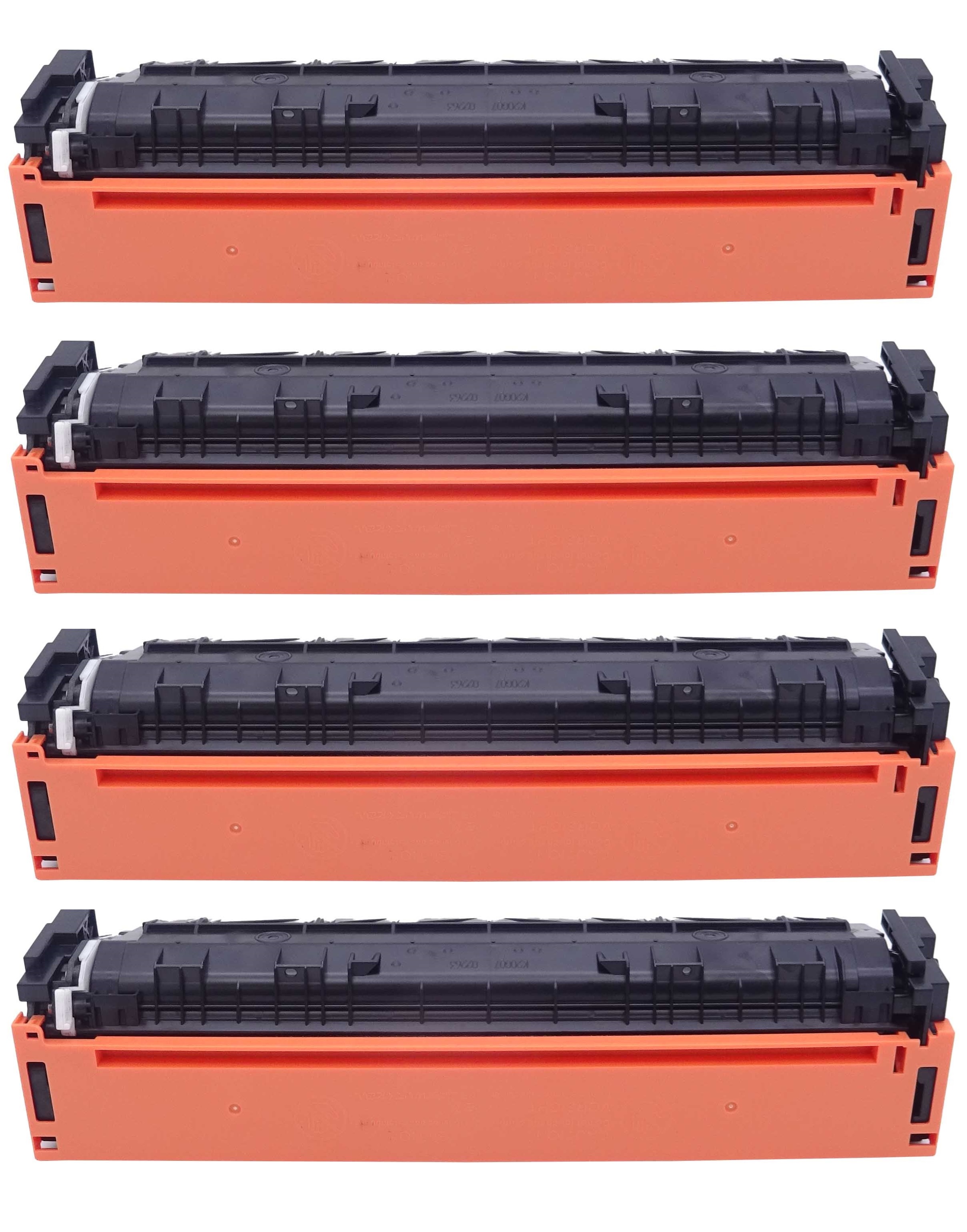

The back of the cartridges can be seen in this image, ensure the orange cover is removed before installation.
|
|
|
|

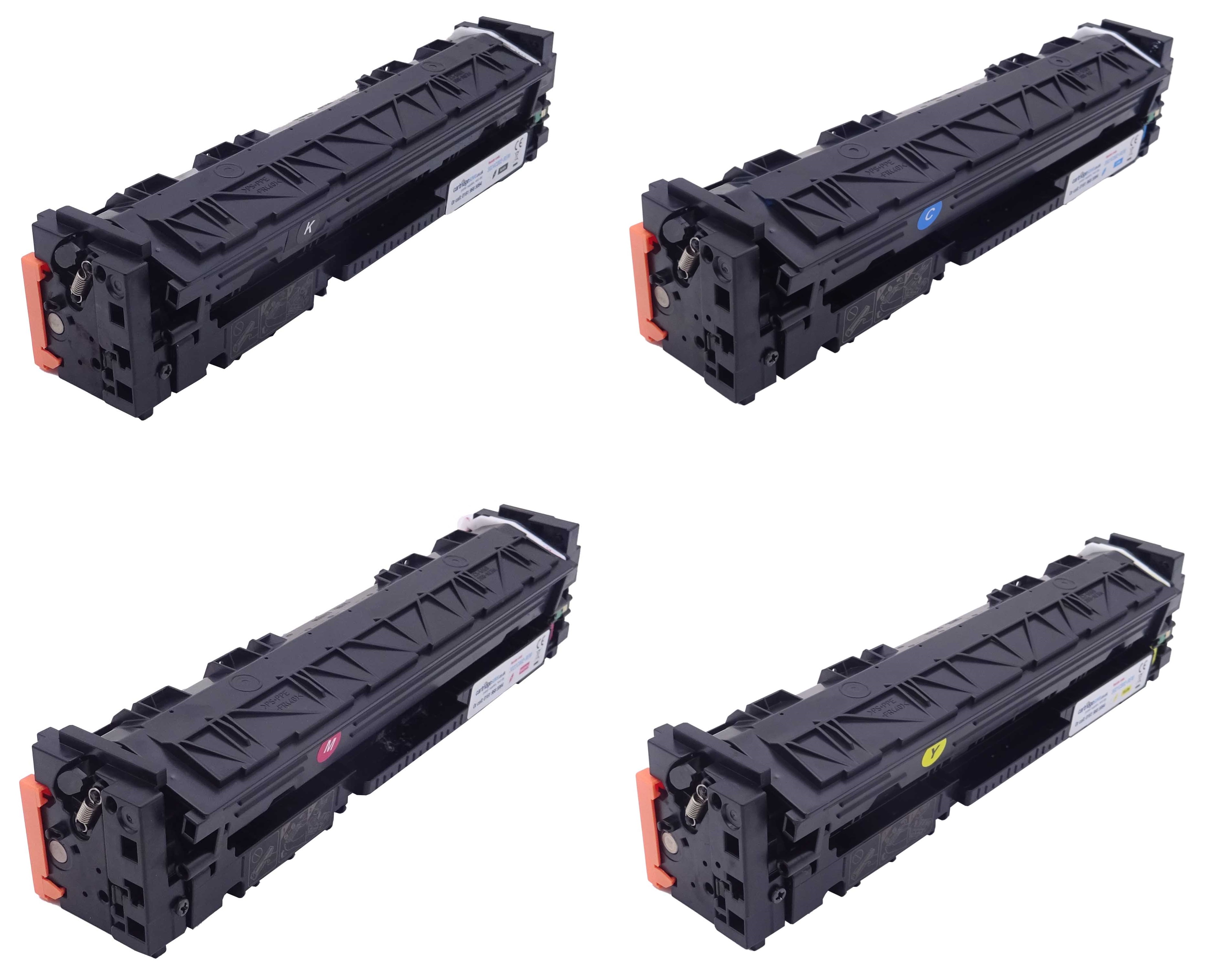

This image shows the left side of the cartridges.
|
|
|
|

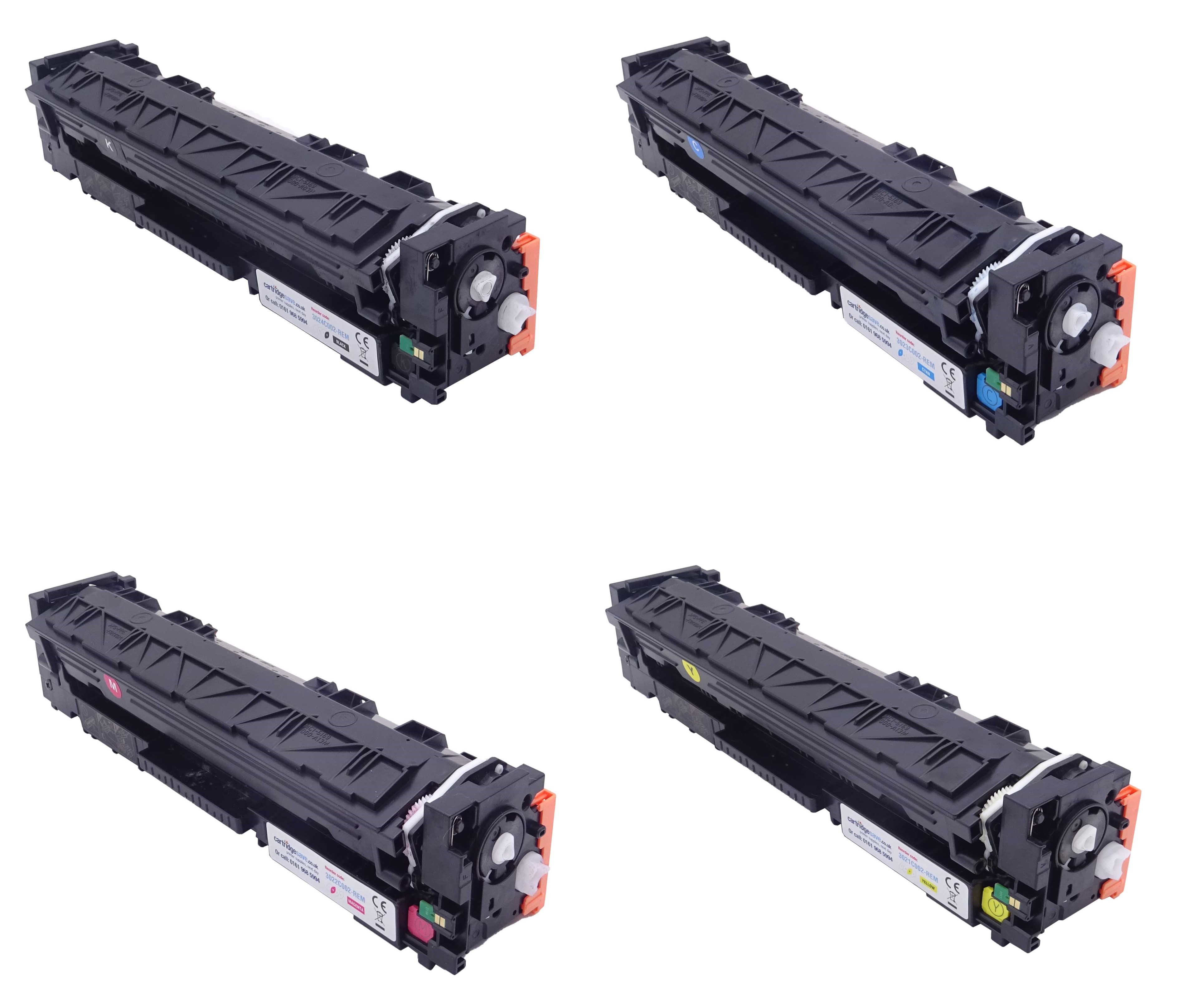

This right side of the cartridges can be seen in this image, the chip must be clear of impurities before installation.
|
|
|
Printers that use Canon 054 cartridges
To see a full list of products that work in your printer, click on the model name below:
|
|
