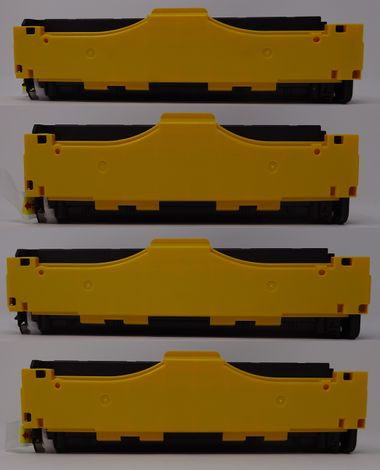

Compatible Canon 718 (Top View)
|

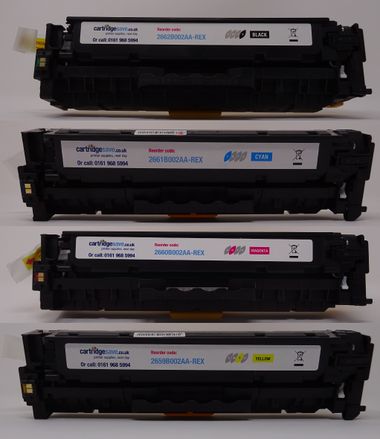

Compatible Canon 718 (Front View)
|
|
|
(Side View)
|
(Side View)
|
|
|
Compatible Canon 718 (Side View)
|
Compatible Canon 718 (Side View)
|
|
|
Compatible Canon 718
(Side View with clip removed)
|
Compatible Canon 718
(Side View with clip removed)
|
|
|
Compatible Canon 718 (Chip View) | Compatible Canon 718 (Batch Code Example) |
|
|
Problem: Faded Output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
Problem: Printer is making a screeching noise
The printer is making a screeching noise every time the printer is in motion.
Resolution
- This can sometimes be caused by toner cartridge not being seated correctly.
- Remove all the cartridges from the printer and reinstall them one at a time.
- If the noise still persists it might be a fault with one of the cartridges.
*You can determine which cartridge faulty by following these steps (If you have a spare set of cartridges):
- Remove the black cartridge and replace it with a new / old cartridge.
- If the noise persists reinstall the original black cartridge and repeat the above process with the other colour cartridge until the screeching noise disappears.
Printers that use Canon 718 cartridges
- i-SENSYS LBP7200Cdn
- i-SENSYS LBP7210Cdn
- i-SENSYS LBP7660Cdn
- i-SENSYS LBP7680Cx
- i-SENSYS MF724Cdw
- i-SENSYS MF728Cdw
- i-SENSYS MF729Cx
- i-SENSYS MF8330Cdn
- i-SENSYS MF8340Cdn
- i-SENSYS MF8350Cdn
- i-SENSYS MF8360Cdn
- i-SENSYS MF8380Cdw
- i-SENSYS MF8540Cdn
- i-SENSYS MF8550Cdn
- i-SENSYS MF8580Cdw
