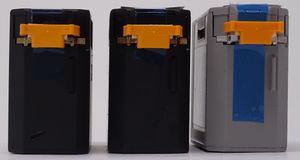

Compatible Canon BC01 & 02 & 05
(Front View with Clip on)
|

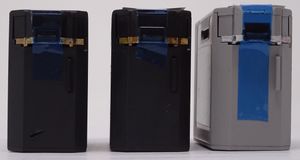

Compatible Canon BC01 & 02 & 05
(Front View with Clip removed)
|
|
|
|
|

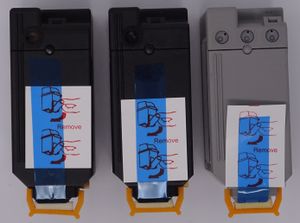

Compatible Canon BC01 & 02 & 05
(Top View)
|
Compatible Canon BC01 & 02 & 05
(Back View)
|
|
|
|
|
Compatible Canon BC01 & 02 & 05 (Side View)
|
|
|
Problem: Error (Cartridge missing or damaged)
The printer is reporting the error (Cartridge missing or damaged)
Resolution
- Remove the faulty cartridge from the printer
- Make sure all the packaging clips and blue tape covering the copper part of the cartridge has been removed from the cartridge + clean the contacts with a dry cloth / tissue
- Pull the power cable out the back of the printer and leave the printer off for 15 minutes
Problem: Cartridge reporting low/empty ink (1 of 2)
A message appears when the cartridges have been installed saying that the cartridges are empty
Resolution
- 1. Insert the cartridges and try to send a document to print
- 2. Wait until the Low/empty ink error message appears
- 3. With the error message still on screen, hold down the cancel button (the round button with a diamond shape in the middle) for 5 seconds (Add 5 seconds if it doesn't work)
- 4. This should reset the cartridge and allow printing
Problem: Cartridge reporting low/empty ink (2 of 2)
Printer is not allowing printing as it believes the cartridge has been previously used
Resolution

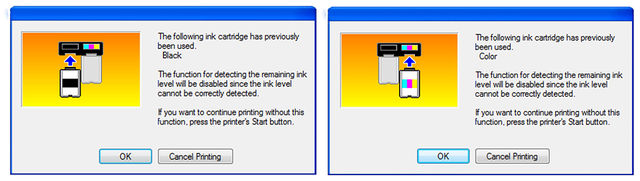

- 1. After the following error message (see below) appears on your computer screen press the printers Start button once
|
|
- 2. This will clear the error message and allow for printing. However the ink status monitor will be disabled.

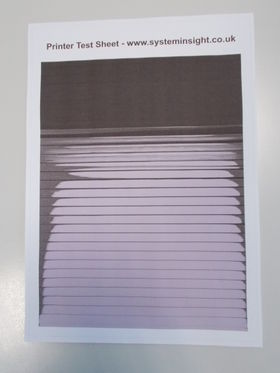

- 3. Print quality will have to be used to determine how much ink is left:
- Note: Print quality deteriorates quickly
|
|
Printers that use Canon BC-01, BC-02 & BC-05 cartridges
To see a full list of products that work in your printer, click on the model name below:
|
|
