Compatible Dell X751N & X752N (592-11311-CPT, 592-11313-CPT)

  • Updated

What the cartridges should look like

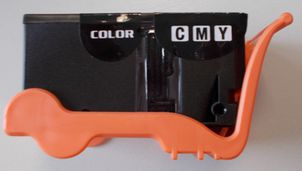

Compatible 592-11311 cartridges with clip and yellow tab

Compatible 592-11313 cartridges with clip and yellow tab

Black + side view (With tab)

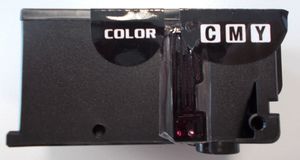

Tri-Colour + side view (With tab)

Black + side view (Without tab)

Tri-Colour + side view (Without tab)

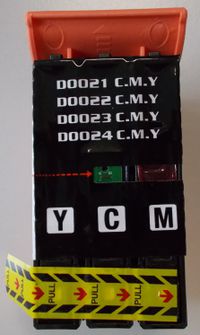

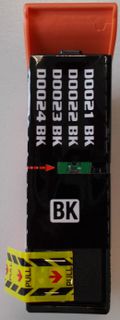

Cartridge chips


Installation Instructions

To install the compatible Dell cartridges follow these 3 steps

1. Tear off the yellow tape


2. Remove the protection clip


3. Install the cartridge into place and close the printer cover


Problems you might encounter

Problem: Cartridge not recognised

The cartridge is not recognised after installing it into the printer

Resolution

Follow the steps outlined on the sticker attached to the side of the cartridge


Resolution 1

1. Remove the cartridge, and install a used or new OEM cartridge and close the printer cover
2. Once the printer has detected the OEM cartridge, take the OEM cartridge out and reinstall the new compatible cartridge.
3. If the new cartridge still isn't recognised, repeat steps 1 and 2.

Resolution 2

1. Use a razor blade or utility knife, remove any part of the black carbon strip (As shown on the cartridge), then re-install the new cartridge











All trademarks, photos and logos included on this information sheet are the property of their respective owners.
