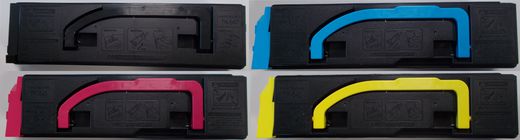

Compatible Kyocera TK-540 (Top View)
|
|
|
|

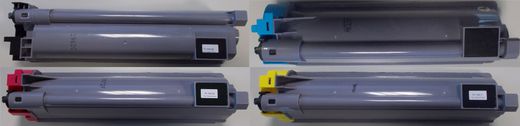

Compatible Kyocera TK-540 (Bottom View)
|
|
|
|

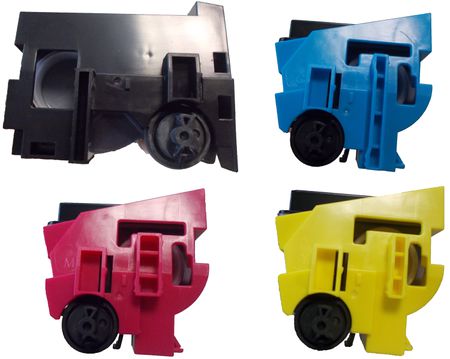

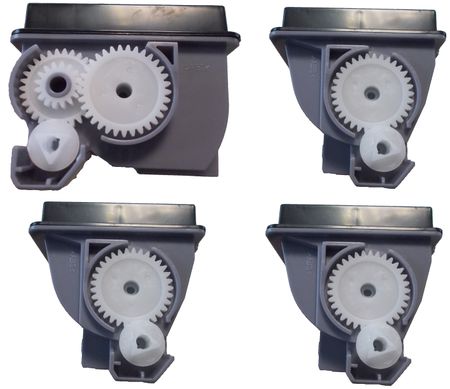

Compatible Kyocera TK-540 (Side View)
|
|
|
|
Compatible Kyocera TK-540 (Side View)
|
|
|
|

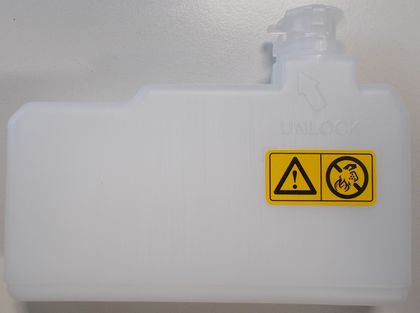

Compatible Kyocera TK-540
(Waste Toner Bottle)
|
Compatible Kyocera TK-540
(Label View)
|
|
|
|
Problem: Faded Output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
Problem: Black or White Vertical Streaks/ Faint or Blurred
Printouts have Black or White Vertical Streaks are Faint or Blurred.
Resolution
If the print quality is poor, Follow the steps below to Refresh the drum:
- Press "Menu"
- Press "Up" or "Down" repeatedly until "Adjust/Maintenance" appears
- Press ">", Press "Up" or "Down" repeatedly until "Service" appears
- Press ">", Press "Up" or "Down" repeatedly until "Drum" appears
- Press "Ok" twice
- The message display shows please wait, after about 3 min the display returns to ready.
Printers that use Kyocera TK-540 cartridges
To see a full list of products that work in your printer, click on the model name below:
|
|
|
