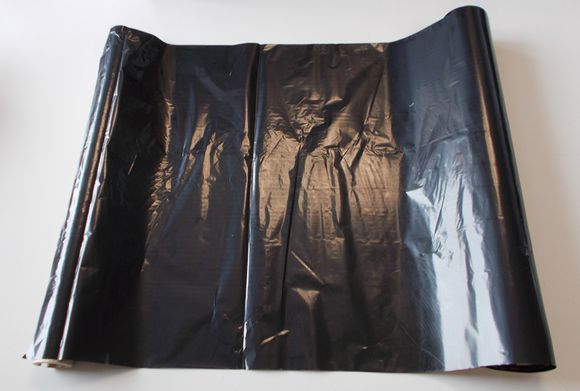

What the cartridges should look like
|
|
|
|
|
|
Installation Instructions
How To Install The Ribbon

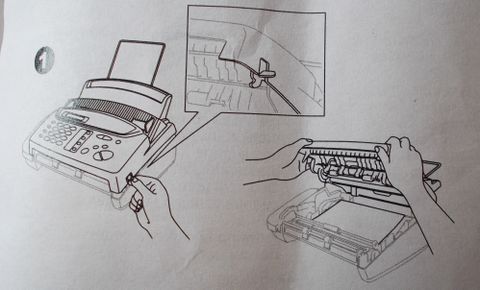

- 1. Open the top cover by lifting the lever on the right side of the top cover

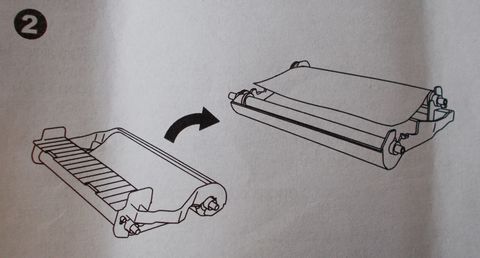

- 2. Remove the ink cartridge containing the used ribbon and set it upside-down with the blue gear in the upper left corner

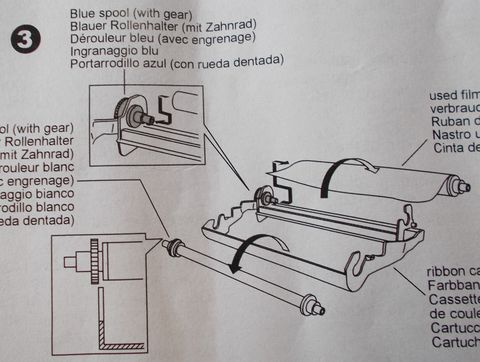

- 3. Take the used ribbon out of the cartridge:
-
- 3a. Unclip the upper white spool and slide the roll off the blue gear (Do not remove the blue gear)
-
- 3b. Lift out the lower roll

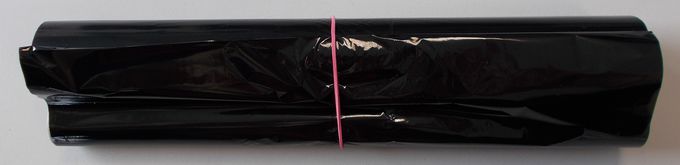

- 4. Slide the white elastic off the new refill rolls and set them down with the full roll in the lower position (The ribbon's shiny side is facing down)

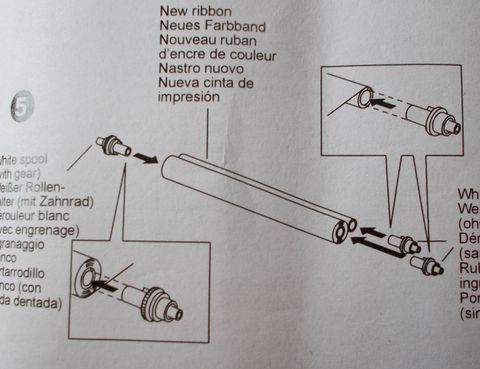

- 5. Remove the white gear and spools from the ends of the used cardboard cores. Then insert them into the same positions in the new cores

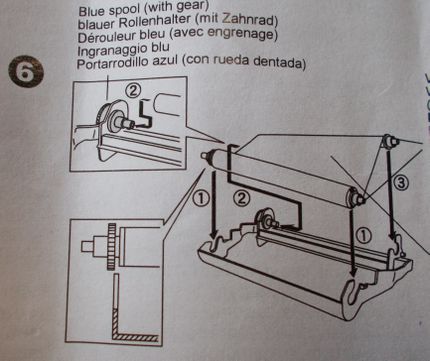

- 6. Install the new ribbon in the cartridge:
-
- 6a. Insert the lower roll into the cartridge holders
-
- 6b. Slip the upper left cardboard core onto the blue gear of the cartridge and insert the upper roll into the cartridge holders
- 7. Turn the upper right white spool clockwise to tighten the ribbon

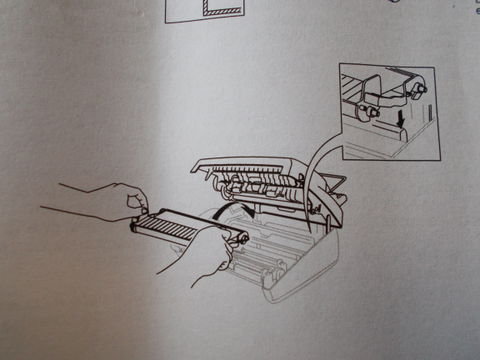

- 8. Turn the cartridge over and re-install it into your machine
-
- 8a. Insert the recessed arrow first and place the cartridge into its four holders
- 9. Press down on both sides of the top cover to close it securely
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-
- All trademarks, photos and logos included on this information sheet are the property of their respective owners.
