Compatible Epson 378XL/478XL (C13T37914010-REM, C13T37924010-REM, C13T37934010-REM, C13T37944010-REM, C13T37954010-REM, C13T37964010-REM, C13T04F54010-REM, C13T04F64010-REM)

  • Updated

CS_Lotus.svg

Compatible_Epson_378XL_Title.svg

Problems_you_may_encounter.svg Error_Messages.svg

Problem: Cartridge not recognised or cartridge not clicking in.

The compatible cartridge has been installed correctly but the printer is not registering it as installed, or the cartridge keeps popping out of its slot. This might be due to poor contact between the chip and the reader.

Resolution

  1. Remove the affected cartridge(s) from the printer.

  2. Turn off the printer and wait for 2 minutes.

  3. Gently clean the cartridge chip with a lint-free tissue to remove any dust or debris.

  4. Turn the printer back on and wait for an additional 2 minutes.

  5. Reinstall the cartridge by locating the “PUSH” label on it and pushing firmly until you hear a click, confirming it’s securely in place.

Notes:

  • In rare cases, the cartridge clip may become slightly misaligned or damaged during transit, preventing a proper fit. You can apply gentle pressure to adjust the clip into the correct position.

  • Use a working cartridge as a reference to help identify the proper alignment.

378XL Clip.jpg





What_the_cartridges_should_look_like.svg

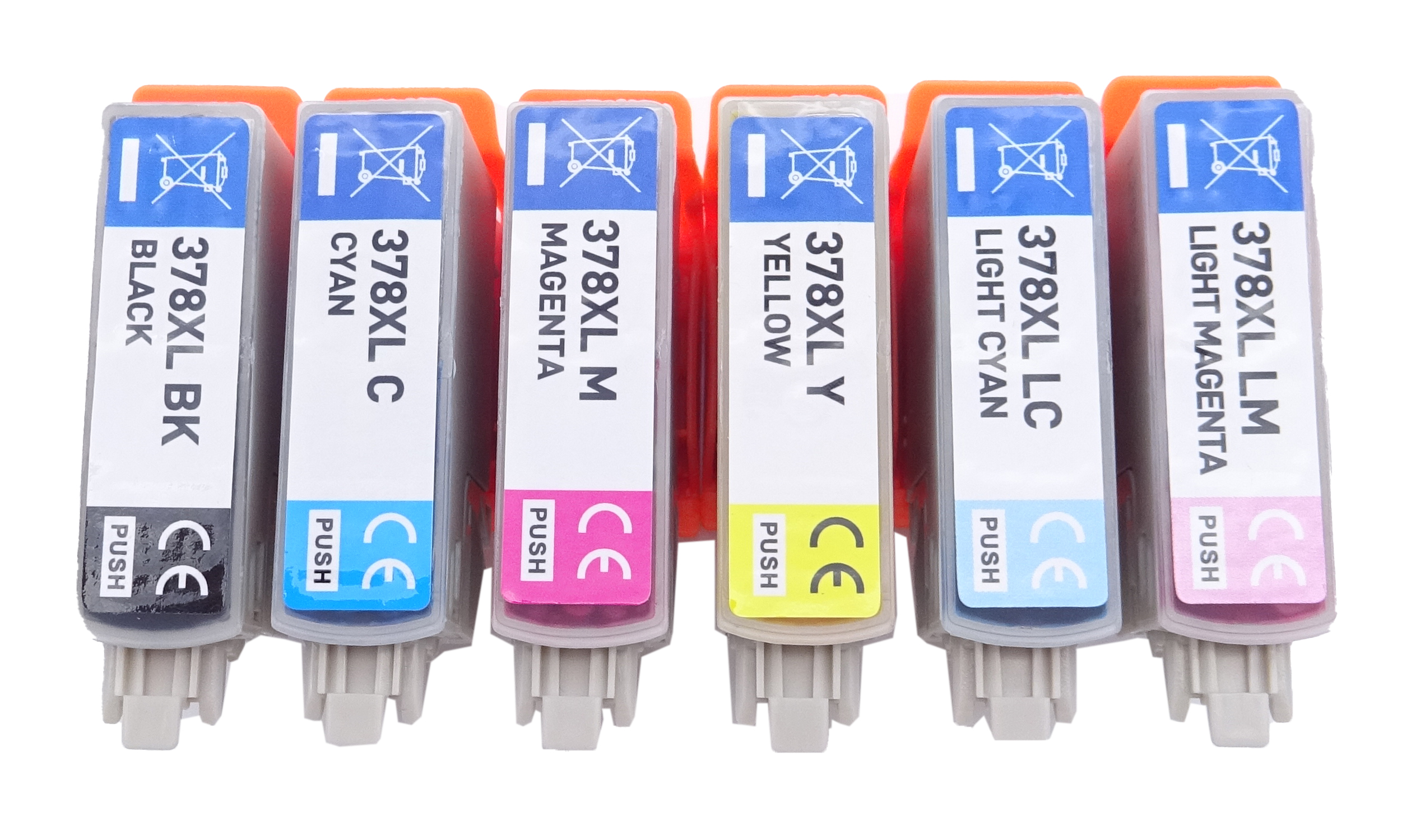

This image shows the front of the cartridge, the product code and colour is displayed on the label.
Epson 378XL Front (00039).jpg

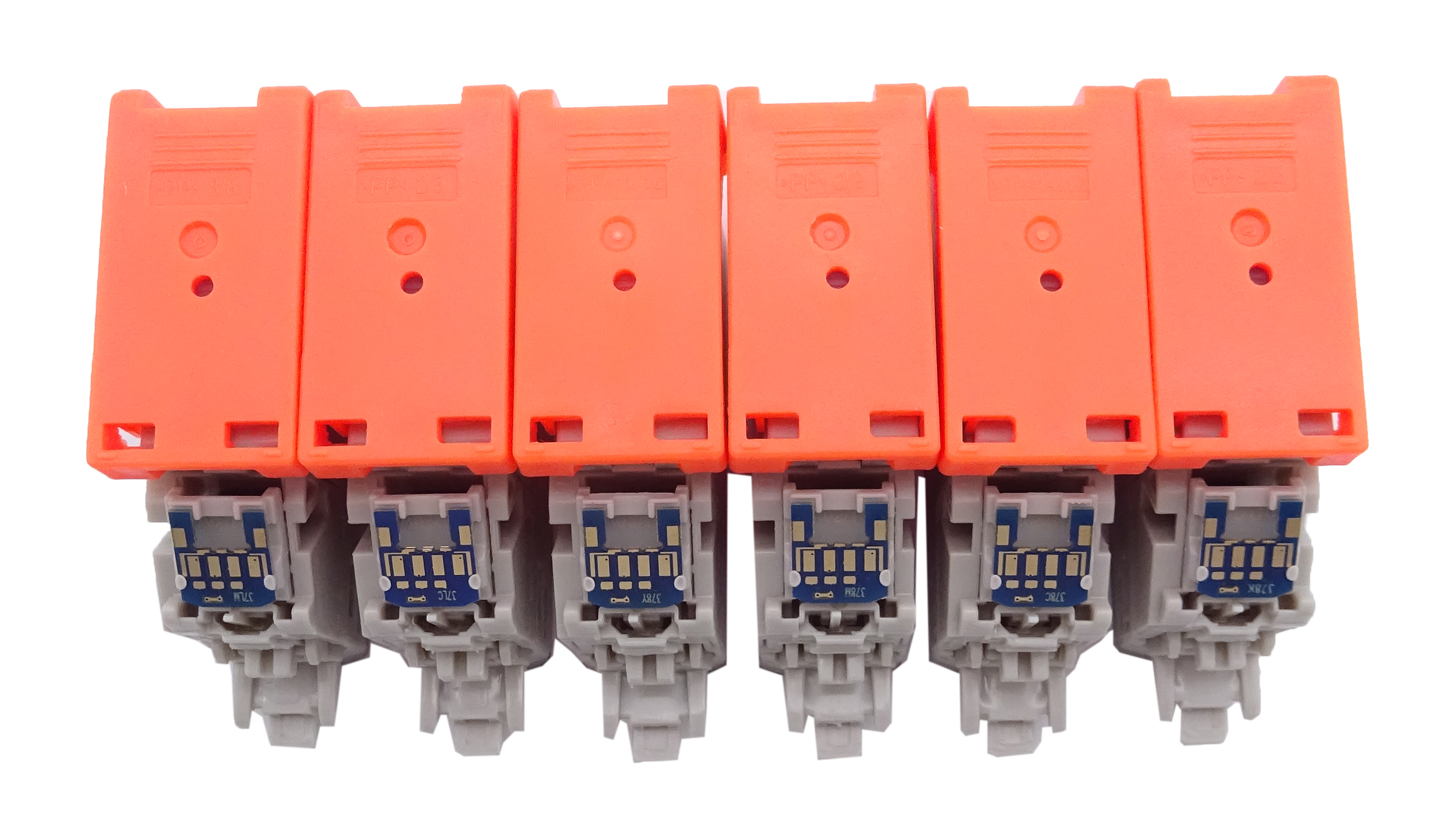

The back of the cartridge can be seen in this image, the orange cover must be removed before installing.
Epson 378XL Back (00039).jpg



This image shows the left side of the cartridge.
Epson 378XL Left(00039).jpg

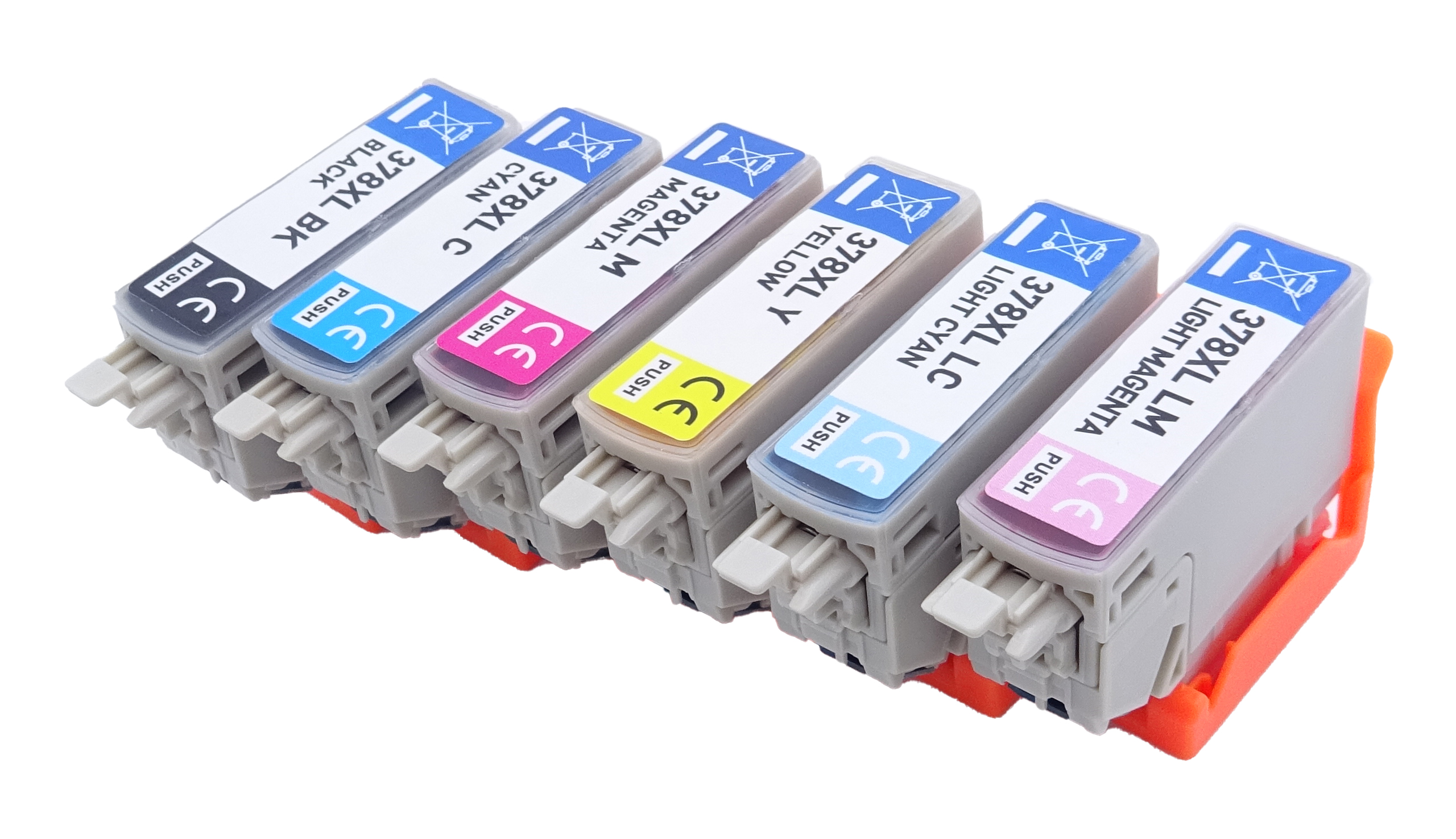

The right side of the cartridge can be seen in this image.
Epson 378XL Right (00039).jpg

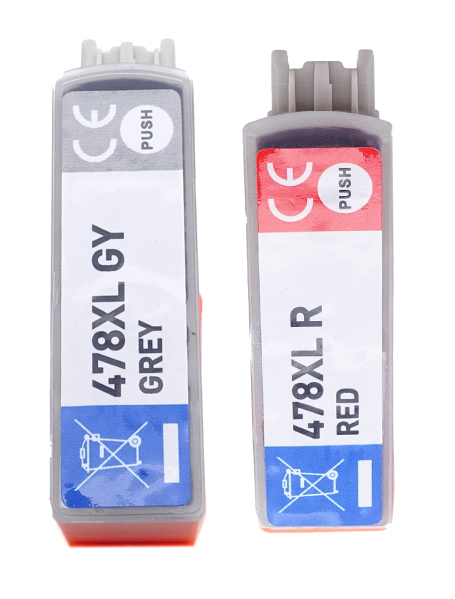

This image shows the front of the 478XL cartridges, the product code and colour is displayed on this label.
Epson 478XL Front (00039).jpg



The back of the 478XL cartridges can be seen in this image, please ensure the chip is clear of impurities before installation.
Epson 478XL Back (00039).jpg

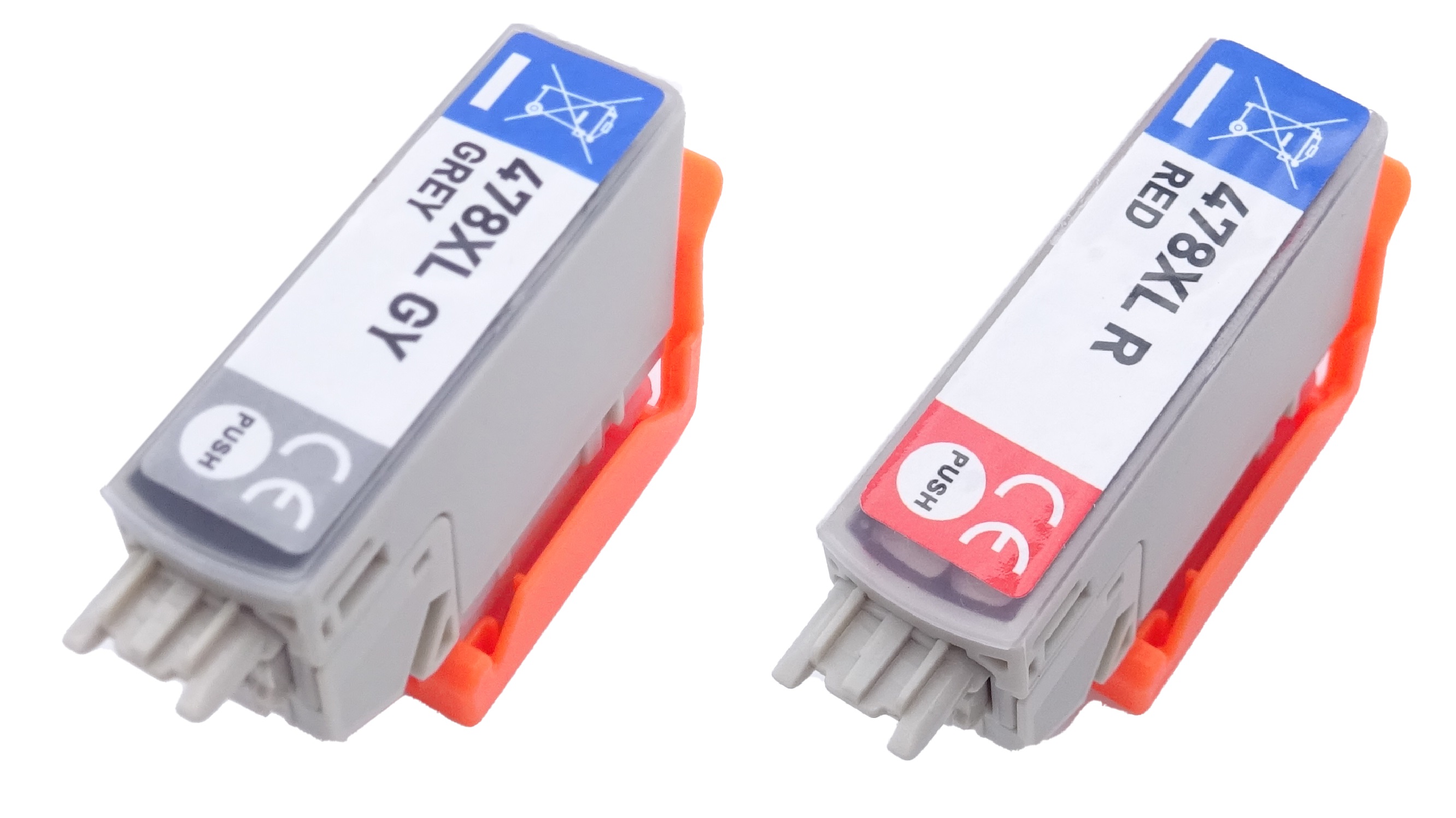

This image shows the left side of the 478XL cartridges, the orange clip must be removed before installing.
Epson 478XL Right (00039).jpg

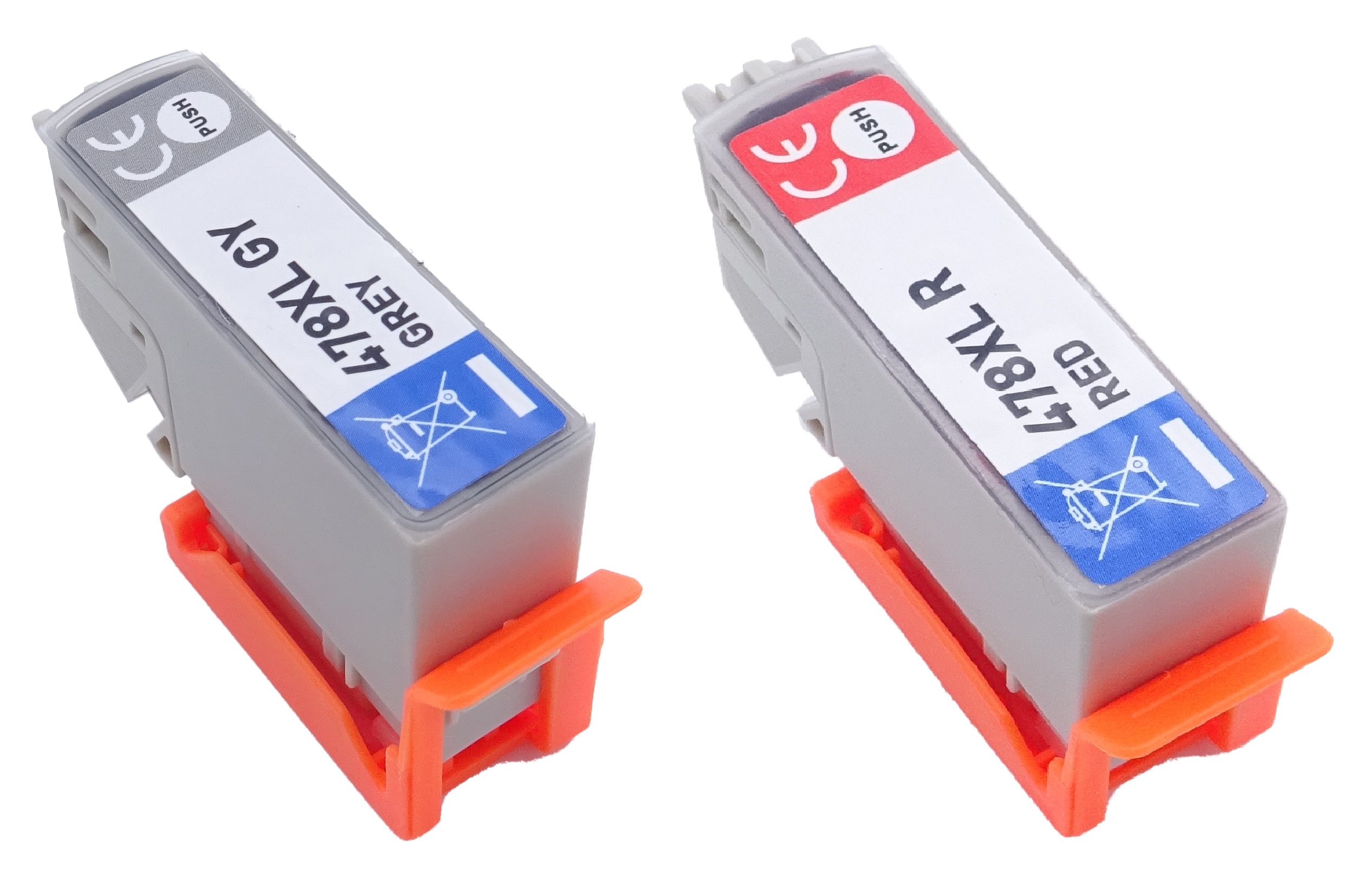

The right side of the 478XL cartridges can be seen in this image.
Epson 478XL Left (00039).jpg







Printers that use Epson 378XL cartridges

To see a full list of products that work in your printer, click on the model name below:

Epson XP-8500
Epson XP-8505
Epson XP-8600
Epson XP-8605
Epson XP-8700




Printers that use Epson 478XL cartridges

To see a full list of products that work in your printer, click on the model name below:

Epson XP-15000



All trademarks, photos and logos included on this information sheet are the property of their respective owners.
