C405DN

|

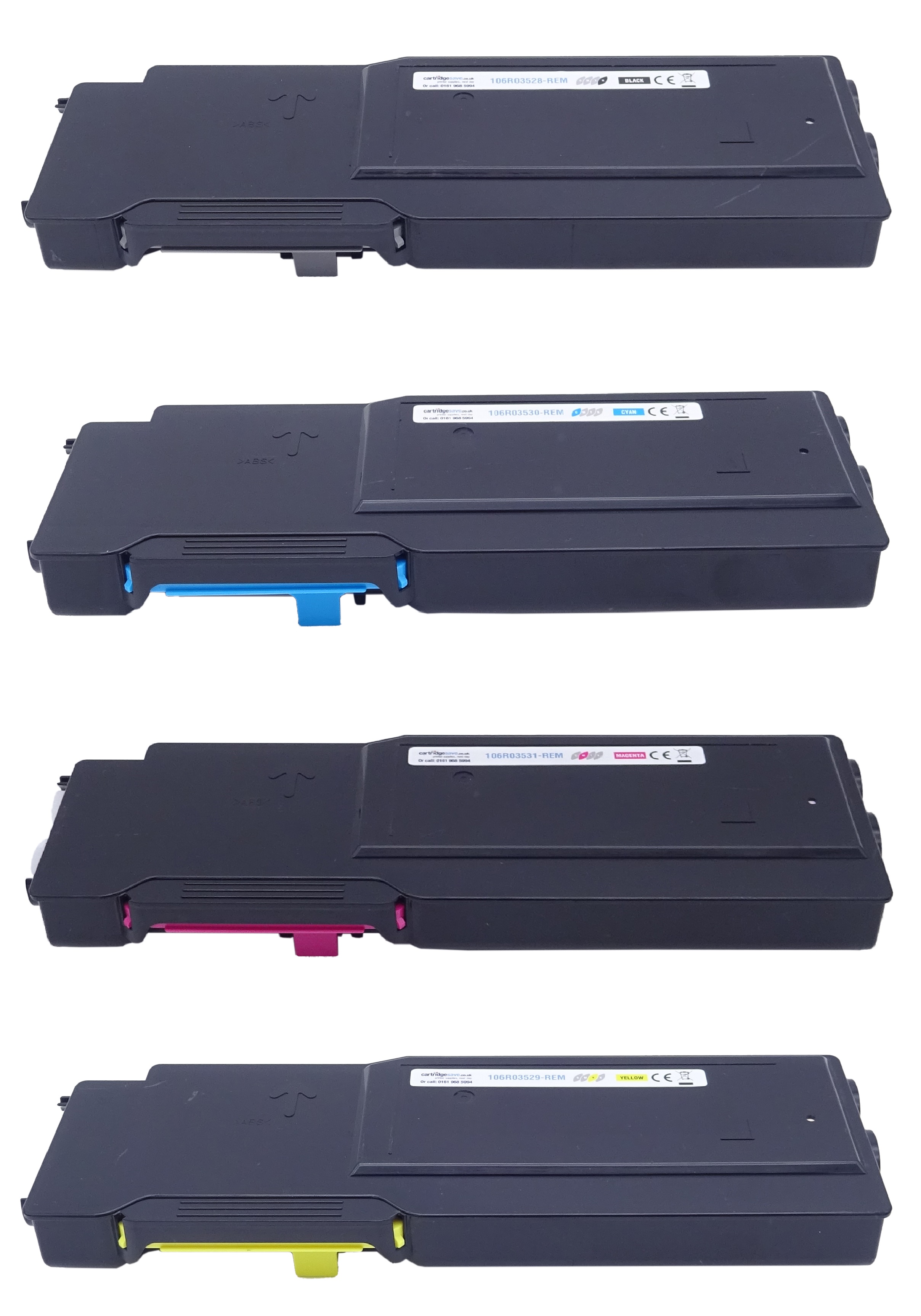

This image shows the front of the cartridge. The product code and colour can be found on the long label.
|
|
|
|

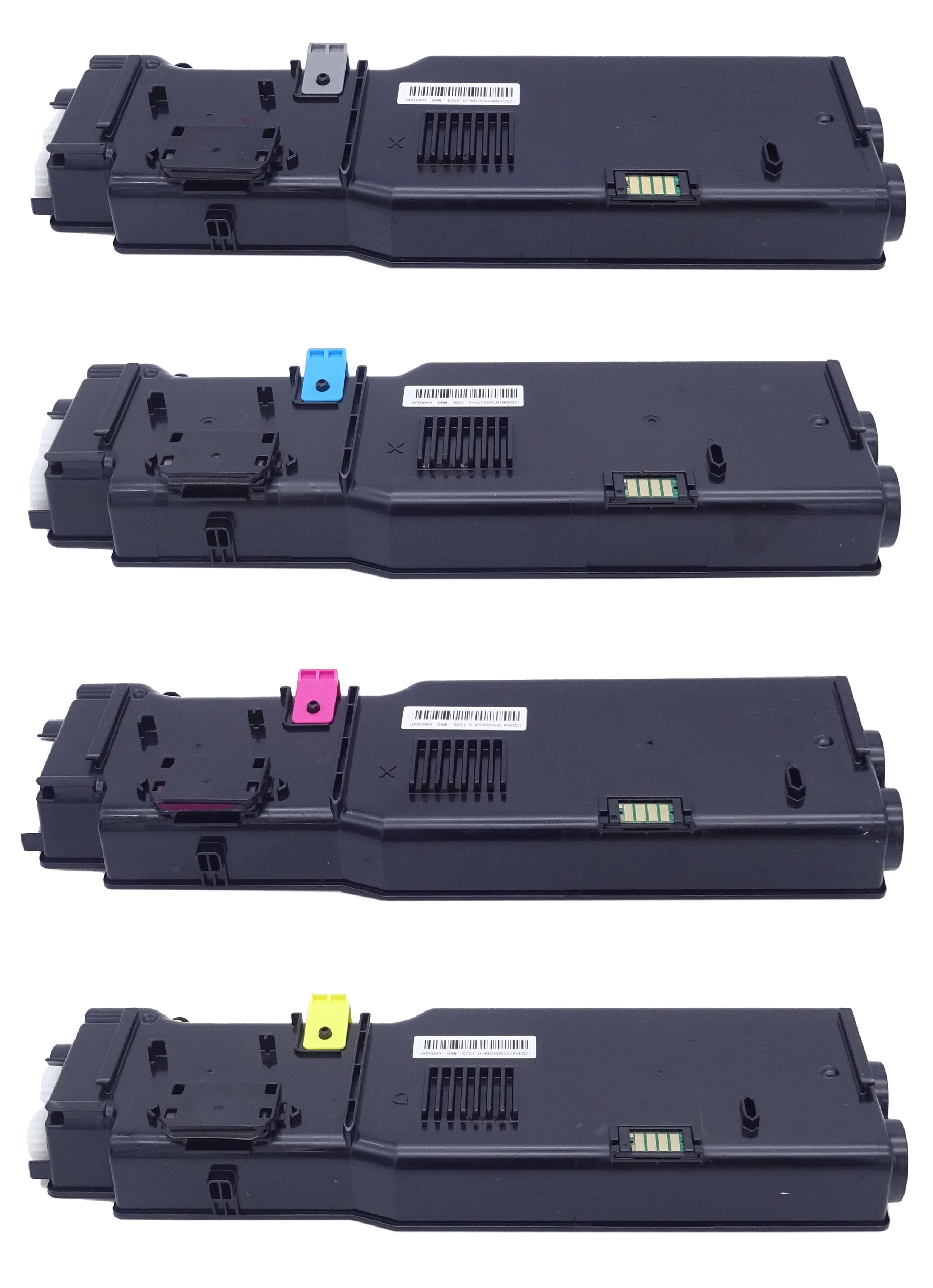

The back of the cartridge can be seen in this image. The chip must be clean and free from any impurities before installation.
|
|
|
|

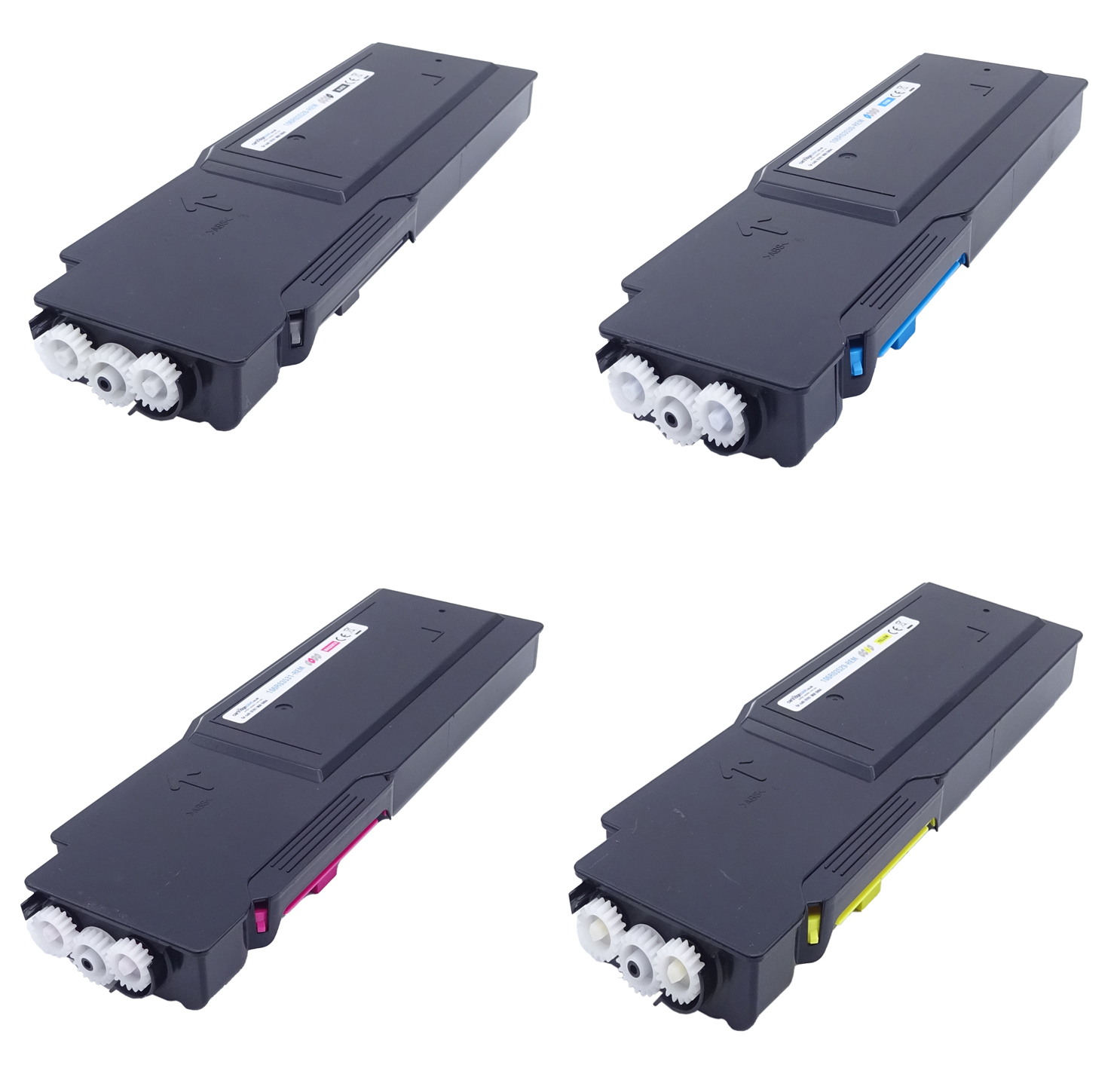

This image shows the left side of the cartridge.
|
|
|
|

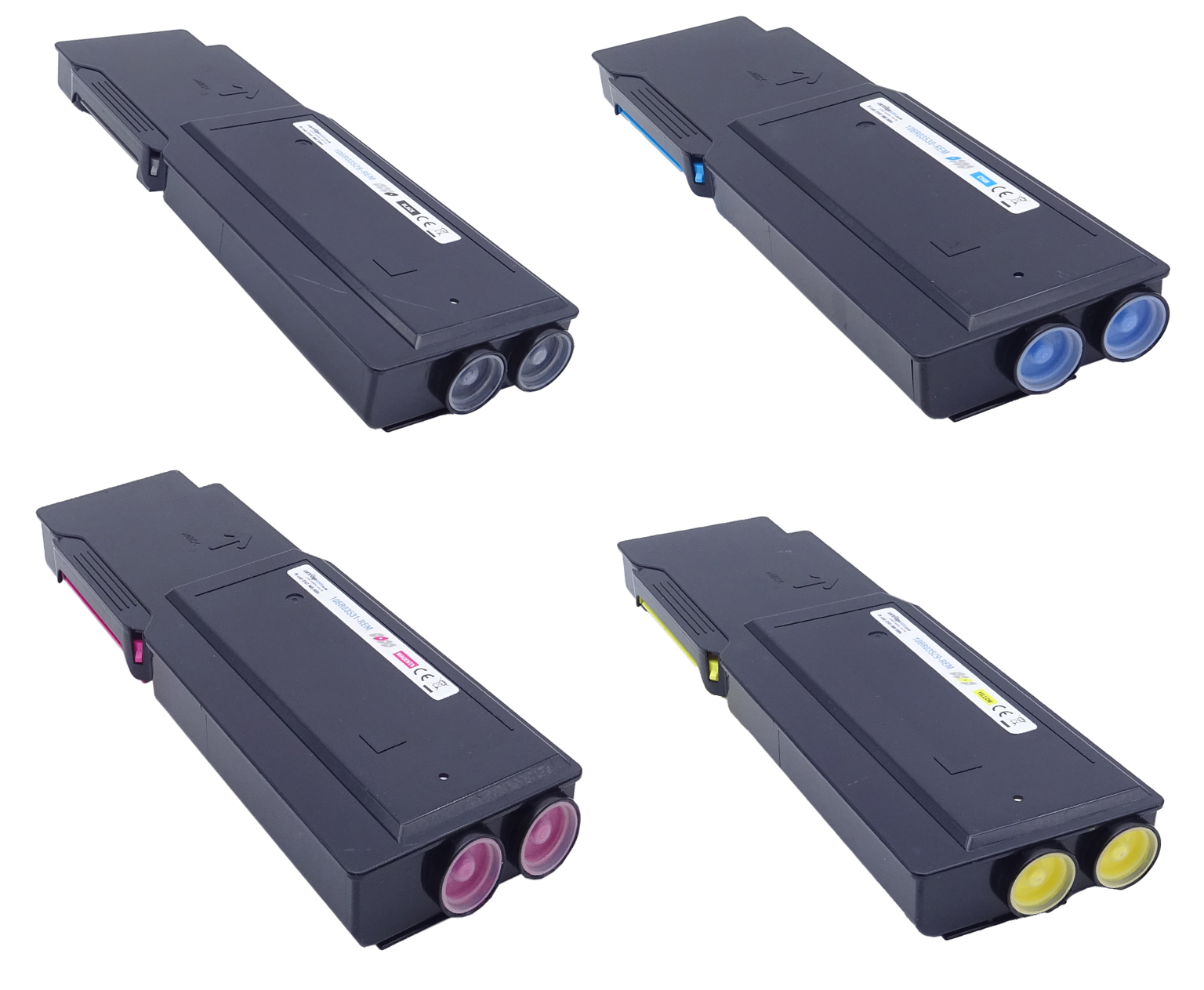

The right side of the cartridge can be seen in this image. Do not remove the plastic caps, as these help contain the toner powder.
|
|
|
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, re-insert the cartridge into the printer and print a test page.
- If the issue persists, check the life of the maintenance items in your machine in case any of them need to be replaced.
Cartridge doesn't fit in the printer
- This may happen if the printer is new or the cartridges have not yet been replaced.
- See below for the location of the internal parts of the printer and to check where the cartridges should be installed.
|

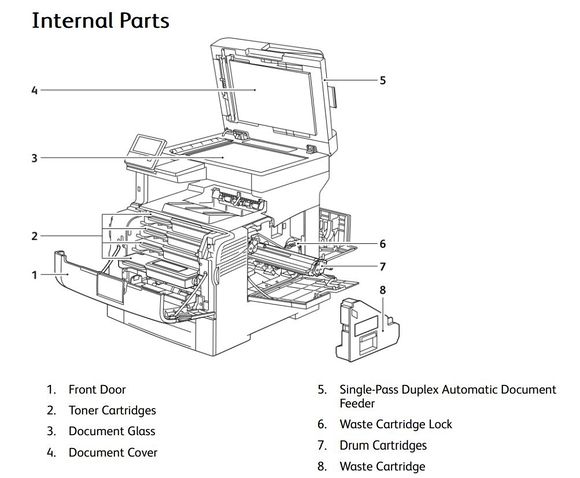

Internal parts location |
Note: Before replacing any maintenance items
- Power off the printer.
- Wait 30 seconds, then disconnect the power cord.
- Allow 15 minutes for the printer to cool completely before proceeding.
What items are included in the Compatible Xerox 108R01122 Maintenance Kit?
The 40X8421-REM contains the following:
- 1 x Feed roller
- 1 x Transfer belt
- 1 x Bias feed roller

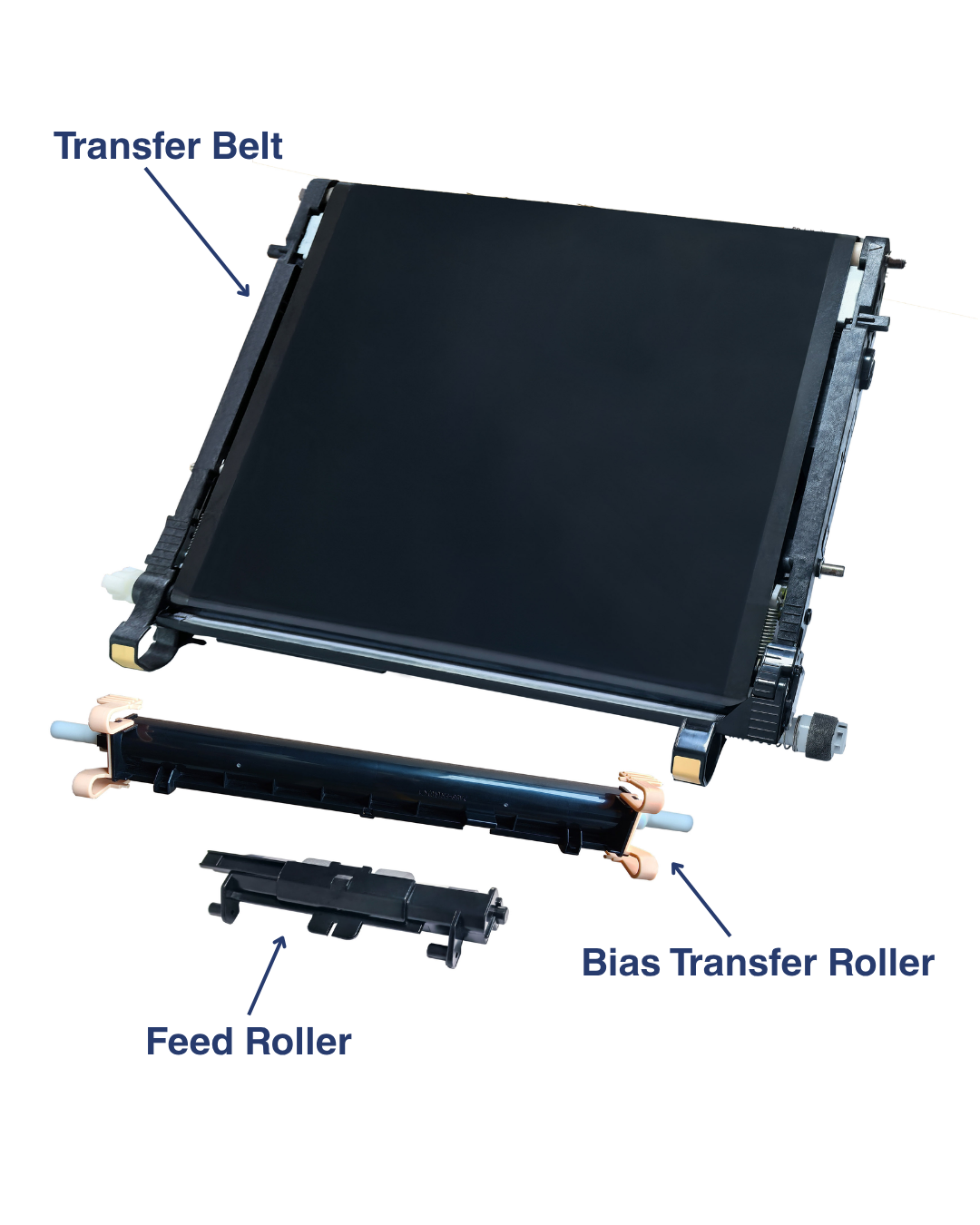

The image below shows which item is which:
How do I replace the transfer belt?
- 1. Open the front door of the printer.
- 2. Remove the waste toner container and set it aside carefully.
- 3. Lift both green levers to unlock the transfer belt unit.
- 4. Using the green handles, pull the transfer belt unit out of the printer and place it on a flat, stable surface.
- 5. Press the green locking tab and lift the old belt out.
- 6. Unpack the new transfer belt and remove all protective tapes or covers.
- 7. Align the new belt with the frame and slide it in. Double-check that it is seated flush and secure.
- 8. Slide the unit back into the printer.
- 9. Lower both the green levers to secure the unit.
- 10. Reinstall the waste toner container and close the front cover.
- 11. Reconnect the power cord, turn the printer on, and follow any on-screen prompts to reset the belt life counter.
How do I replace the feed roller?
Ensure the printer is switched off
- 1.Remove the paper tray and paper
- 2. Slightly pull on the clip on the left holding the roller to release the feed roller.
- 3. Slide the new roller into the slot until it clips into place.
- 4. Reinstall the paper tray into the printer.
How do I replace the bias transfer roller?
- 1. Open the rear printer door
- 2. Pinch the levers at the top and bottom of the bias transfer roller, located on the left and right
- 3. Pull the roller from the machine whilst squeezing the levers.
- 4. Slide the new roller until it clicks into place
