Problem: faded output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
|

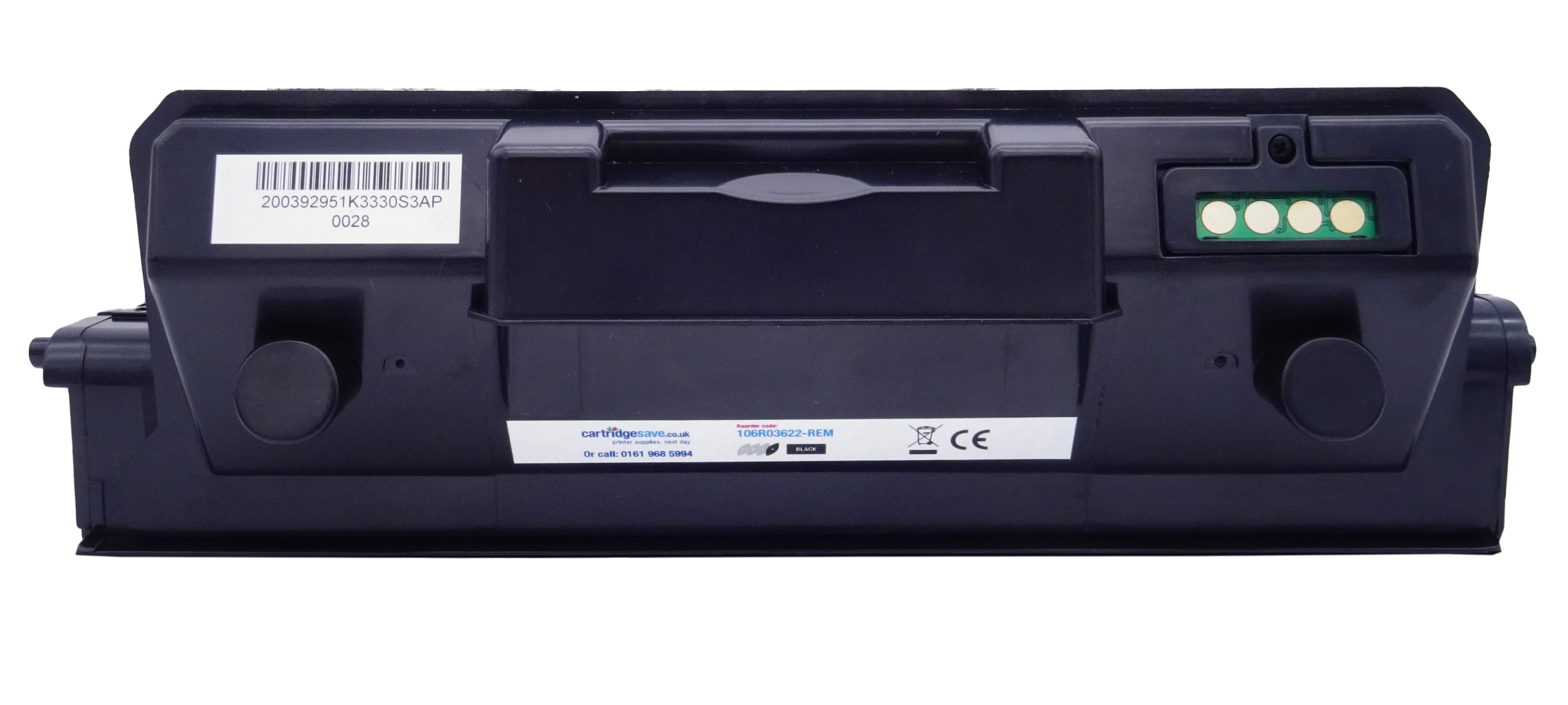

This image shows the front of the cartridge. The batch code is located on the label to the left, and the chip is to the right. Please ensure that the chip is clean and free of any impurities before installation.
|
|
|
|

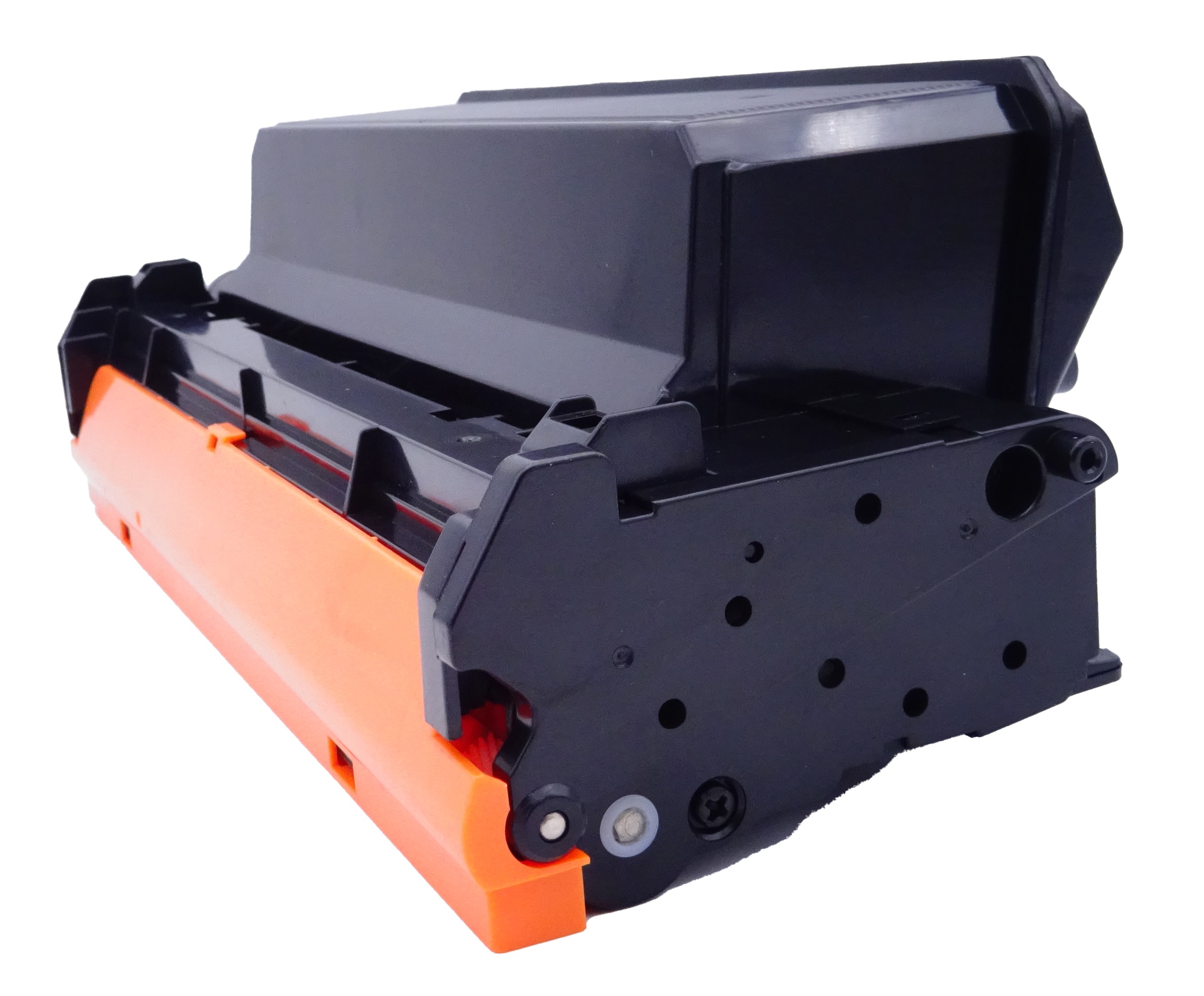

The back of the cartridge is shown in this image, the orange plastic cover must be removed before installing.
|
|
|
|
This image shows the left side of the cartridge.
|
|
|
|

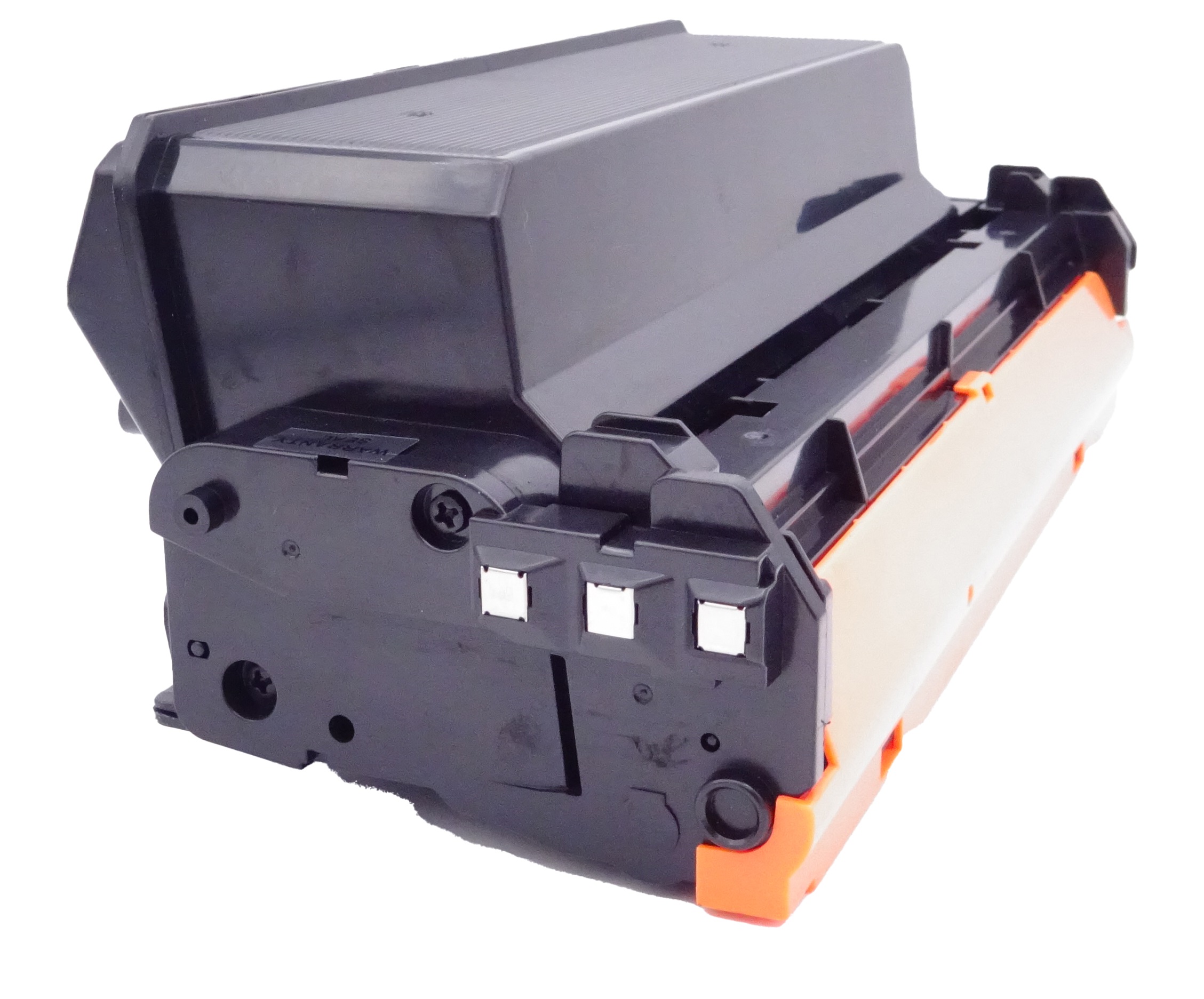

The right side of the cartridge is shown in this image. Please check that the three metal contacts are clean before installing.
|
|
|
Printers that use Xerox 106R03622 cartridges
To see a full list of products that work in your printer, click on the model name below:
|
|
|
