Compatible Xerox 6140 (106R01480-REM, 106R01477-REM, 106R01478-REM, 106R01479-REM)

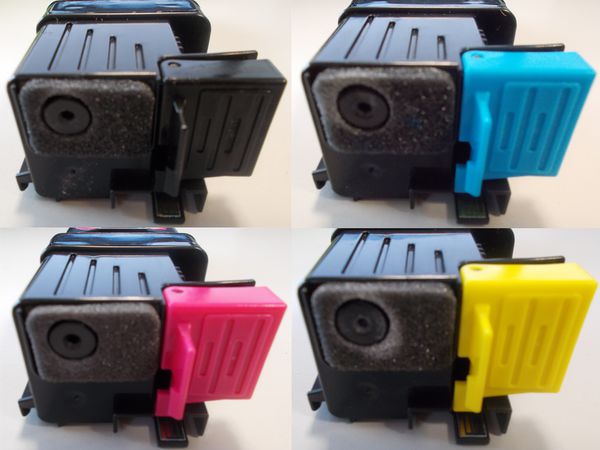

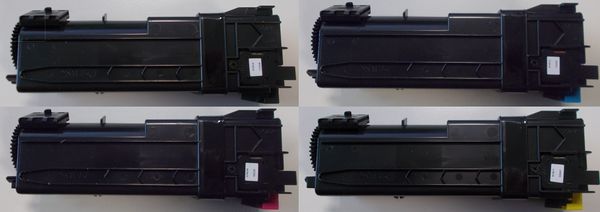

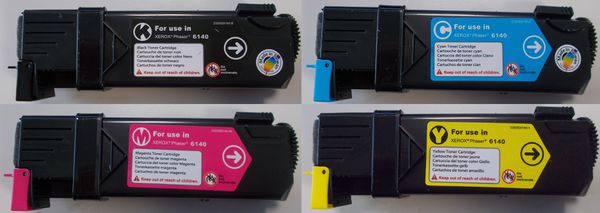

What the cartridges should look like

Compatible Xerox 6140 (Front View)

Compatible Xerox 6140 (Back View)

Compatible Xerox 6140 (Side View)

Compatible Xerox 6140 (Other Side View)

Installation Instructions

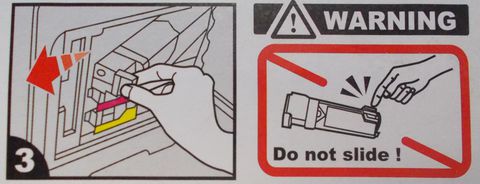

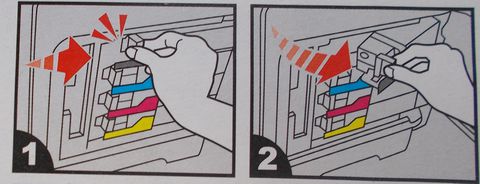

How to remove the old cartridge

Compatible Xerox 6140 (How to remove old cartridge)

Compatible Xerox 6140 (How to remove old cartridge 2)

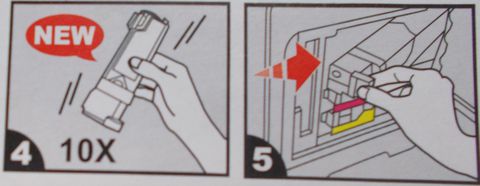

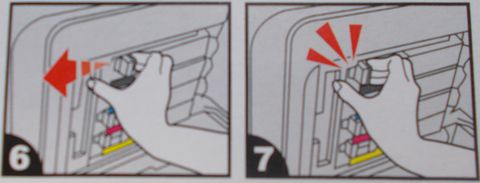

How to install the new cartridge

Compatible Xerox 6140 (How to install new cartridge)

Compatible Xerox 6140 (How to install new cartridge 2)

Problems you might encounter

Problem: Faded Output

Printouts are coming out faded.

Resolution

• If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.

• This movement helps distribute to the toner evenly within the cartridge.

• After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.

Problem: Cartridge is the wrong size

The cartridges are physically a different size or shape.

Resolution

Compatible cartridges will always look different to the original branded cartridges

They will often differ in shape or size but this does not affect the fitting or functionally of the cartridges in any way at all

All trademarks, photos and logos included on this information sheet are the property of their respective owners.

• Phaser 6140
• Phaser 6140DN
• Phaser 6140N
