Problem: Faded Output
Printouts are coming out faded.
Resolution 1
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
Resolution 2
Clean the LED head if vertical white lines appear, images are faded, or the periphery of letters are smudged in the printouts.
- Do not use solvents, such as methyl alcohol or thinners, because they may damage the LED head
- Do not expose the image drum to direct sunlight or strong light.
- Do not touch the fuser, because it is very hot.
Follow the steps below to Clean the LED Head:
- Turn off Machine
- Open the scanner unit
- Press the top cover open button
- Open the top cover
- Wipe the lens of the LED head with a soft tissue paper lightly.
- Close the top cover.
- Close the Scanner unit
Configuration Page
Non Touchscreen Printers
- Press up or down until "PRINT INFO" is selected
- Press ok
- Press up or down until "CONFIGURATION" is selected
- Press ok this will then print a configuration report
Touchscreen Printers
- Press device settings on the touch panel
- Press Reports
- Select Configuration
- Select Yes, this will then print a configuration report
|

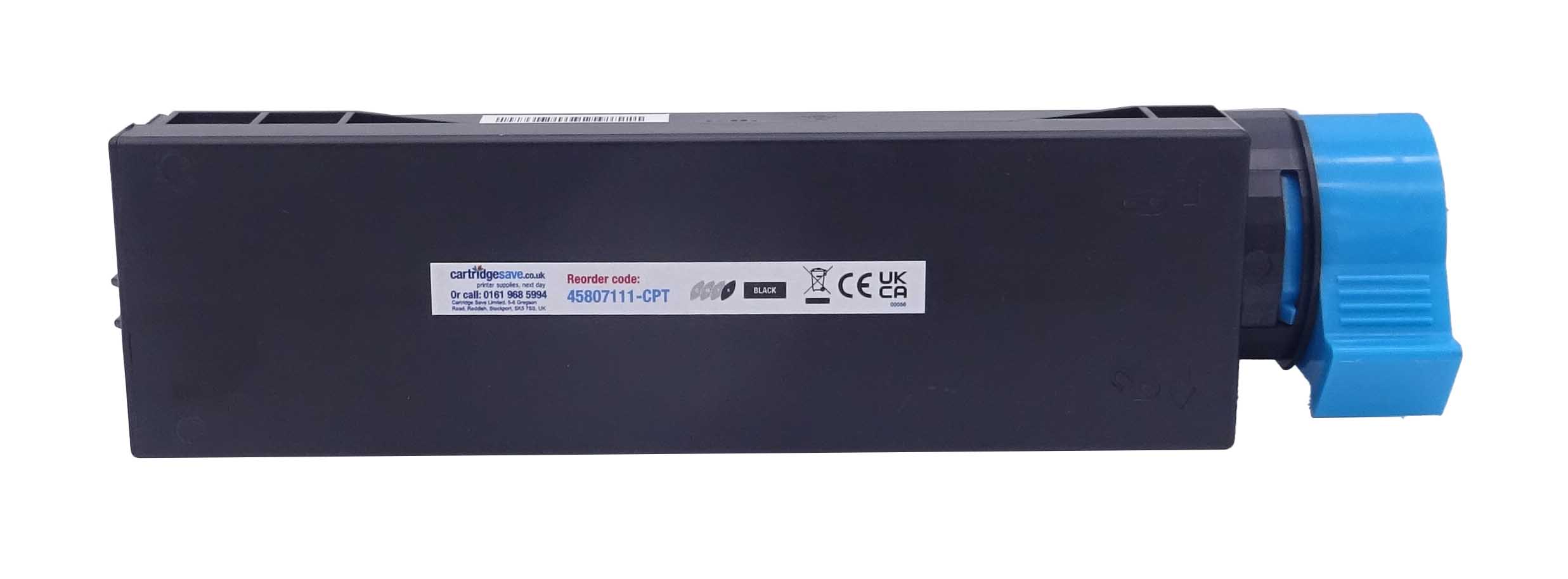

This image shows the front of the cartridge.
|
|
|
|

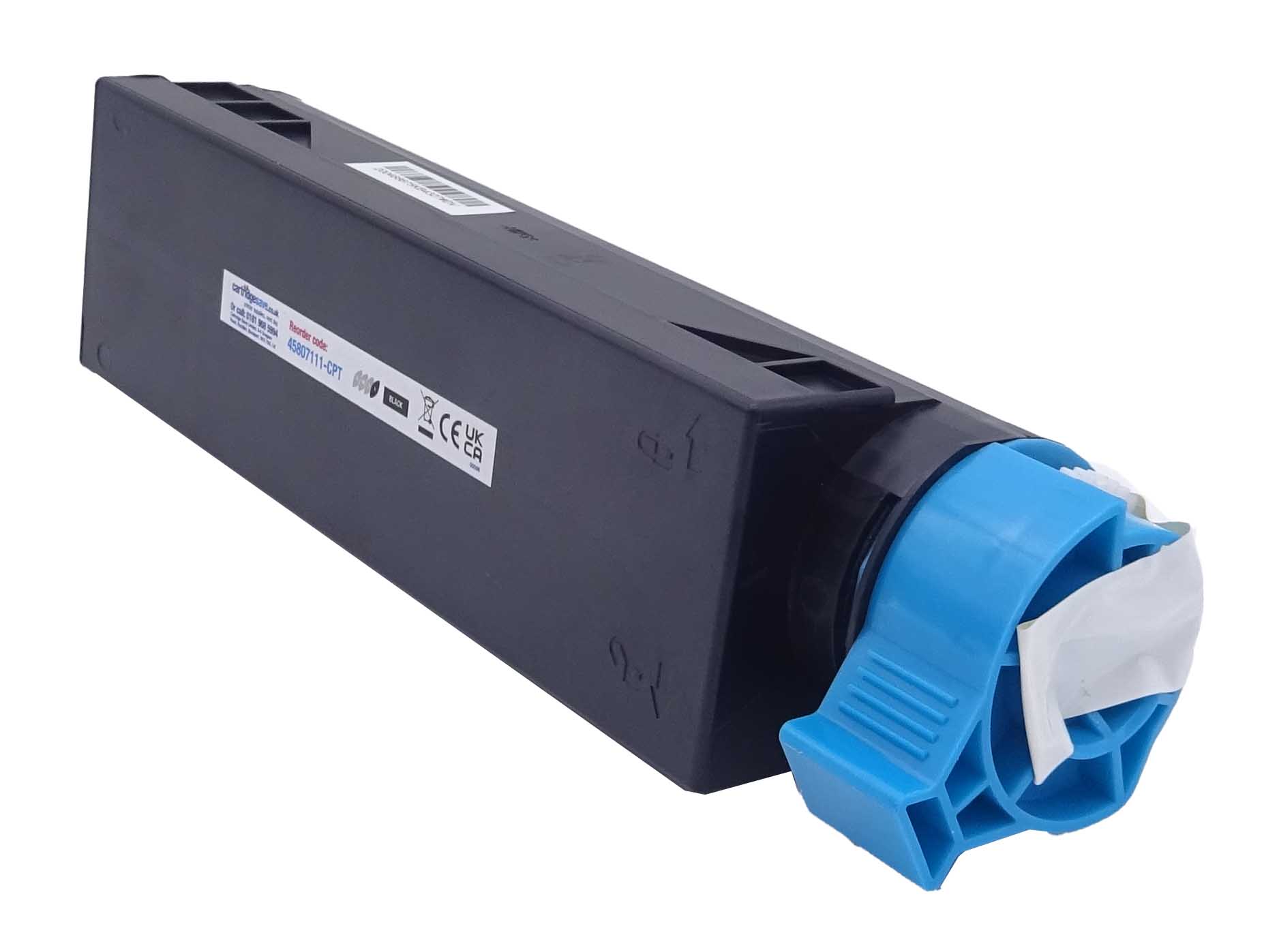

The back of the cartridge can be seen in this image, the white tape must be removed before installation.
|
|
|
|

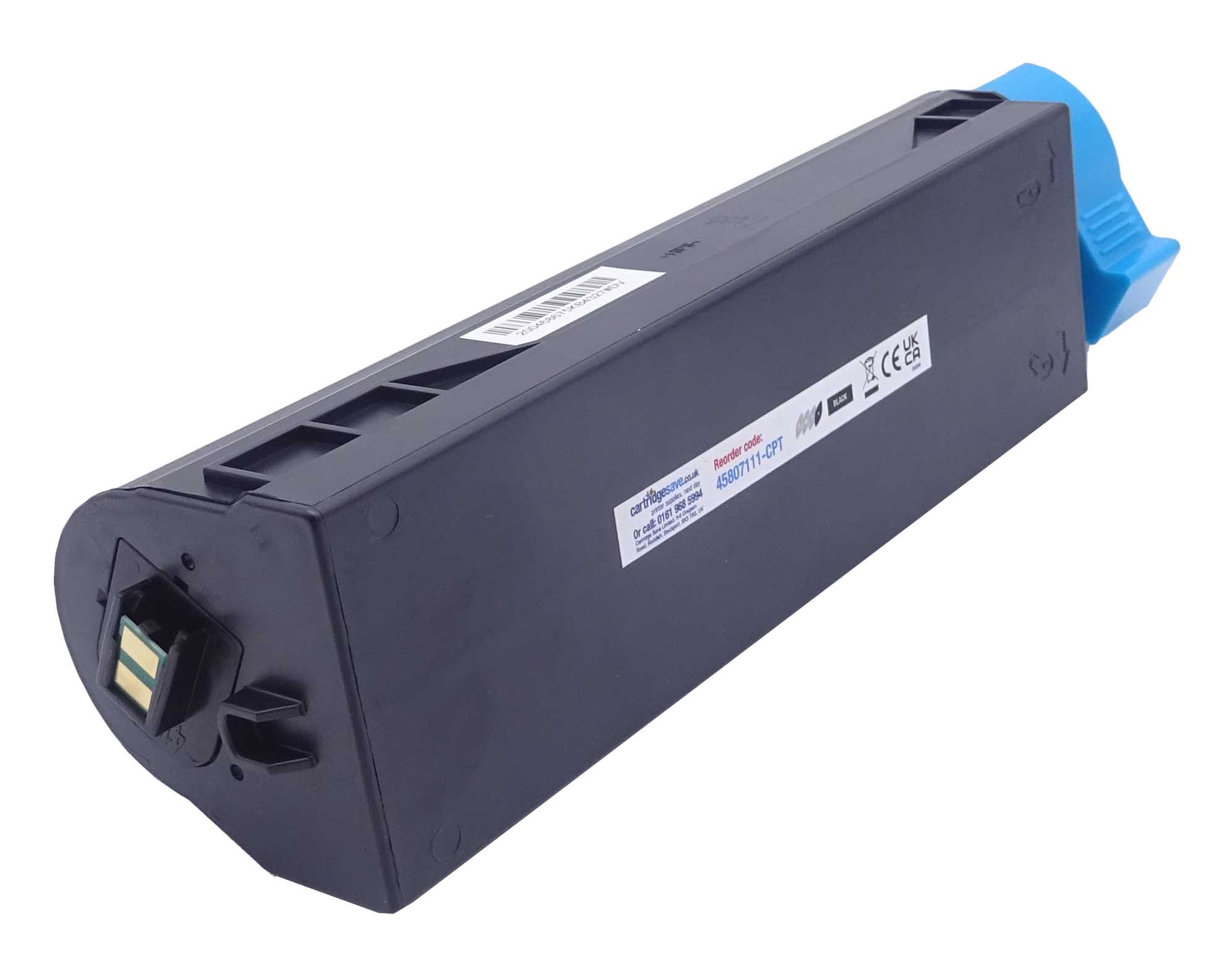

This image shows the left side of the cartridge, please ensure the chip is clear of impurities before installation.
|
|
|
|

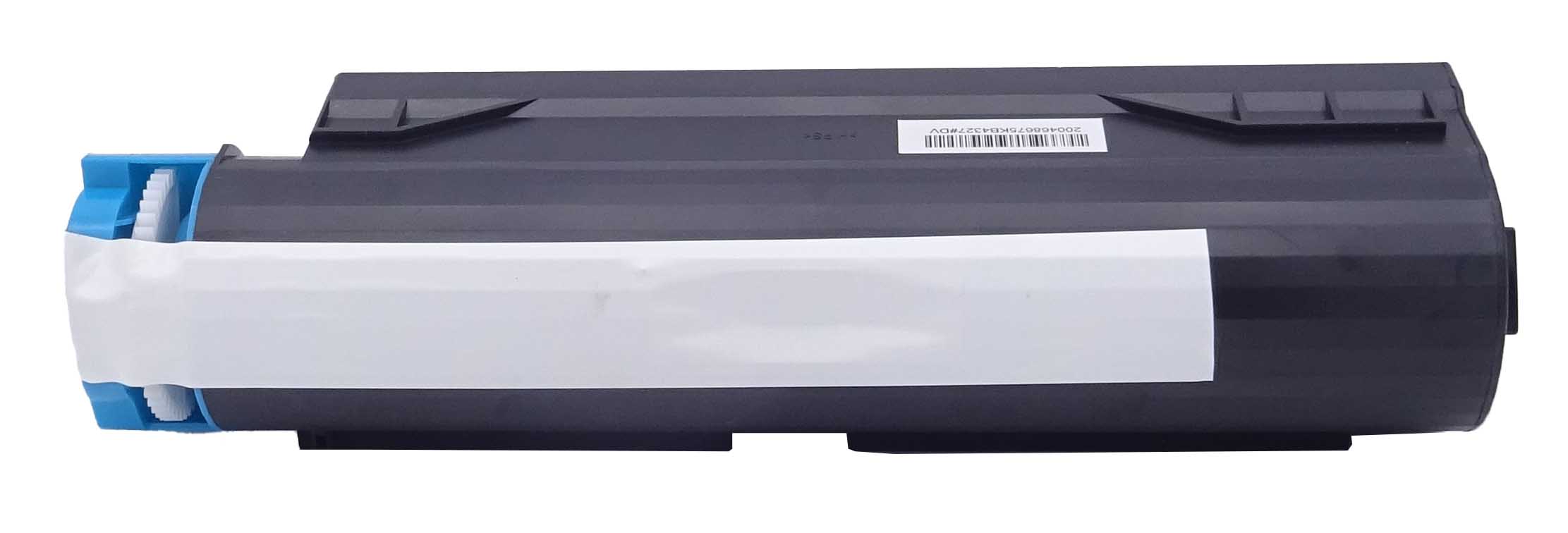

The back of the cartridge can be seen in this image, the batch code is displayed on the small label.
|
|
|
Printers that use Oki 45807111 - HC cartridges
To see a full list of products that work in your printer, click on the model name below:
