Compatible Epson 266 & 267 (C13T26614010-CPT, C13T26704010-CPT)

  • Updated

CS_Lotus.svg

Compatible_Epson_266___267_Title.svg

To view what the cartridges should look like, please click here.

Installation_Instructions.svg

Please follow these instructions for a correct installation:

  1. Power Off the Printer
    Turn off the printer before starting the installation process.

  2. Remove Old Cartridges
    Open the printer cover and carefully remove any old or used cartridges.

  3. Prepare the New Cartridges
    Take the new compatible cartridges out of their packaging. Remove the yellow protective tape from each cartridge—do not touch the chip or the ink nozzles.

  4. Install the New Cartridges
    Insert each cartridge into its corresponding color slot. Press down firmly until you hear a click, indicating they are securely in place.

  5. Close the Printer Cover
    Once all cartridges are installed, close the cover and power the printer back on.



Problems_you_may_encounter.svg

Error_Messages.svg

Problem: the ink cartridge is not recognised

The cartridge has been installed correctly but the printer is not registering it as installed.

Resolution:

  1. Remove the tape: check if any protective tape or seals need to be removed from the cartridges.
  2. Clean contacts: gently clean the electrical contacts on both the cartridge and the printer with a lint-free cloth.
  3. Reset the printer: try resetting the printer's memory by turning it off for 2 minutes and then back on.





What_the_cartridges_should_look_like.svg

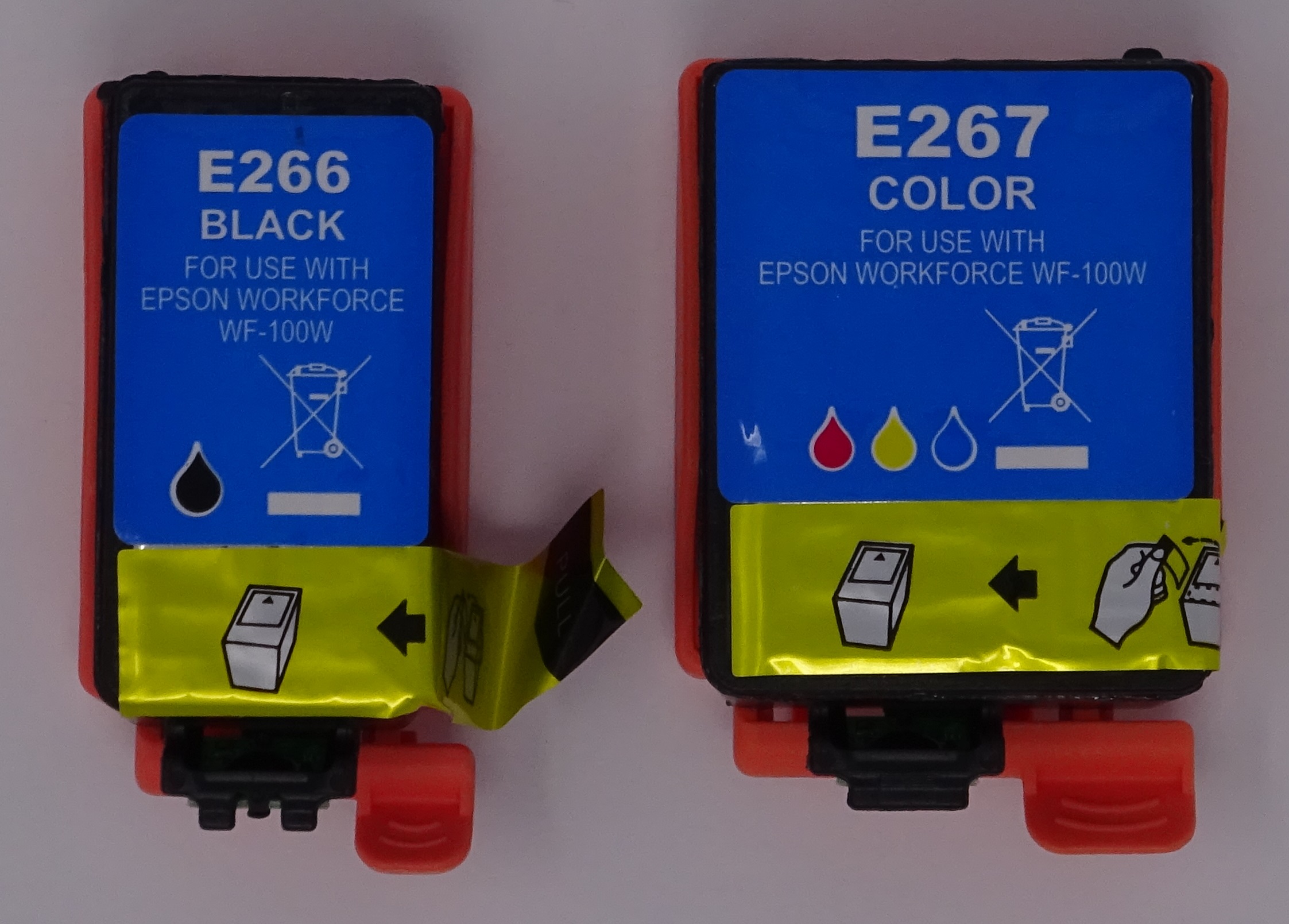

This is the top view of the cartridges.
Please ensure the yellow pull tab is removed before removing the orange clip

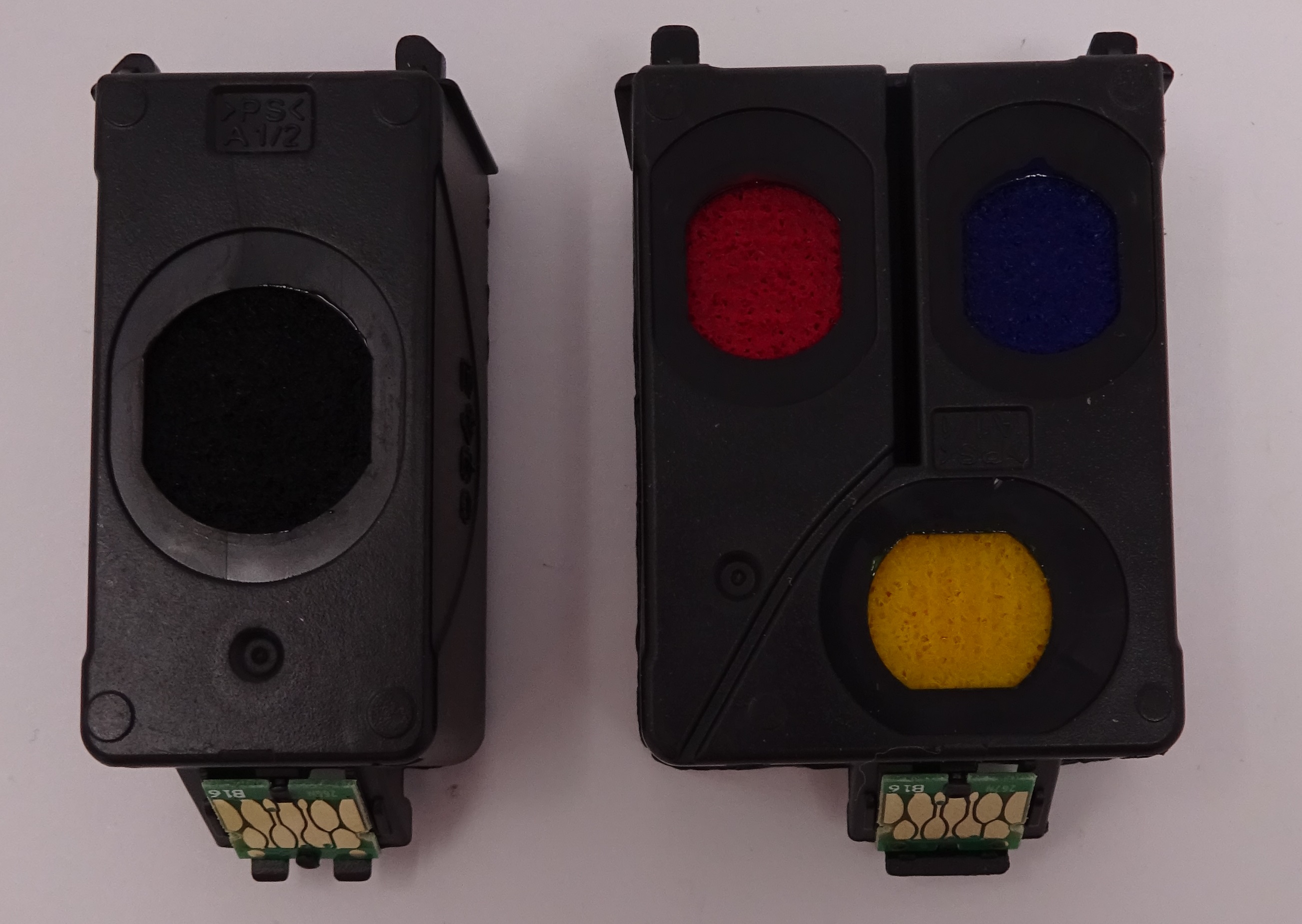

This is the bottom view of the cartridges with the orange clip removed.
The ink sponges can dry out so please ensure that they are not left uncovered if not in use.

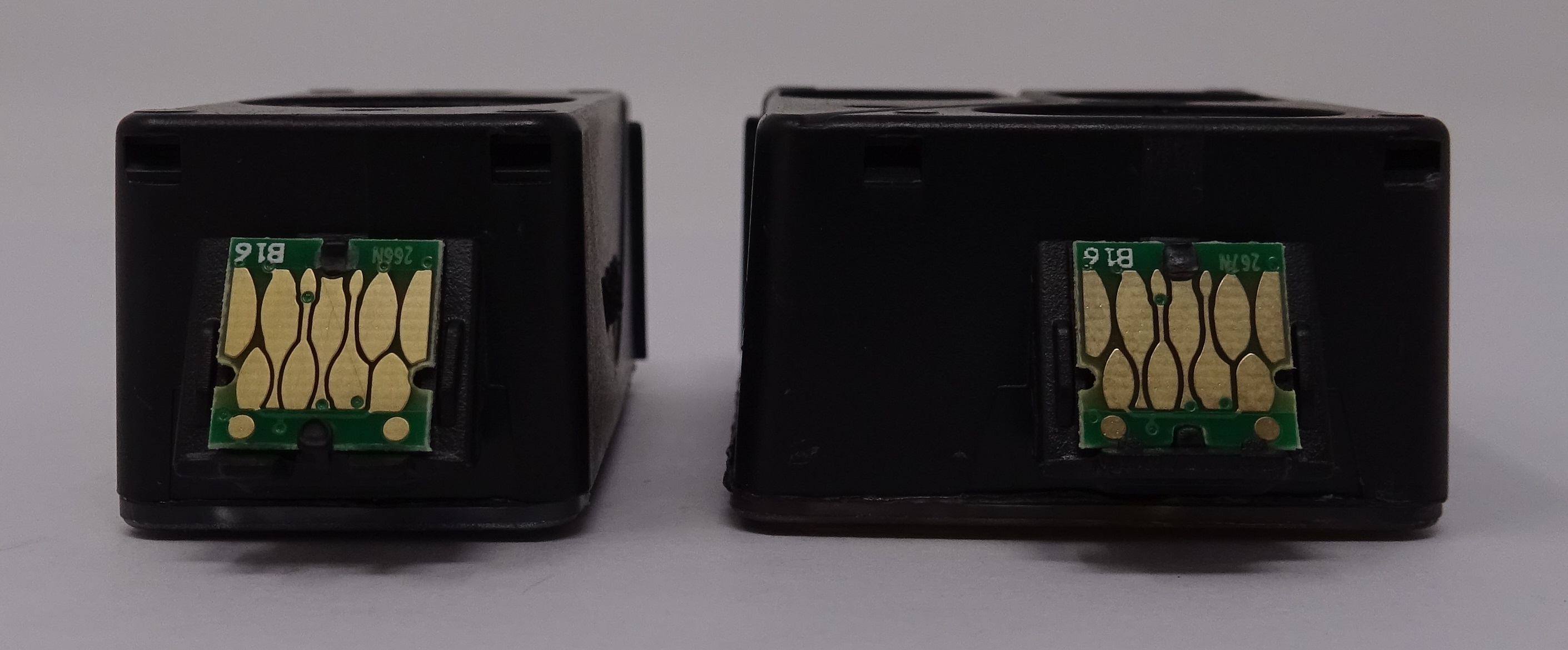

This is the back view of the cartridge showing the chip.
Please ensure that the chip is clean and avoid touching the contacts

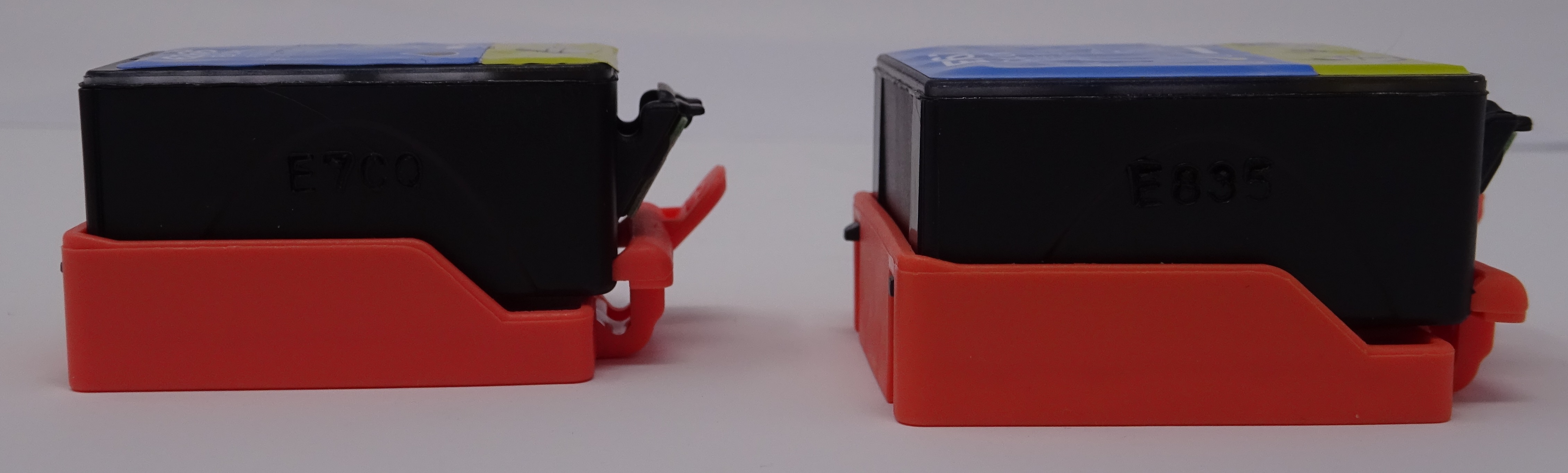

Compatible Epson 266 & 267 (Side View with Clip on)

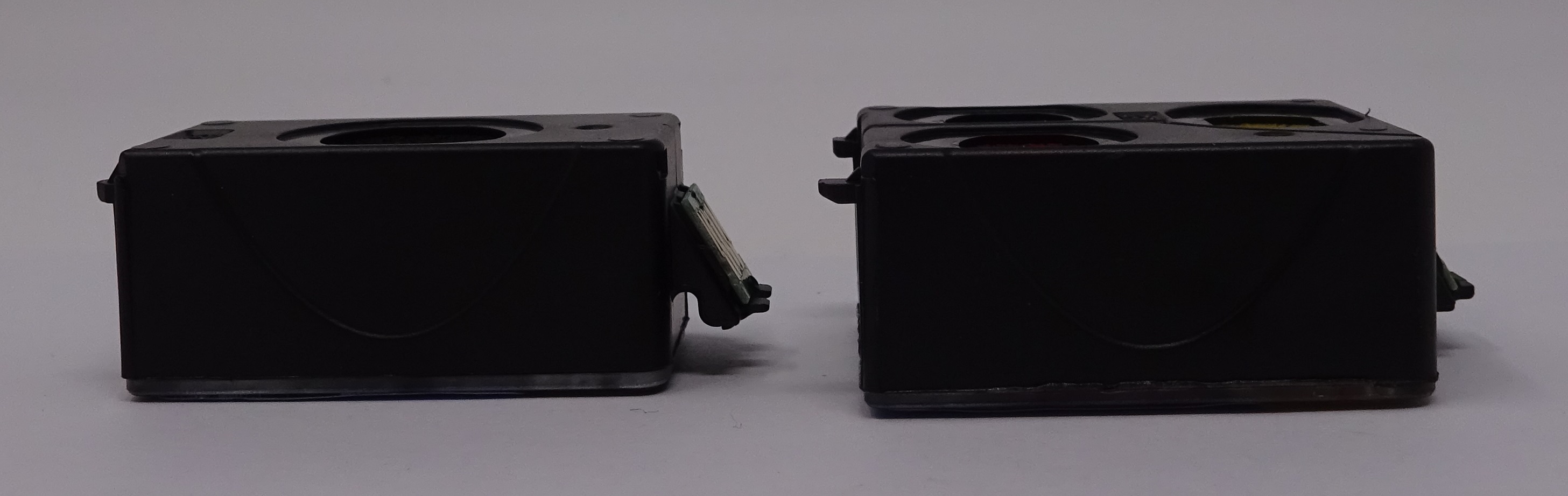

Compatible Epson 266 & 267 (Side View with Clip removed)

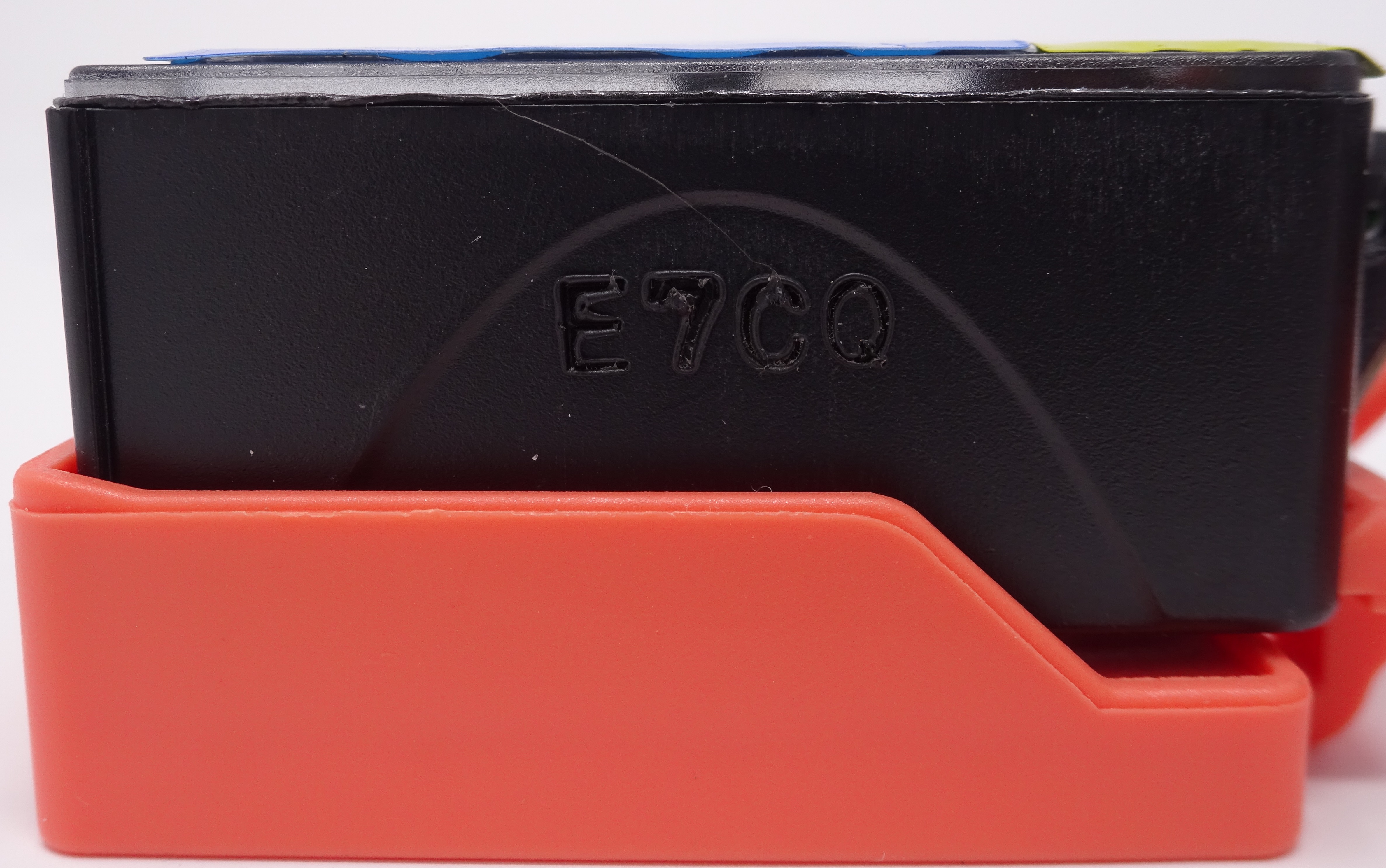

Compatible Epson 266 & 267 (Batch Code Location)



To go back to the troubleshooting, please click here.





Printers that use Epson 266 & 267 cartridges

To see a full list of products that work in your printer, click on the model name below:

WorkForce WF-100
WorkForce WF-100W
WorkForce WF-110W
