Compatible Epson 18XL (T1811-CPT, T1812-CPT, T1813-CPT, T1814-CPT)

  • Updated

Product_Information.jpg Cartridge_Images_Title.jpg

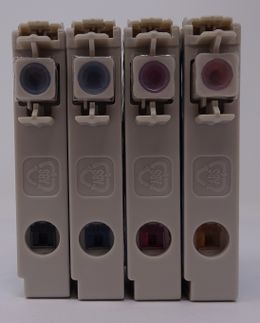

Compatible Epson 18 (Top View)

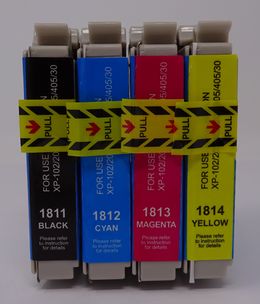

Compatible Epson 18 (Bottom View)



Compatible Epson 18 (Chip View)
Compatible Epson 18 (Front View)



Compatible Epson 18 (Side View)
Compatible Epson 18 (Side View)



Compatible Epson 18
(Side View Tab Removed)
Compatible Epson 18
(Plastic Seal)




Problems During Installation

If there has been a full set of genuine cartridges installed in the printer prior to installing the new compatible cartridges then a full compatible cartridge replacement may be required if the error message (Cartridge is not compatible) appears

If this error message still appears after this troubleshooting or you don't have a full set of compatible cartridges available please consult the "Problems you might encounter" section below

  • This incompatible cartridge error message appears when the printer detects that there is both genuine and compatible cartridges installed in the printer
  • To do a full genuine to compatible replacement please follow the steps below:
  • 1. Remove all the cartridges currently installed in the printer and turn the printer off. Leave it off for 15 minutes then turn it back on
  • 2. Re-install a full set genuine Epson ink cartridges in the printer - These genuine cartridges can be half full or even empty
  • 3. Once the genuine cartridges have been detected, remove and the replace them with compatible cartridges.
3a. Note: This must be done in one go



Problem: Error (Cartridge is not compatible)

The compatible cartridge has been installed correctly and the error message (Cartridge is not compatible) has appeared

Resolution

1. Remove the affected cartridge/cartridges from the printer
2. Turn the printer off and wait for 2 minutes
3. Turn your printer back on and wait for a further 2 minutes
4. Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time




Problem: Fading on print

The printer is producing very faded print.

Resolution

  • If the print quality is poor, try performing a couple of head cleans/nozzle cleans.
  • Leave 20 minutes between each clean.

Resolution 2

  • Go into the print settings and set the printing option to “best photo”
  • Go To:
  • Properties
  • "Main" Tab
  • Select "Best Photo"
  • Use this setting for 8-10 prints to improve print quality
  • Once the ink quality has returned to normal, change the print settings back to default



Problem: Printing blank pages

The printer is not producing any output

Resolution

  • Firstly check that the yellow tab has been removed from the cartridge
  • If it hasn't been removed, remove it and re-install the cartridge
  • If it has been removed, try doing 2 head cleans/nozzle cleans
  • Leave 20 minutes between each clean

Resolution 2

  • Go into the print settings and set the printing option to “best photo”
  • Go To:
  • Properties
  • "Main" Tab
  • Select "Best Photo"
  • Use this setting for 8-10 prints to improve print quality
  • Once the ink quality has returned to normal, change the print settings back to default
