If there has been a full set of genuine cartridges installed in the printer prior to installing the new compatible cartridges then a full compatible cartridge replacement may be required if the error message (Cartridge is not compatible) appears
If this error message still appears after this troubleshooting or you don't have a full set of compatible cartridges available please consult the "Problems you might encounter" section below
- This incompatible cartridge error message appears when the printer detects that there is both genuine and compatible cartridges installed in the printer
- To do a full genuine to compatible replacement please follow the steps below:
-
- 1. Remove all the cartridges currently installed in the printer and turn the printer off. Leave it off for 15 minutes then turn it back on
-
- 2. Re-install a full set genuine Epson ink cartridges in the printer - These genuine cartridges can be half full or even empty
-
- 3. Once the genuine cartridges have been detected, remove and the replace them with compatible cartridges.
-
- 3a. Note: This must be done in one go
Problem: Cartridge is not fitting correctly
The cartridge will install but not push down fully
Resolution
Check with the end user that all seals are removed

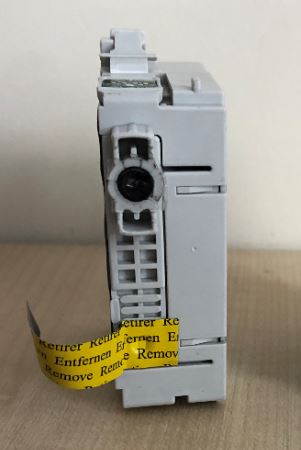

- If the below yellow seal is not removed, the cartridge will not install fully.
Once this seal is removed, the cartridge should push down into position.
Problem: Printing blank pages
The ink cartridge printed one or two pages and then stopped printing.
Resolution
- It could be that the tape that covers the breathing hole has not been removed
- Be sure the breathing hole on the cartridge has been released usually by removing a small “rip strip” so that the cartridge has air supply then it can print.
Problem: Cartridge not recognised
The cartridge has been working for a while but the cartridge has suddenly stopped working and the printer is reporting that the cartridge is no longer recognised
Resolution
This means that the cartridge is empty.

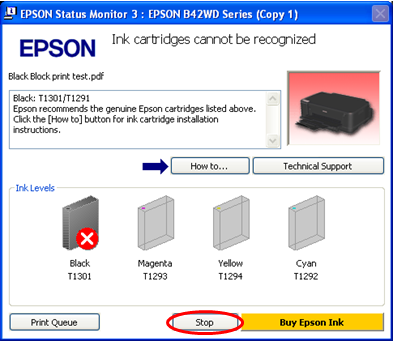

- At this point the user should click the ‘Stop’ button and replace the depleted cartridge.

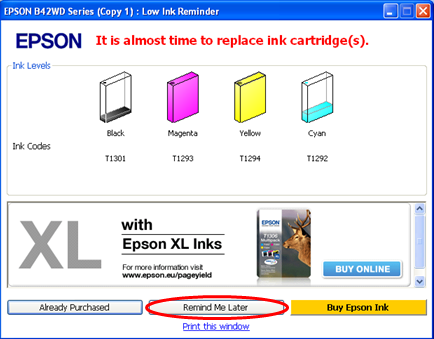

Problem: Error (Replace Ink Cartridges)
A low ink reminder has appeared on screen when a print is sent to the printer
Resolution
Click ‘Remind Me Later’ and continue with the printing, until the following message is displayed.
Problem: Error (Cartridge is not compatible)
The compatible cartridge has been installed correctly and the error message (Cartridge is not compatible) has appeared
Resolution
- 1. Remove the affected cartridge/cartridges from the printer
- 2. Turn the printer off and wait for 2 minutes
- 3. Turn your printer back on and wait for a further 2 minutes
- 4. Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time
|

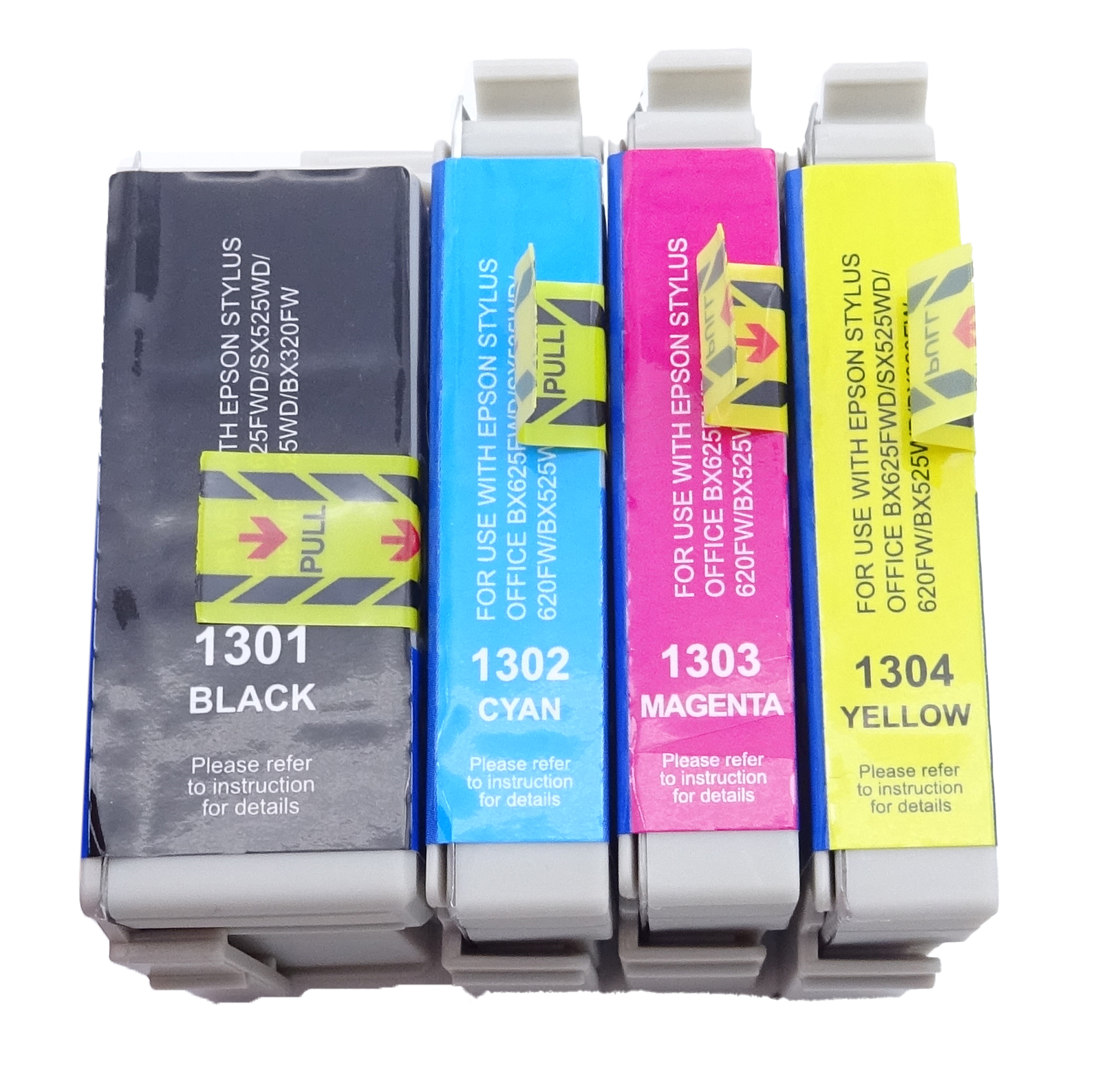

This image shows the front of the cartridge, match the colour to the slot in the printer.
|
|
|
|

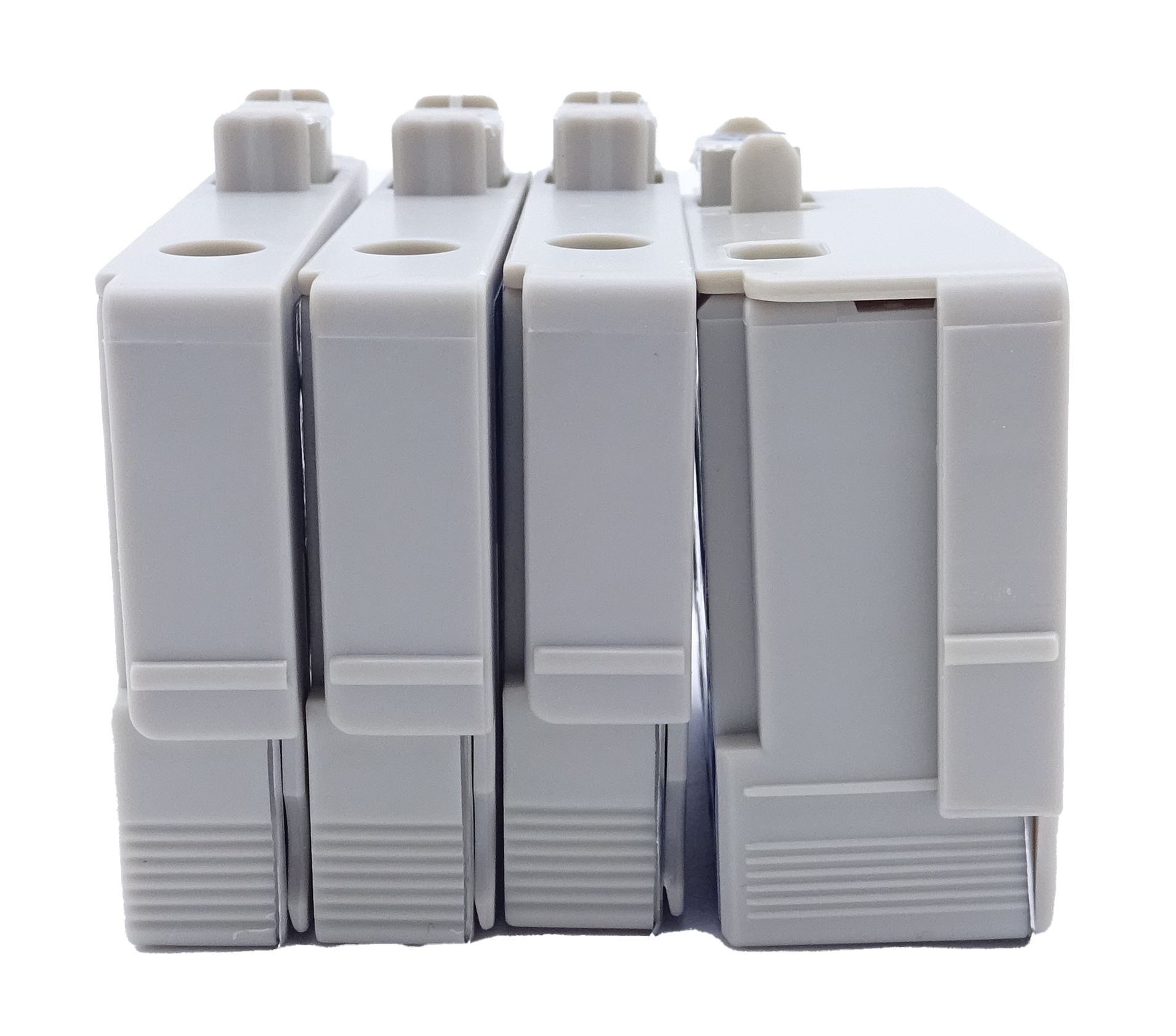

The back of the cartridge can be seen in this image, do not remove the plastic seal.
|
|
|
|

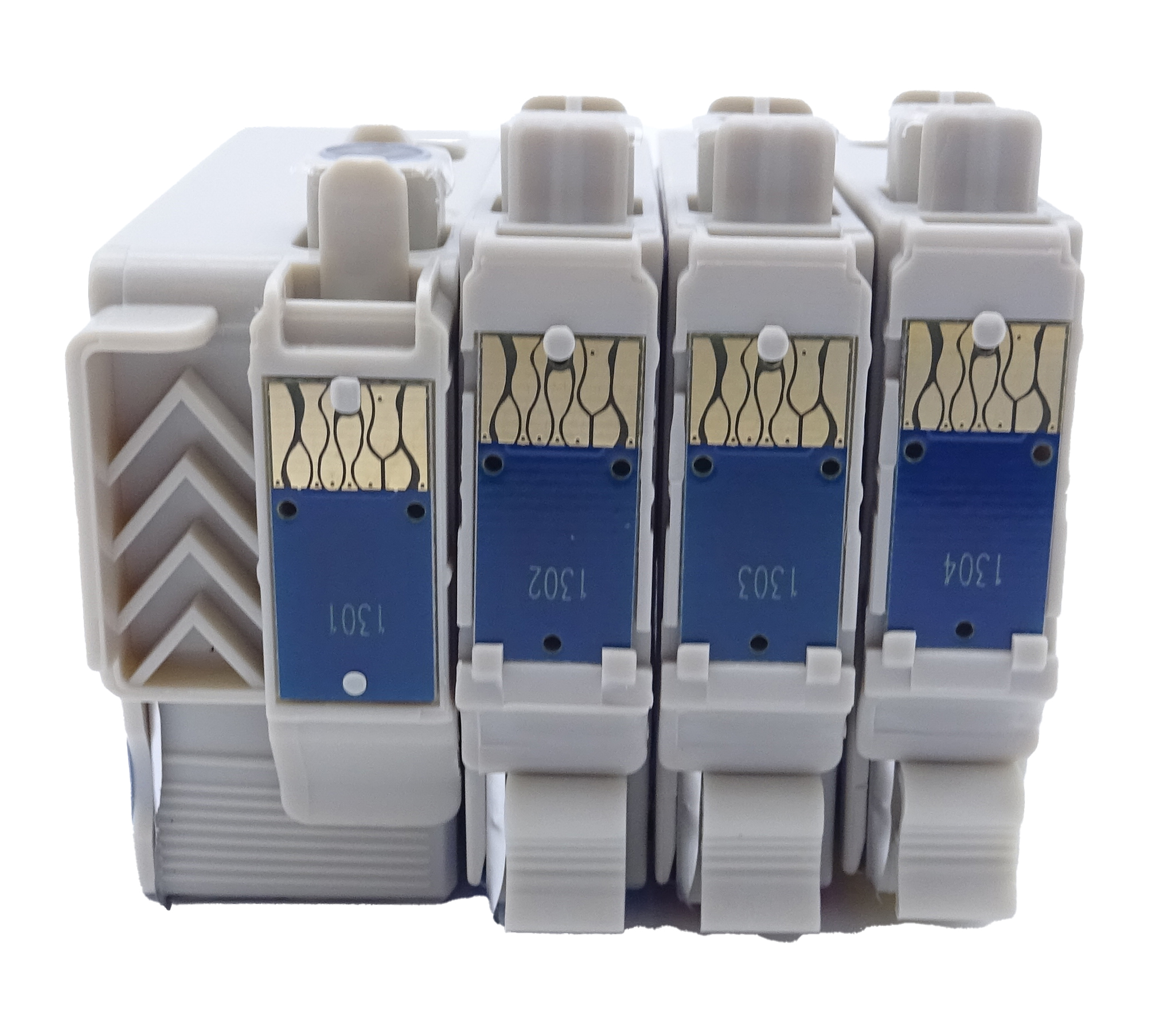

This image shows the top of the cartridge, the chip must be clear of impurities before installation.
|
|
|
|

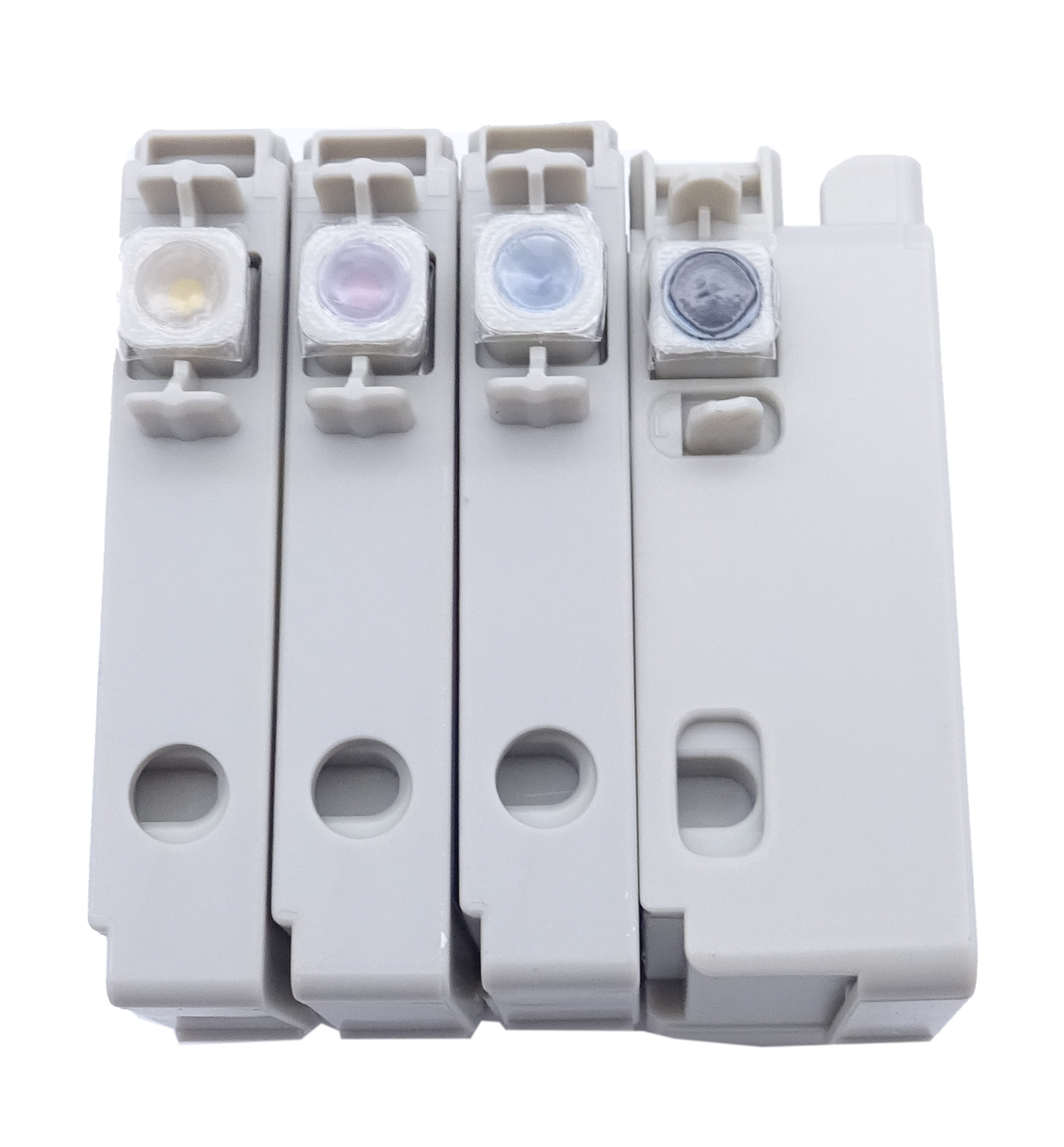

The bottom of the cartridge can be seen in this image.
|
|
|
Printers that use Epson T130 cartridges
To see a full list of products that work in your printer, click on the model name below:
