Compatible Canon BX-3 (BX-3-RET)

What the cartridges should look like

Compatible Canon BX-3 (Printhead View With Clip)

Compatible Canon BX-3 (Printhead View Without clip)

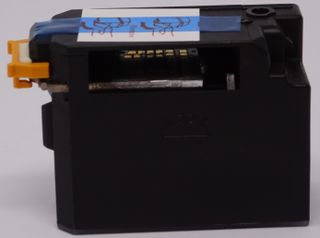

Compatible Canon BX-3 (Side + Chip View)

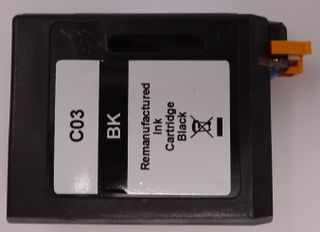

Compatible Canon BX-3 (Front View)

Problems you might encounter

Problem: Error (Cartridge missing or damaged)

The printer is reporting the error (Cartridge missing or damaged)

Resolution

• Remove the faulty cartridge from the printer

• Make sure all the packaging clips and blue tape covering the copper part of the cartridge has been removed from the cartridge + clean the contacts with a dry cloth / tissue

• Pull the power cable out the back of the printer and leave the printer off for 15 minutes

Problem: Cartridge reporting low/empty ink

A message appears when the cartridges have been installed saying that the cartridges are empty

Resolution

• 1. Insert the cartridges and try to send a document to print

• 2. Wait until the Low/empty ink error message appears

• 3. With the error message still on screen, hold down the cancel button (the round button with a diamond shape in the middle) for 5 seconds (Add 5 seconds if it doesn't work)

• 4. This should reset the cartridge and allow printing

All trademarks, photos and logos included on this information sheet are the property of their respective owners.

• BJC-265SP
• Fax B100
• Fax B110
• Fax B115
• Fax B120
• Fax B140
• Fax B150
• Fax B155
• Fax B540
• Fax B550
• Fax B600
• Fax B640
• Fax B820
• Fax B840
• MultiPass 10
• MultiPass 1000
• MultiPass 800
• MultiPass 820
• MultiPass C10
