Compatible Epson 29XL
(Top View)
|
Compatible Epson 29XL
(Bottom View + Plastic Seal Location)
|
|
|
Compatible Epson 29XL
(Front View)
|
Compatible Epson 29XL
(Back View)
|
|
|
Compatible Epson 29XL
(Side View)
|
Compatible Epson 29XL
(Side View)
|
|
|
Compatible Epson 29XL
(Side View - Tab Removed)
|
Compatible Epson 29XL
(Plastic Seal Close Up)
|
Problem: Cartridge not recognised

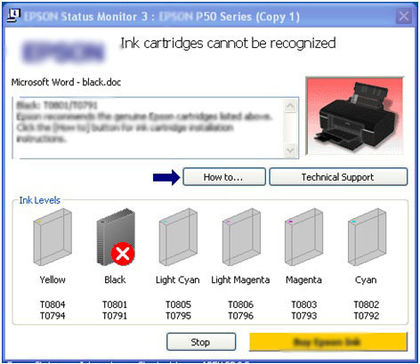

The cartridge is showing as not recognised. (See below for an example of this message)
Resolution 1
- This error can sometimes be displayed due the cartridge being incorrectly seated in the printer.
- Remove the affected cartridge from the printer
- Reinstall the cartridge and firmly press down on the top of the cartridge.
- Shut the printer lid and wait for the error to disappear from the LCD display.
Resolution 2
- This message is displayed when the ink runs out on a compatible cartridge to discourage the use of compatible cartridges.
- The print yield of the compatible cartridge should be equal to the original.
- If the cartridge hasn't reached the print yield but displays this message it could be a fault
- - Remove the affected cartridge from the printer and power off the printer

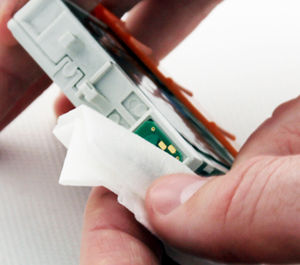

- - Check to see if there's ink left in the cartridge and wipe the chip with a dry cloth
- - Turn the printer back on and install the cartridges one at a time
Problem: No Output/ Blank pages
Printouts are blank and have no print on them.
Resolution 1
- The plastic seal will be pierced upon installation allowing ink to be used, please check that it has been upon installation if not push the cartridge firmly upon installation.
-
- All trademarks, photos and logos included on this information sheet are the property of their respective owners.
