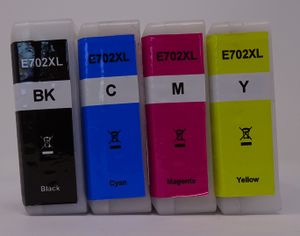

Compatible Epson T702 (Front View)
|

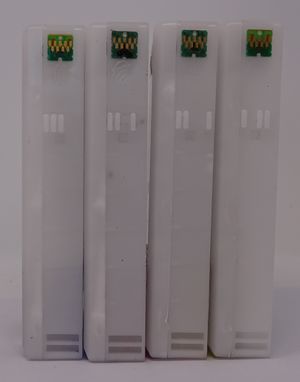

Compatible Epson T702 (Back View)
|
|
|
|
|

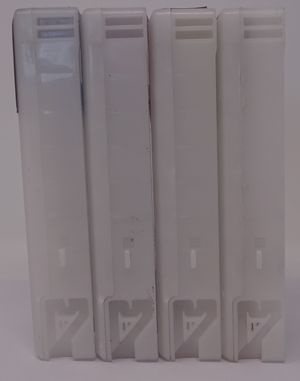

Compatible Epson T702 (Side View 1)
|
Compatible Epson T702 (Side View 2))
|
|
|
|
|

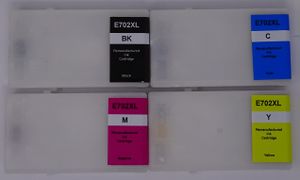

Compatible Epson T702 (Top View)
|

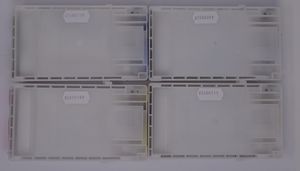

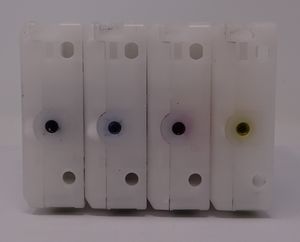

Compatible Epson T702 (Bottom View)
|
|
|
|
|

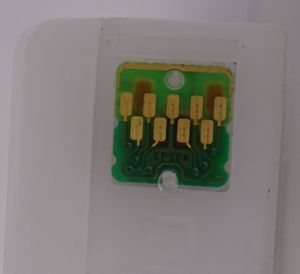

Compatible Epson T702 (Chip View)
|

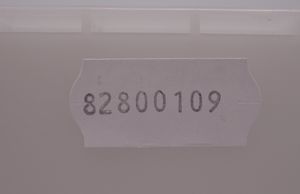

Compatible Epson T702 (Batch Code Example)
|
|
|
|
Problems During Installation
If there has been a full set of genuine cartridges installed in the printer prior to installing the new compatible cartridges then a full compatible cartridge replacement may be required if the error message (Cartridge is not compatible) appears
If this error message still appears after this troubleshooting or you don't have a full set of compatible cartridges available please consult the "Problems you might encounter" section below
- This incompatible cartridge error message appears when the printer detects that there is both genuine and compatible cartridges installed in the printer
- To do a full genuine to compatible replacement please follow the steps below:
-
- 1. Remove all the cartridges currently installed in the printer and turn the printer off. Leave it off for 15 minutes then turn it back on
-
- 2. Re-install a full set genuine Epson ink cartridges in the printer - These genuine cartridges can be half full or even empty
-
- 3. Once the genuine cartridges have been detected, remove and the replace them with compatible cartridges.
-
- 3a. Note: This must be done in one go
Problem: Error (Cartridge is not compatible)
The compatible cartridge has been installed correctly and the error message (Cartridge is not compatible) has appeared
Resolution
- 1. Remove the affected cartridge/cartridges from the printer
- 2. Turn the printer off and wait for 2 minutes
- 3. Turn your printer back on and wait for a further 2 minutes
- 4. Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time
Printers that use Epson T702 cartridges
- WorkForce Pro WP-4015DN
- WorkForce Pro WP-4025DW
- WorkForce Pro WP-4095 DN6
- WorkForce Pro WP-4515DN
- WorkForce Pro WP-4525DNF
- WorkForce Pro WP-4535DWF
- WorkForce Pro WP-4545DTWF
- WorkForce Pro WP-4595 DNF
- WorkForce Pro WP-4595DNF6
-
- All trademarks, photos and logos included on this information sheet are the property of their respective owners.
