GP-200

Canon imagePROGRAF GP-200
Compatible Canon PFI-120 overview
Compatible Canon PFI-120

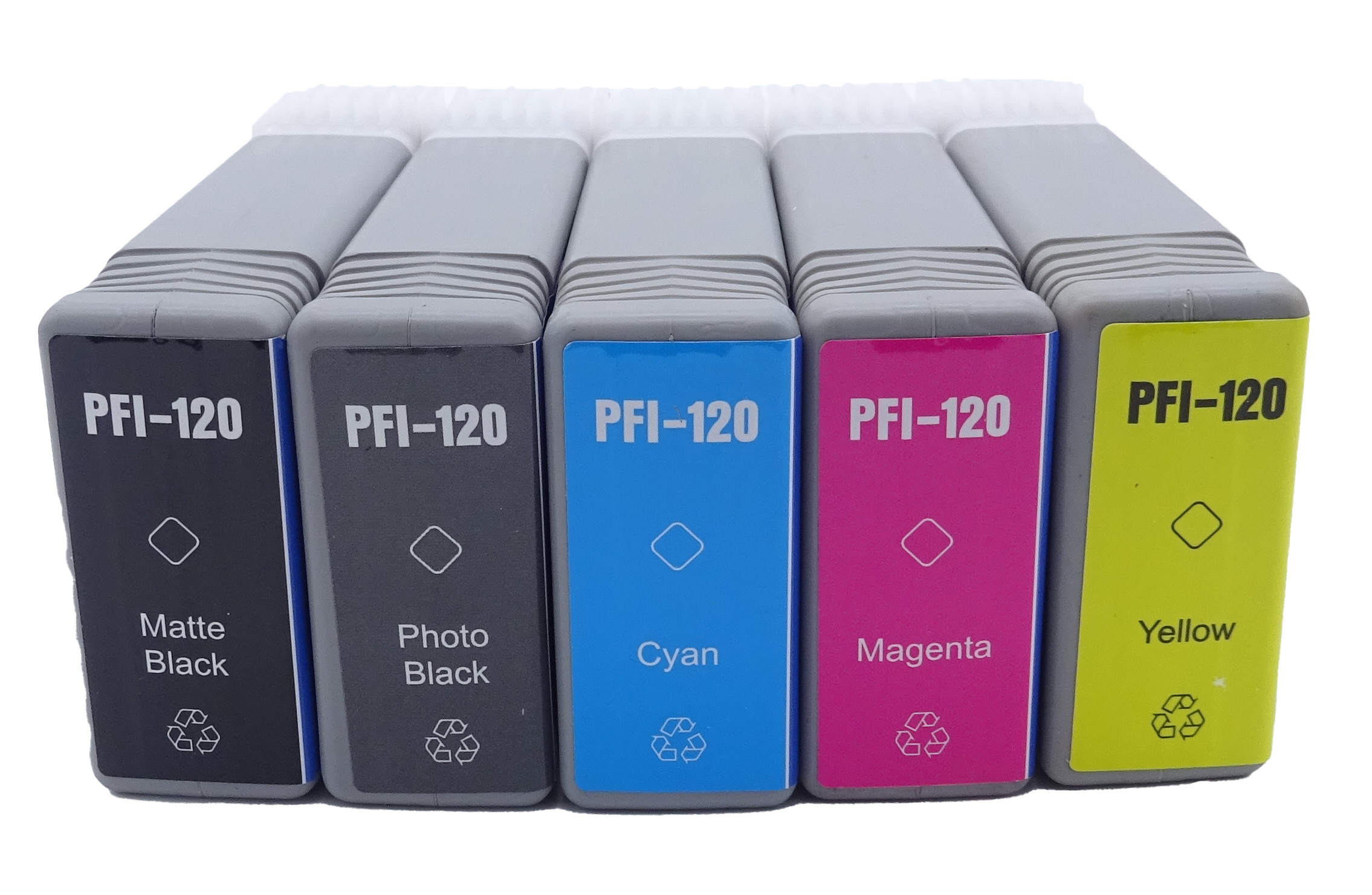

This image shows the front of the cartridge, the colour and product code is displayed here.

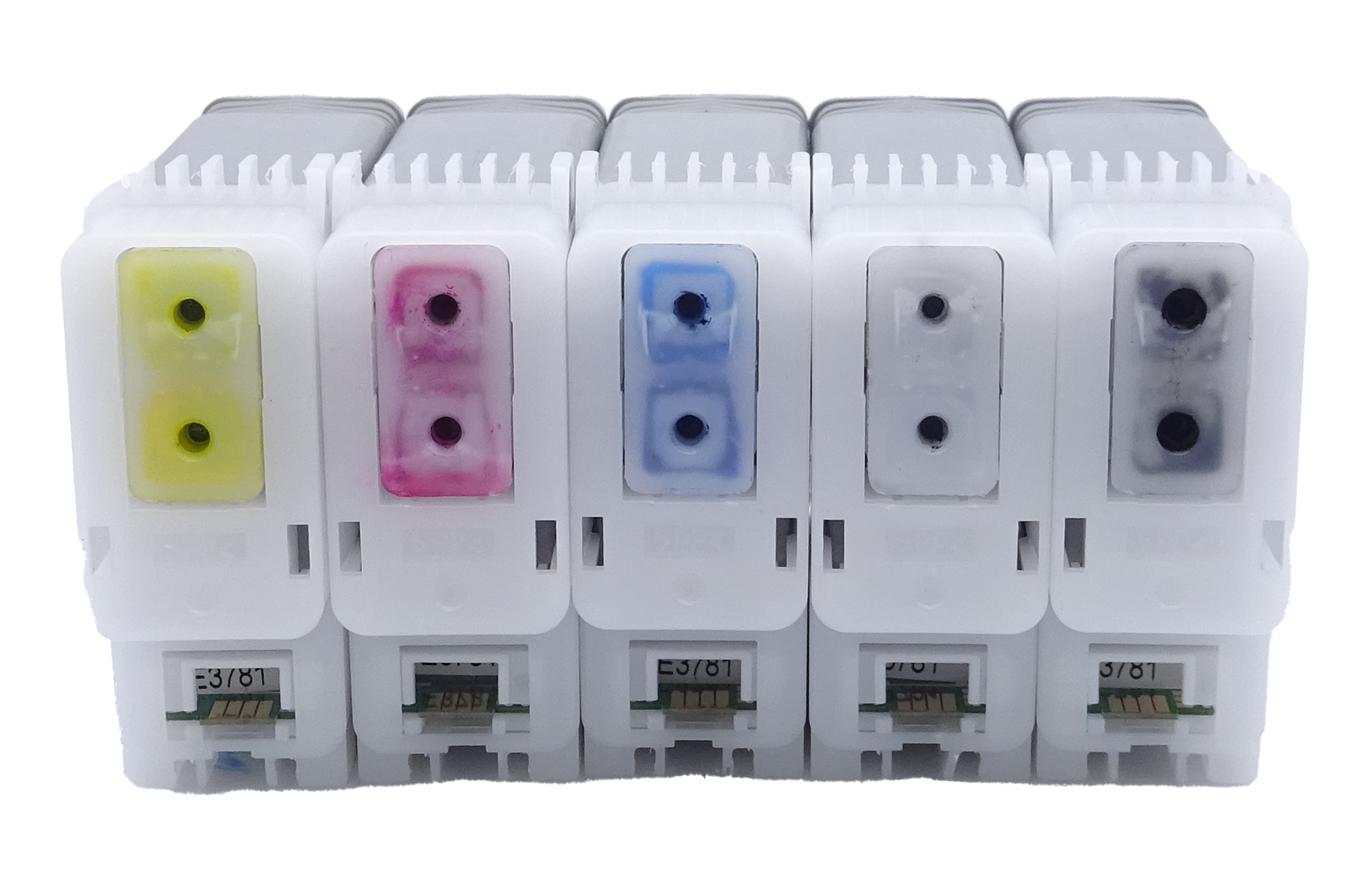

The back of the cartridge can be seen in this image, please ensure the chip is clear of impurities before installation.

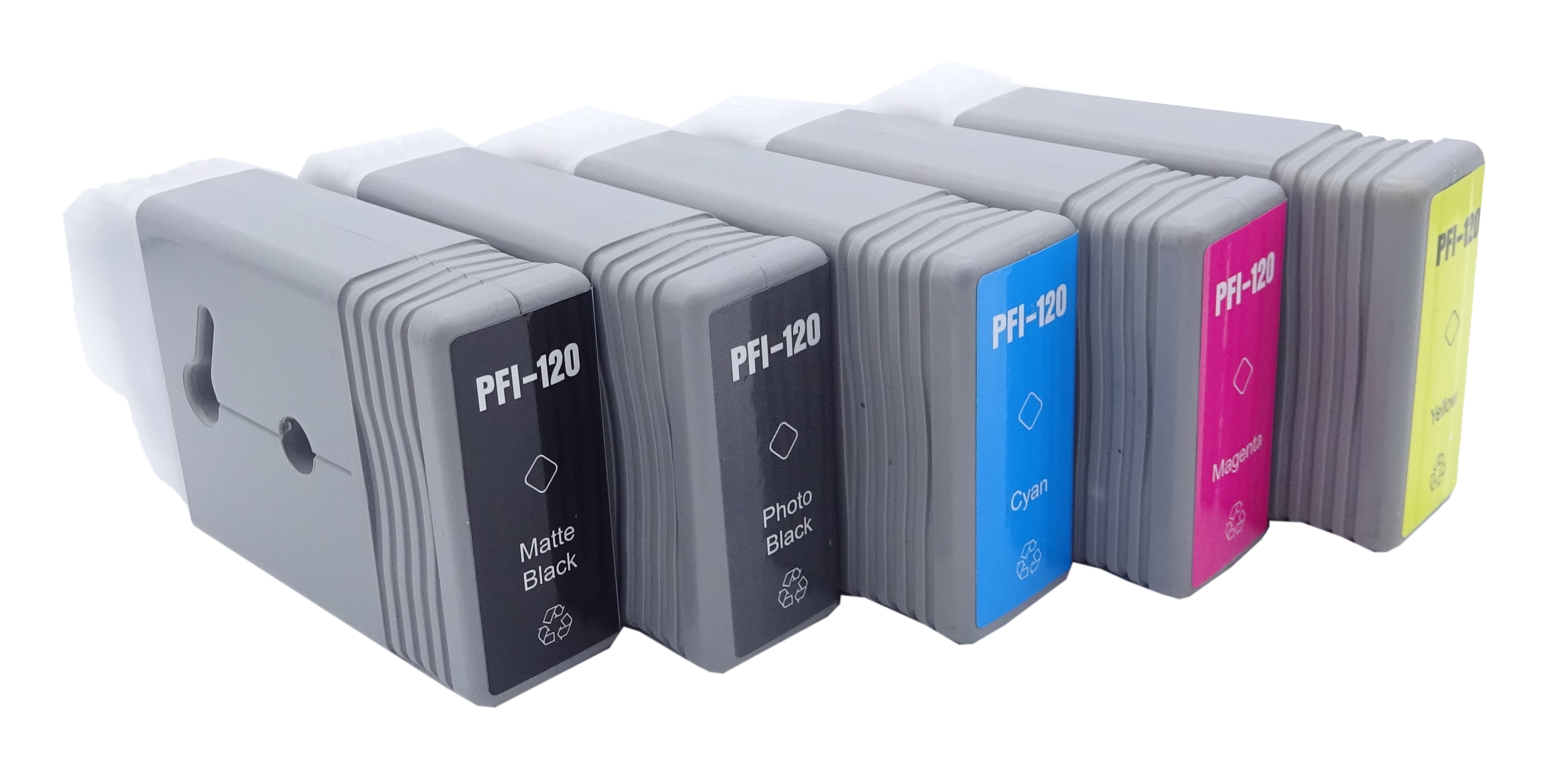

This image shows the left side of the cartridge.

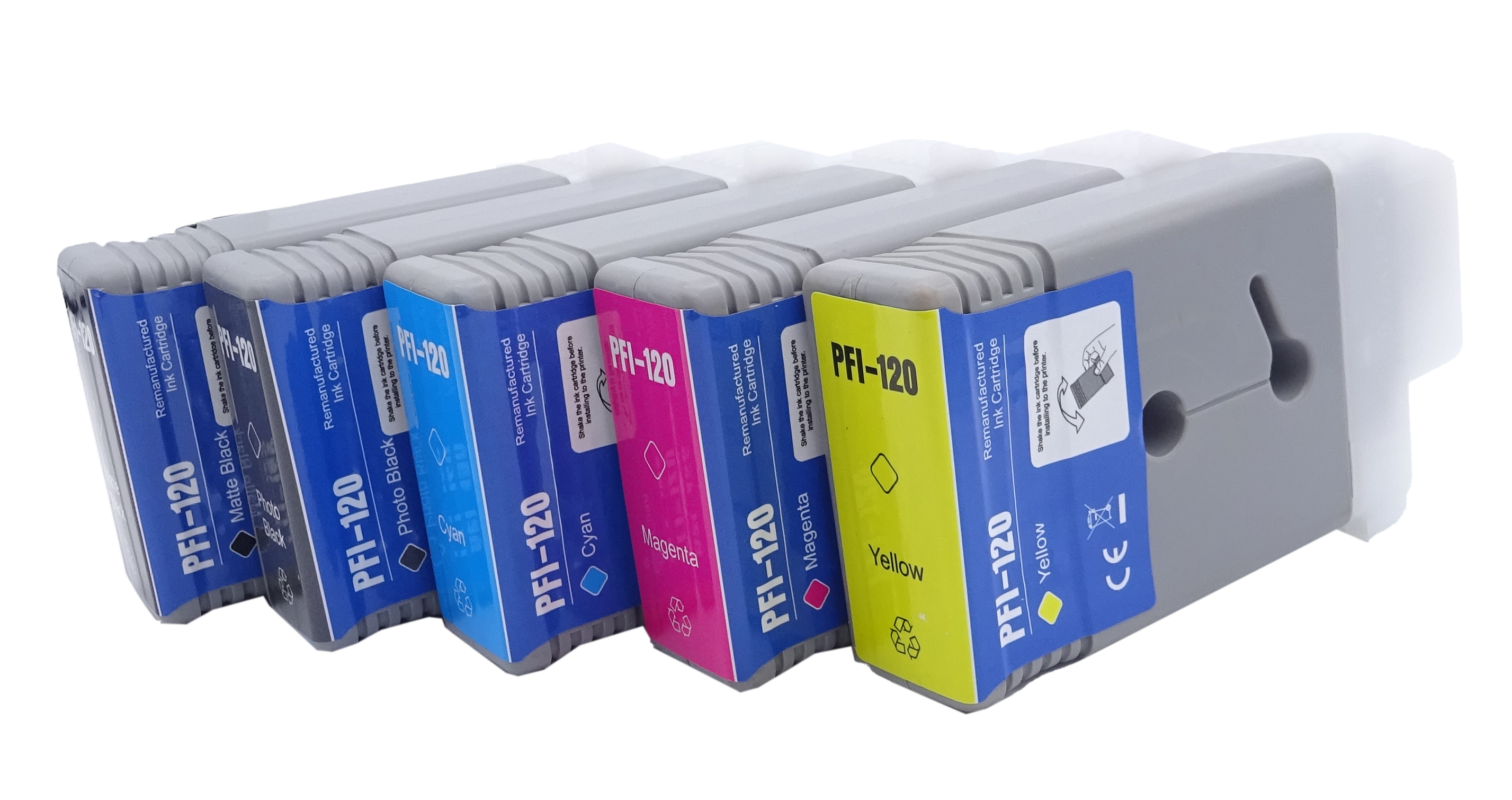

The right side of the cartridge can be seen in this image.
Printer cartridge installation
Cartridge not compatible / Cartridge not recognised
  • The compatible cartridge has been installed correctly but the printer is not registering it as installed or states it is not compatible.
  • Remove the affected cartridge/cartridges from the printer.
  • Turn the printer off and wait for 2 minutes.
  • Turn your printer back on and wait for a further 2 minutes.
  • Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time.
Printer cartridge installation
Ink in the cartridge, but not printing
  • The cartridge may show as empty or produce faded print despite ink remaining.
  • Printing stops once the cartridge reaches around 30% remaining ink, which is kept as a reserve.
  • This reserve cannot be accessed and is used to keep the internal sponge moist and protect the printhead.
  • This is normal behaviour and not a fault.
  • The cartridge will need to be replaced.
Printing blank pages / fading on print
  • If the print quality is poor or no ink is appearing on the paper, try performing 2–3 head cleans/nozzle cleans.
  • Leave 20 minutes between each cleaning cycle.
  • If the issue persists, switch off the printer and unplug it for 10 minutes.
  • Re-install the cartridge and try printing again.
Printing blank pages
  • The tape covering the breathing hole may not have been removed.
  • Ensure the breathing hole on the cartridge is open by removing the small rip strip.
  • This allows air to flow properly and enables the cartridge to print.
Printer cartridge installation
Printer cartridge installation

Printers that use Canon PFI-120 cartridges

To see a full list of products that work in your printer, click on the model name below:

ImagePROGRAF TM-200 ImagePROGRAF TM-300 ImagePROGRAF TM-305
ImagePROGRAF TM-205 ImagePROGRAF GP-200

Printer Consumables (Canon PFI-120)

1156C005AA 2352C001 1156C005AA-CPT
