iPF780

Compatible Canon PFI-107
|

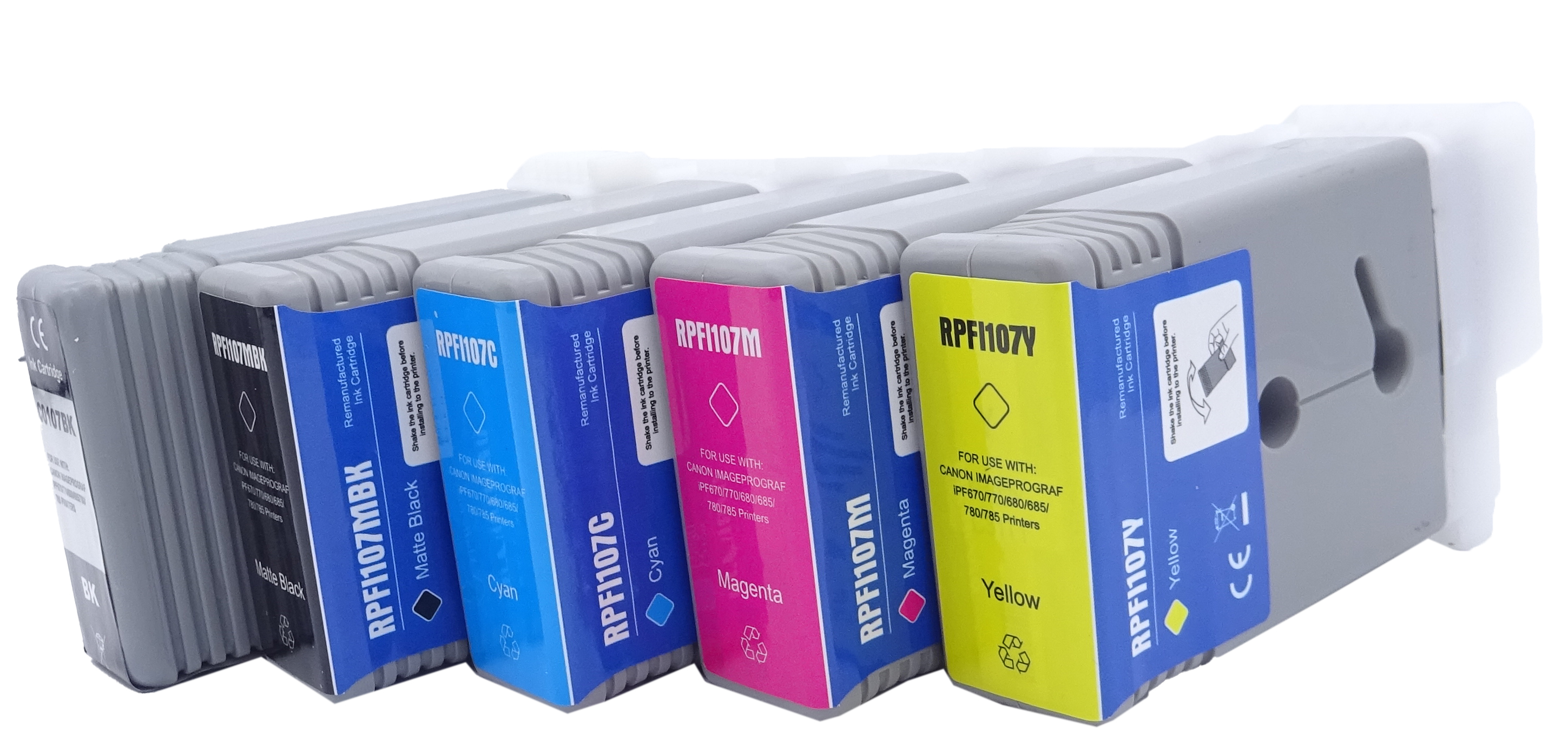

This image shows the front of the cartridge,
the colour
and product code is displayed here.
|
|
|
|

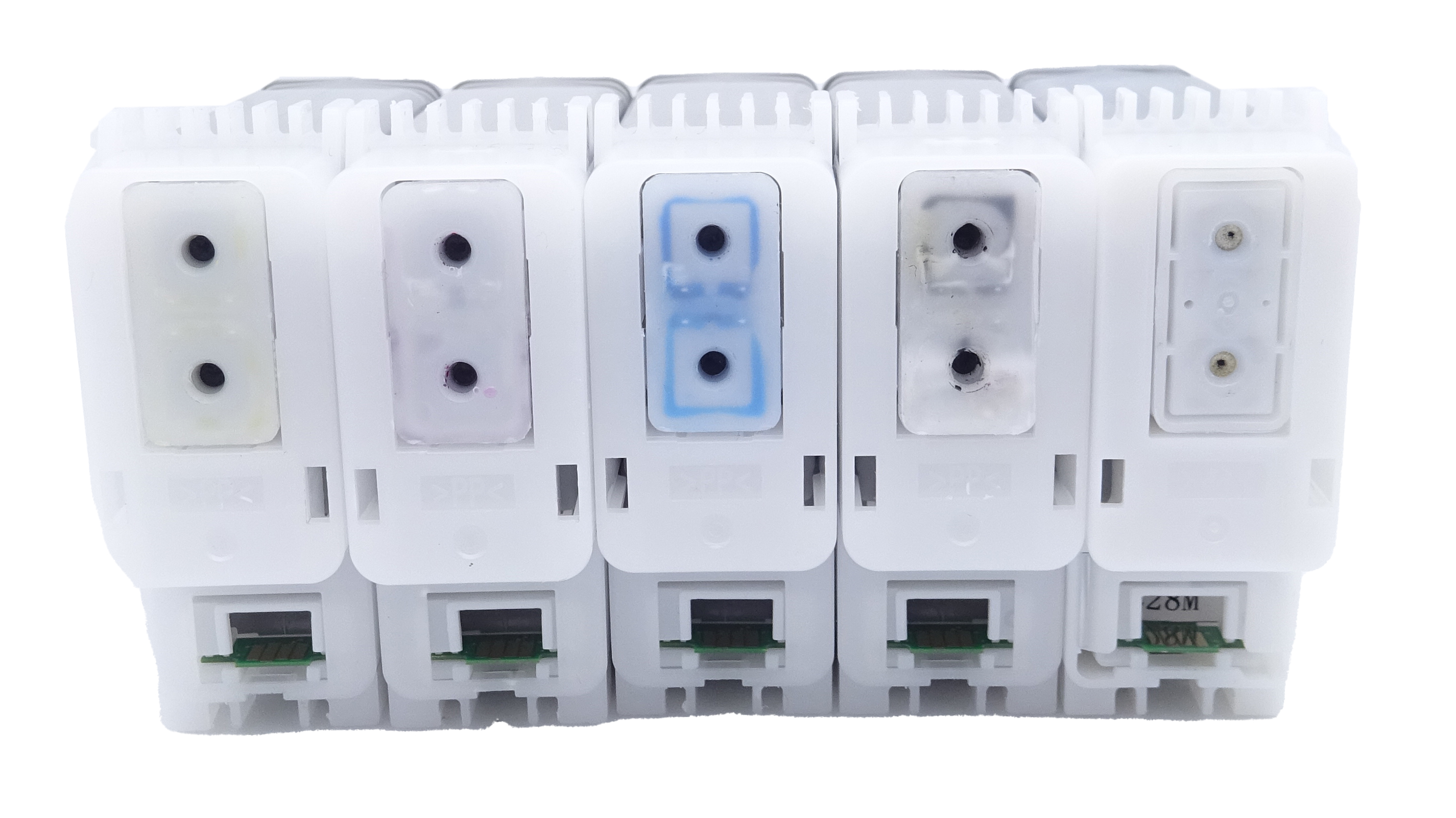

The back of the cartridge can be seen in this
image,
please ensure the chip is clear of impurities
before
installation.
|
|
|
|

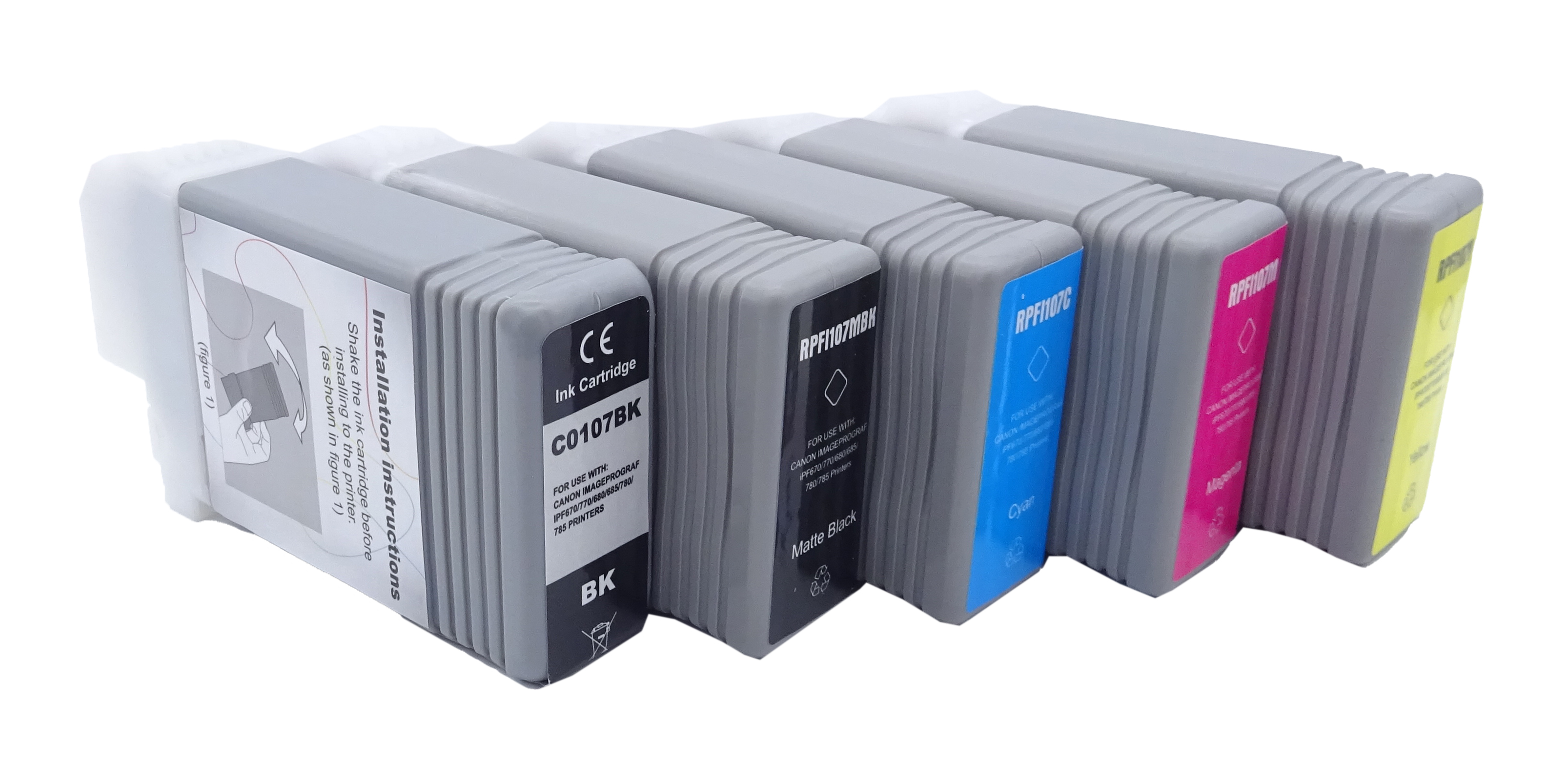

This image shows the left side of the cartridge.
|
|
|
|
The right side of the cartridge can be seen in
this image.
|
|
|
Cartridge is not compatible / Cartridge is not recognised
- Remove the affected cartridge/cartridges from the printer.
- Turn the printer off and wait for 2 minutes.
- Turn your printer back on and wait for a further 2 minutes.
- Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time.
Ink in the cartridge, but not printing
- The cartridge may show as empty or produce faded print despite ink remaining.
- Printing stops once the cartridge reaches around 30% remaining ink, which is kept as a reserve.
- This reserve cannot be accessed and is used to keep the internal sponge moist and protect the printhead.
- This is normal behaviour and not a fault.
- The cartridge will need to be replaced.
Printing blank pages / fading on print / incorrect colours being produced
- There may be a blockage on the print nozzles caused by dried ink or an air lock.
- Use a cotton bud dampened with warm water and gently wipe the printhead area.
- Dab the printhead onto a clean absorbent kitchen towel until ink begins to flow.
- For black cartridges: a solid black oval should appear.
- For colour cartridges: cyan, magenta, and yellow marks should appear.
- Clean the copper contact points on the cartridge and inside the printer with a dry lint-free cloth.
Printers that use Canon PFI-107 cartridges
To see a full list of products that work in your printer, click on the model name below:
| ImagePROGRAF iPF770 | ImagePROGRAF iPF780 | ImagePROGRAF iPF680 |
| ImagePROGRAF iPF685 | ImagePROGRAF iPF785 | ImagePROGRAF iPF670 |
Printer Consumables (Canon PFI-107)
| MC-10 | PF-04 | PFI-107-6PACK | PFI-107-6PACK-CPT |
| PFI-107-PACK | PFI-107-PACK-CPT | PFI-107BK | PFI-107BK-CPT |
| PFI-107C | PFI-107C-CPT | PFI-107M | PFI-107M-CPT |
| PFI-107MBK | PFI-107MBK-CPT | PFI-107Y | PFI-107Y-CPT |
| MC-10-CPT |
