Canon BJ-100C

  • Updated
CS Lotus.svg

BJ-100C



Compatible Canon BC01 02 05 overview
Compatible Canon BC01 & 02 & 05

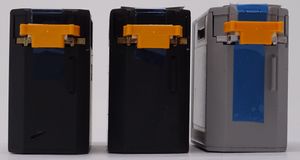

Compatible Canon BC01 & 02 & 05 (Front View with Clip on)

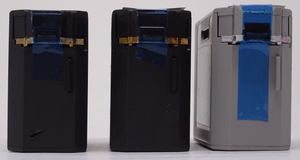

Compatible Canon BC01 & 02 & 05 (Front View with Clip removed)

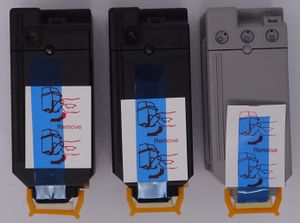

Compatible Canon BC01 & 02 & 05 (Top View)
Compatible Canon BC01 & 02 & 05 (Back View)



Compatible Canon BC01 & 02 & 05 (Side View)
Printer cartridge installation
Cartridge missing or damaged
  • Remove the faulty cartridge from the printer.
  • Make sure all the packaging clips and tape covering the breathing hole have been removed. Take care not to squeeze the sides during this as some ink may spill.
  • Pull the power cable out the back of the printer and leave the printer off for 15 minutes.
Low/Empty Ink

Resolution 1

Printer is not allowing printing as it believes the cartridge to be out of ink

Resolution

  1. Insert the cartridges and try to send a document to print.
  2. Wait until the low/empty ink error message appears.
  3. With the error message on screen, hold down the cancel button (or power/start button depending on the error message) for 5 seconds (add 5 seconds if it doesn't work).
  4. This should reset the cartridge and allow printing.

Resolution 2

Printer is not allowing printing as it believes the cartridge has been previously used

Resolution

  1. After the following error message (see below) appears on your screen press the printers Start button once
Previously used / Low ink error

Previously used / Low ink error

  1. This will clear the error message and allow for printing. However the ink status monitor will be disabled.
  2. Print quality will have to be used to determine how much ink is left.

Note: Print quality deteriorates quickly when the cartridge is out of ink.

Print quality deterioration

Printout to show print quality deterioration

Printer cartridge installation
Ink in the cartridge, but not printing
  • The cartridge may show as empty or produce faded print despite ink remaining.
  • Printing stops once the cartridge reaches around 30% remaining ink, which is kept as a reserve.
  • This reserve cannot be accessed and is used to keep the internal sponge moist and protect the printhead.
  • This is normal behaviour and not a fault.
  • The cartridge will need to be replaced.
Printer cartridge installation
Printer cartridge installation

Printers that use Canon BC-01 cartridges

To see a full list of products that work in your printer, click on the model name below:

BJ-100 BJ-100C BJ-10SX
BJ-200 BJC-1000 BJC-210
BJC-250 BJC-255SP BX-200
Fax B155 Navigator HD40 Fax VP500
BJ-10e BJ-10ex BJ-10v
BJ-15v BJ-20 BJ-200e
BJ-200ex BJ-200jc BJ-200js
BJ-20ex BJ-210 BJ-220
BJ-220jc BJ-220jc II BJ-220js
BJ-220js II BJ-230 BJ-5
BJC-1010 BJC-150 BJC-220
BJC-240 BJC-240 Photo BJC-240j
BJC-240l BJC-250j BJC-255
Fax B170 Fax B190 Fax B200
Fax B200e Fax B200f Fax B200s
Fax B220 Fax B230 Fax B230c
Fax B320 Fax B340 Fax B340f
Fax B360 Fax B360if Fax B405
Fax B540 Fax B550 Fax B60
Fax B70 Fax B75

Printer Consumables (Canon BC-01)

BC-01 BC-01-RET
