Canon Pixma MG5600

  • Updated
CS Lotus.svg

MG5600

Canon Pixma MG5600 Ink Cartridges

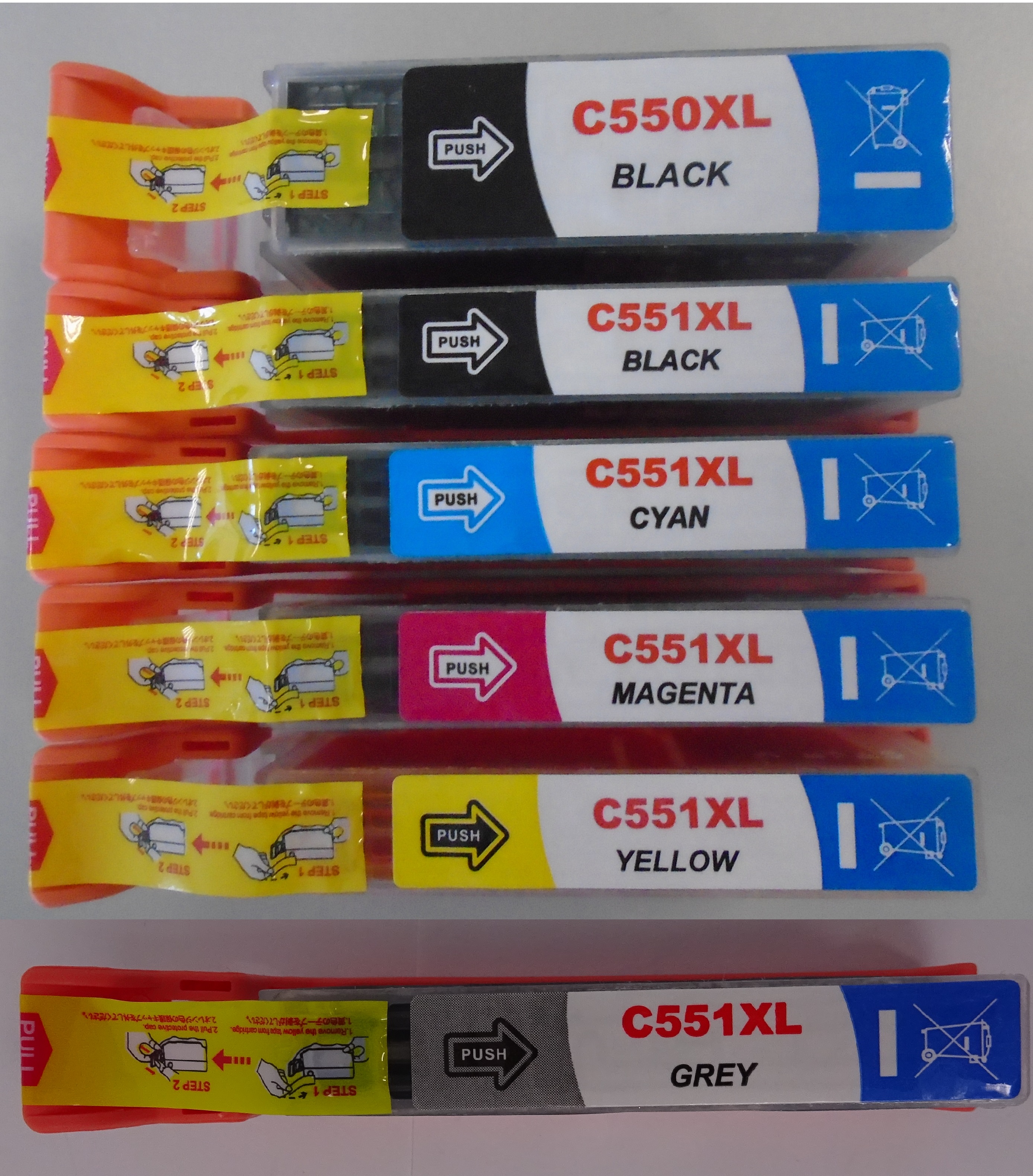

Compatible Canon PGI-550 & CLI-551 overview
Compatible Canon PGI-550 & CLI-551

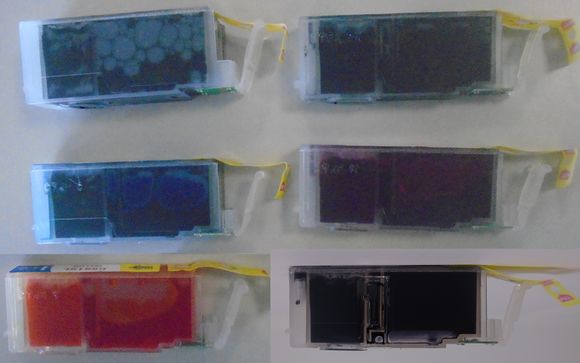

Compatible Canon PGI-550 & CLI-551 (Top View)

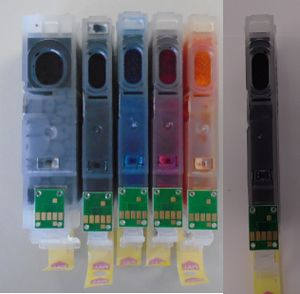

Compatible Canon PGI-550 & CLI-551 (Bottom View)

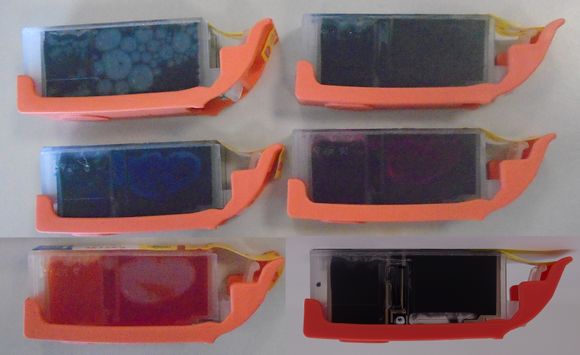

Compatible Canon PGI-550 & CLI-551 (Side view with clip)
Compatible Canon PGI-550 & CLI-551 (Side view without clip)

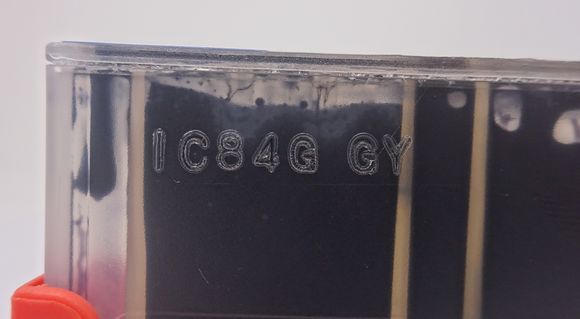

Compatible Canon PGI-550 & CLI-551 (Batch Code)
Printer cartridge installation
Cartridge not recognised

Resolution 1

  • Check the cartridges are installed in the correct positions.

Resolution 2

  • Remove each cartridge, wipe the chip with a dry cloth and re-install them by pushing down until they "click" into place.
Some Ink left Reading as empty
  • It is possible that a very small amount of ink may be visible when it reads as empty.
  • This is due to the design of these cartridges and is not a fault.
Printer cartridge installation
Ink in the cartridge, but not printing
  • The cartridge may show as empty or produce faded print despite ink remaining.
  • Printing stops once the cartridge reaches around 30% remaining ink, which is kept as a reserve.
  • This reserve cannot be accessed and is used to keep the internal sponge moist and protect the printhead.
  • This is normal behaviour and not a fault.
  • The cartridge will need to be replaced.
Printing blank pages / fading on print
  • If the print quality is poor or no ink is appearing on the paper, try performing 2–3 head cleans/nozzle cleans.
  • Leave 20 minutes between each cleaning cycle.
  • If the issue persists, switch off the printer and unplug it for 10 minutes.
  • Re-install the cartridge and try printing again.
Printer cartridge installation
Printer cartridge installation

Printers that use Canon PGI-550 / CLI-551 cartridges

To see a full list of products that work in your printer, click on the model name below:

Pixma iP7250 Pixma iX6850 Pixma MG5450
Pixma MG5550 Pixma MG6450 Pixma MX725
Pixma MX925 Pixma MG6650 Pixma MG5650
Pixma MG6600 Pixma iP7200 Pixma MG5600
Pixma MX920 Pixma MG5450S

Printer Consumables (Canon PGI-550 / CLI-551)

6508B005 CLI-551BK CLI-551BKXL CLI-551BKXL-CPT
CLI-551C CLI-551CXL CLI-551CXL-CPT CLI-551M
CLI-551MULTI CLI-551MXL CLI-551MXL-CPT CLI-551XL-PACK
CLI-551Y CLI-551YXL CLI-551YXL-CPT PGI-550PGBK
PGI-550PGBKXL PGI-550PGBKXL-CPT PGI550XL-CLI551XL-5PACK CLI-551XL-PACK-OLD-CPT
PGI550XL-CLI551XL-5PACK-CPT 6443B006
