Canon Pixma TS8351

  • Updated
CS Lotus.svg

TS8351

Canon PIXMA TS8351
Cartridge installation guide

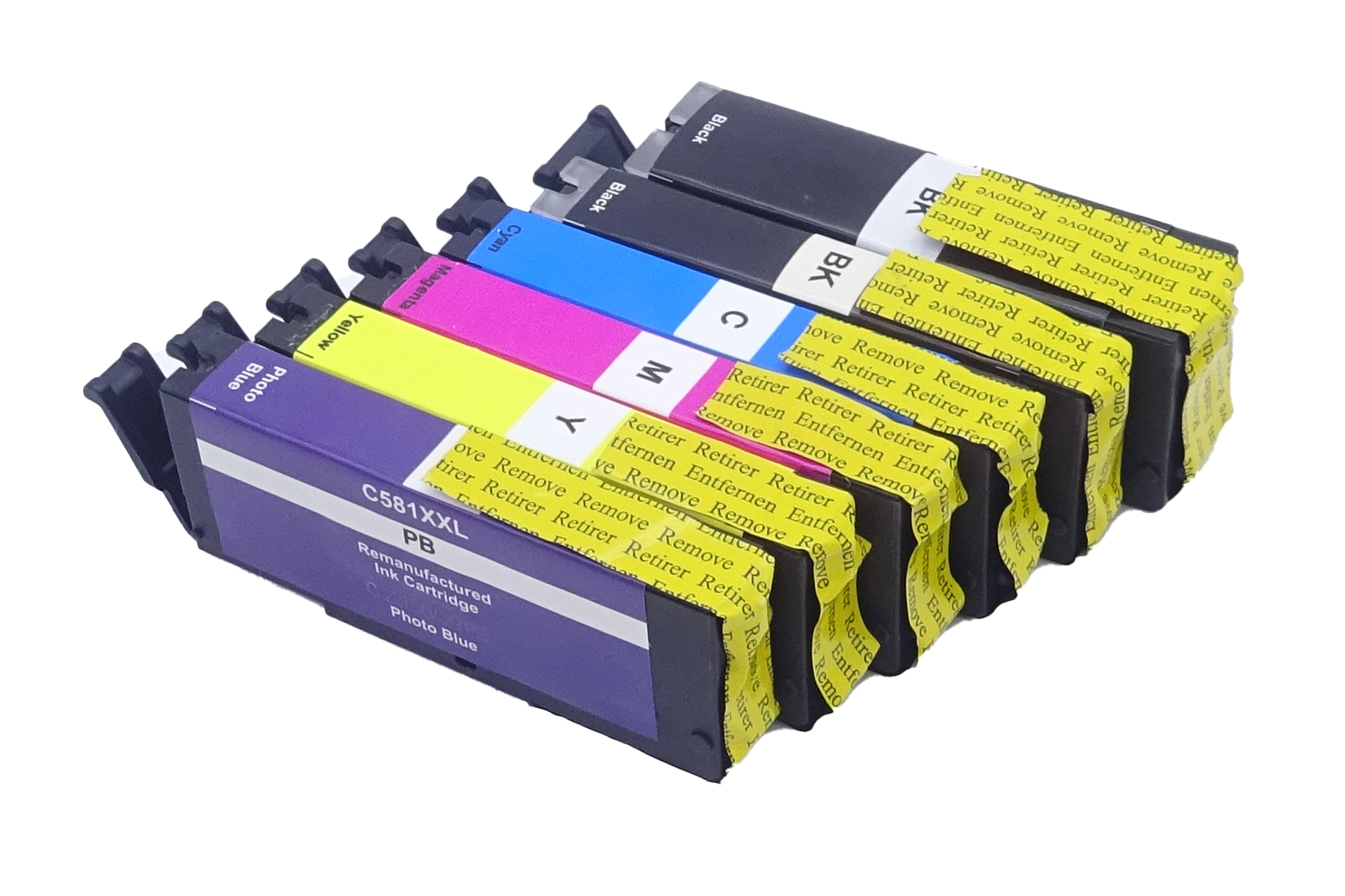

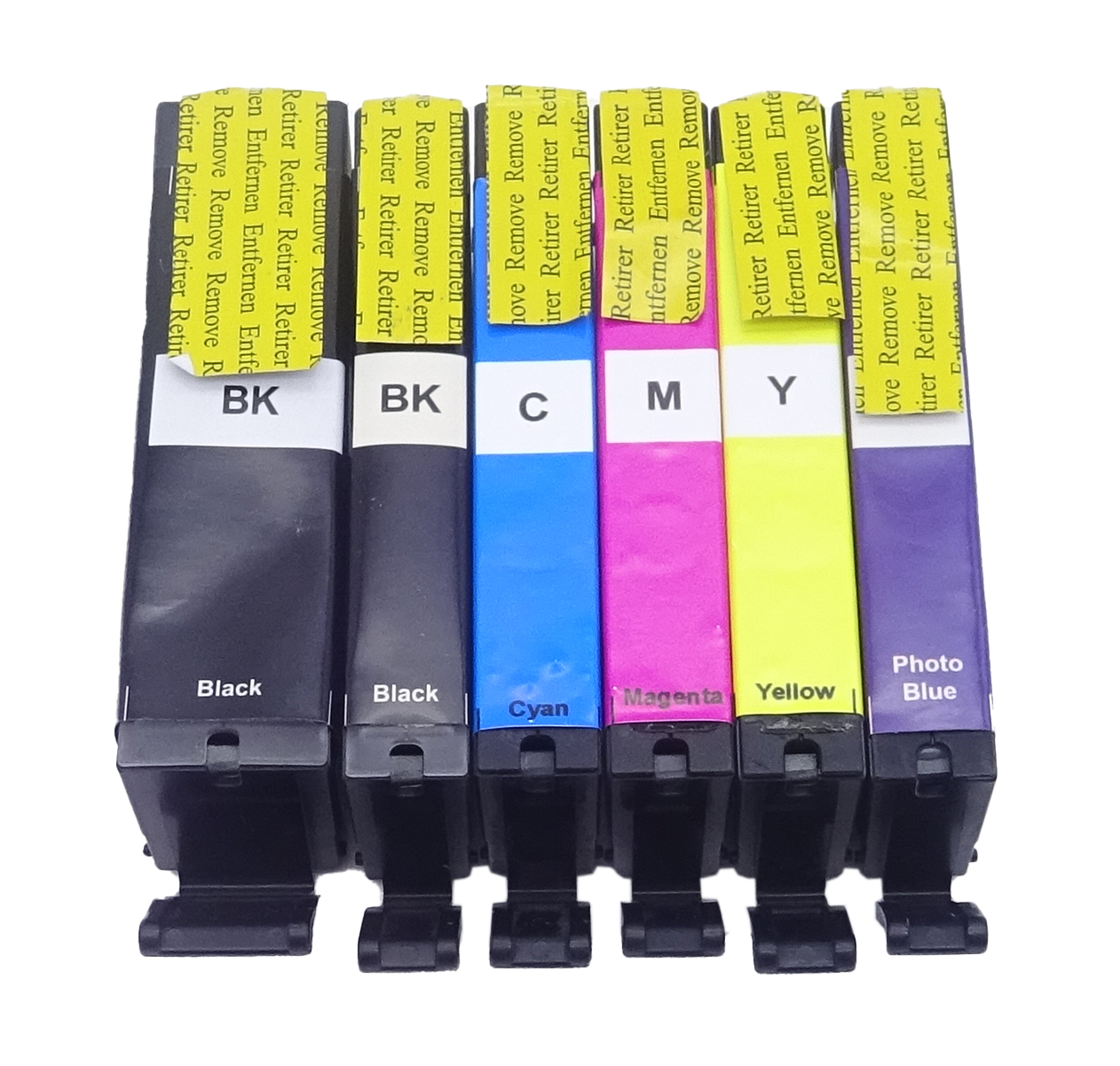

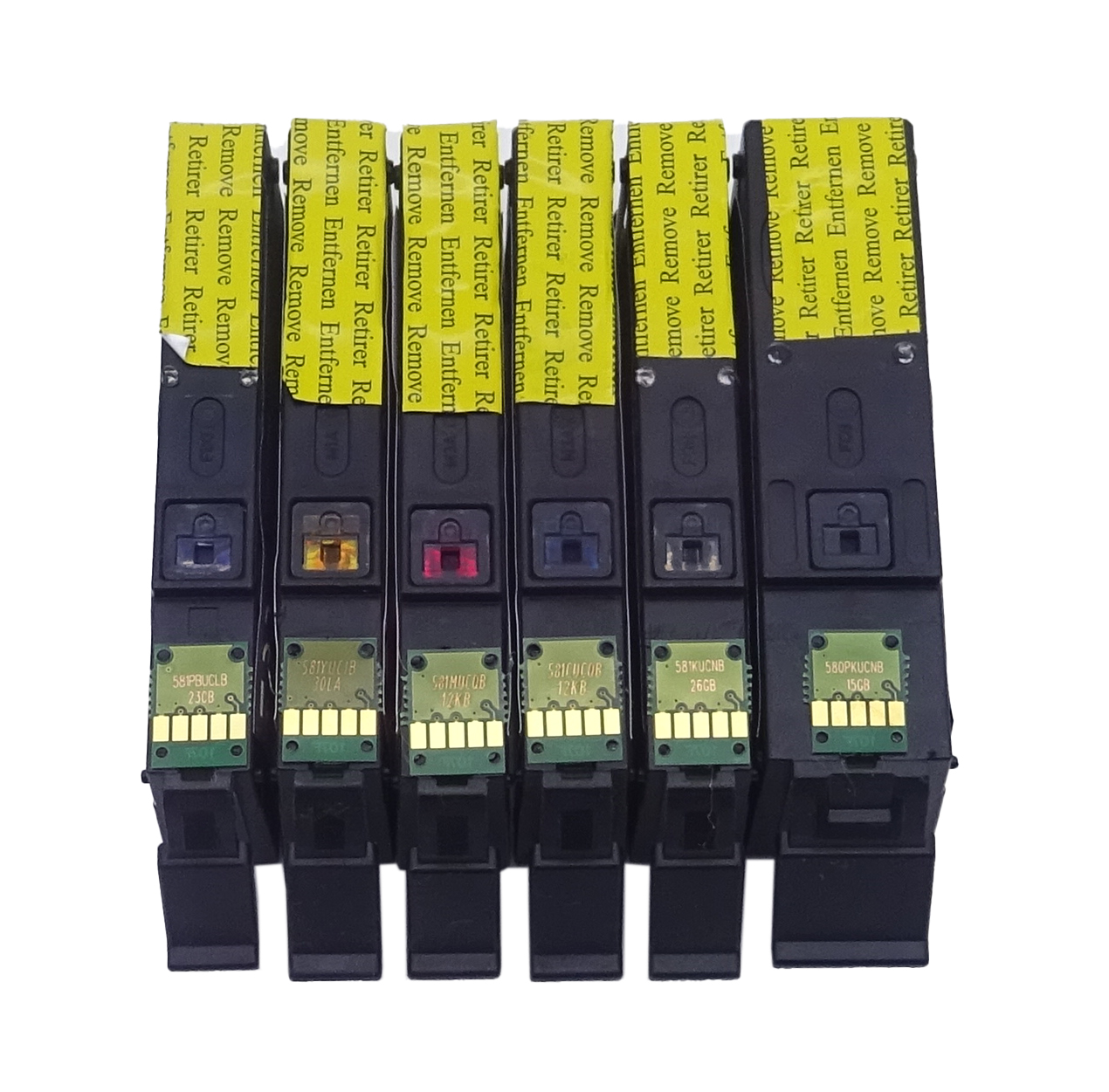

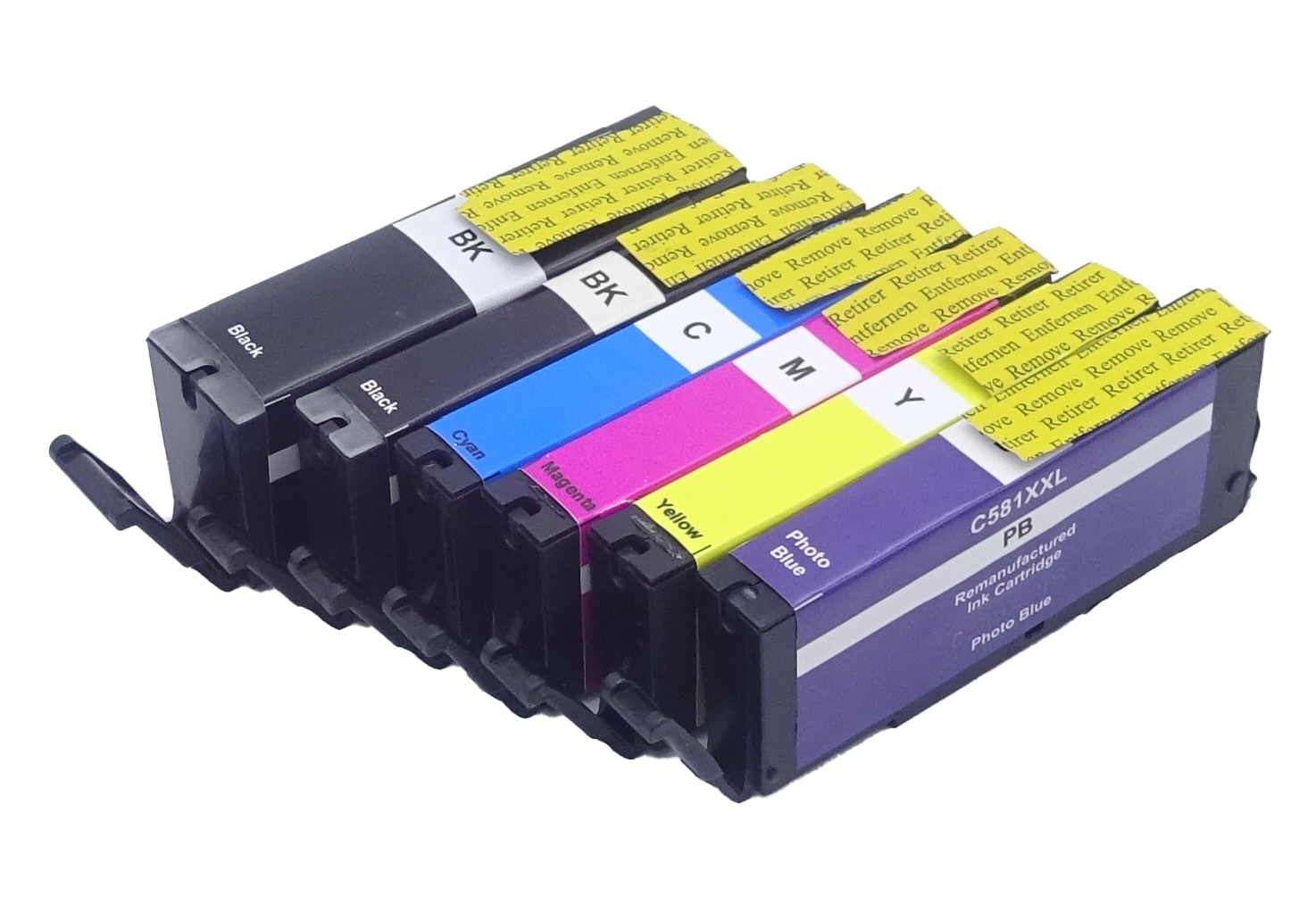

Use the video below to see what the cartridges look like and how to install them. Please note, the video shows the Canon 570/571 range; the steps are the same for the cartridges for your printer. The appearance of compatible cartridges may vary.

Printer cartridge installation
Cartridge missing or damaged
  • Remove the faulty cartridge from the printer.
  • Make sure all the packaging clips and tape covering the breathing hole have been removed. Take care not to squeeze the sides during this as some ink may spill.
  • Pull the power cable out the back of the printer and leave the printer off for 15 minutes.
Printer cartridge installation
Ink in the cartridge, but not printing
  • The cartridge may show as empty or produce faded print despite ink remaining.
  • Printing stops once the cartridge reaches around 30% remaining ink, which is kept as a reserve.
  • This reserve cannot be accessed and is used to keep the internal sponge moist and protect the printhead.
  • This is normal behaviour and not a fault.
  • The cartridge will need to be replaced.
Printing blank pages / fading on print
  • If print quality is poor or no ink is appearing, perform 2–3 head cleans/nozzle cleans.
  • Leave 20 minutes between each cleaning cycle.
  • If the issue persists, switch off the printer and unplug it for 10 minutes.
  • Re-install the cartridge and try printing again.
Printer cartridge installation
Printer cartridge installation

Printers that use Canon PGI-580 / CLI-581 cartridges

Pixma TR7550 Pixma TR7650 Pixma TR8550
Pixma TS6150 Pixma TS6151 Pixma TS6250
Pixma TS6251 Pixma TS6350 Pixma TS6350a
Pixma TS6351 Pixma TS6351A Pixma TS705
Pixma TS705a

Printers that use Canon PGI-580 / CLI-581 / CLI-581PB cartridges

Pixma TS8150 Pixma TS8151 Pixma TS8152
Pixma TS8250 Pixma TS8251 Pixma TS8252
Pixma TS8350 Pixma TS8350a Pixma TS8351
Pixma TS8352 Pixma TS8352a Pixma TS9150
Pixma TS9155 Pixma TS9550 Pixma TS9550a
Pixma TS9551C Pixma TS9551ca

Printer Consumables

1998C005 2052C004 2103C004 2106C005
CLI-581BK CLI-581BKXL CLI-581BKXXL CLI-581C
CLI-581CXL CLI-581CXXL CLI-581M CLI-581MXL
CLI-581MXXL CLI-581Y CLI-581YXL CLI-581PB
CLI-581PBXL CLI-581PBXXL CLI-581-5PACK CLI-581XL-5PACK
