TS3350
The video below shows what the compatible PG-545XL /CL-546XL cartridges look like for this printer
Cartridge not recognised
- Make sure all of the tabs have been removed from the cartridge. This includes the one which covers the printhead.
- If tabs have been removed, perform the usual troubleshooting:
- Wipe the chip with a dry cloth.
- Unplug the printer and wait for 10 minutes.
- Re-install the cartridge.
- If the error still shows, try removing and re-installing the cartridge 1-2 times.
Cartridge missing or damaged
- Remove the faulty cartridge from the printer.
- Make sure all the packaging clips and blue tape covering the copper part of the cartridge has been removed from the cartridge.
- Clean the contacts with a dry cloth or tissue.
- Pull the power cable out the back of the printer and leave the printer off for 15 minutes.
Low/Empty Ink
Resolution 1
Printer is not allowing printing as it believes the cartridge to be out of ink
Resolution
- Please press and hold the printers Stop button (or power/start button depending on what the error message says) until the error message disappears from the screen (Usually 5-10 seconds). Sometimes this will need to be repeated twice.
- Note: This has to be done whilst the error message is on screen.
STOP button
- This will disable ink level indicator for the mentioned cartridge and the printer would resume printing.
- Note: This message will appear ONCE for each cartridge.
- The cartridge will NOT need replacing after this is done.
- Print quality will have to be used to determine how much ink is left.
- Note: Print quality deteriorates quickly when the cartridge is out of ink.

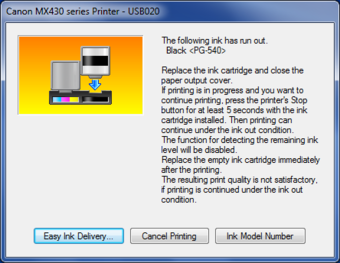

Empty black cartridge error message

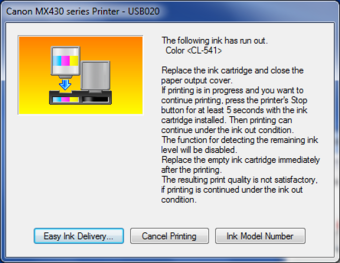

Empty colour cartridge error message

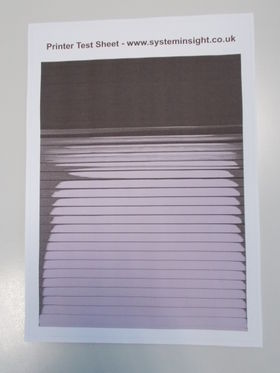

Printout to show print quality deterioration
Resolution 2
Printer is not allowing printing as it believes the cartridge has been previously used
Resolution
- After the following error message (see below) appears on your screen press the printers Start button once

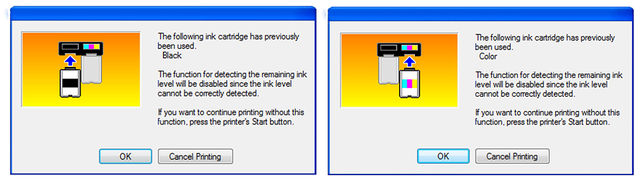

Previously used / Low ink error
- This will clear the error message and allow for printing. However the ink status monitor will be disabled.
- Print quality will have to be used to determine how much ink is left.
Note: Print quality deteriorates quickly when the cartridge is out of ink.
Printout to show print quality deterioration
Ink in the cartridge, but not printing
- The cartridge may show as empty or produce faded print despite ink remaining.
- Printing stops once the cartridge reaches around 30% remaining ink, which is kept as a reserve.
- This reserve cannot be accessed and is used to keep the internal sponge moist and protect the printhead.
- This is normal behaviour and not a fault.
- The cartridge will need to be replaced.
Printing blank pages / fading on print
- Clean the printhead with a piece of damp kitchen tissue (warm water).
- If this doesn't work, sit the cartridge printhead on some moist kitchen roll for 20 minutes.
- Make sure the bottom of the cartridge (where the ink comes out of) is touching the kitchen roll.
