M4555h MFP
Compatible HP 90A
|

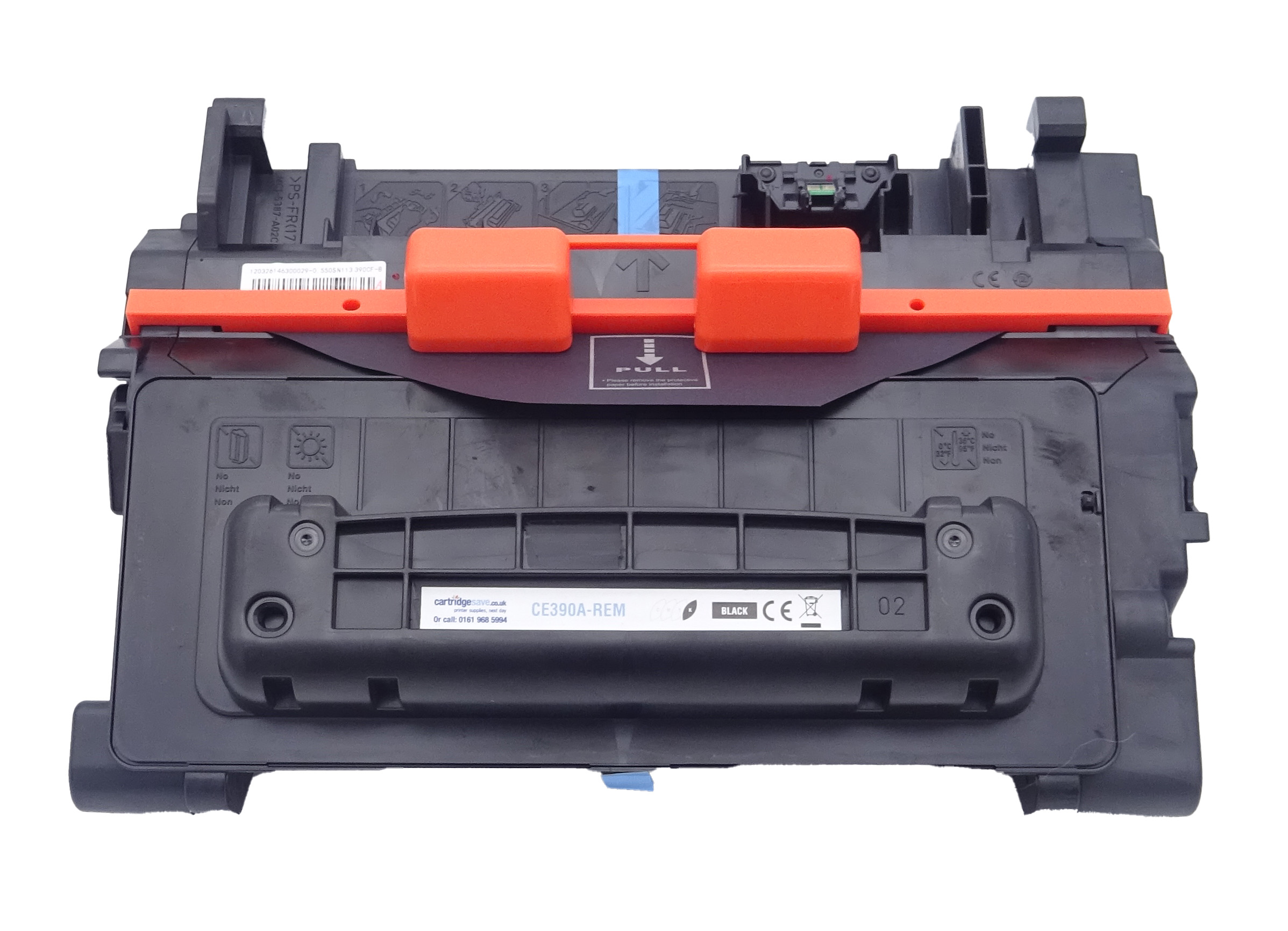

This image shows the front of the cartridge,
the barcode
can be found on the smaller label.
|
|
|
|

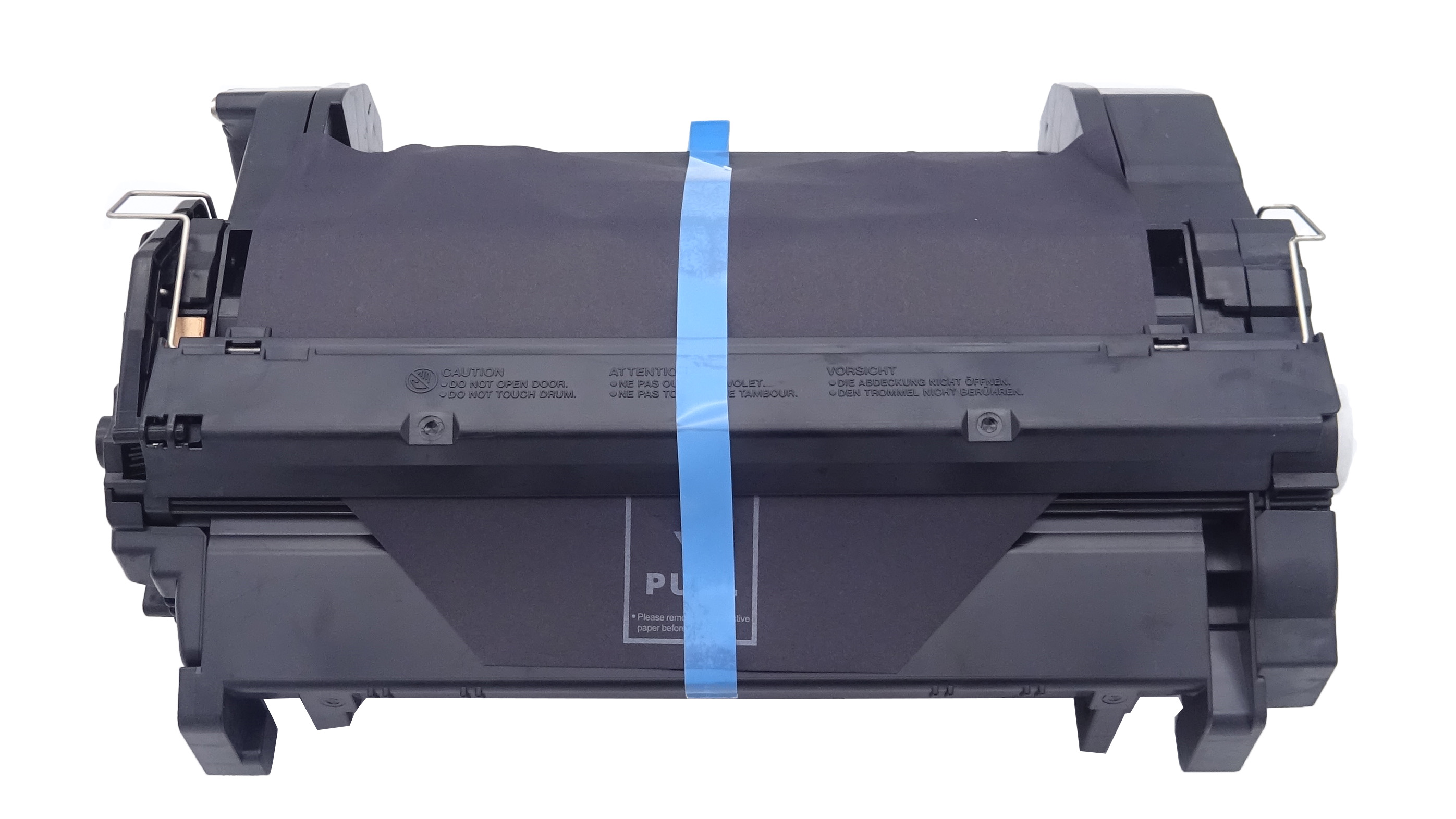

The back of the cartridge can be seen in this
image,
the blue tape must be removed along with the
black card
before installation.
|
|
|
|

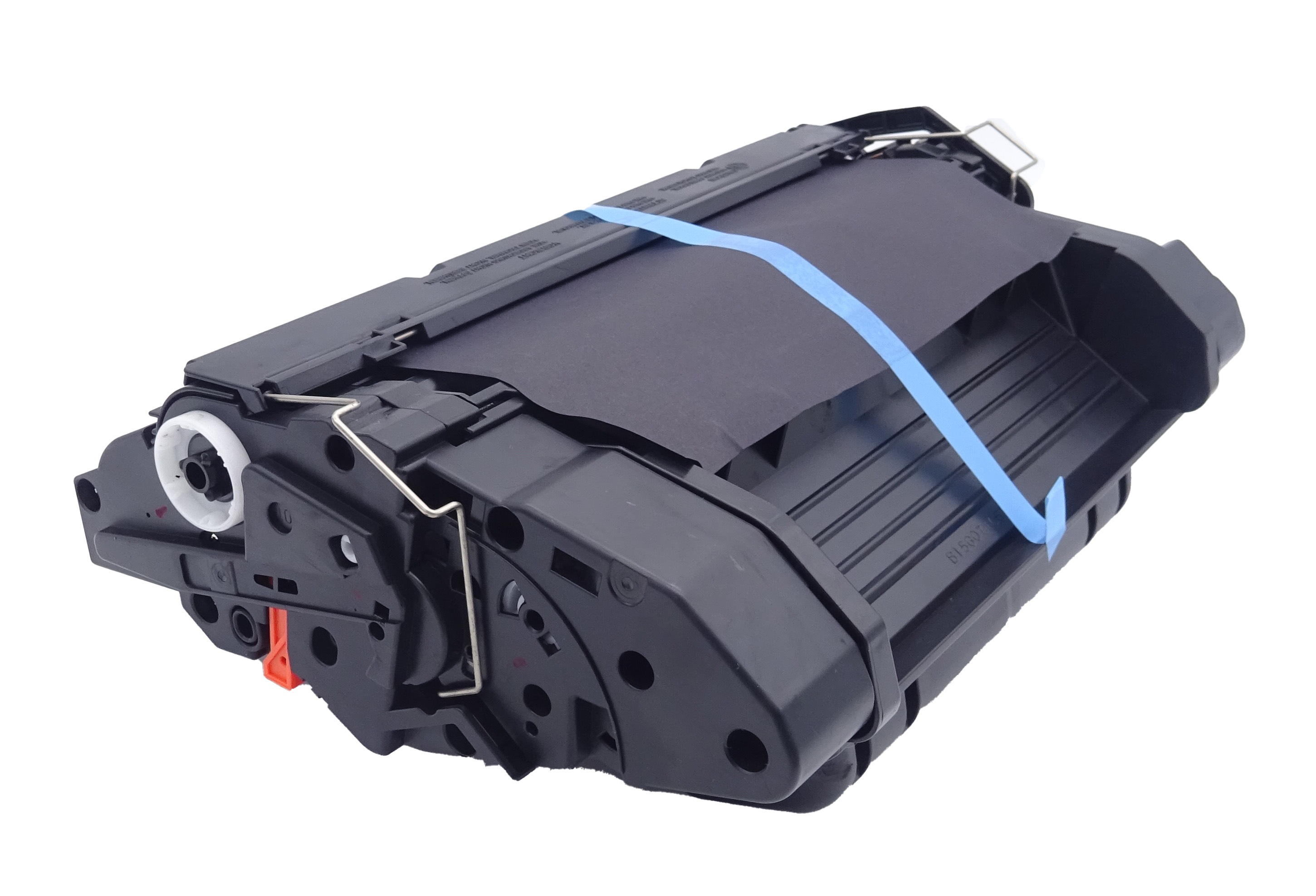

This image shows the left side of the cartridge.
|
|
|
|

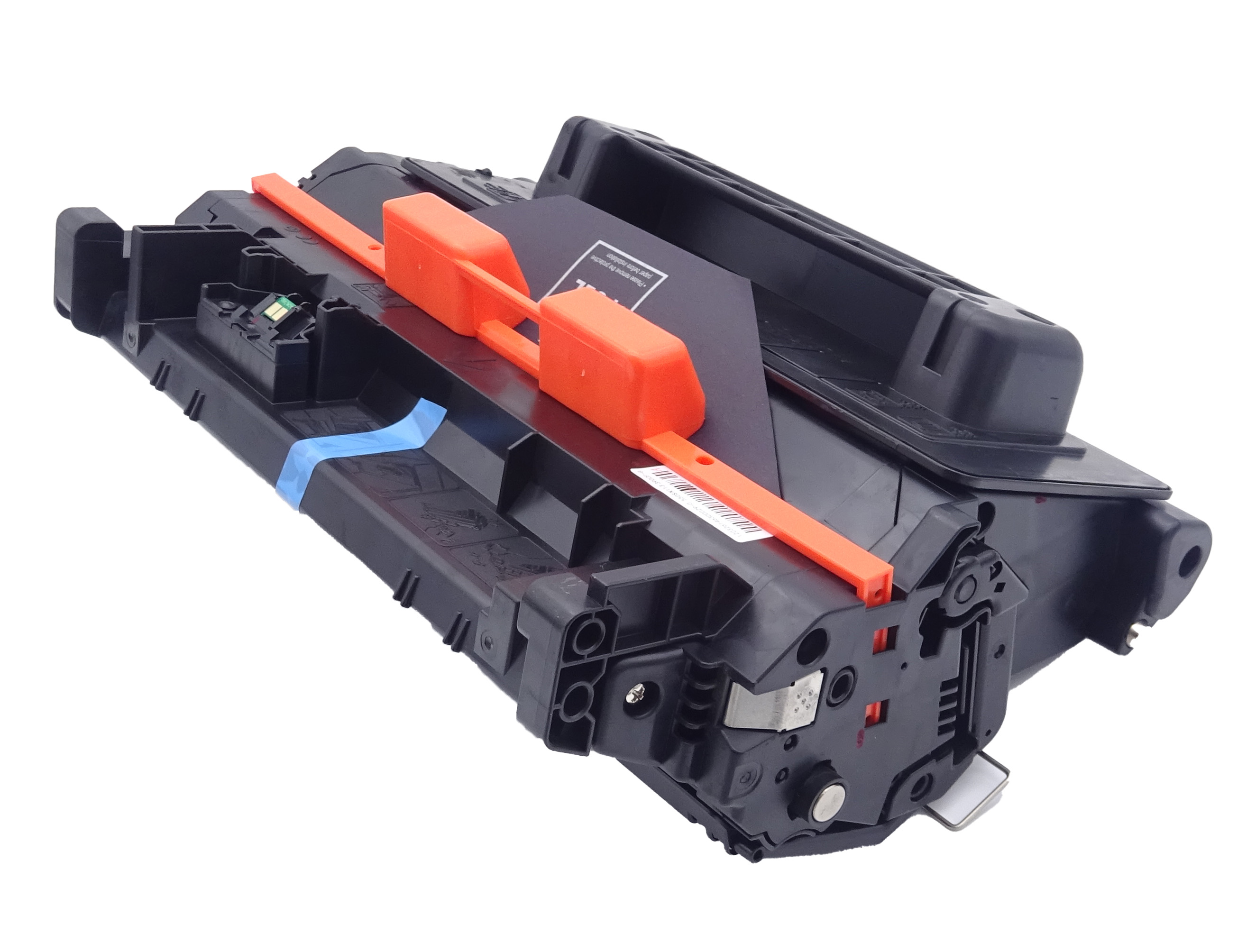

The right side of the cartridge can be seen in
this image,
the orange clip must also be removed before installing.
|
|
|
Compatible HP 90X
|

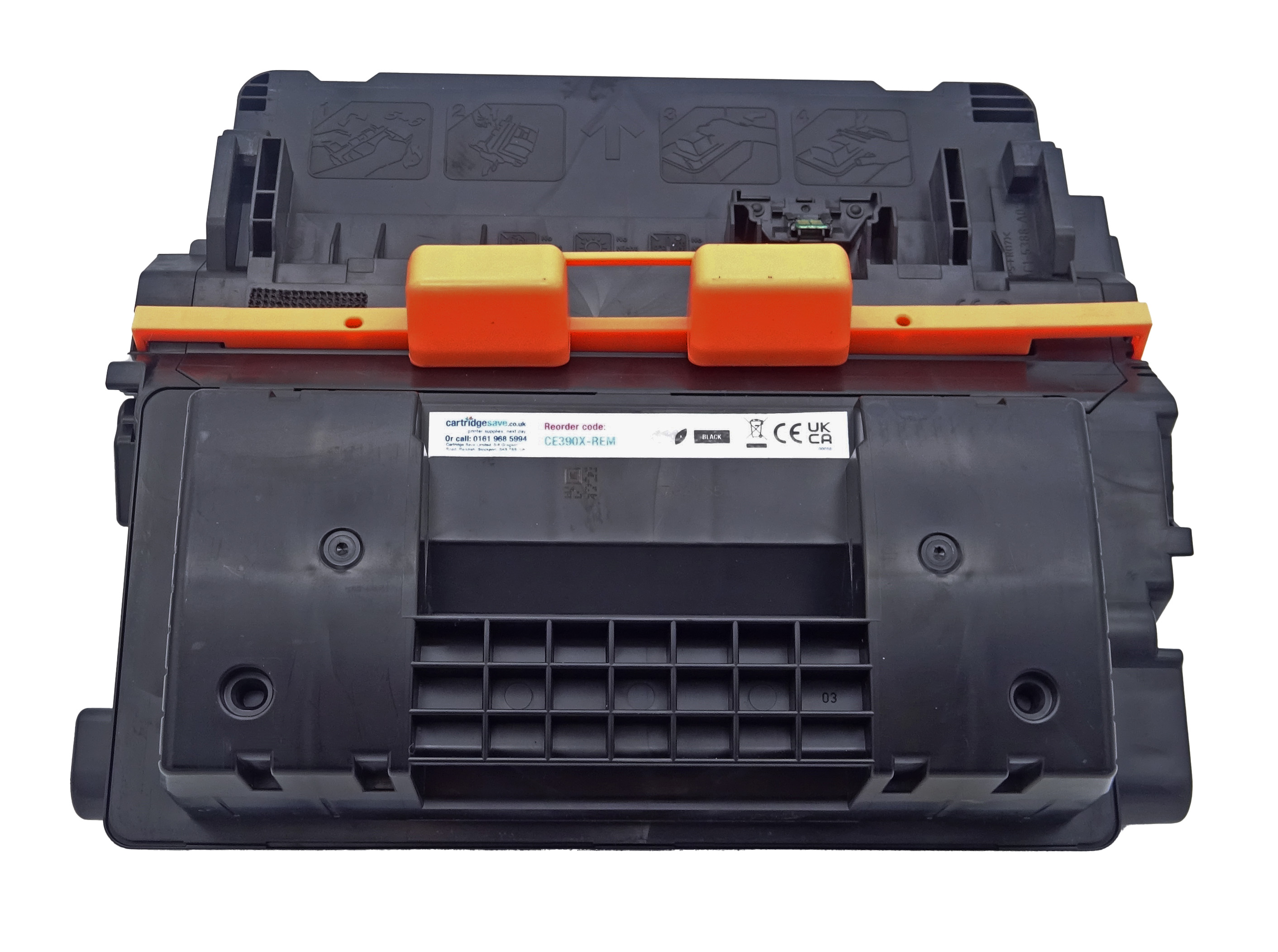

This image shows the front of the cartridge.
|
|
|
|
The back of the cartridge can be seen in this
image.
|
|
|
|
This image shows the left side of the cartridge,
the
handle can be used to help when installing.
|
|
|
|

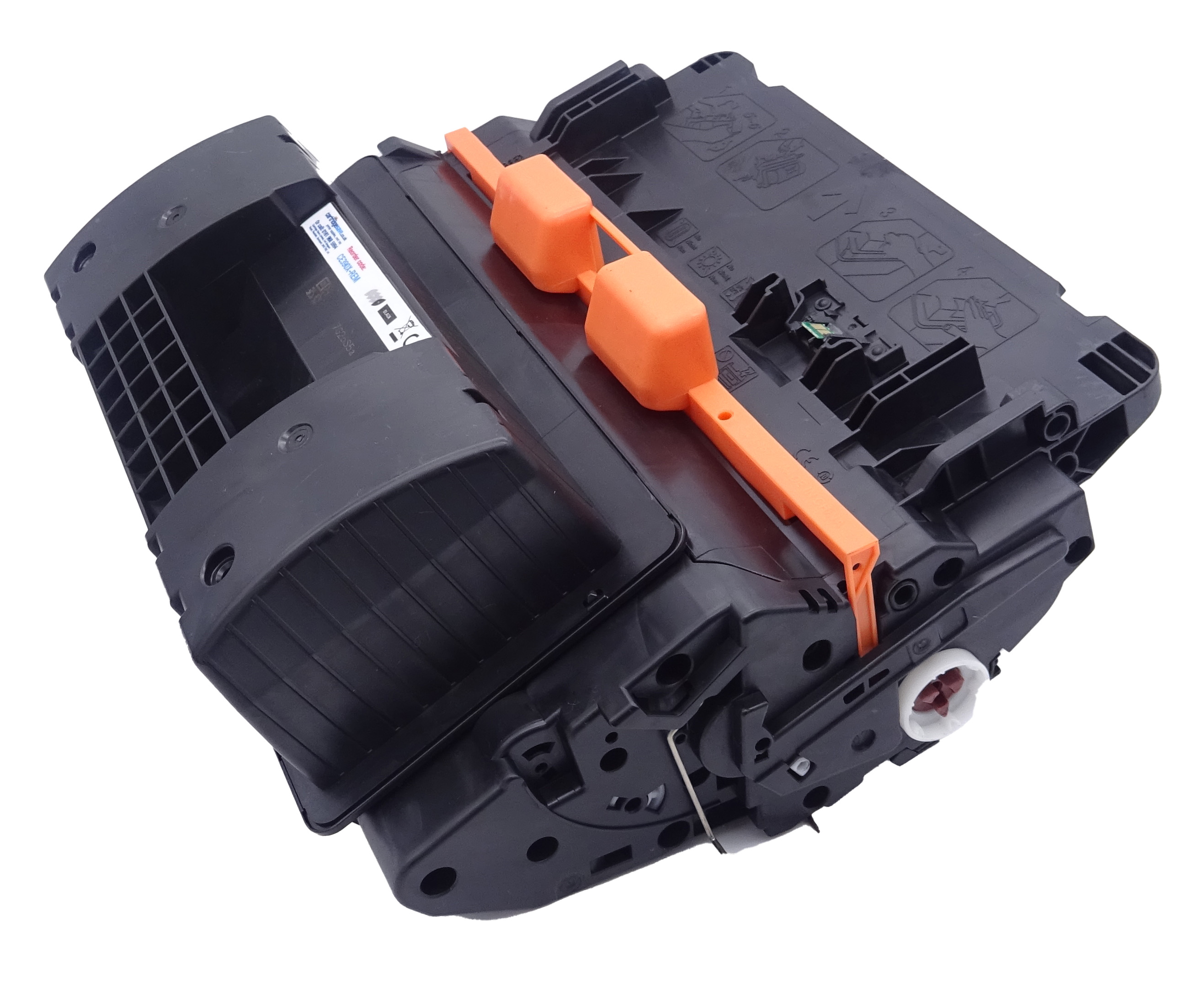

The right side of the cartridge can be seen in
this image,
remove the plastic tab before installing as well
as the
orange cover.
|
|
|
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, re-insert the cartridge into the printer and print a test page.
- If the issue persists, check the life of the maintenance items in your machine in case any of them need to be replaced.
Faint characters on printouts
- Print 15–20 pages and check to see if the problem persists.
Printouts are blank
- Ensure seals, tape, or protective covers have been removed from the cartridge.
- Remove the cartridge and reinstall it into the printer.
Printers that use HP 90A cartridges
To see a full list of products that work in your printer, click on the model name below:
Printers that use HP 90X cartridges
Printer Consumables (HP 90A / 90X)
| CE390A | CE390A-REM | CE390X | CE390X-REM |
| CE390XD | CE390XD-REM | CF065A | CF065A-REM |
Brand names and trademarks are the property of their respective holders and are used for description purposes only.
