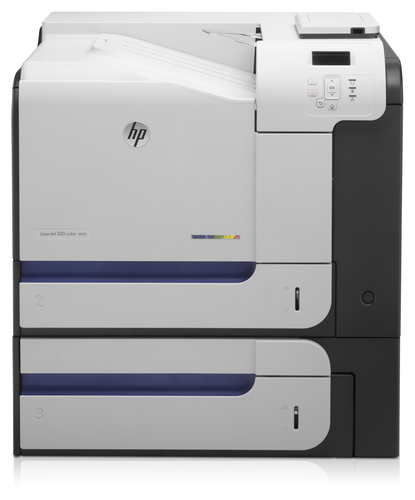

M551xh
Compatible HP 507A Toner
|

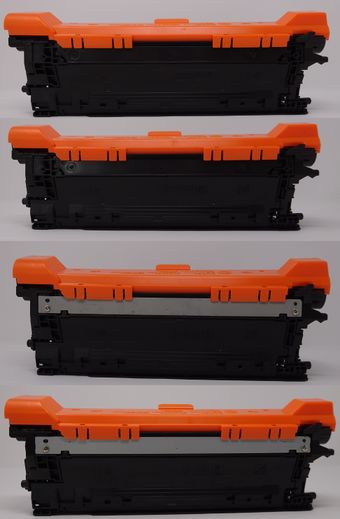

Compatible HP 507A (Back View)
|
Compatible HP 507A (Front View)
|
|
|
|
|
Compatible HP 507A (Bottom View)
|

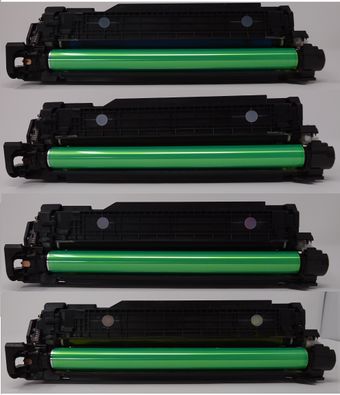

Compatible HP 507A (Drum View)
|
|
|
|
|

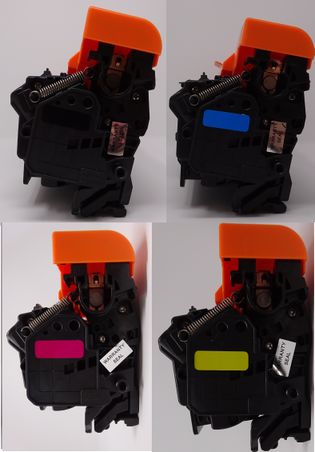

Compatible HP 507A (Side View)
|

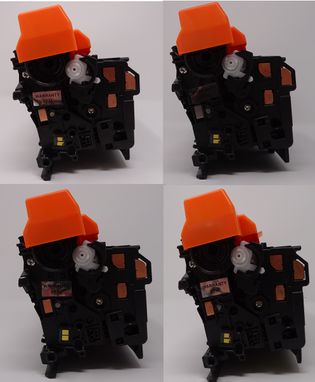

Compatible HP 507A (Side View)
|
|
|
|
|
Compatible HP 507A (Batch Code Example)
|
Compatible HP 507A (Chip View)
|
|
|
|
Compatible HP 507X Toner
|

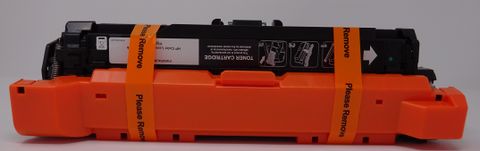

Compatible HP 507X (Top View)
|
|
|
|

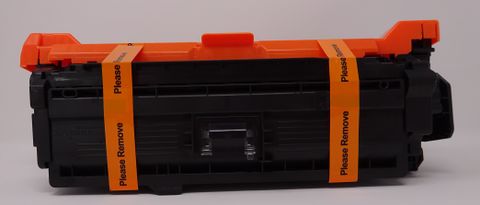

Compatible HP 507X (Bottom View)
|
|
|
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, re-insert the cartridge into the printer and print a test page.
- If the issue persists, check the life of the maintenance items in your machine in case any of them need to be replaced.
Streaks on the page
- Remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute the toner evenly within the cartridge.
- Carefully clean the drum roller to remove any excess toner.
- Re-insert the cartridge into the printer and print a test page.
- If the problem persists, repeat the previous steps.
Faint characters on printouts
- Print 15–20 pages and check to see if the problem persists.
Note: Before replacing any maintenance items
- Power off the printer.
- Wait 30 seconds, then disconnect the power cord.
- Allow 15 minutes for the printer to cool completely before proceeding.

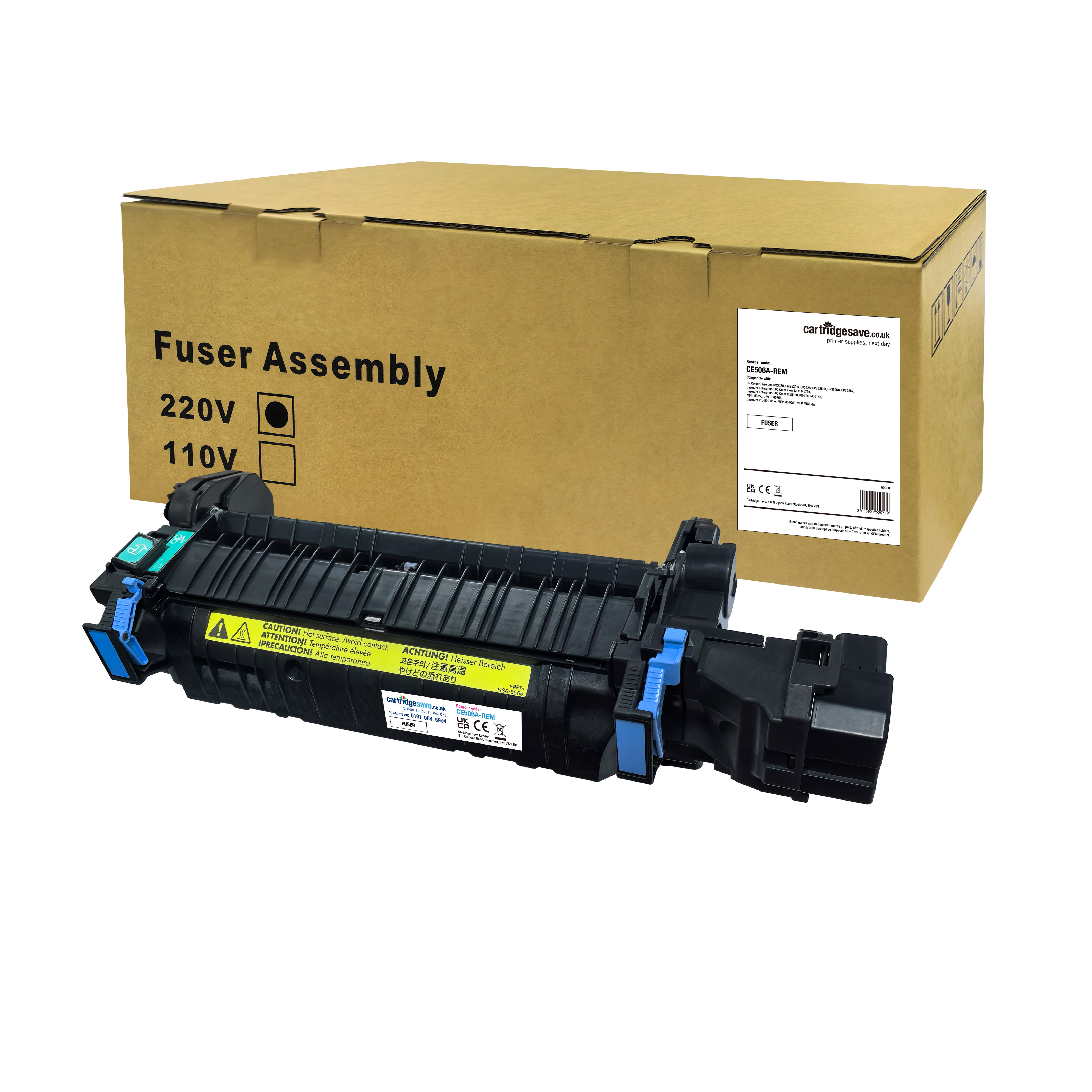

What does the Compatible HP B5L36A 220V Fuser Unit look like?
The b5l36a-rem is shown in the image below
How do I replace the fuser unit?
-
Open the right door of the printer.
This will reveal three main components:- Fuser Unit – top
- Transfer Unit – middle
- Secondary Transfer Assembly – bottom
Note: Opening the door will cause the secondary transfer assembly to lower partially.
-
Fully lower the secondary transfer assembly.
Push down on the blue lever located on the unit. -
Remove the old fuser unit.
Grasp the blue handles, squeeze the triggers, and pull the unit straight out of the printer. -
Place the old fuser unit somewhere safe.
Set it down on a clean, flat surface. -
Prepare the new fuser unit.
Remove the replacement unit from its protective bag and place it on a clean, flat surface. -
Install the new fuser unit.
Hold the blue handles and slide the unit into the printer. Push firmly until it snaps into place. -
Close the right door.
Lift the door until it clicks shut. This will automatically raise and engage the secondary transfer assembly.
Printers that use HP 507A / 507X cartridges
To see a full list of products that work in your printer, click on the model name below:
Printer Consumables (HP 507A / 507X)
| CE400A | CE400A-REM | CE400X | CE400X-REM |
| CE401A | CE401A-REM | CE402A | CE402A-REM |
| CE403A | CE403A-REM | HP507-PACK | HP507-PACK-REM |
| HP507-3PACK | HP507-3PACK-REM | HP507-5PACK | HP507-5PACK-REM |
| CE506A | CE254A | RM2-7448-000CN |
