HP LaserJet Enterprise M507x

  • Updated
CS Lotus.svg

M507x

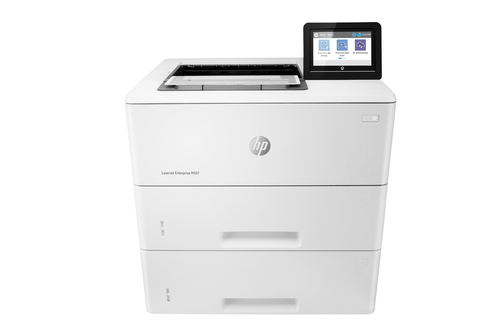

HP LaserJet Enterprise M507x Wireless Black and white Printer, Duplex Product Image Front-Center
Printer cartridge installation
Compatible HP 89X Toners

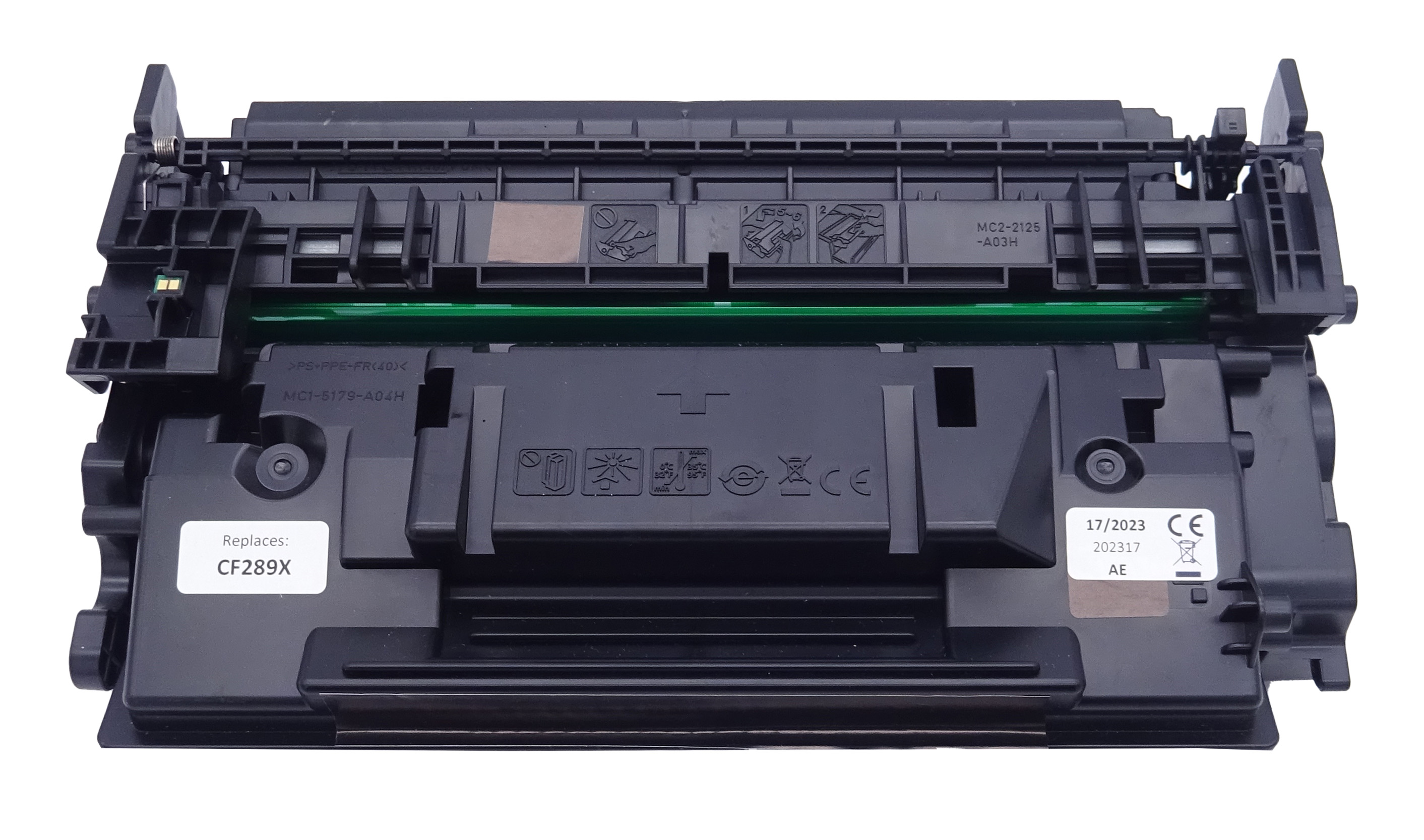

This image shows the front of the cartridge, the chip must be clear of impurities before installation.
HP 89X Front

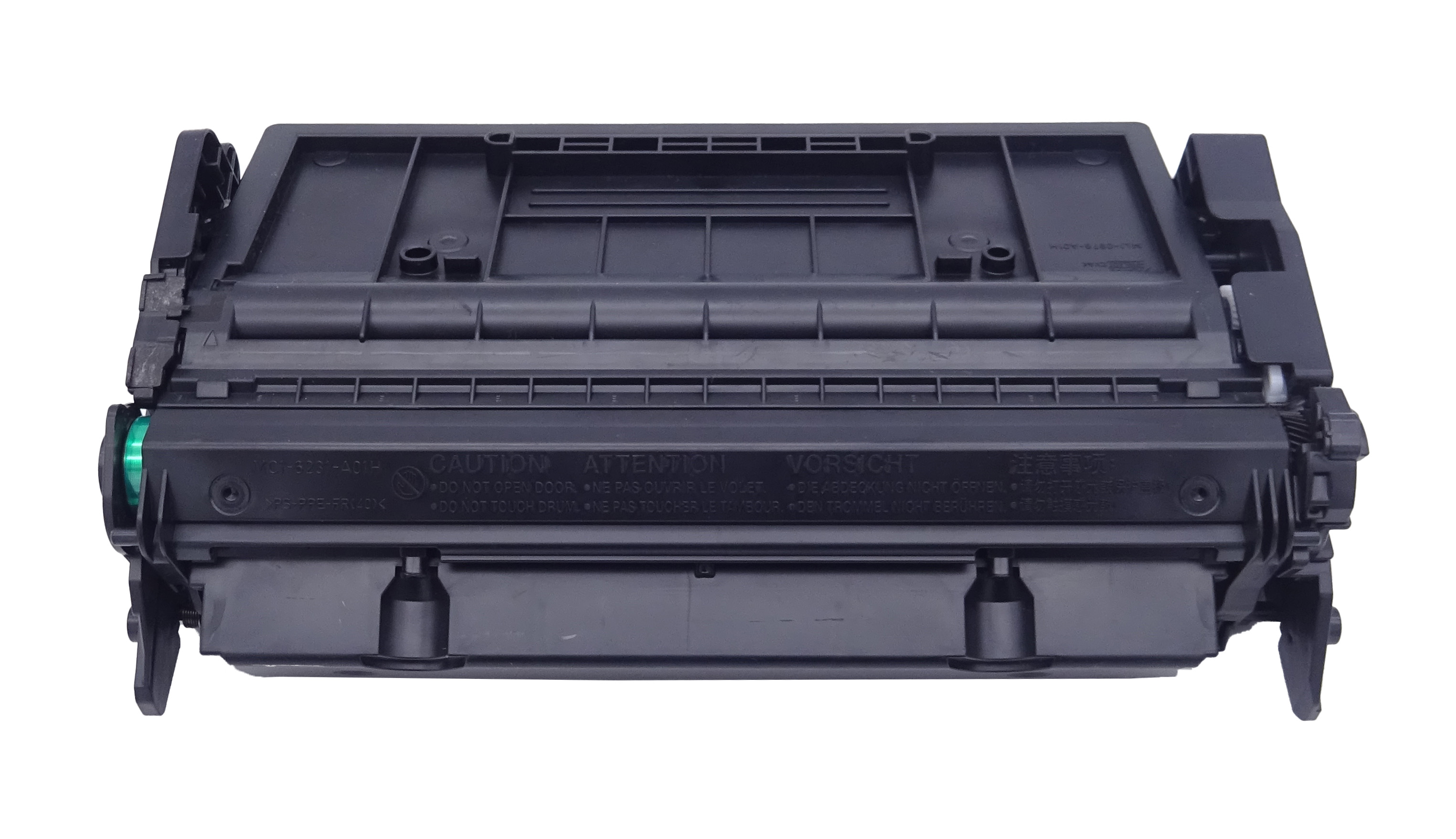

The back of the cartridge can be seen in this image.
HP 89X Back

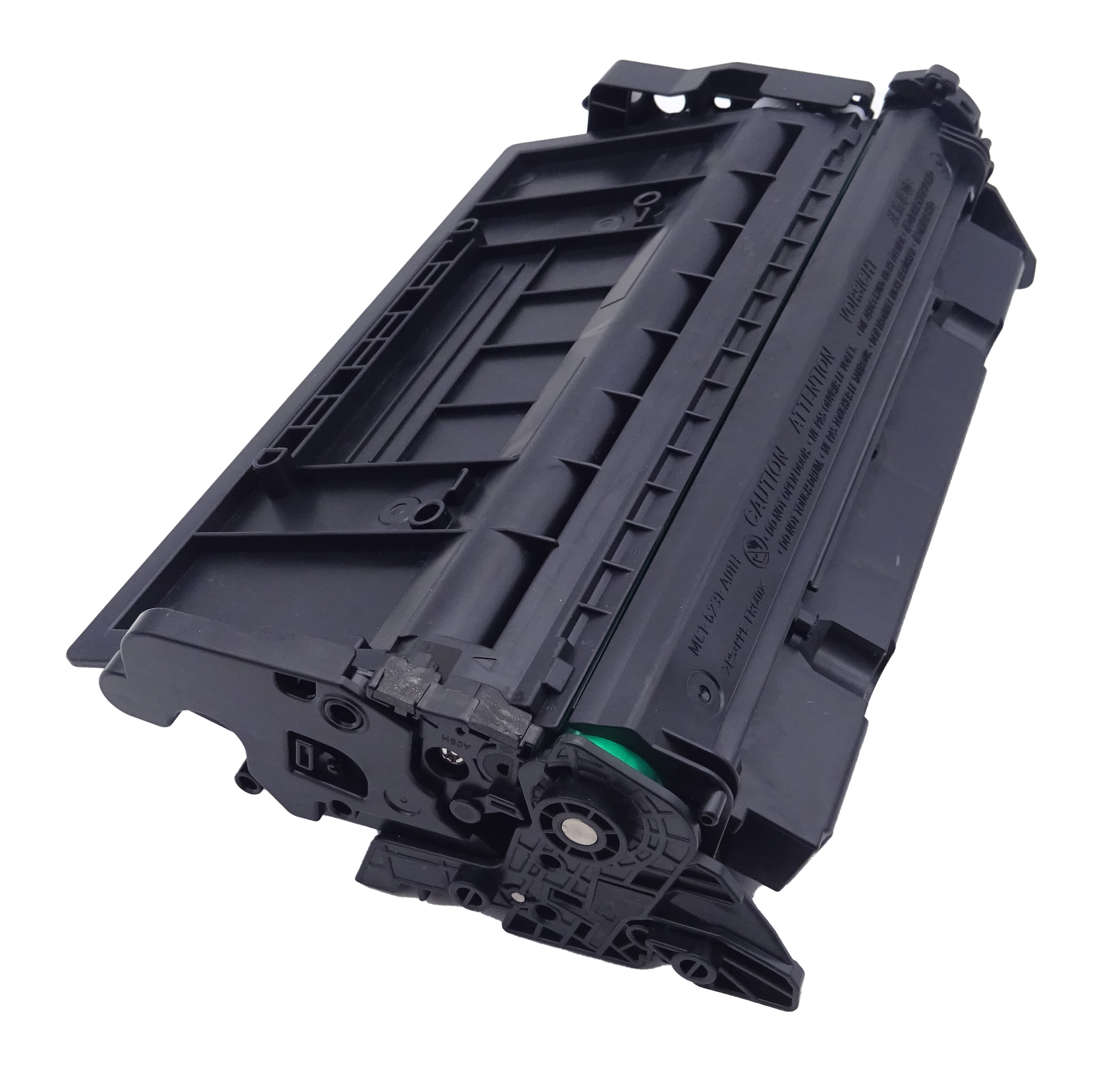

This image shows the left side of the cartridge.
HP 89X Left

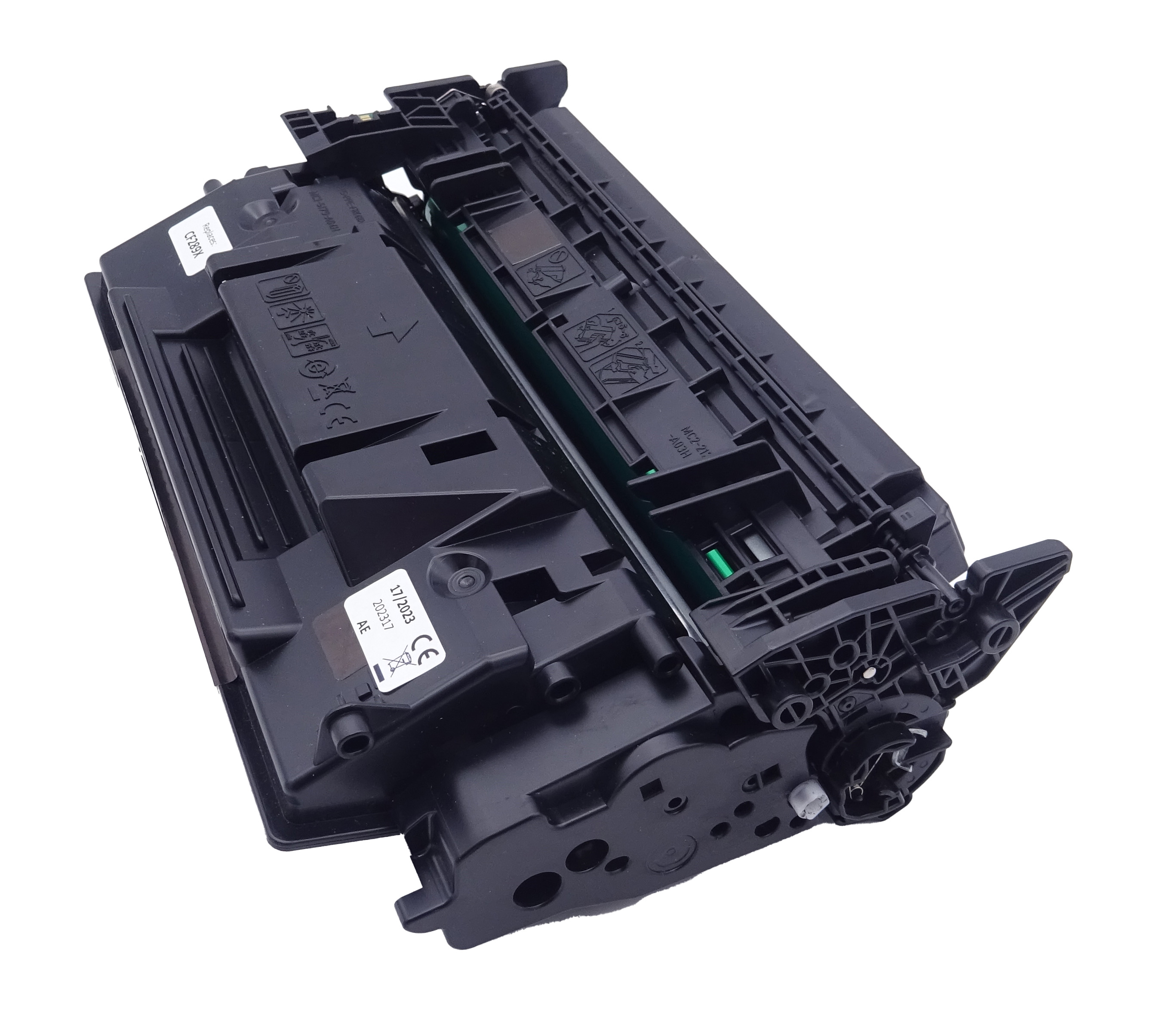

The right side of the cartridge can be seen in this image.
HP 89X Right
Compatible HP 89A Toners
This image shows the front of the cartridge, the small label displays the batch code.
HP 89A Front

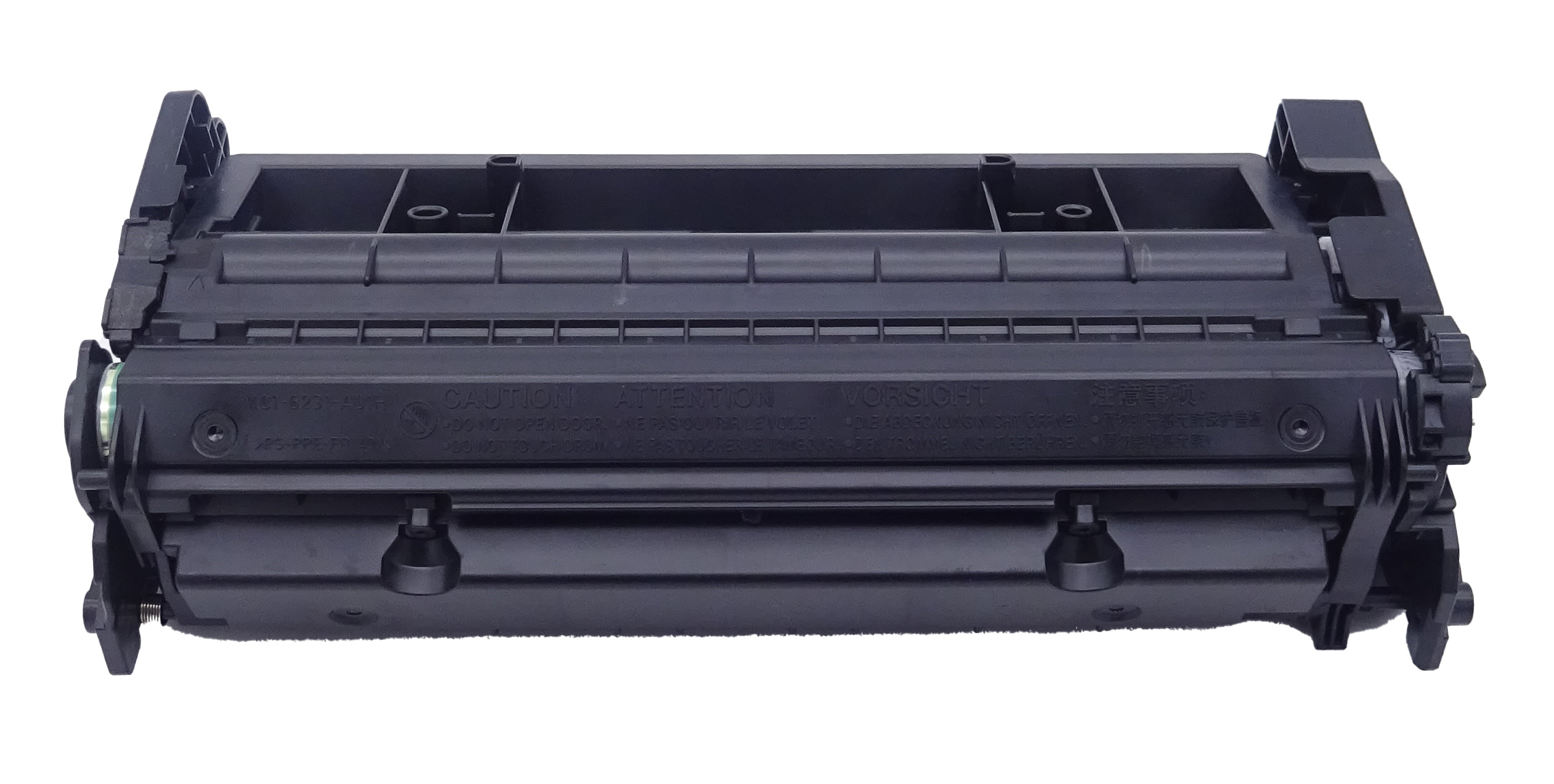

The back of the cartridge can be seen in this image.
HP 89A Back
Printer cartridge installation
Used Cartridge Installed
  • Please note this is just a warning message.
  • When the message appears, press OK to continue.
  • You should now be able to print as normal.
  • This error should only appear once for each cartridge.
Cartridge is not compatible / Cartridge is not recognised
  • The compatible cartridge has been installed correctly, but the printer is not registering it as installed or states it is not compatible.
  • Remove the affected cartridge or cartridges from the printer.
  • Turn the printer off and wait for 2 minutes.
  • Turn the printer back on and wait for a further 2 minutes.
  • Once the printer warns that certain cartridge or cartridges are missing, reinstall them one at a time.
Printer cartridge installation
My prints are faded
  • If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
  • This movement helps distribute the toner evenly within the cartridge.
  • After rocking the cartridge 5–6 times, re-insert the cartridge into the printer and print a test page.
  • If the issue persists, check the life of the maintenance items in your machine in case any of them need to be replaced.
Streaks on the page
  • Remove the toner cartridge from the printer and gently rock the cartridge from side to side.
  • This movement helps distribute the toner evenly within the cartridge.
  • Carefully clean the drum roller to remove any excess toner.
  • Re-insert the cartridge into the printer and print a test page.
  • If the problem persists, repeat the previous steps.
Faint characters on printouts
  • Print 15–20 pages and check to see if the problem persists.
Printer cartridge installation
Printer cartridge installation

Printers that use HP 89A / 89X / 89Y cartridges

To see a full list of products that work in your printer, click on the model name below:

LaserJet M507 LaserJet Enterprise M507dn LaserJet M528 MFP
LaserJet Enterprise M507x LaserJet Enterprise MFP M528dn LaserJet Enterprise Flow MFP M528z
LaserJet Enterprise MFP M528f

Printer Consumables

CF289A CF289X CF289Y CF289A-REM
CF289X-REM CF289Y-REM RM2-2586-000CN F2A72A
