M451dn
Remove Shipping Lock Error
- Resolution 1

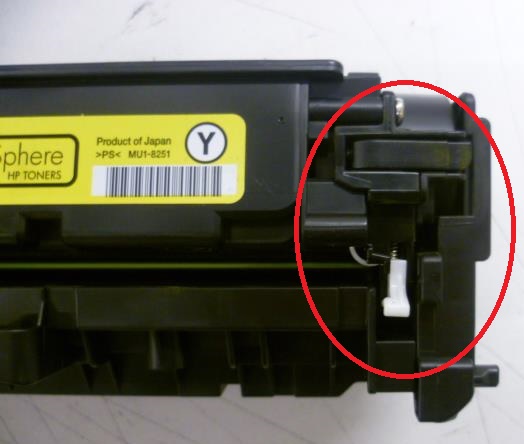

- Remove the cartridge from the printer, and locate the shipping lock lever arm mechanism (fig. 1).

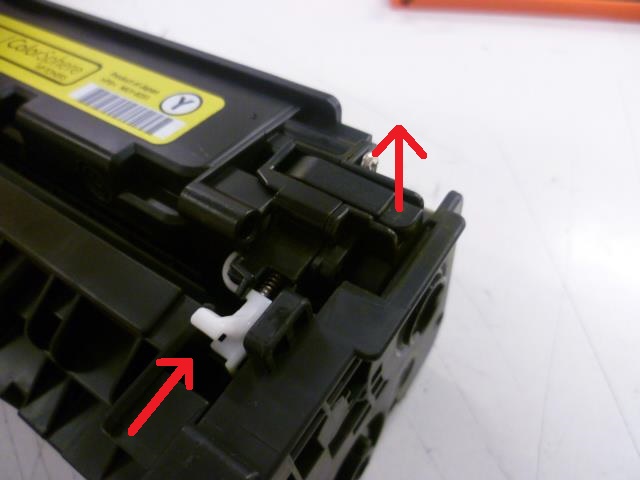

- Holding the cartridge in the upright position, push the white lever forwards. This should lift the black lever (fig. 2).
- If the mechanism does not operate smoothly or is stuck, this is likely the cause of the error.
- If the mechanism is not operating smoothly, wiggle the white arm slightly and try again.
- If this does not help, tap the cartridge and vacuum or blow air into the mechanism to free any small amounts of toner lodged inside.
-
-
- Resolution 2
- Turn the printer off using the power button.
- Swap the affected cartridge with another colour toner cartridge in the printer. (For example: if the cyan cartridge was affected, put the cyan cartridge in the magenta slot and the magenta cartridge in the cyan slot.)
- Close the door and allow the printer to initialise.
- After a long initialisation, the printer will report the error "Supplies in wrong positions."
- Power off the printer and swap the two cartridges back to their original positions.
- Close the door and turn the printer back on.
- The machine should initialise and return to Ready mode.
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, re-insert the cartridge into the printer and print a test page.
- If the issue persists, check the life of the maintenance items in your machine in case any of them need to be replaced.
Lines on the page, vertical or horizontal
- Remove and re-insert the cartridge.
- Check the drum (roller – green or blue) for defects, being careful not to touch this part.
- Clean the drum with a dry lint-free cloth.
- Clean the contacts on the cartridge.
- Print 5–10 pages to remove potential foreign material under the wiper blade.
- If the problem persists, install a new cartridge.
Dots/ streaks
- Print out a Print Quality page.
- If the problem persists, print a cleaning page.
Specks of toner, toner smearing or repeated marks
Print a cleaning page using the following procedure:
- From the Home screen on the printer control panel, use the buttons or swipe until you can select the Setup menu.
- Select the Setup icon to open the menu.
- Open the Service menu.
- Open the Cleaning Page icon/button.
- Load plain letter or A4 paper when you are prompted.
- Wait until the process is complete. Discard the page that prints.
My printouts are coming out completely black
- Remove the cartridge and re-install it.
- If the problem persists, clean the contacts on the cartridge with a dry lint-free cloth.
