HP Colour LaserJet Pro MFP M274n

  • Updated
CS Lotus.svg

MFP M274n

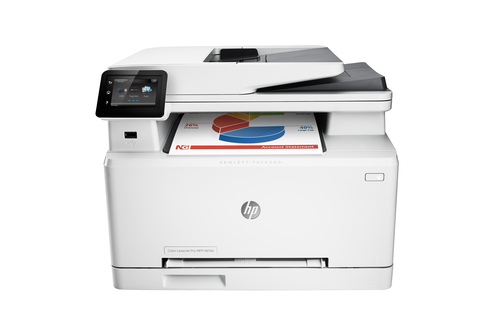

HP LaserJet M274n Laser A4 600 x 600 DPI 18 ppm Product Image
Printer cartridge installation
Compatible HP 201A Toners

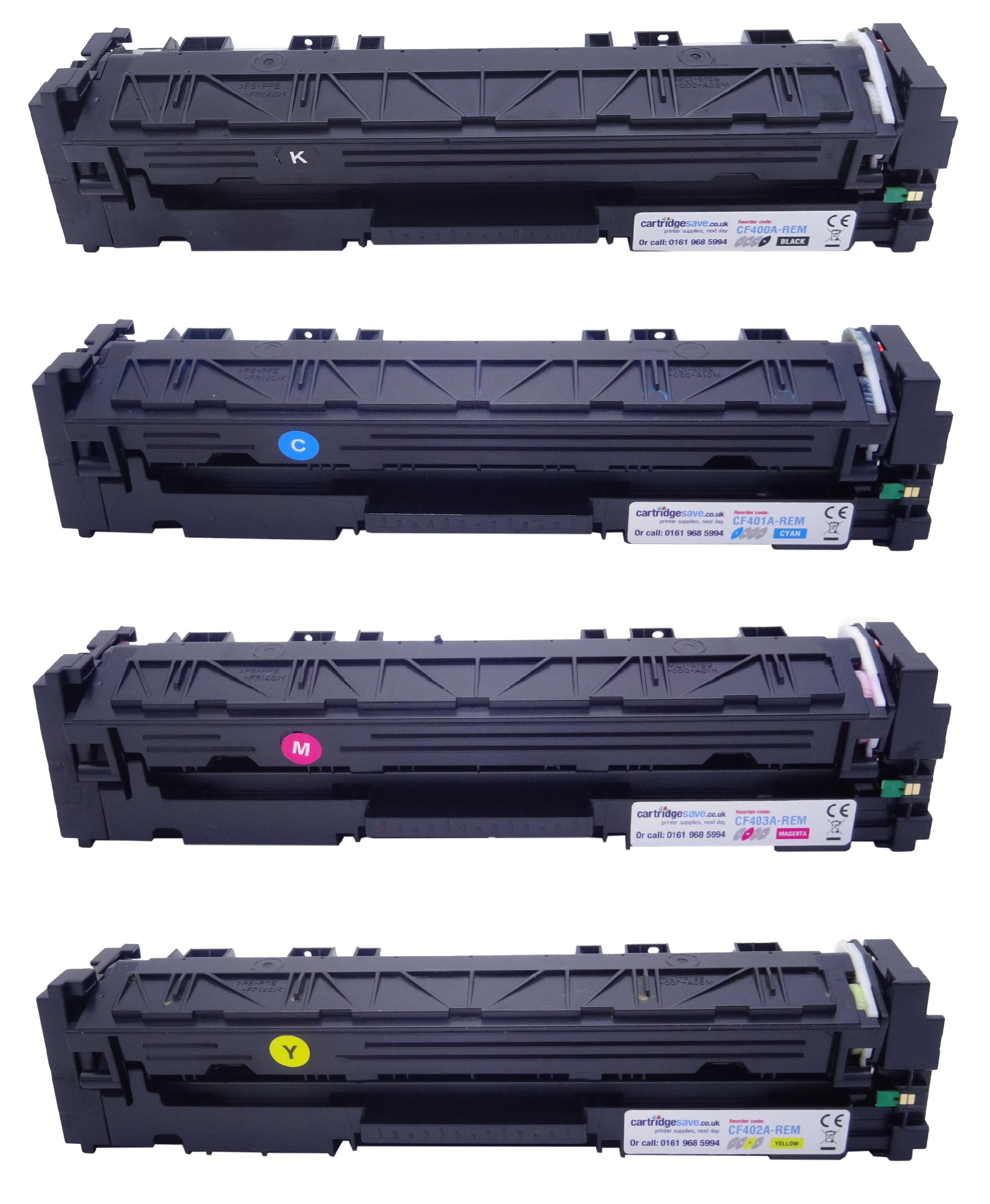

This image shows the front of the cartridge, the product code and colour is displayed on the label.
HP 201A Front

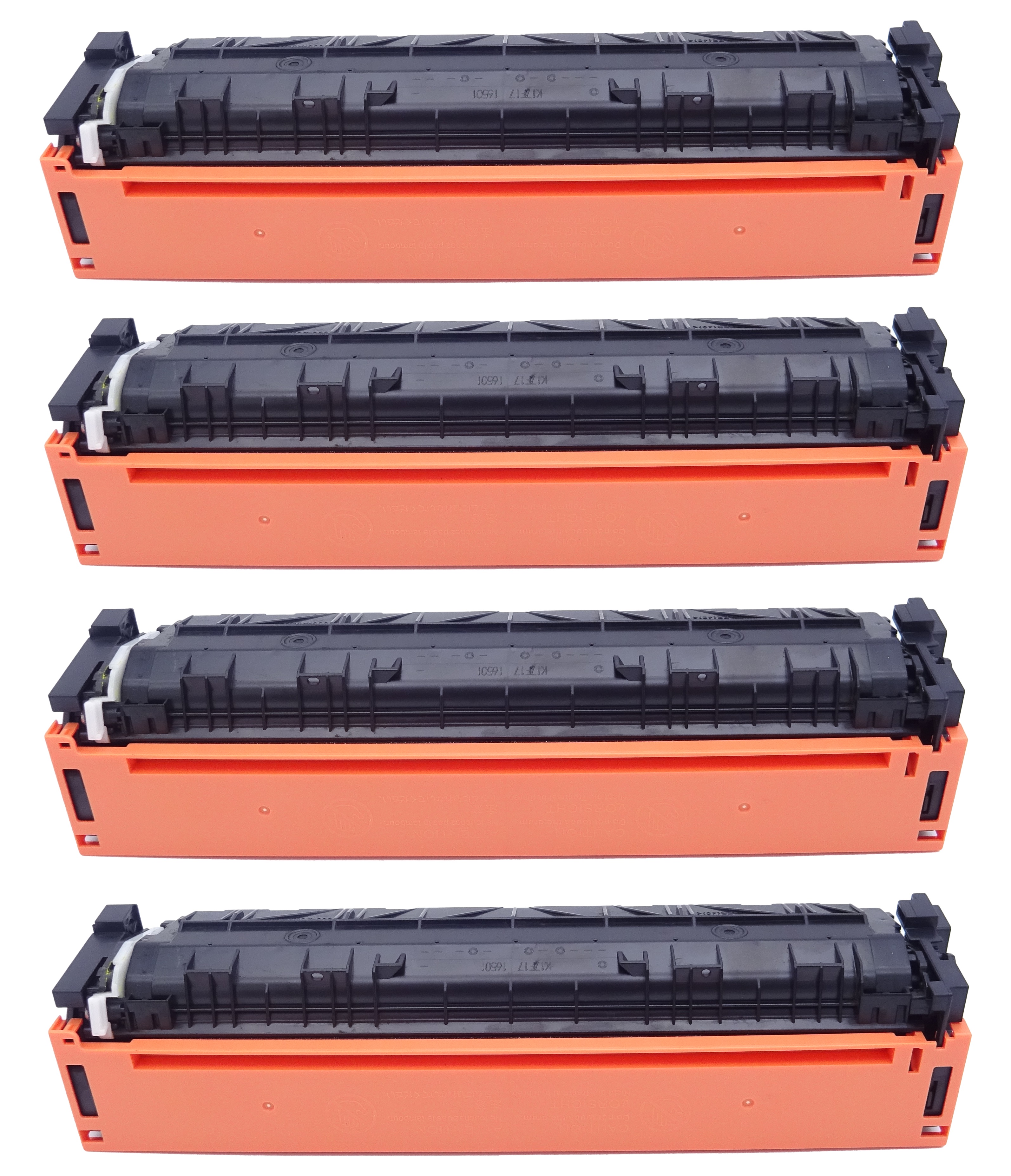

The back of the cartridge can be seen in this image, the orange cover must be removed before installing.
HP 201A Back

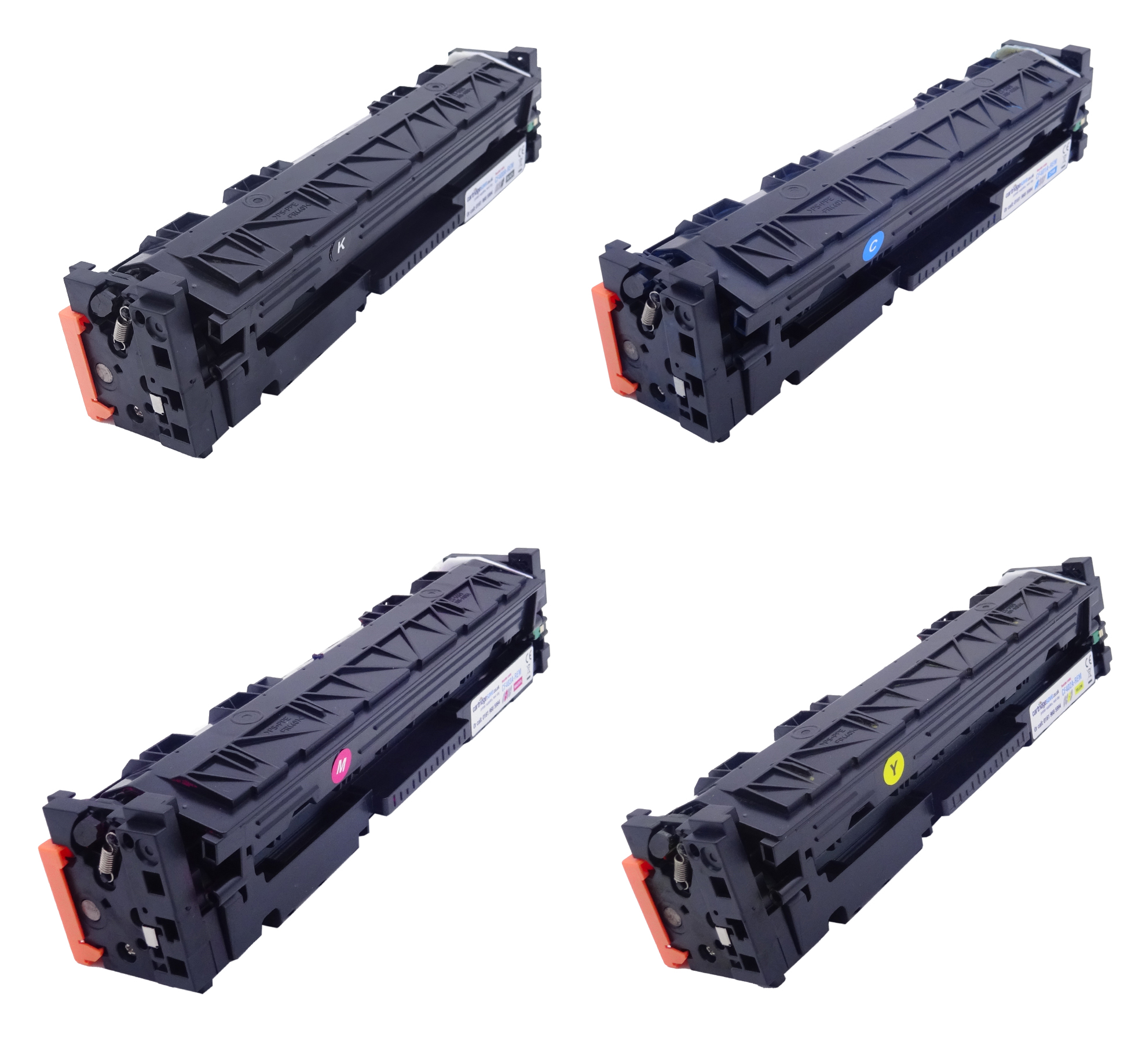

This image shows the left side of the cartridge.
HP 201A Left

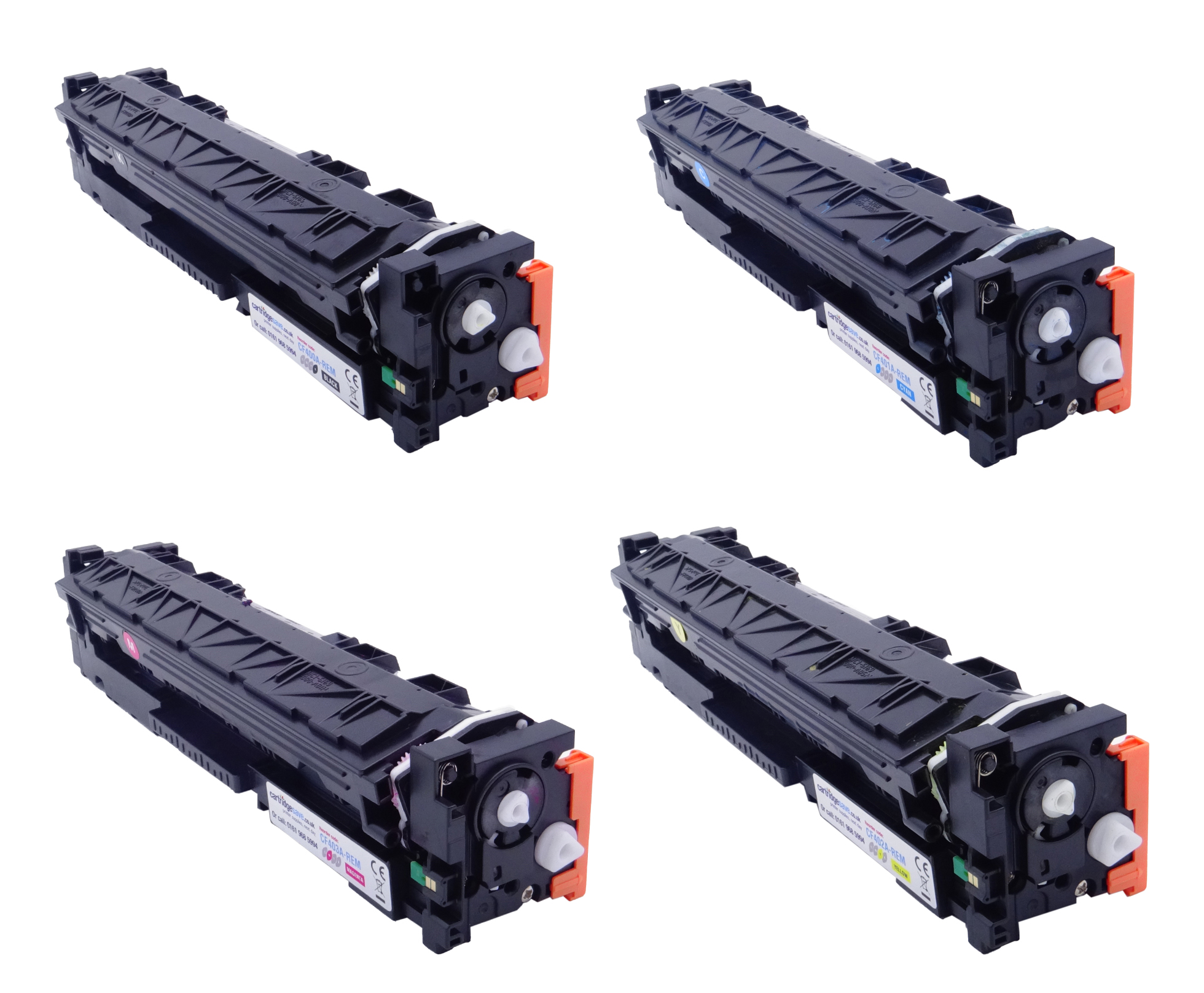

The right side of the cartridge can be seen in this image.
HP 201A Right
Compatible HP 201X Toners

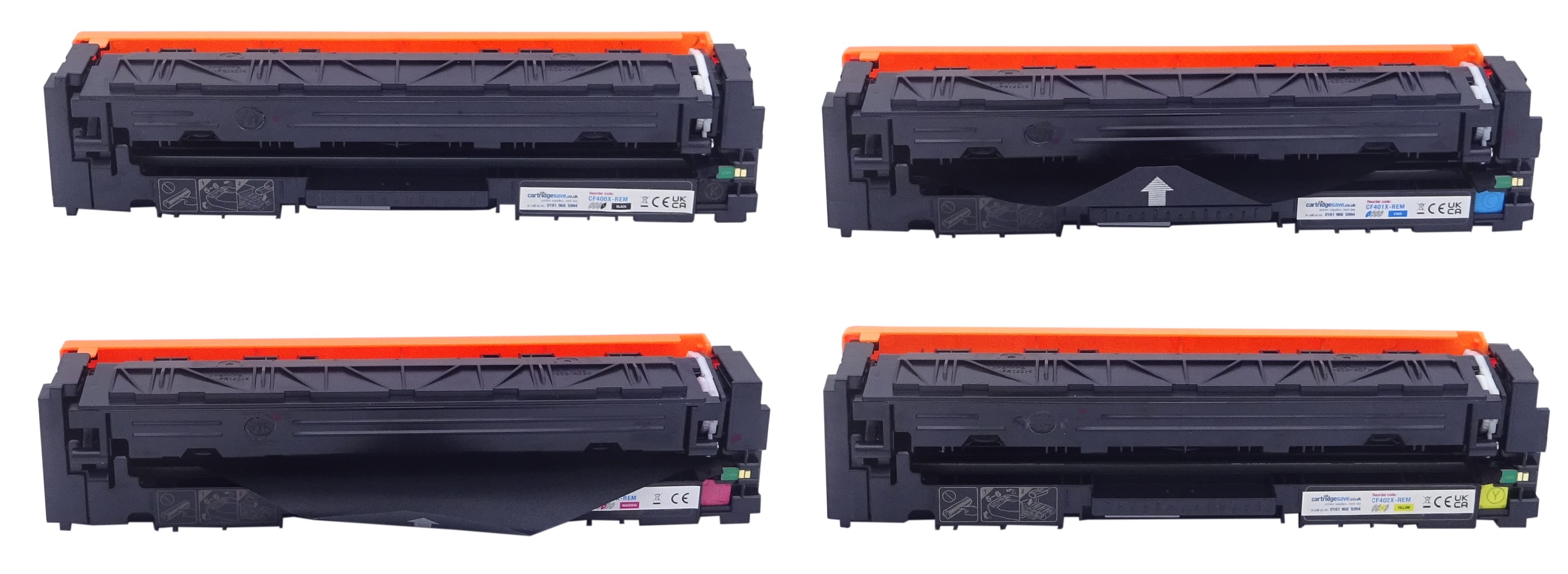

This image shows of the front of the cartridges and a clear view of the chip, which should be clear of impurities before installation.
HP 201X Front

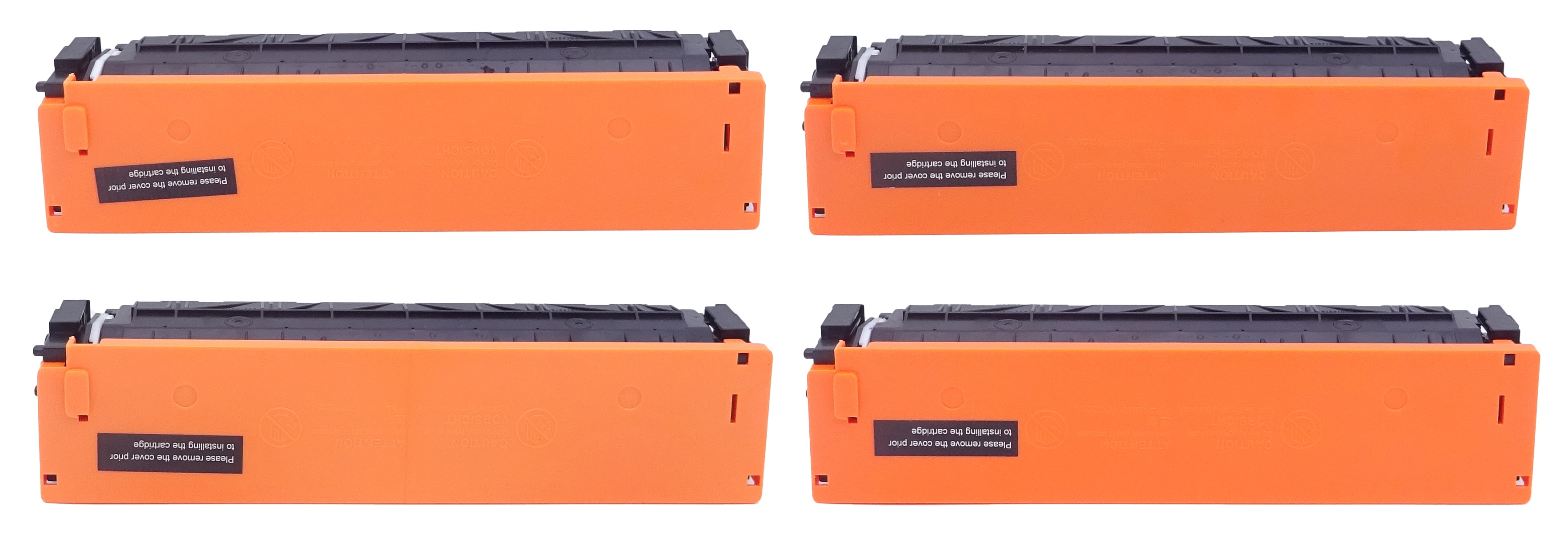

The back view shows the orange drum cover, which needs to be removed before the cartridge is installed.
HP 201X Back
The gears can be seen on the right hand side of the cartridge.
HP 201X Right

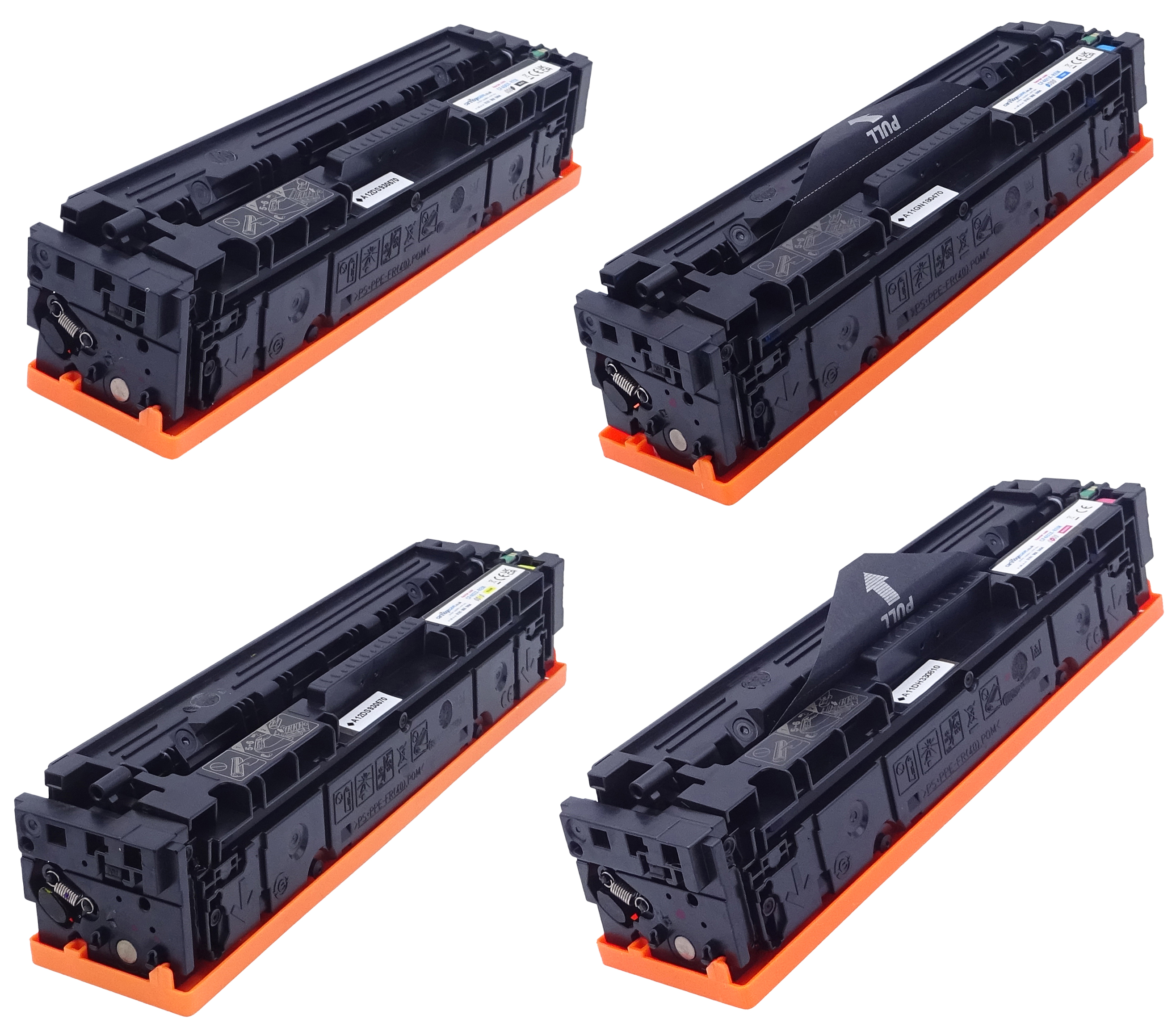

This image shows the left side of the cartridges, please remove any drum protecting paper before installation.
HP 201X Left
Printer cartridge installation
10.0X.30 Unauthorised Cartridge
  • The administrator has configured this printer to use only genuine HP cartridges.
10.0X.57 Protected Cartridge
  • The cartridge can only be used in the printer or fleet of printers that initially protected it using HP Cartridge Protection.
  • Resolution:
  • Use the printer control panel to disable the Cartridge Policy feature:
  • From the Home screen, touch the Menu icon.
  • Open Supplies > Settings.
  • Disable Authorized HP Cartridge Policy.
  • Please note: Once Cartridge Policy is disabled, the cartridges already installed will no longer work. You should be able to install new compatible cartridges with no issues.
  • If these steps do not disable Cartridge Protection, please contact your network administrator. They can disable this feature via the HP EWS (Embedded Web Server).
Cartridge is not compatible / Cartridge is not recognised
  • The compatible cartridge has been installed correctly, but the printer is not registering it as installed or states it is not compatible.
  • Remove the affected cartridge or cartridges from the printer.
  • Turn the printer off and wait for 2 minutes.
  • Turn the printer back on and wait for a further 2 minutes.
  • Once the printer warns that certain cartridge or cartridges are missing, reinstall them one at a time.
Printer cartridge installation
My prints are faded
  • If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
  • This movement helps distribute the toner evenly within the cartridge.
  • After rocking the cartridge 5–6 times, reinsert it and print a test page.
  • If the issue persists, check the life of maintenance items in case they need replacing
Printer cartridge installation
Printer cartridge installation

Printers that use HP 201A / 201X cartridges

To see a full list of products that work in your printer, click on the model name below:

Colour LaserJet Pro MFP M277dw Colour LaserJet Pro M252dw Colour LaserJet Pro MFP M277n
Colour LaserJet Pro M252n Colour LaserJet Pro MFP M274n
