M252dw
Compatible HP 201A Toners
|

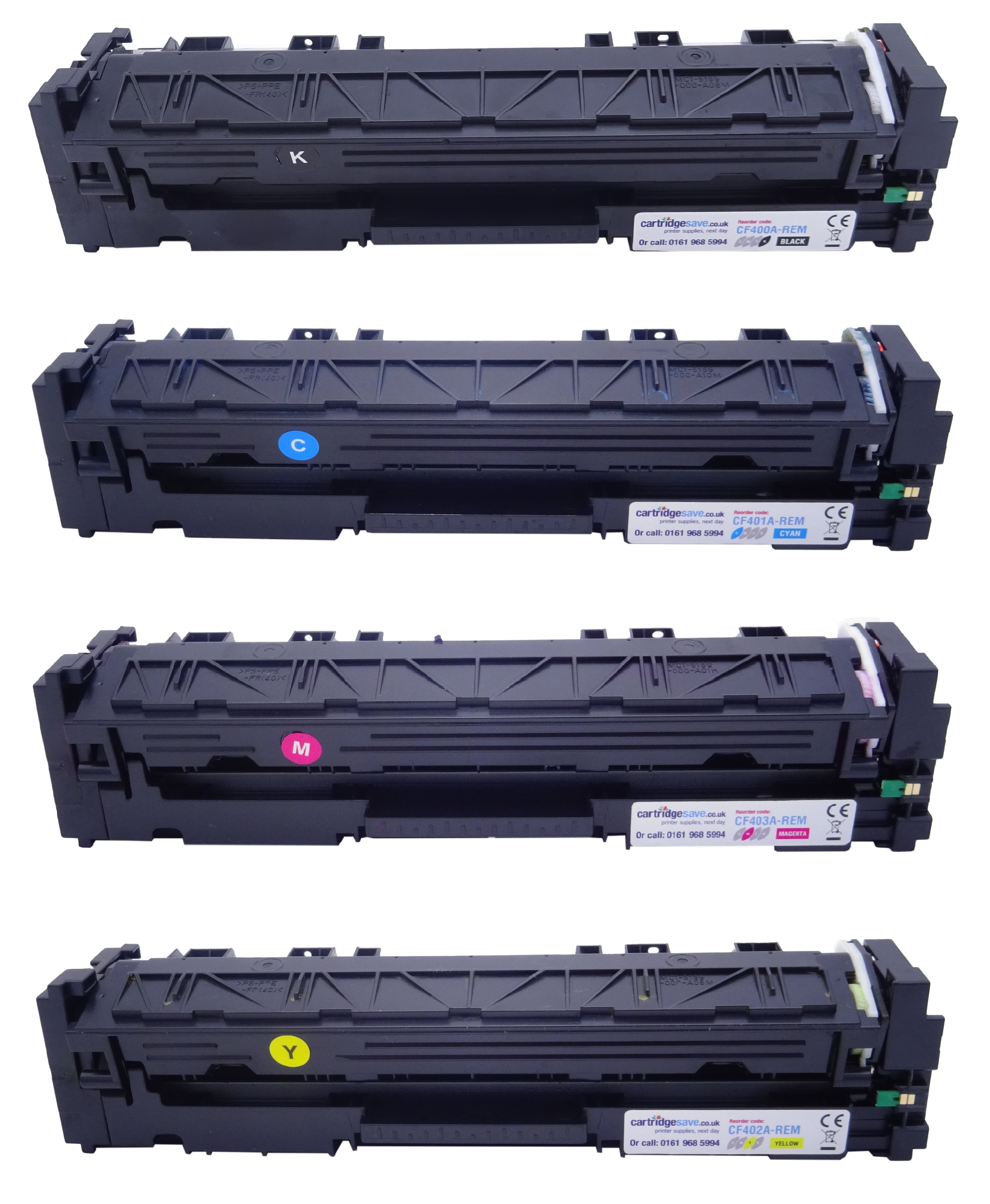

This image shows the front of the cartridge,
the product
code and colour is displayed on the label.
|
|
|
|
The back of the cartridge can be seen in
this
image,
the orange cover must be removed before installing.
|
|
|
|
This image shows the left side of the cartridge.
|
|
|
|

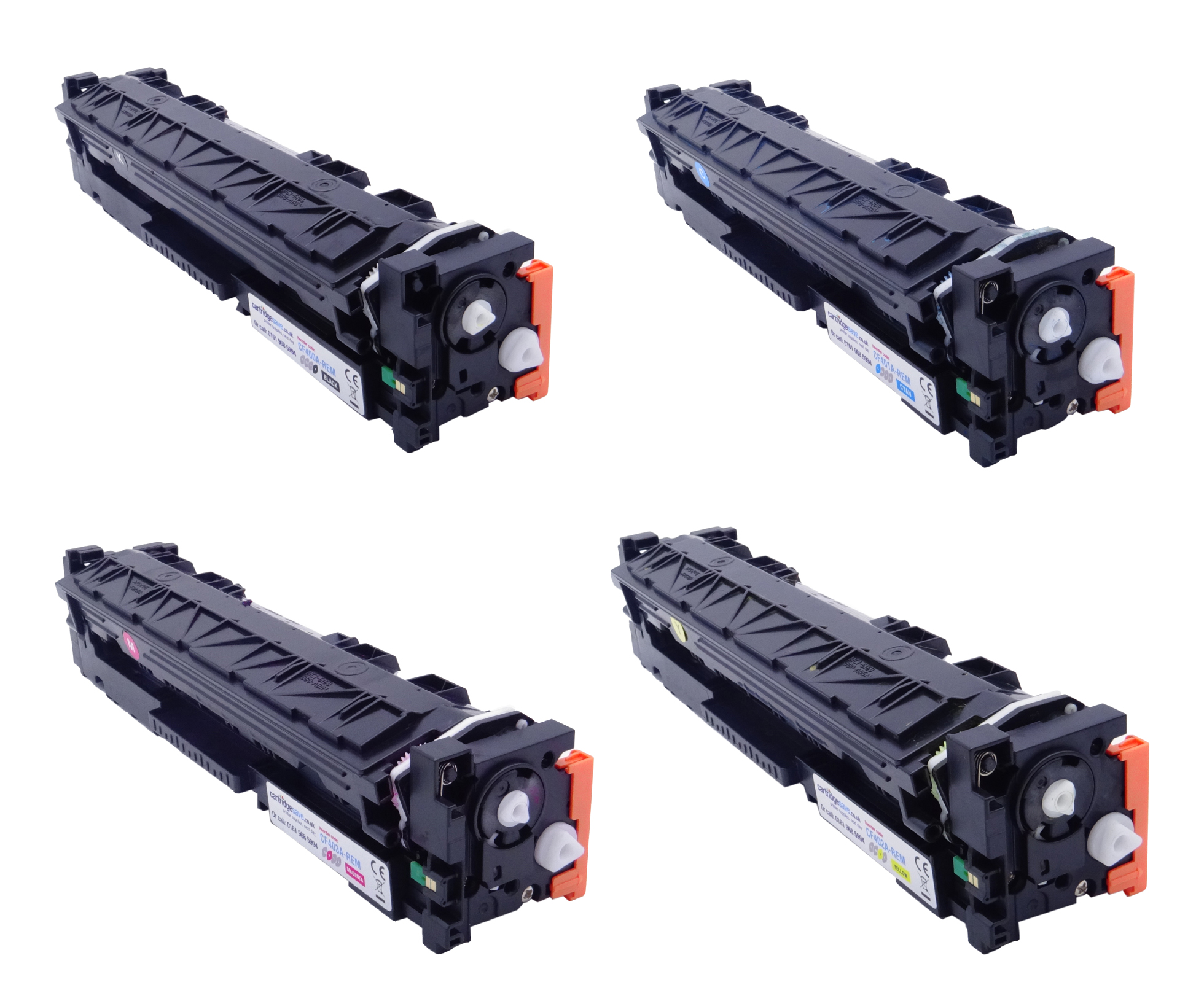

The right side of the cartridge can be seen in this image.
|
|
|
Compatible HP 201X Toners
|

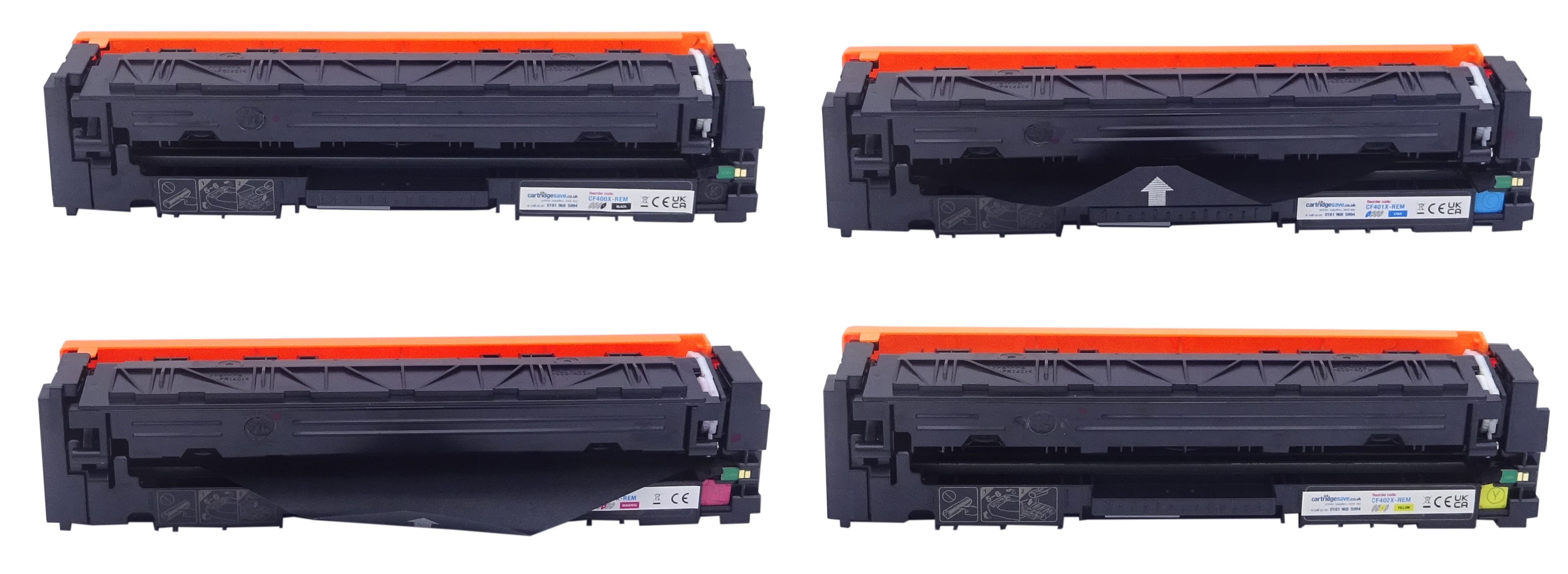

This image shows of the front of the cartridges
and a
clear view of the chip, which should be clear
of impurities
before installation.
|
|
|
|

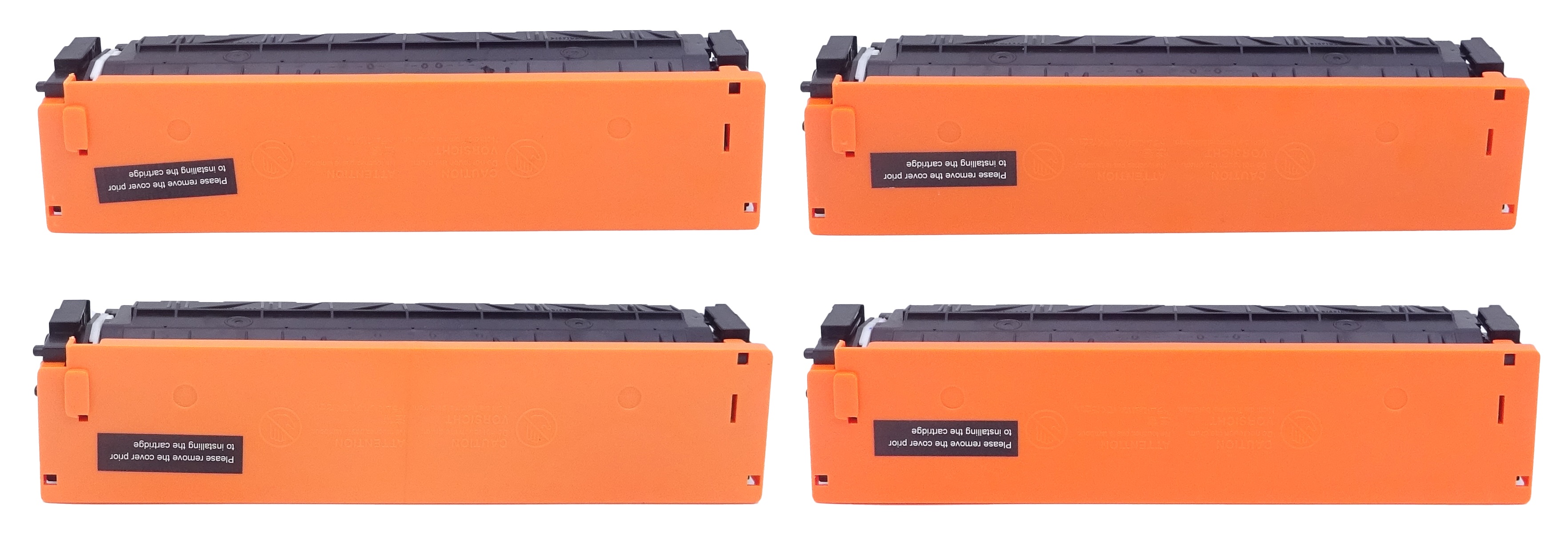

The back view shows the orange drum cover,
which
needs
to be removed before the cartridge is installed.
|
|
|
|
The gears can be seen on the right hand side
of the cartridge.
|
|
|
|

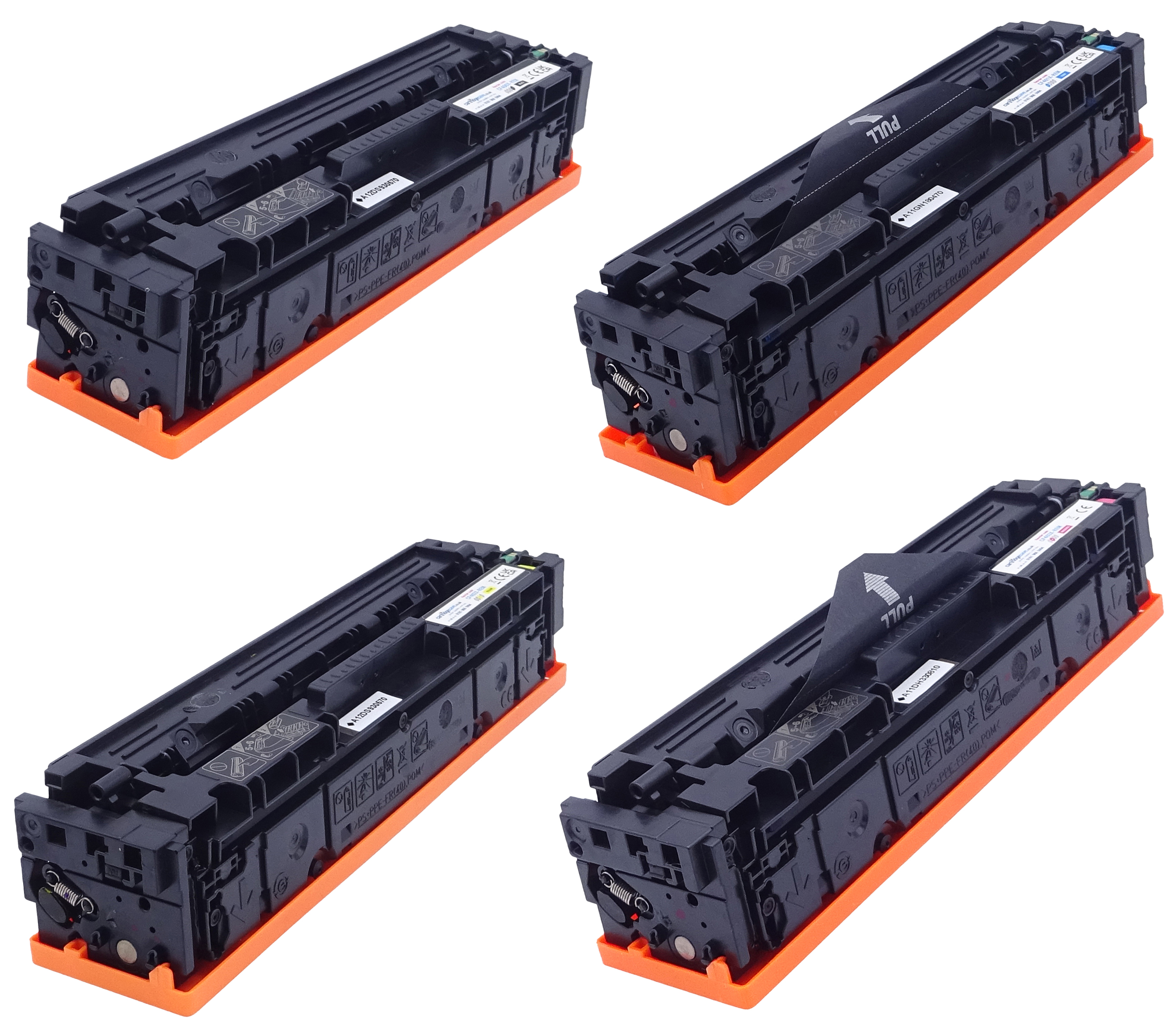

This image shows the left side of the cartridges,
please
remove any drum protecting paper before installation.
|
|
|
10.0X.30 Unauthorised Cartridge
- The administrator has configured this printer to use only genuine HP cartridges.
10.0X.57 Protected Cartridge
- The cartridge can only be used in the printer or fleet of printers that initially protected it using HP Cartridge Protection.
- Resolution:
- Use the printer control panel to disable the Cartridge Policy feature:
- From the Home screen, touch the Menu icon.
- Open Supplies > Settings.
- Disable Authorized HP Cartridge Policy.
- Please note: Once Cartridge Policy is disabled, the cartridges already installed will no longer work. You should be able to install new compatible cartridges with no issues.
- If these steps do not disable Cartridge Protection, please contact your network administrator. They can disable this feature via the HP EWS (Embedded Web Server).
Cartridge is not compatible / Cartridge is not recognised
- The compatible cartridge has been installed correctly, but the printer is not registering it as installed or states it is not compatible.
- Remove the affected cartridge or cartridges from the printer.
- Turn the printer off and wait for 2 minutes.
- Turn the printer back on and wait for a further 2 minutes.
- Once the printer warns that certain cartridge or cartridges are missing, reinstall them one at a time.
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
Printers that use HP 201A / 201X cartridges
To see a full list of products that work in your printer, click on the model name below:

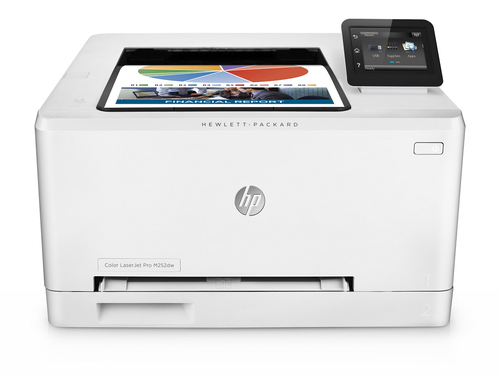

| Colour LaserJet Pro MFP M277dw | Colour LaserJet Pro M252dw | Colour LaserJet Pro MFP M277n |
| Colour LaserJet Pro M252n | Colour LaserJet Pro MFP M274n |
