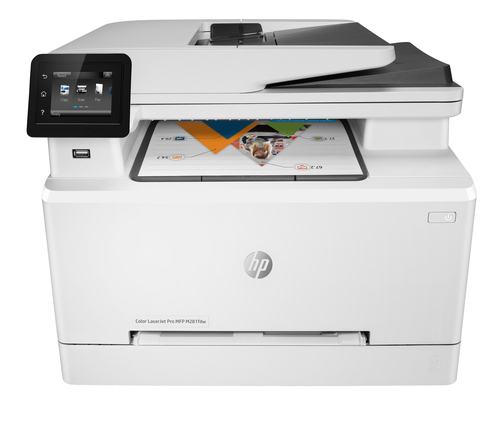

MFP M281fdw
Compatible HP 203X

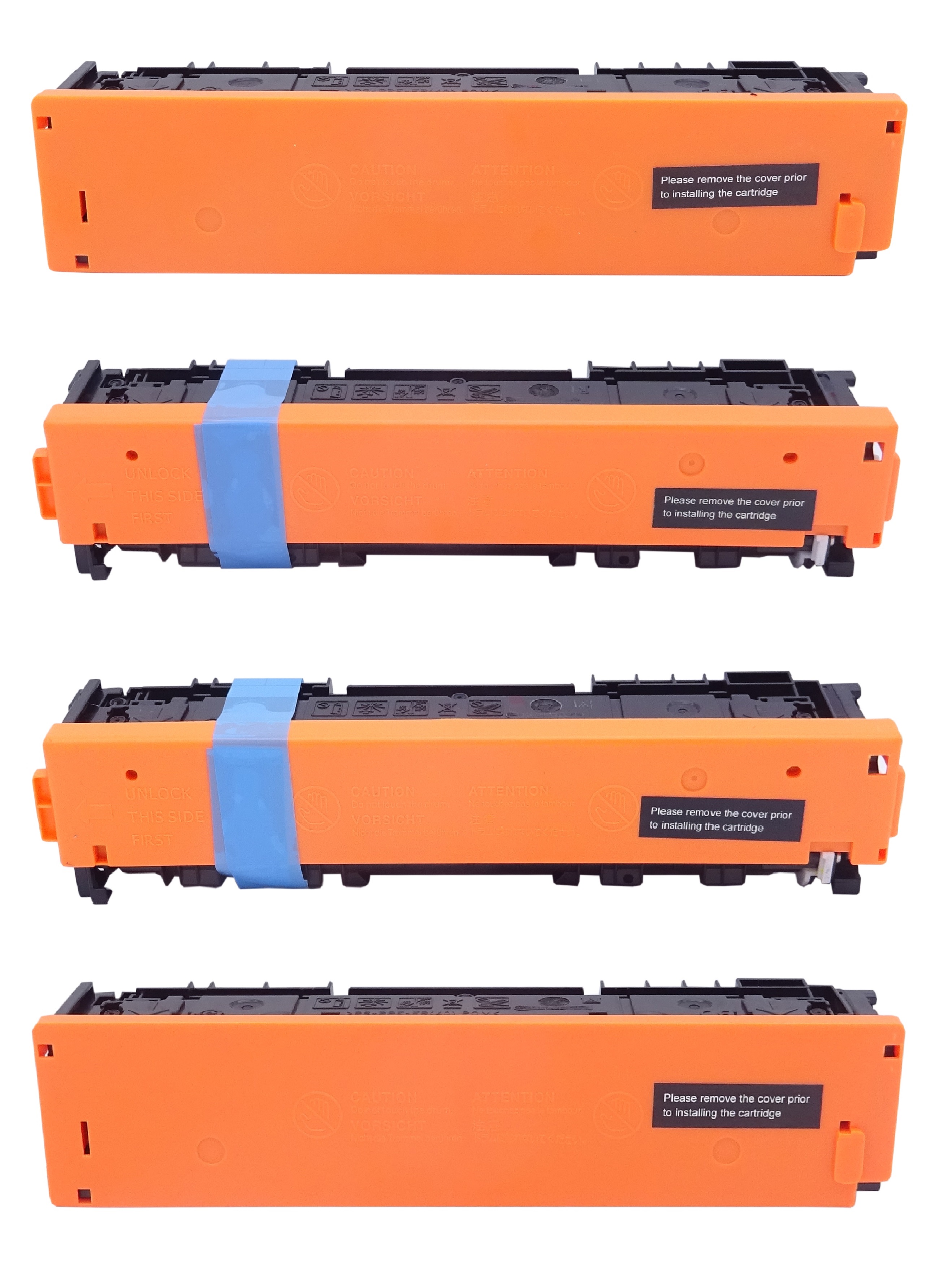

- This image shows the top of the cartridges. Remove the black drum protecting paper before installing.
- The orange plastic cover on the bottom of the cartridge must be removed before installation.

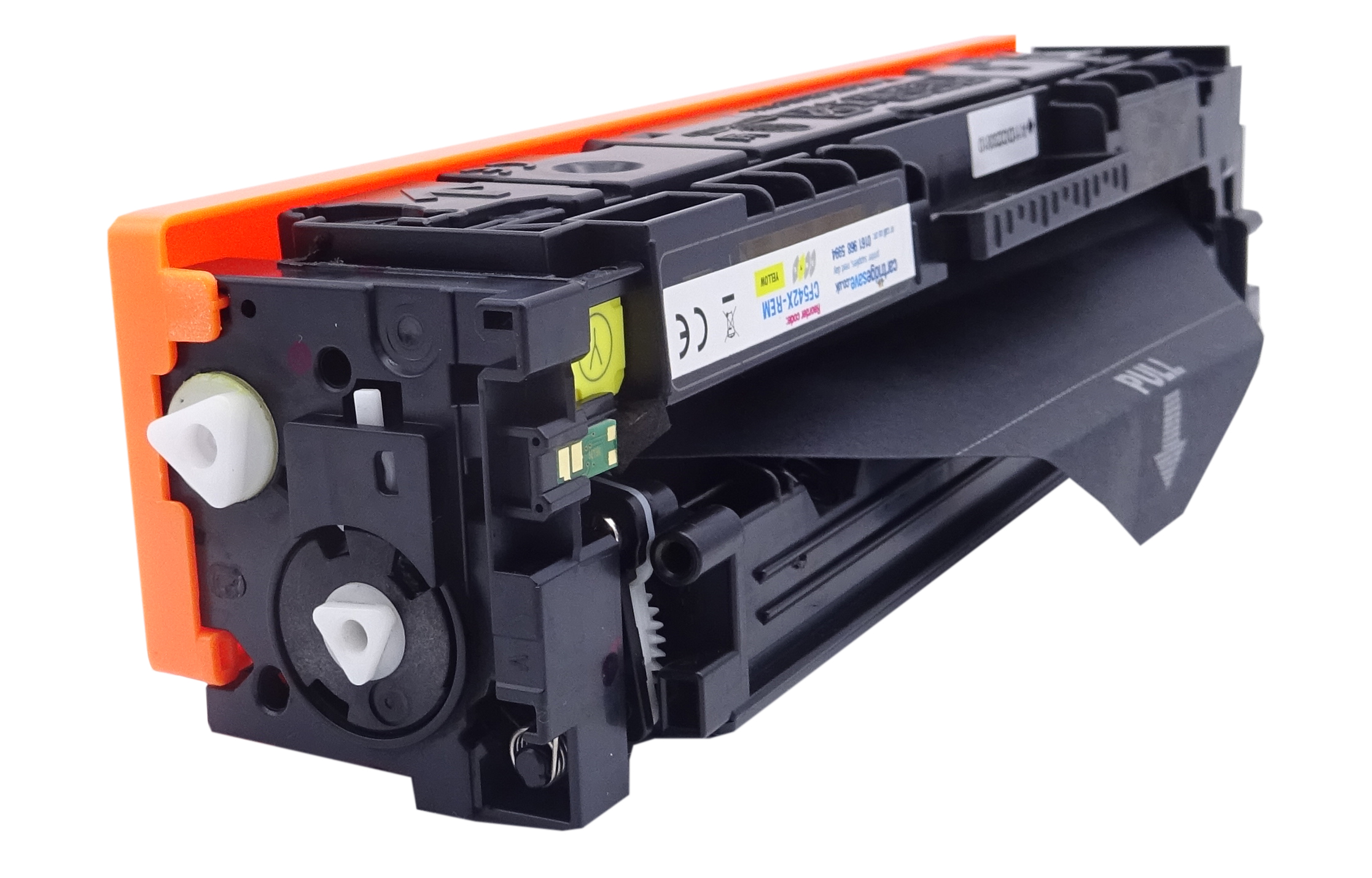

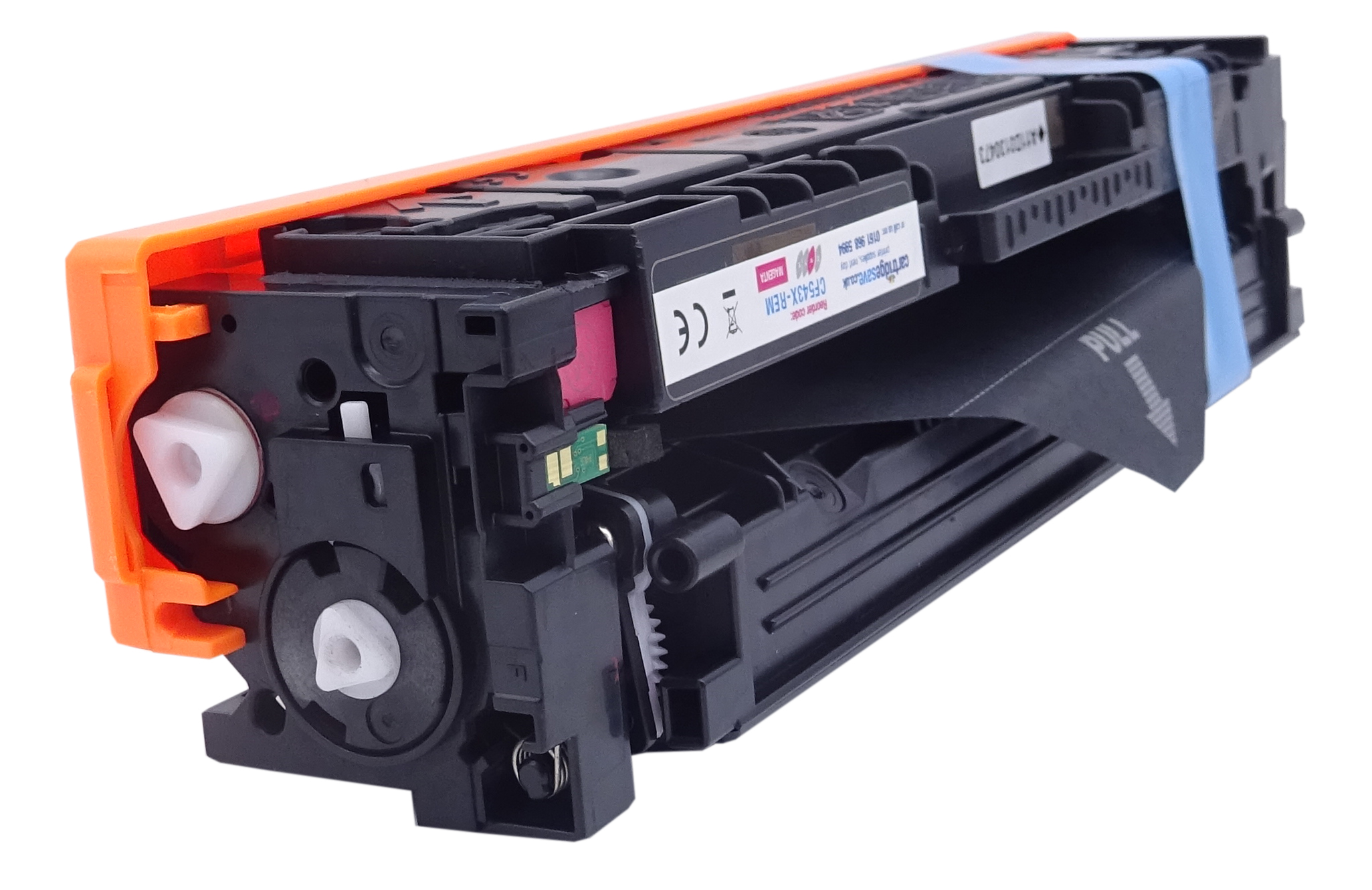

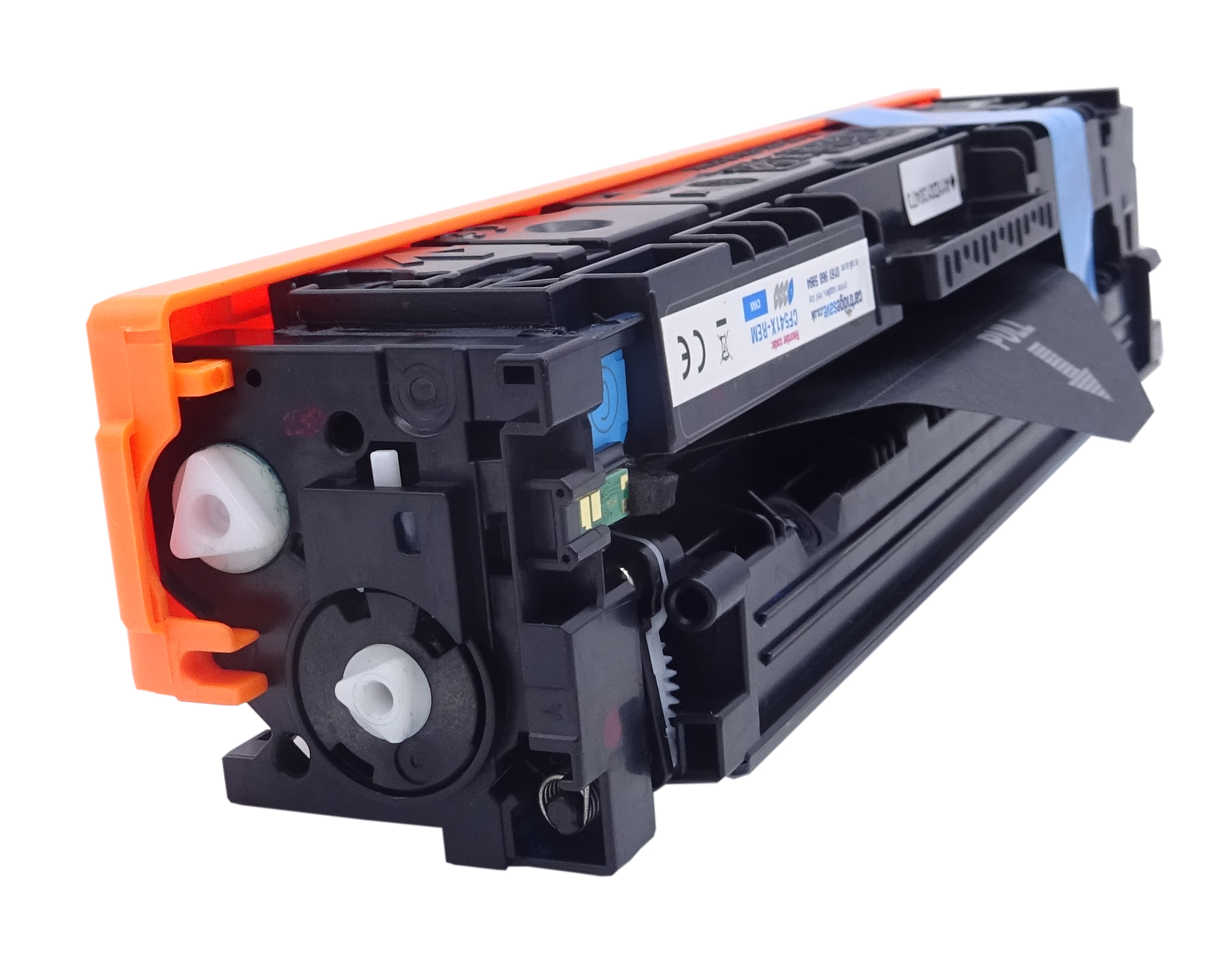

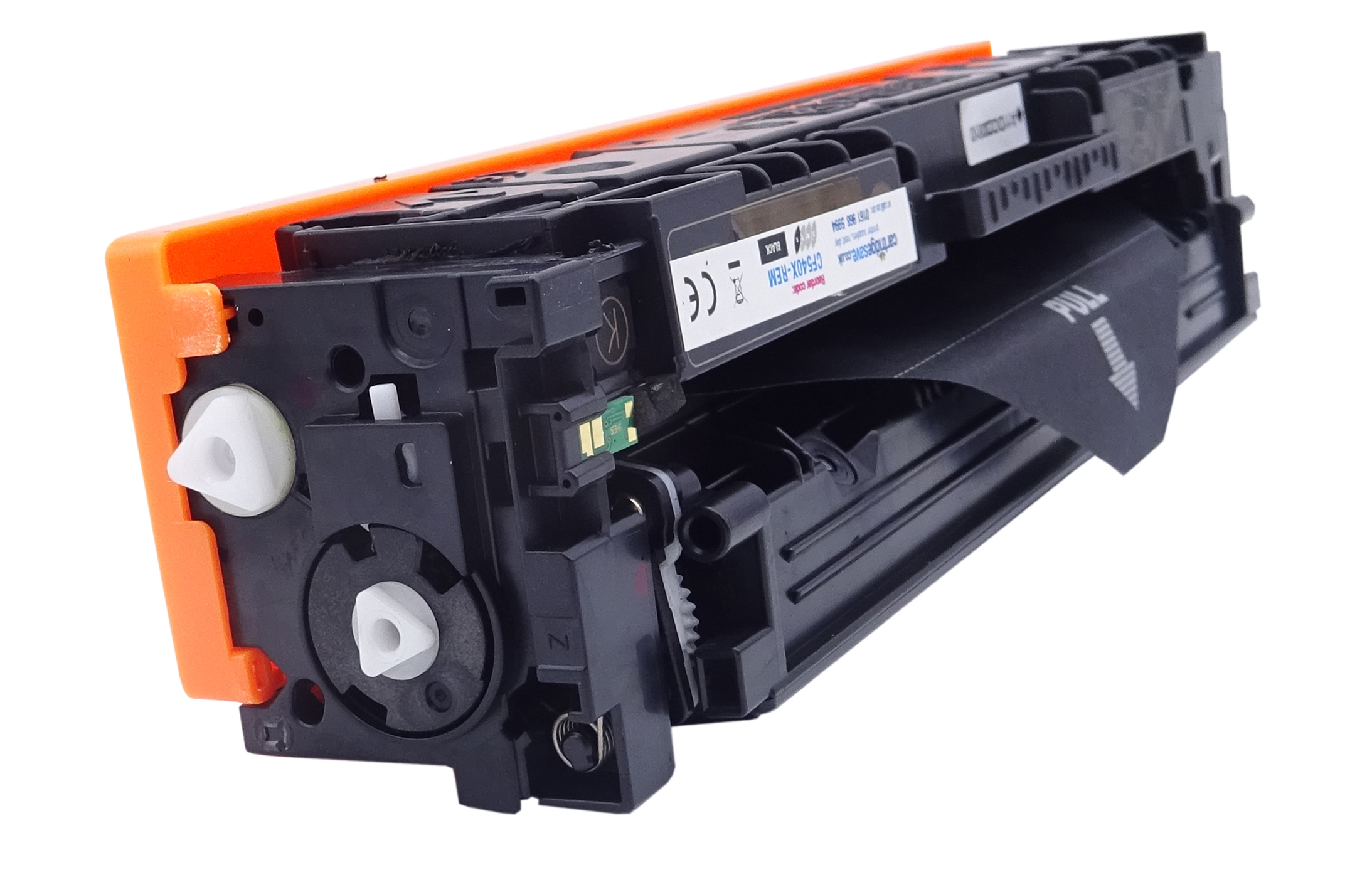

- This is the right-hand side of the cartridge. Ensure the chip is clean and free of impurities.

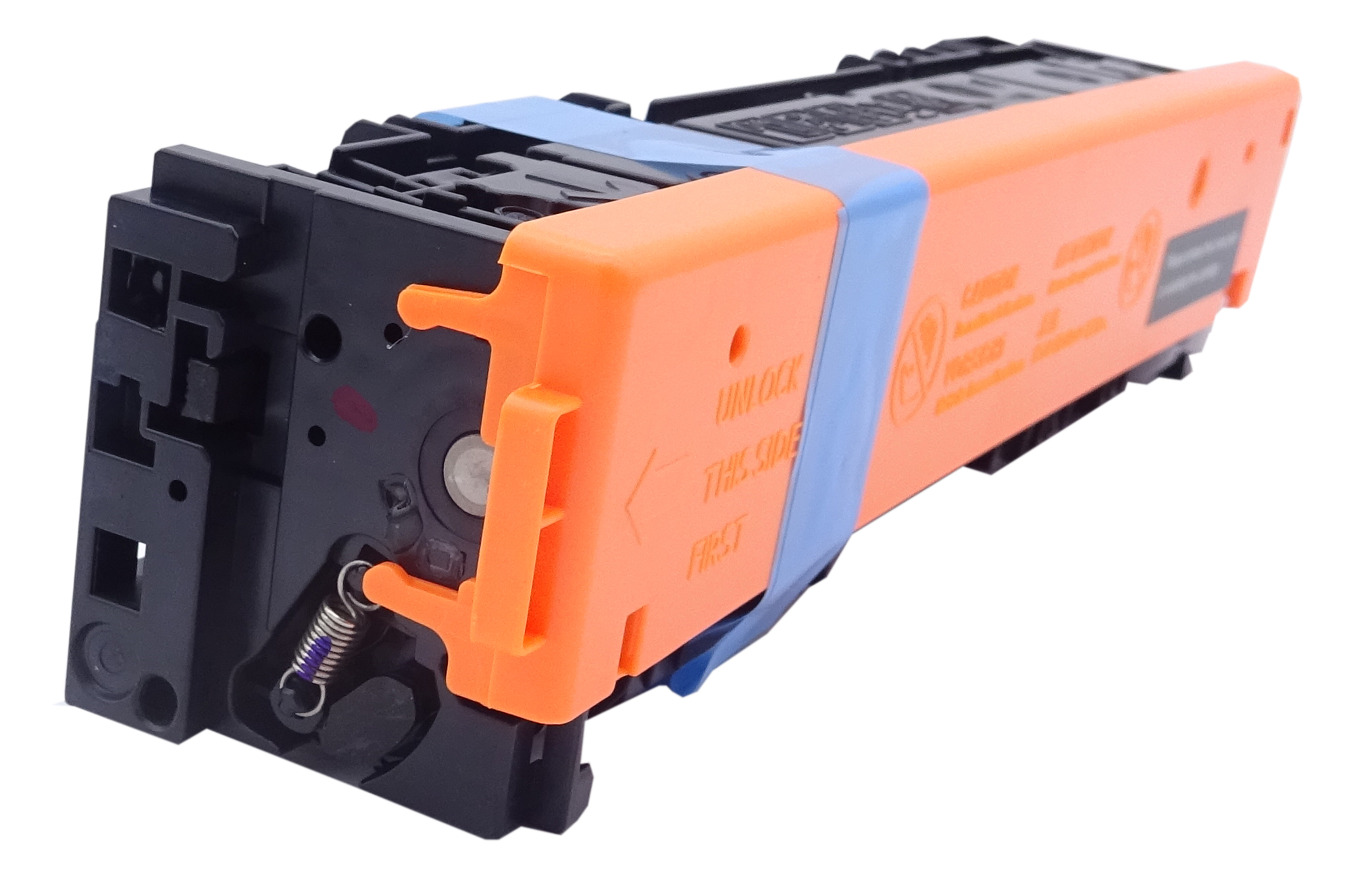

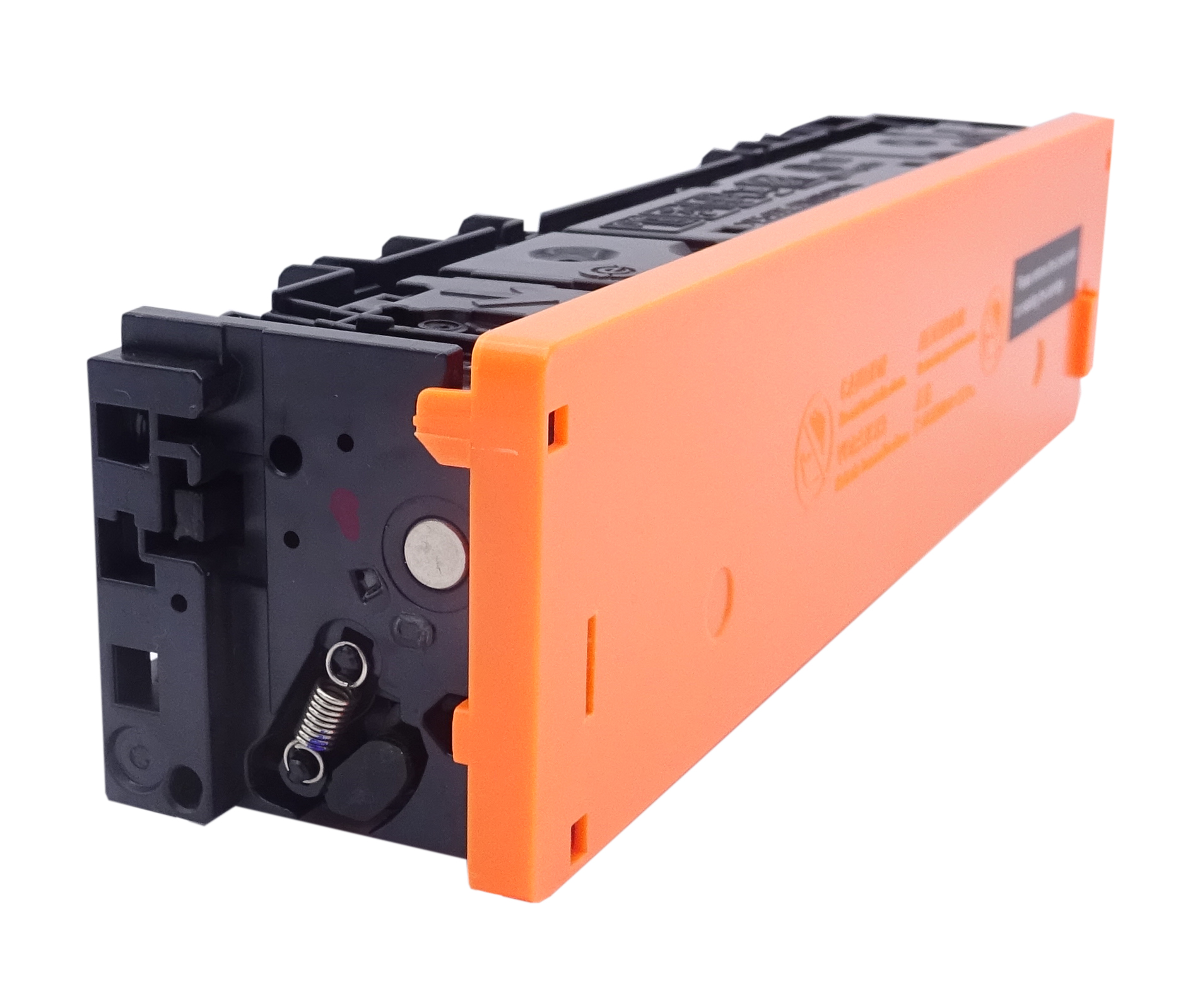

- Left view shows the side of the orange cover and where you can unclip it.
Compatible HP 203A
- Top view – remove drum cover if present before installation.

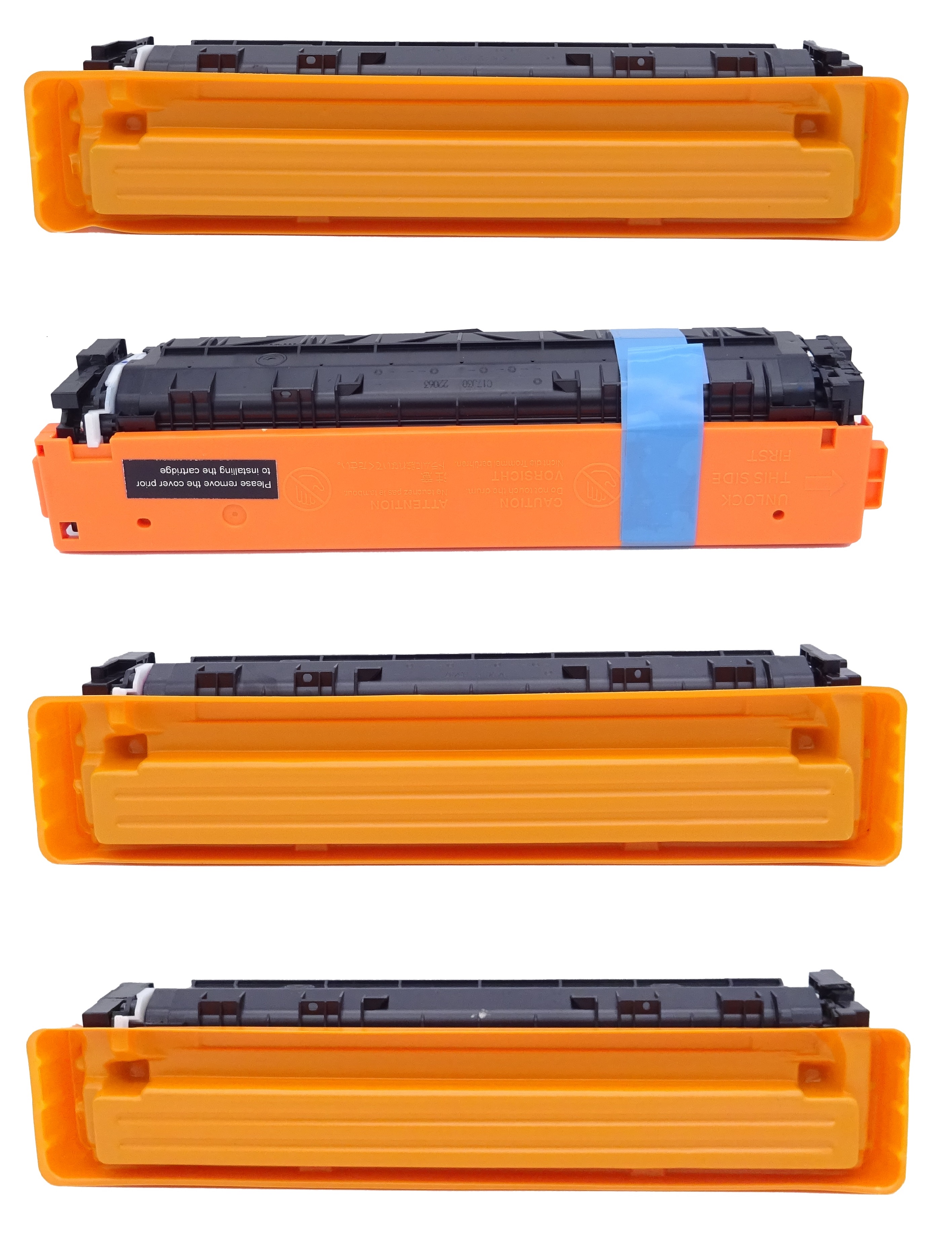

- Bottom view with drum cover on.

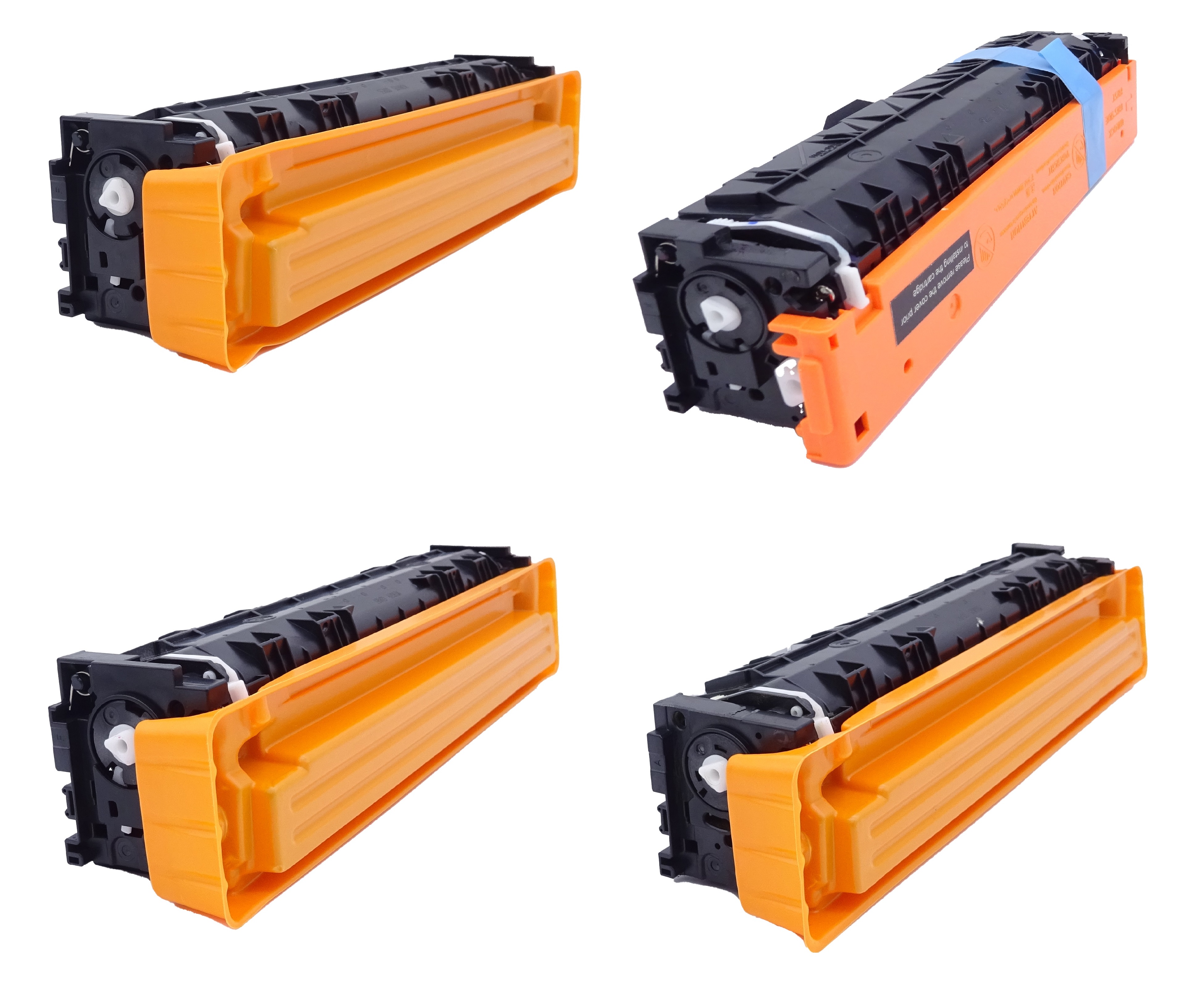

- Side view 1
- Side view 2
10.0X.30 Unauthorised Cartridge
- The administrator has configured this printer to use only genuine HP cartridges.
10.0X.57 Protected Cartridge
- The cartridge can only be used in the printer or fleet of printers that initially protected it using HP Cartridge Protection.
- Resolution:
- Use the printer control panel to disable the Cartridge Policy feature:
- From the Home screen, touch the Menu icon.
- Open Supplies > Settings.
- Disable Authorized HP Cartridge Policy.
- Please note: Once Cartridge Policy is disabled, the cartridges already installed will no longer work. You should be able to install new compatible cartridges with no issues.
- If these steps do not disable Cartridge Protection, please contact your network administrator. They can disable this feature via the HP EWS (Embedded Web Server).
Supply Memory Error
- The chip may be displaced.
-
Please check that the chip is pushed up to the red line shown
in the image.
"
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
I'm seeing streaks on my prints
- Remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute the toner evenly within the cartridge.
- Carefully clean the drum roller to remove any excess toner.
- Re-insert the cartridge into the printer and print a test page.
- If the problem persists, repeat the previous steps.
There are faint characters on my prints
- Printouts have faint characters / letters appearing down the page.
- Print 15–20 pages and see if the problem persists.
Printers that use HP 203A / 203X cartridges
To see a full list of products that work in your printer, click on the model name below:
| Colour LaserJet Pro MFP M281fdw | Colour LaserJet Pro M254dw | Colour LaserJet Pro MFP M281fdn |
| Colour LaserJet Pro M254nw | Colour LaserJet Pro MFP M280nw |
Printer Consumables
| CF540A | CF540X | CF540X-REM | CF541A |
| CF541X | CF541X-REM | CF542A | CF542X |
| CF542X-REM | CF543A | CF543X | CF543X-REM |
| CF54A-3PACK | CF54A-PACK | CF54X-3PACK | CF54X-3PACK-REM |
| CF54X-PACK | CF54X-PACK-REM | B3Q10-60105 | CF540A-REM |
| CF541A-REM | CF542A-REM | CF543A-REM | CF54A-PACK-REM |
