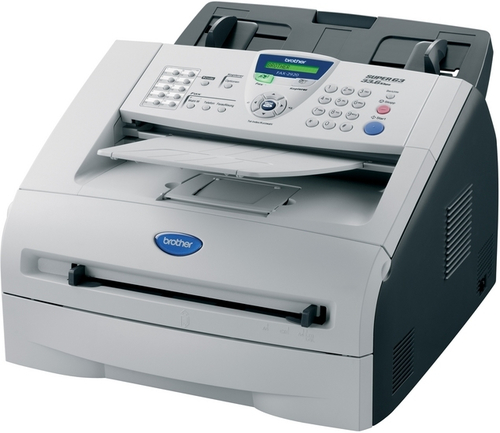

Fax-2920
Replace Toner / Toner Low / No Toner Installed
-
With Brother consumables, you have to manually reset the counter
to let the machine know an item has been replaced.
- Make sure the machine is turned on.
- Open the printer front cover.
- Press Option.
- Press Start.
- Press the Up Arrow until the display shows 11.
- Press Set.
- When Accepted appears on the display, close the printer front cover.
Replace Drum / Drum End / No Drum Installed
-
With Brother consumables, you have to manually reset the counter
to let the machine know an item has been replaced.
- Make sure the machine is turned on.
- Open the front cover.
- Press Options on the control panel.
- If your Brother machine has a numeric keypad: press 1 to reset the drum counter.
- If your Brother machine does not have a numeric keypad: press the Up Arrow key to reset the drum counter.
- When the LCD shows Accepted, close the front cover.
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
My prints have marks on the page
Marks in the same place each time
- If the printouts have marks on the page in a repeating pattern, remove the drum from the printer.
- Using a lint free cloth gently clean the drum surface taking care not to touch the surface with fingers.
Printers that use Brother TN-2000 cartridges
To see a full list of products that work in your printer, click on the model name below:
| HL-2030 | DCP-7010 | Fax-2920 |
| MFC-7420 | DCP-7010L | HL-2040 |
| Fax-2820 | MFC-7820N | DCP-7025 |
| HL-2500 | HL-2050 | HL-2070N |
| DCP-7020 | MFC-7225N | HL-2070 |
