HL-2140(W)
Replace Toner / Toner Low / No Toner Installed
Replace Drum / Drum End / No Drum Installed
-
With Brother consumables, you have to manually reset the counter
to let the machine know an item has been replaced.
- Make sure the machine is turned on.
- Make sure the cover is open.

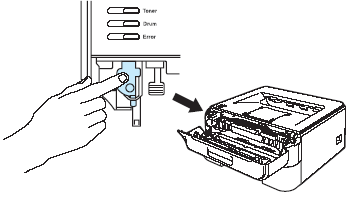

- Press and hold down the white button (shown as blue in the image below) for about 4 seconds until all the LEDs light up.
- Once all 4 LEDs are lit, release the button.
- Close the front cover.
- Make sure that the Drum LED is now off.
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
My prints have marks on the page
Marks in the same place each time
- If the printouts have marks on the page in a repeating pattern, remove the drum from the printer.
- Using a lint free cloth gently clean the drum surface taking care not to touch the surface with fingers.
Printers that use Brother TN-2120 / TN-2110 cartridges
To see a full list of products that work in your printer, click on the model name below:
| MFC-7320 | HL-2140 | DCP-7030 |
| MFC-7440N | HL-2150N | MFC-7840W |
| HL-2150 | HL-2170W | DCP-7040 |
| DCP-7045N | HL-2170 | HL-2140W |
Printer Consumables
| DR2100 | DR2100-REM | TN2110 | TN2110-REM |
| TN2120 | TN2120-REM |
