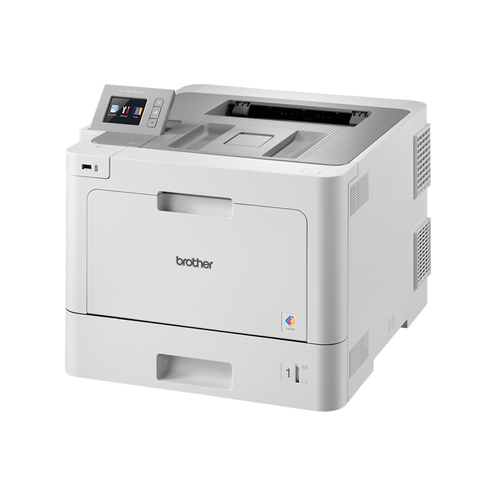

HL-L9310CDW(T)
Replace Toner / Toner Low / No Toner Installed
Replace Drum / Drum End / No Drum Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine is turned on.
- Make sure the machine's cover is closed.
- Press Settings
- Choose Machine Info
- Then choose Parts Life
- Press and hold Drum or Drum Life until the machines message changes
- Press Yes
- Press Home
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
My prints have marks on the page
Marks in the same place each time
- If the printouts have marks on the page in a repeating pattern, remove the drum from the printer.
- Using a lint free cloth gently clean the drum surface taking care not to touch the surface with fingers.
Printers that use Brother TN-910 cartridges
To see a full list of products that work in your printer, click on the model name below:
| MFC-L9570CDW | HL-L9310CDW | HL-L9310CDWT |
| MFC-L9577CDW |
Printer Consumables
| BU-330CL | DR421CL | DR421CL-REM | D00LF5001 |
| LT330CL | LT340CL | WT-320CL | TN-910-PACK |
| TN-910BK | TN-910C | TN-910M | TN-910Y |
| TN-910-PACK-REM | TN-910BK-REM | TN-910C-REM | TN-910M-REM |
| TN-910Y-REM |
