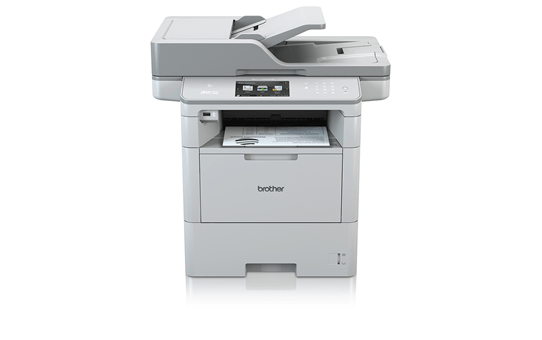

MFC-L6950DW
Replace Toner / Toner Low / No Toner Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine is turned on.
- Press the Home button to light up the touch screen
- Press the Copy button. This will show a numeric keypad on the right hand side.
- Remember where the * (asterics) is located on the keypad
- Open the cover where you access the cartridges and keep this open.
- Hold down where the * (asterics) would be on the keypad (this won't be lit up) for 5 seconds
- The reset menu will then appear. Scroll through and select the toner that you have replaced
- Press Yes
- When the printer shows Accepted on the screen, the count is now reset. The cover can be closed and the printer should be ready to use
Replace Drum / Drum End / No Drum Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine is turned on.
- Make sure the machine's cover is closed.
- Press Settings
- Choose Machine Info
- Then choose Parts Life
- Press and hold Drum or Drum Life until the machines message changes
- Press Yes
- Press Home
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
Printers that use Brother TN-3480 cartridges
To see a full list of products that work in your printer, click on the model name below:
HL-L5050DN| DCP-L5500DN | DCP-L6600DW | HL-L5000D |
| HL-L5100DN | HL-L5100DNT | HL-L5200DW |
| HL-L5200DWT | HL-L6250 | HL-L6250DN |
| HL-L6300 | HL-L6300DW | HL-L6300DWT |
Printers that use Brother TN-3430 cartridges
To see a full list of products that work in your printer, click on the model name below:
| DCP-L5500DN | DCP-L6600DW | HL-L5000D |
| HL-L5100DN | HL-L5100DNT | HL-L5200DW |
| HL-L5200DWT | HL-L6250 | HL-L6250DN |
| HL-L6300 | HL-L6300DW | HL-L6300DWT |
| HL-L6400 | HL-L6400DW | HL-L6400DWT |
Printers that use Brother TN-3512 cartridges
To see a full list of products that work in your printer, click on the model name below:
| DCP-L6600DW | HL-L6250 | HL-L6250DN |
| HL-L6300 | HL-L6300DW | HL-L6300DWT |
| HL-L6400 | HL-L6400DW | HL-L6400DWT |
| HL-L6450DW | MFC-L6800DW | MFC-L6800DWT |
| MFC-L6900DW | MFC-L6900DWT | MFC-L6950DW |
Printers that use Brother TN-3520 cartridges
To see a full list of products that work in your printer, click on the model name below:
| HL-L6400 | HL-L6400DW | HL-L6400DWT |
| HL-L6450DW | MFC-L6900DW | MFC-L6900DWT |
| MFC-L6950DW |
Printer Consumables
| DR3400 | DR3400-CARTRIDGE | DR3400-REX | TN3430 |
| TN3430-REM | TN3480 | TN3480-REX | TN3512 |
| TN3512-REX | TN3520 | TN3520-REX | D00V9U001 |
