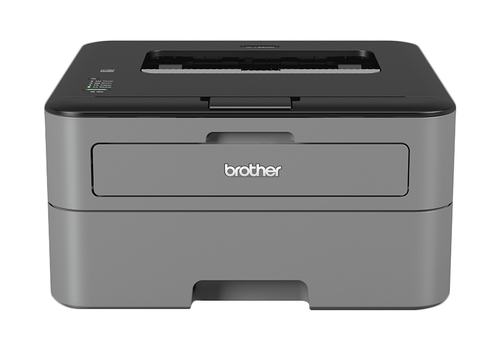

HL-L2300D
Replace Toner / Toner Low / No Toner Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine's cover is open
- Switch the printer off Press and hold the Go button and turn the printer back on, while still holding the Go button.
- Release the Go button and press Go 9 times. All the lights on the printer will appear.
- Press Go a further 2 times. The lights will go off and the ready light will appear
- The count is now reset. The cover can be closed and the printer should be ready to use
Replace Drum / Drum End / No Drum Installed
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
Printers that use Brother TN-2320 / TN-2310 cartridges
To see a full list of products that work in your printer, click on the model name below:
| MFC-L2700DW | HL-L2340DW | HL-L2300D |
| DCP-L2500D | HL-L2360DN | HL-L2365DW |
| DCP-L2540DN | DCP-L2520DW | MFC-L2700DN |
| MFC-L2720DW | MFC-L2740DW | HL-L2360DW |
| DCP-L2560DW | MFC-L2740CW |
Printer Consumables
| DR2300 | DR2300-REM | TN2310 | TN2310-REM |
| TN2320 | TN2320-CPT | TN2320TWIN |
