DCP-7055

Replace Toner / Toner Low / No Toner Installed

Make sure the machine is turned on.
Make sure the machine's cover is open.
Press Clear — this will bring up the drum reset. Do not follow the steps for this as we want to reset the toner.
Press Start 10 times until 10 appears on the screen.
Press OK.
When the printer shows Accepted on the screen, the count is now reset and the printer should be ready to use.

If you are using a Genuine Toner

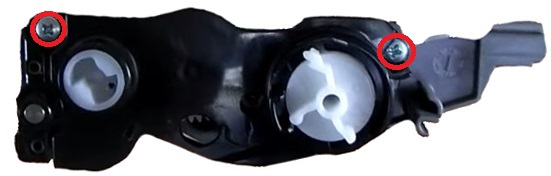

Turn the cartridge so it is facing you and remove the screws highlighted below.

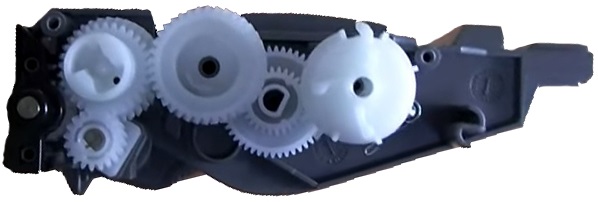

Remove the cover to reveal the cartridge cogs.
Remove the far right and middle cog — see below for how the cartridge should look with the cogs removed.

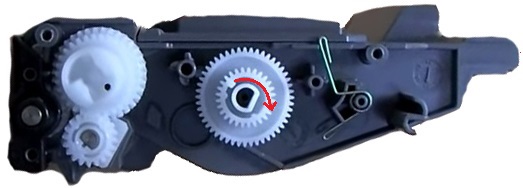

Rotate the middle cog 180 degrees clockwise so the arrow points to the 4 o’clock position.
Reattach the cogs in the correct slots.
Re-screw the cover back on and reinsert the cartridge into the printer.

Replace Drum / Drum End / No Drum Installed

Make sure the machine is turned on.
Make sure the machine's cover is open
Press the Clear button
For models with FAX functions: press 1. For models without FAX functions: press the Up Arrow Key.
Once the printer shows Accepted the cover can be closed and the printer should be ready to use

My prints are faded

If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
This movement helps distribute the toner evenly within the cartridge.
After rocking the cartridge 5–6 times, reinsert it and print a test page.
If the issue persists, check the life of maintenance items in case they need replacing
