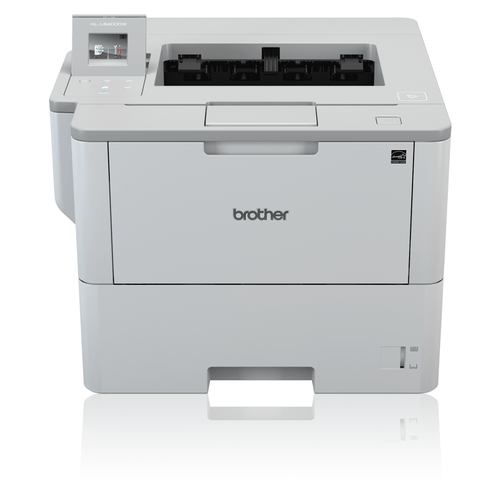

HL-L6415DN
Replace Toner / Toner Low / No Toner Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine is turned on.
- Make sure the machine's cover is open
- Press and hold the Down Arrow
- The reset menu will appear. Scroll through and press the toner you wish to replace
- Press Yes to confirm the reset.
- When the printer shows Accepted on the screen, the count is now reset. The cover can be closed and the printer should be ready to use
Replace Drum / Drum End / No Drum Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine is turned on.
- Make sure the machine's cover is closed.
- Press Settings
- Choose Machine Info
- Then choose Parts Life
- Press and hold Drum or Drum Life until the machines message changes
- Press Yes
- Press Home
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
Printers that use Brother TN-3600 / TN-3600XL / TN-3600XXL cartridges
To see a full list of products that work in your printer, click on the model name below:
| DCP-L5510DW | MFC-L5710DW | HL-L6210DW |
| HL-L6410DN | MFC-L5710DN | MFC-L6710DW |
| MFC-L6910DN | MFC-L6915DN | MFC-L5715DN |
Printers that use Brother TN-3610XL cartridges
| HL-L6415DN | HL-L6410DN | MFC-L6910DN |
| MFC-L6915DN |
Printer Consumables
| TN-3600 | TN-3600XL | TN-3600XXL | DR-3600 |
| TN-3600XL-REM | TN-3600XXL-REM | TN-3610XL | TN-3610XL-REM |
| DR-3600-REM |
