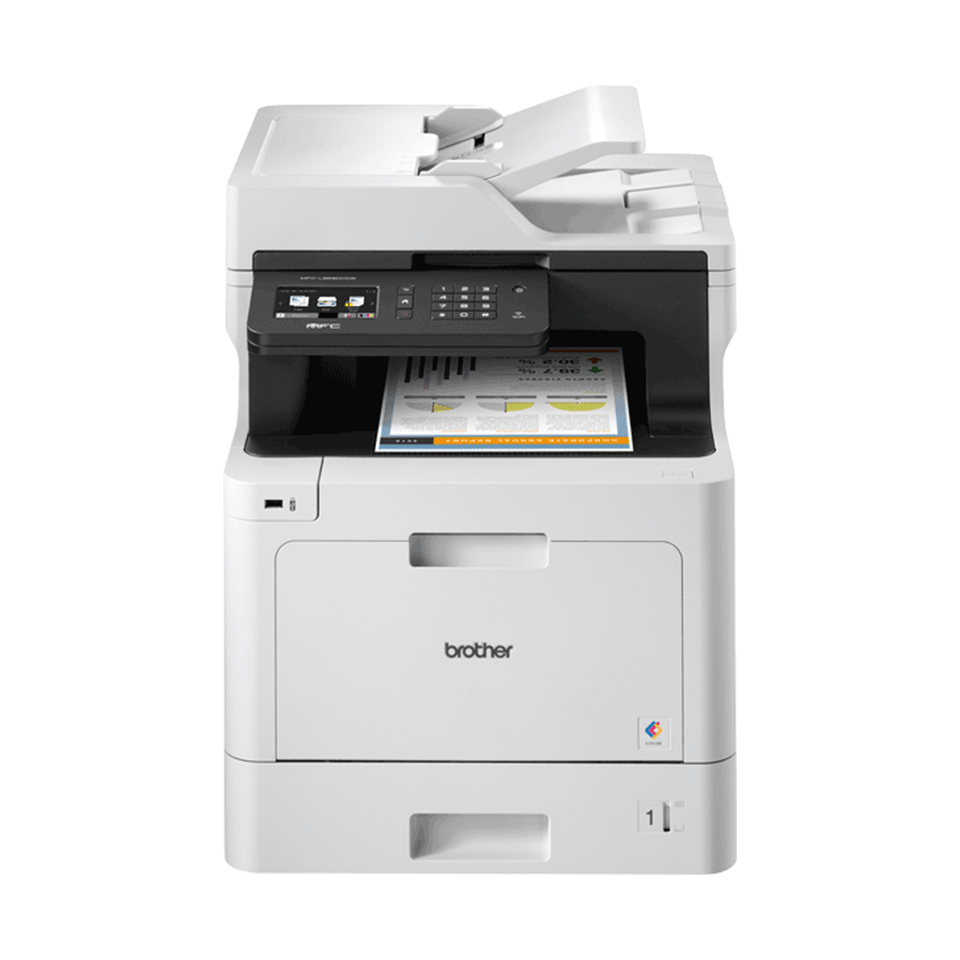

DCP-L8410CDW
Replace Toner / Toner Low / No Toner Installed
Replace Drum / Drum End / No Drum Installed
-
With Brother consumables, you have to manually reset the counter
to let
the machine know an item has been replaced.
- Make sure the machine is turned on.
- Make sure the machine's cover is closed.
- Press Settings
- Choose Machine Info
- Then choose Parts Life
- Press and hold Drum or Drum Life until the machines message changes
- Press Yes
- Press Home
My prints are faded
- If the print quality is poor, remove the toner cartridge from the printer and gently rock it side to side.
- This movement helps distribute the toner evenly within the cartridge.
- After rocking the cartridge 5–6 times, reinsert it and print a test page.
- If the issue persists, check the life of maintenance items in case they need replacing
My prints have marks on the page
Scattered toner / stains
- If toner powder is scattered on the page, this can result from high temperature or humidity.
- Move the printer to a more stable environment and replace the cartridge.
Streaks/bands
-
The Corona Wires may need cleaning, to do this follow the steps below.
- Turn off the machine.
- Take out the drum unit and toner cartridge assembly and place on a clean flat surface with a sheet of disposable paper underneath in case toner is accidentally spilt.
- Clean the primary corona wire inside the drum unit by gently sliding the green tab from left to right and right to left several times.
- Return the tab to the home position so that the ^ images match up if not the pages printed may have a vertical stripe.
- Return the cartridge to the printer, repeat for all other remaining cartridges.
- Close the printer and turn this back on. This should now be ready to use.
Marks in the same place each time
- Gently wipe the drum roller with a dry lint-free cloth.
- Print 5–6 sheets to check for improvement.
-
If the issue persists, print a Drum Dot Print (see your user
manual in our Helpful Links section below).
- If dots appear at 94mm intervals → replace the drum.
- If dots appear at 30mm intervals → replace the toner cartridge.
