Compatible Brother DK-11247 (DK-11247-CPT)

How to load the Roll

1. Make sure the label printer is turned off.
2. Pull the release levers on both sides of the label printer, to unlock the roll compartment cover (hold the label printer at the front and firmly lift the roll compartment cover to open it).
3. Place the roll into the roll spool guide.
4. Make sure that the roll spool arm is inserted firmly in the roll spool guide.
5. Make sure that the stabilizer slides into the notch in the label printer.
6. Thread the roll through the label printer.
7. Align the edge of the roll with the upright edge of the label output slot.
8. Check that the roll is threaded straight so that the labels will not be skewed.
9. Push the first label through the label output slot until the end comes out of the slot (If you have difficulties inserting the first label, try inserting from the side under the sensor).
10. Close the roll compartment cover.
11. Press the power button to turn the label printer on. The status LED turns green.

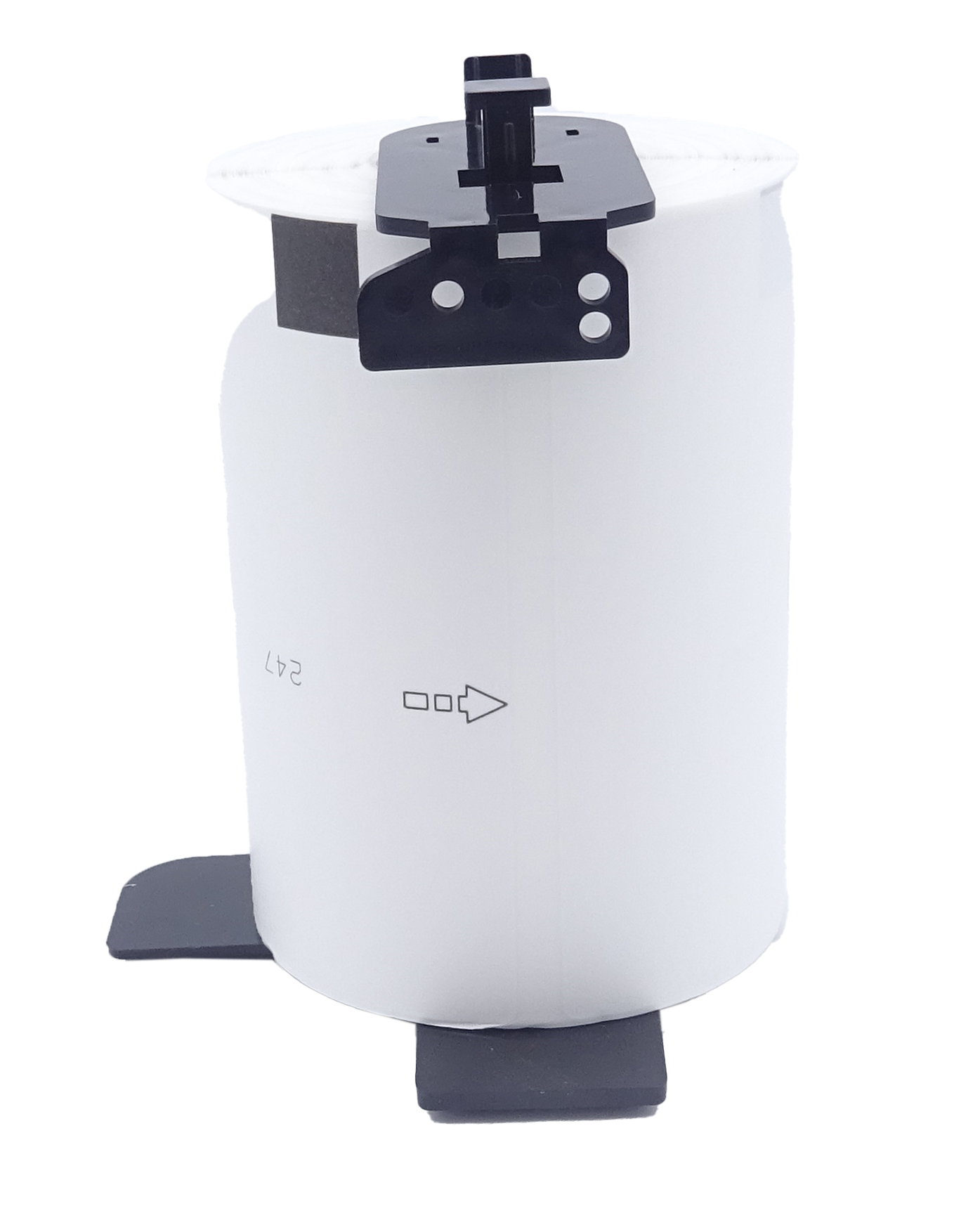

This image shows the front of the cartridge, the product code and colour can be found on the label.

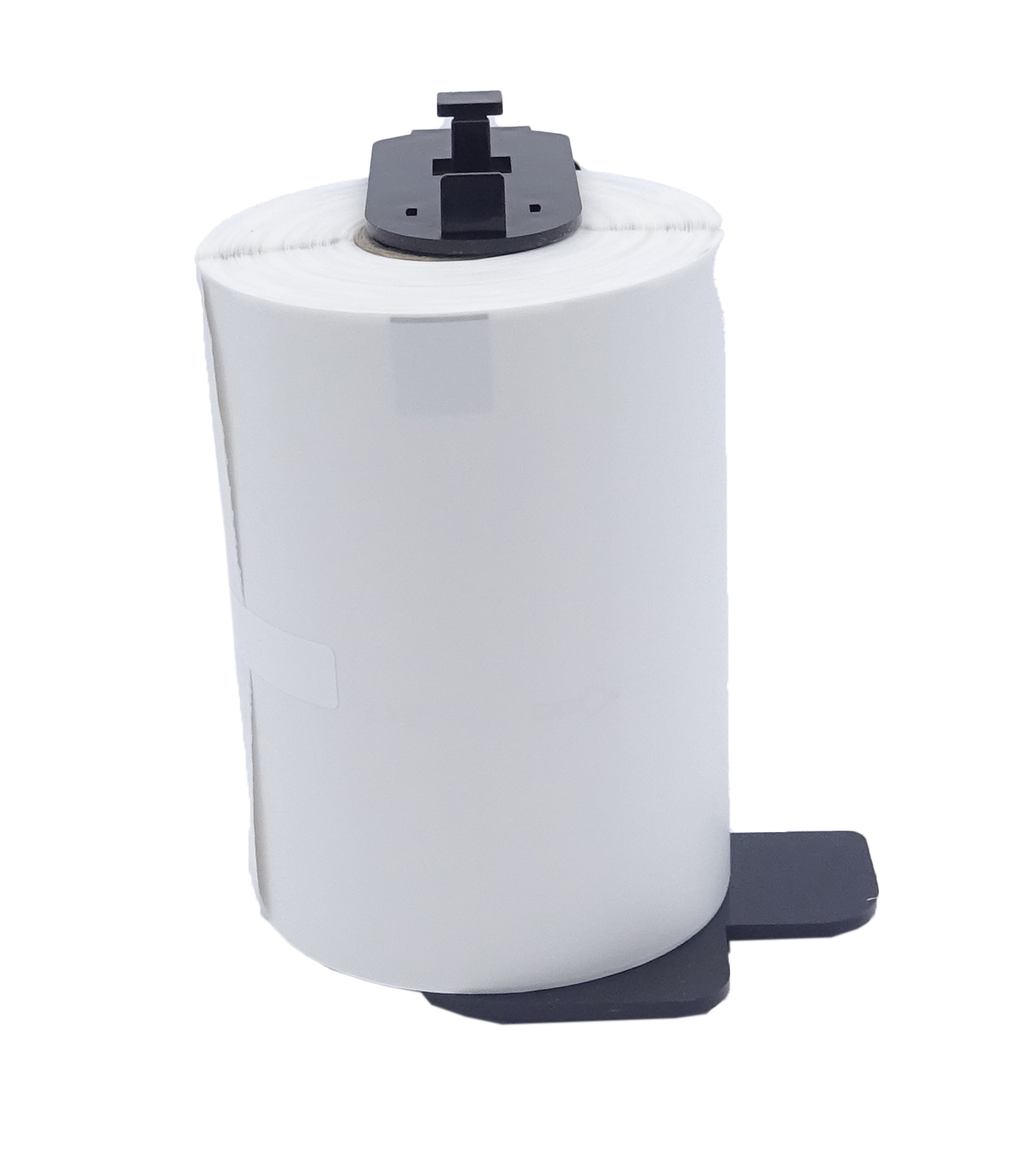

The back of the cartridge can be seen in this image, the tape must be removed before installation.

This image shows the left side of the cartridge, the paper must be removed before installation.

Printers that use Brother DK-11247 cartridges

To see a full list of products that work in your printer, click on the model name below:
