Compatible Xerox 6600 (106R02232-CPT, 106R02229-CPT, 106R02230-CPT, 106R02231-CPT)

Problem: Faded Output

Printouts are coming out faded.

Resolution

• If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.

• This movement helps distribute to the toner evenly within the cartridge.

• After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.

Problem: Spots or Lines at regular intervals

Printouts have Spots or lines at regular intervals on the prints, it may be an issue with another part in the printer.

Resolution

Measure the distance between the spots or lines

• 75.3 mm (3 in.) - Imaging Unit
• 28.3 mm (1.1 in.) - Imaging Unit
• 31.1 mm (1.2 in.) - Imaging Unit
• 32.3 mm (1.3 in.) - Imaging Unit
• 25.1 mm (1 in.) - Transfer Belt
• 56.5 mm (2.2 in.) - Transfer Roller
• 82.3 mm (3.2 in.) - Fuser

If they match any of the distances listed the item may need replacing.

Print Configuration Page

Use the steps below to print out a configuration page:

Touchscreen Printers

• Press the Machine Status button.(image)
• Select Information Pages.
• Select Configuration, then touch Print.

or

Non Touchscreen Printers

• Press the Menu button.
• Using the up or down arrows select "Information pages" then press ok
• Using the up or down arrows select "Configuration" then press ok

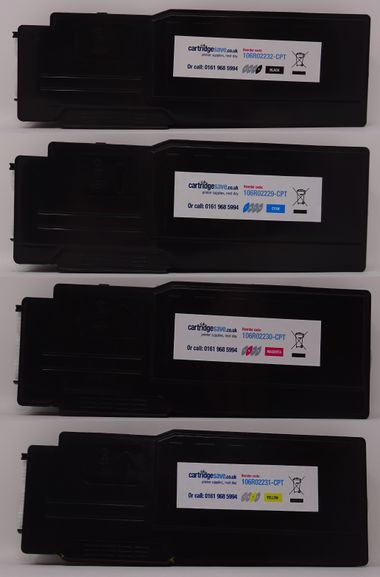

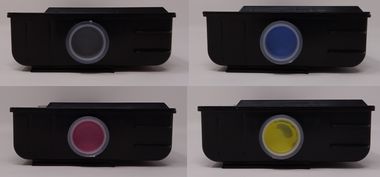

This image shows the top of the cartridge, the product code and colour is displayed on this label.	The bottom of the cartridge can be seen in this image, please ensure the chip is clear of impurities before installation.

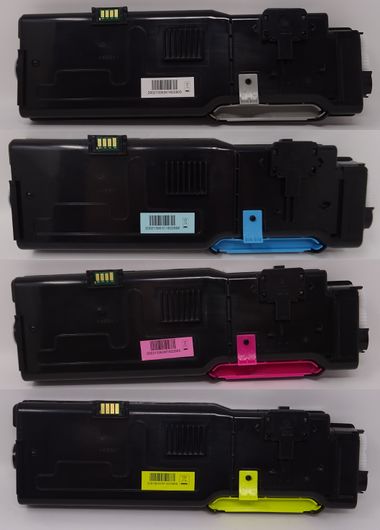

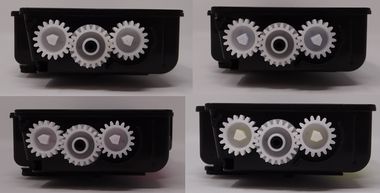

This image shows the left side of the cartridge, do not remove this cap.	The right side of the image can be seen in this image.

Chip	Batch Code
