Problem: Faded Output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
How to print a Configuration page or Supplies Status page
Please follow the below instructions to print the supplies/configuration pages
- Press "Menu" on the control panel
- Press the left/right arrow until System Setup appears and press "OK"
- Press the left/right arrow until Maintenance appears and press "OK"
- Press the left/right arrow until Supplies Life appears and press "OK"
- Press the left/right arrow until the item you want appears and press "OK"
- If you selected to print a supply information page, press "OK" to confirm
- Press "Stop/Clear" to return to ready mode
Or
- Press "Setup" on the control panel
- Press the left/right arrow until Maschine Setup appears and press "OK"
- Press the left/right arrow until Next appears and press "OK"
- Press the left/right arrow until Report appears and press "OK"
- Press the left/right arrow until Supplies Information appears and press "OK"
- Press the left/right arrow until the item you want appears and press "OK"
- If you selected to print a supply information page, press "OK" to confirm
- Press "Stop/Clear" to return to ready mode
|

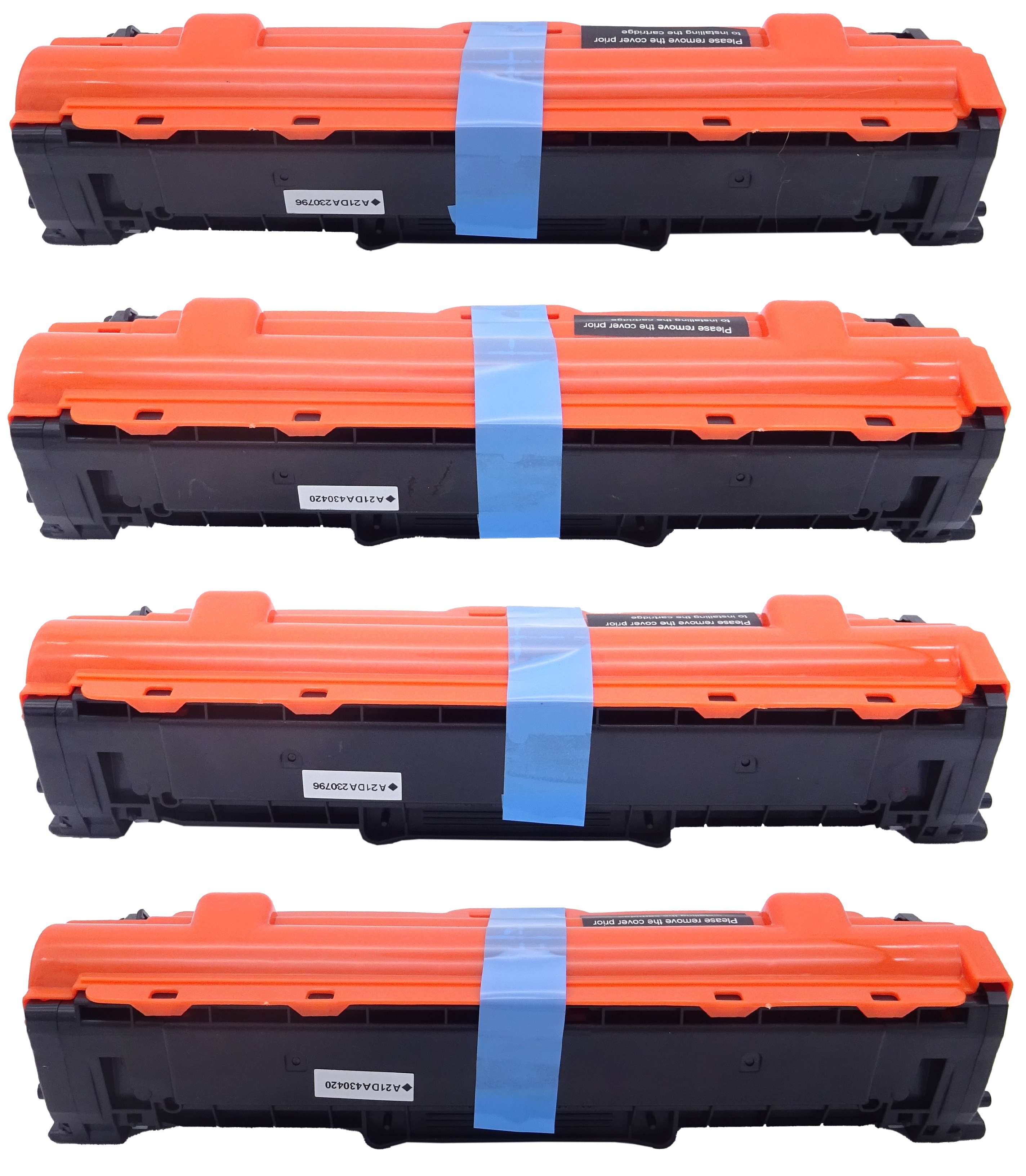

This image shows the front of the cartridge, the chip must be clear of impurities before installation.
|
|
|
|
The back of the cartridge can be seen in this image, the batch code can be found on the small label.
|
|
|
|
This image shows the left side of the cartridge, the blue tape must be removed before installing.
|
|
|
|

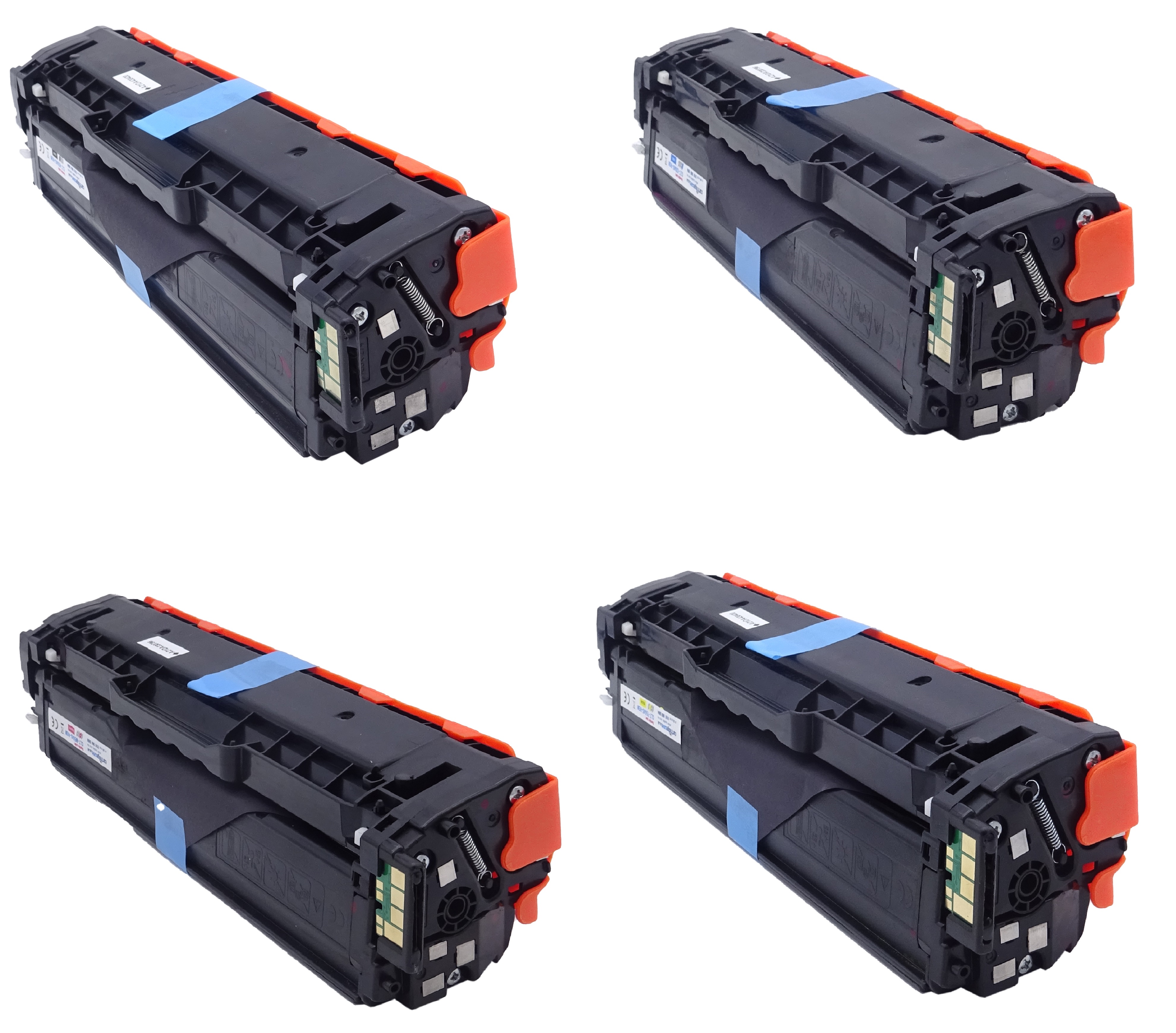

The right side of the cartridge can be seen in this image, the orange cover must be removed before installation.
|
|
|
Printers that use Samsung CLT-504 cartridges
To see a full list of products that work in your printer, click on the model name below:
