Problem: Faded Output
Printouts appear light or washed out. this could be due to the toner powder not been evenly distributed over the roller.
Resolution
-
Remove the toner cartridge from the printer.
-
Gently rock the cartridge from side to side 5–6 times to redistribute toner evenly.
-
Reinsert the cartridge into the printer.
-
Print a test page to check improvement.
Problem: Faded image repeated
A faint, ghost-like image of previous content appears in the background of printouts. This is likely to be due to another component in the printer.
Resolution
-
Print a Supplies Page from the printer’s menu to check the life of the following components:
-
Fuser Unit
-
Imaging Unit
-
Transfer Unit
-
-
If any of these components are near or past their expected lifespan, arrange replacement.
Note: Replacement of the fuser or transfer unit is recommended to be performed by a qualified service engineer.
Print Configuration page and Supplies Status page
Please follow the below instructions to print the supplies/configuration pages
For the Samsung CLP-320/CLP-325 Series:
- In ready mode, press and hold the cancel button for about 5 seconds until the status LED blinks quickly
- Release the cancel button for the configuration pages to print
For the Samsung CLX-3180/CLX-3185 Series:
- Press "Menu" on the control panel
- Press the left/right arrow until System Setup appears and press "OK"
- Press the left/right arrow until Maintenance appears and press "OK"
- Press the left/right arrow until Supplies Life appears and press "OK"
- Press the left/right arrow until the item you want appears and press "OK"
- If you selected to print a supply information page, press "OK" to confirm
- Press "Stop/Clear" to return to ready mode
|

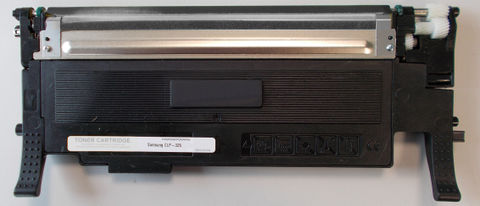

Compatible Samsung 4072 (Top View with Clip off)
|
|
|
|

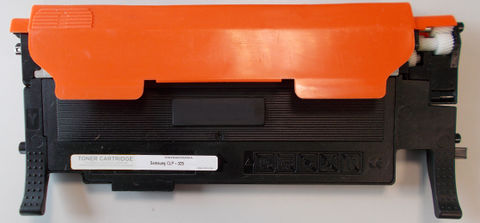

Compatible Samsung 4072 (Top View with Clip removed)
|
|
|
|

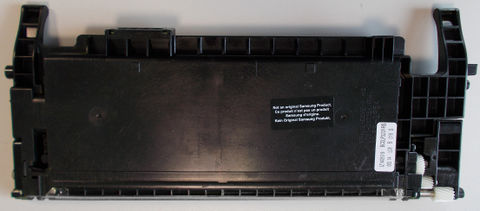

Compatible Samsung 4072 (Bottom View)
|
|
|
Printers that use Samsung CLT-4072 cartridges
To see a full list of products that work in your printer, click on the model name below:
