Problem: faded output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page
Problem: Error (Cartridge is not compatible)
The compatible cartridge has been installed correctly and the error message (Cartridge is not compatible) has appeared
Resolution
- Remove the affected cartridge/cartridges from the printer.
- Turn the printer off and wait for 2 minutes.
- Turn your printer back on and wait for a further 2 minutes.
- Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time.
Problem: Cartridge not recognised
The compatible cartridge has been installed correctly but the printer is not registering it as installed
Resolution
- Remove the affected cartridge/cartridges from the printer.
- Turn the printer off and wait for 2 minutes.
- Turn your printer back on and wait for a further 2 minutes.
- Once the printer warns that certain cartridge/cartridges are missing, re-install them one at a time.
|

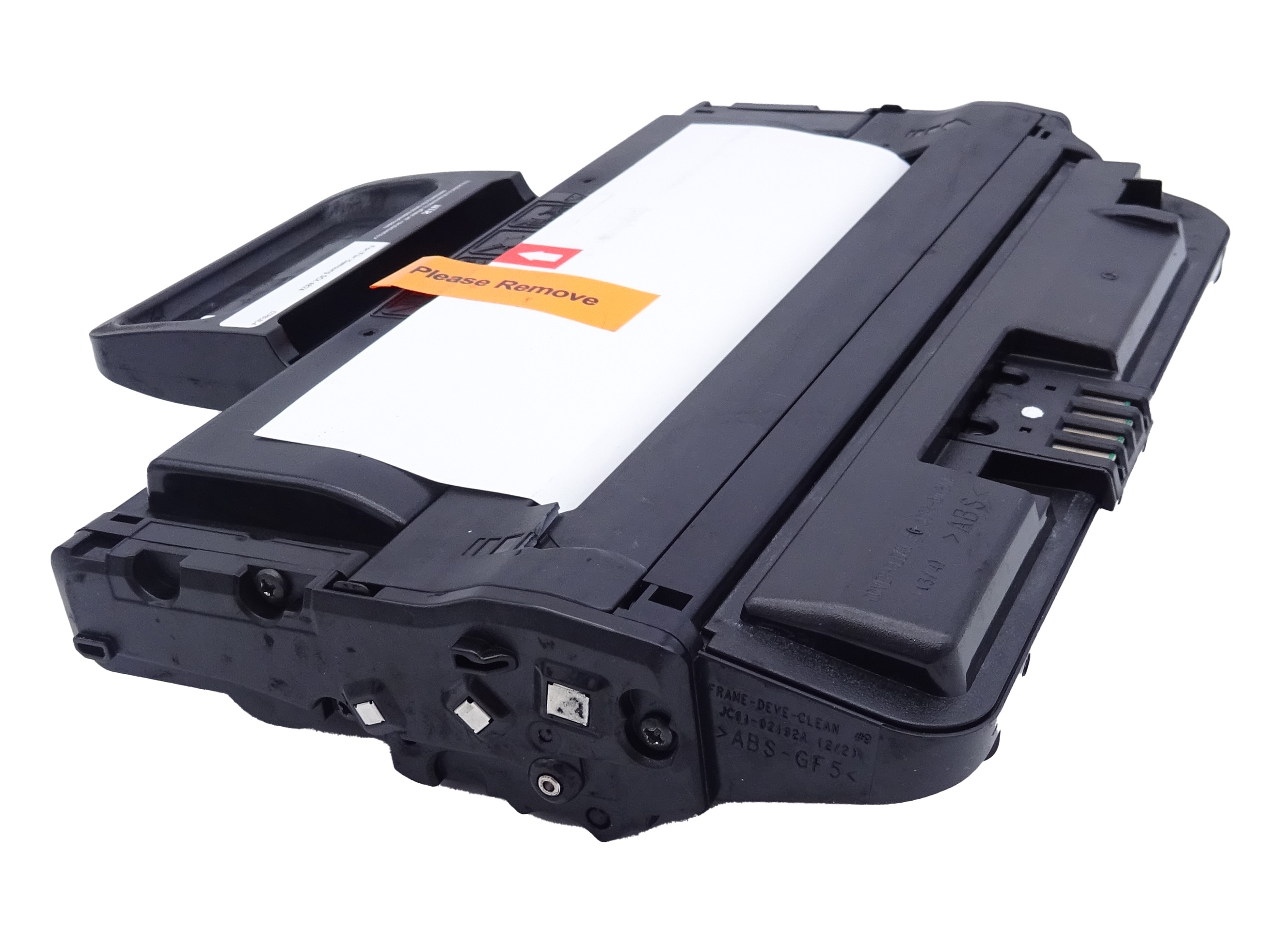

This image shows the front of the cartridge, the handle is for easy installation.
|
|
|

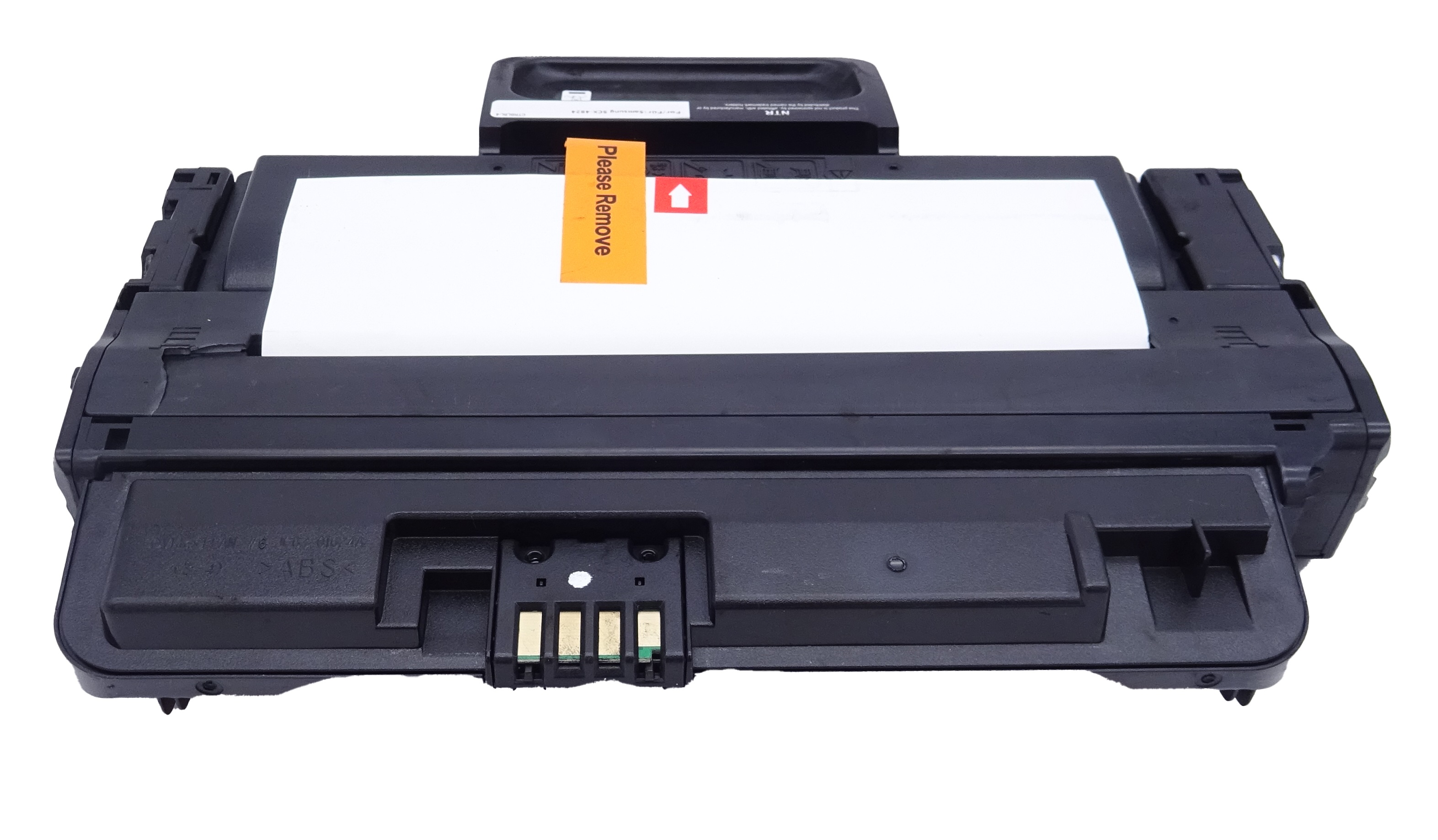

| The back of the cartridge can be seen in this image. The chip is just off centre at the bottom, this must be clear of impurities before installation. |
|
|
|

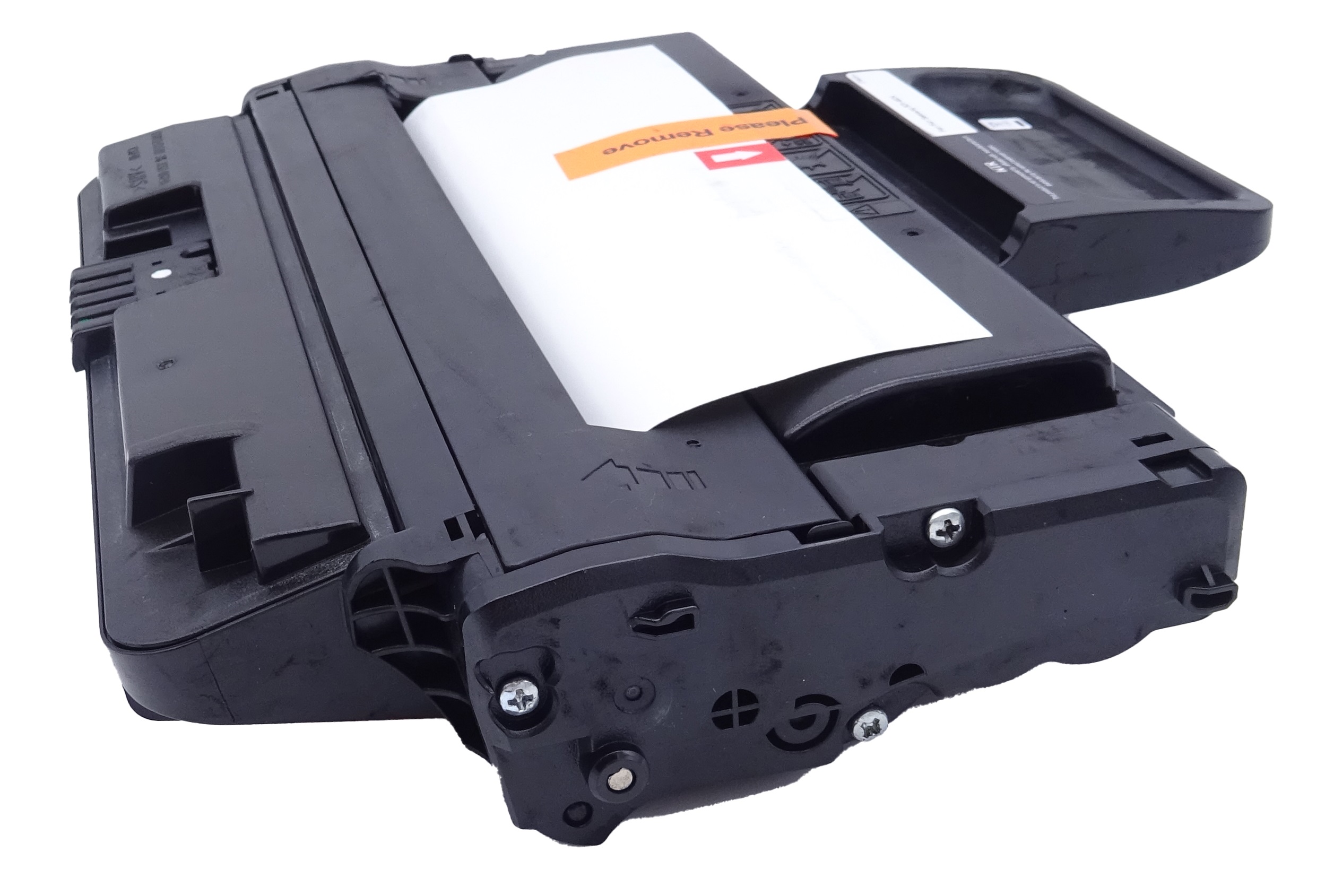

This image shows the left side of the cartridge, use the pull tabs and tape to remove any paper guards from the cartridge before installing.
|
|
|
|
The right side of the cartridge can be seen in this image.
|
|
|
Printers that use Samsung 2092L cartridges
To see a full list of products that work in your printer, click on the model name below:
