Problem: Faded Output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page
Problem: Replace the unsupported toner cartridge 32.49
The message "Replace the unsupported toner cartridge 32.49" appears
Resolution
- Please find out the Firmware version by printing out a Supplies Information Page
- To print out the Supplies Information Page, Press and hold the start button on the printer control panel
- If the firmware is LW71.SB2.P025 FDN.PIR.E709, replace with Genuine cartridge
|

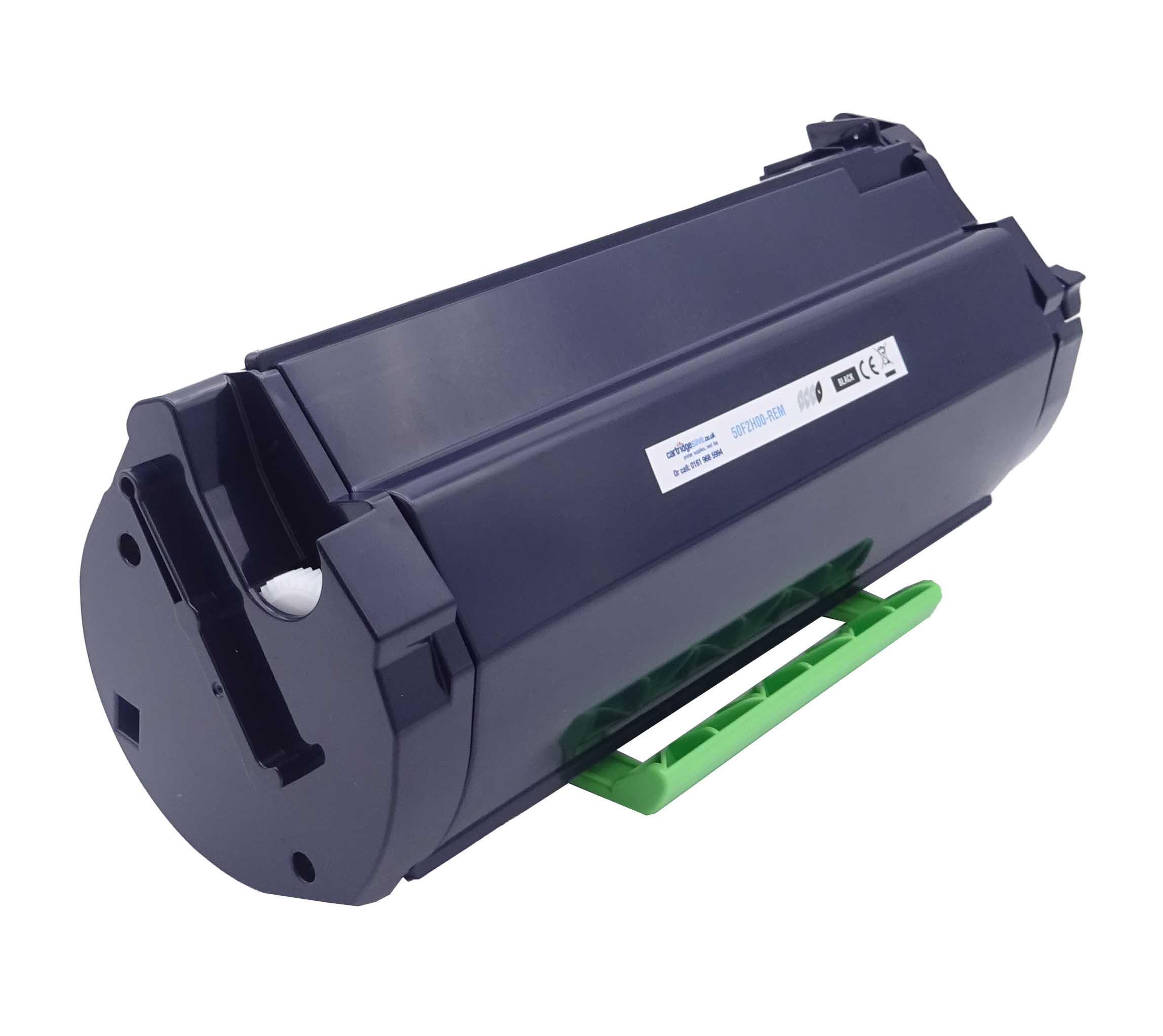

This image shows the front of the cartridge, use the handle to help when installing.
|
|
|
|

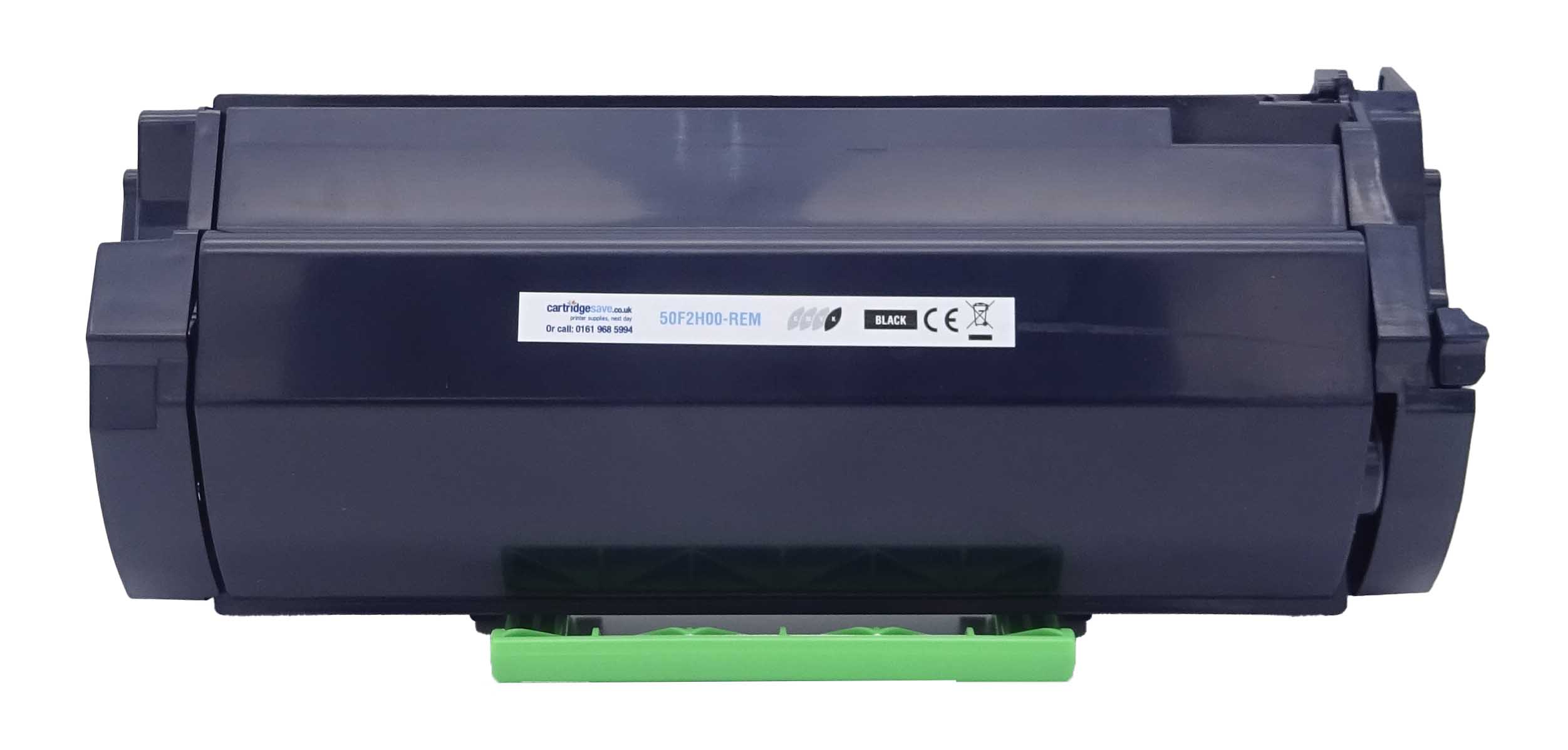

The back of the cartridge can be seen in this image.
|
|
|
|

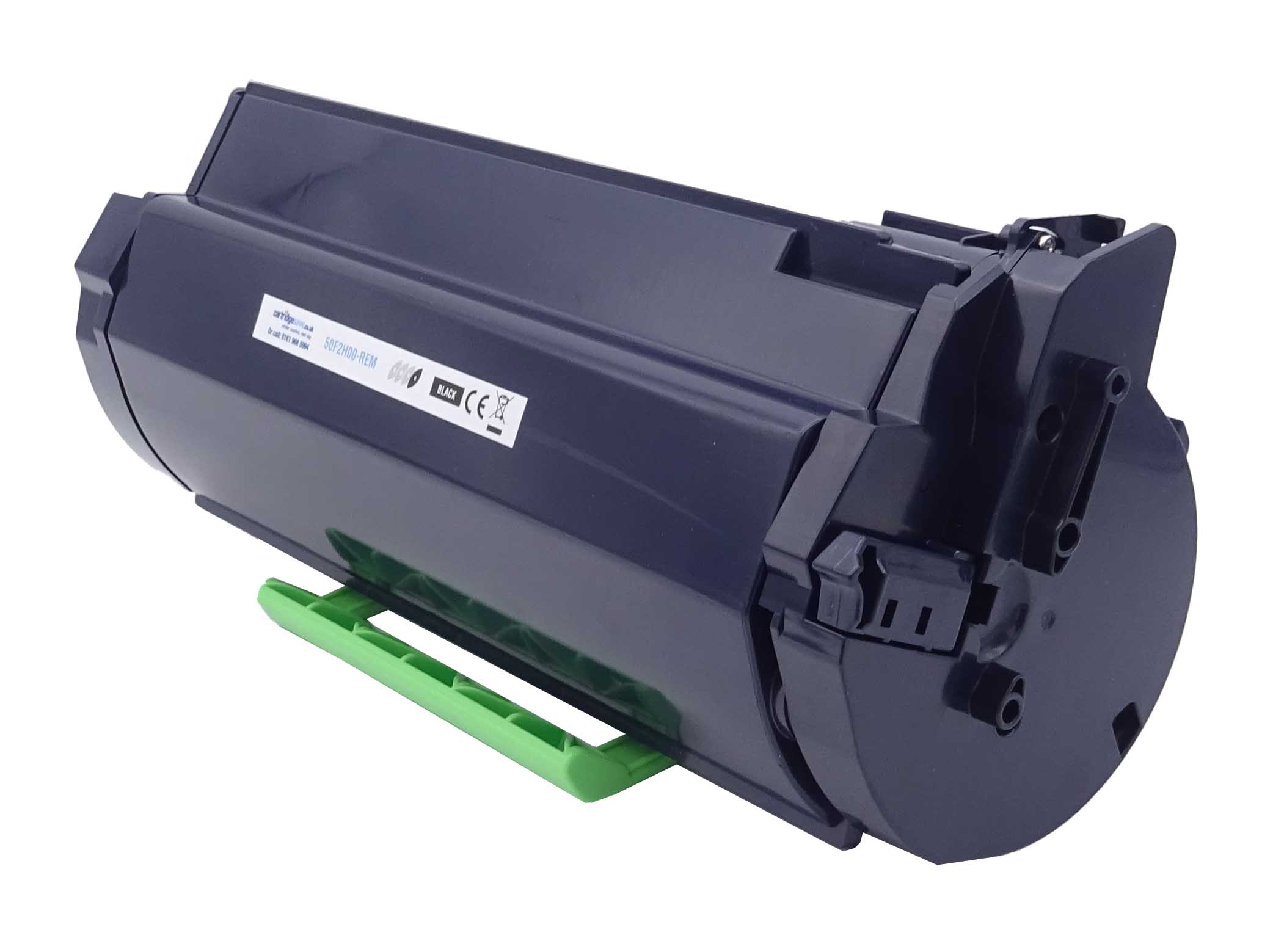

This image shows the left side of the cartridge.
|
|
|
|
The right side of the cartridge can be seen in this image.
|
|
|
Printers that use Lexmark 502H cartridges
To see a full list of products that work in your printer, click on the model name below:
