Compatible Brother TN-3512 (TN3512-REX)

Problem: Faded Output

Printouts are coming out faded.

Resolution

1. If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
2. This movement helps distribute to the toner evenly within the cartridge.
3. After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.

Problem: error (replace toner) or error (toner low)

The cartridge is reporting that it's low on ink or reporting the error message (Replace toner).

The following troubleshooting can vary from printer to printer. If your printer doesn't have the required buttons in Resolution 1, please try Resolution 2 instead.

Resolution 1

1. Open the printer lid (You don't have to hold it open, you can rest it down so long as it doesn't shut full).

2. On the control panel press the X button and the Secure button together.

3. Use the arrow keys and the OK button to select the toner cartridge affected by this error.

4. Press the UP arrow.

5. Wait for the printer to reset the cartridge.

6. The printer should automatically return to ready mode.

7. Close the printer lid and you should be able to continue printing.

Note: the printer lid needs to remain open during all of these steps.

Resolution 2

1. With the error message on the LCD display, press the Cancel (X) button to show the main menu.

2. Press the Fax button (or the copy button on the LCD display) to make the numeric keypad visible. Then, locate and only locate the Asterisk (Star) button on the numeric keypad. (It's important to remember its location as it will not be lit up later when needed)

3. Press the Home button to return to the main menu.

4. Open the front cover of the printer (to access cartridges).

5. With the front cover open, press and hold the unlit Asterisk (Star) button for 5 seconds.

6. The reset menu will now appear on the LCD display.

7. Scroll through the menu to select a color and yield to reset.

8. The LCD will read "Accepted" once the reset is complete.

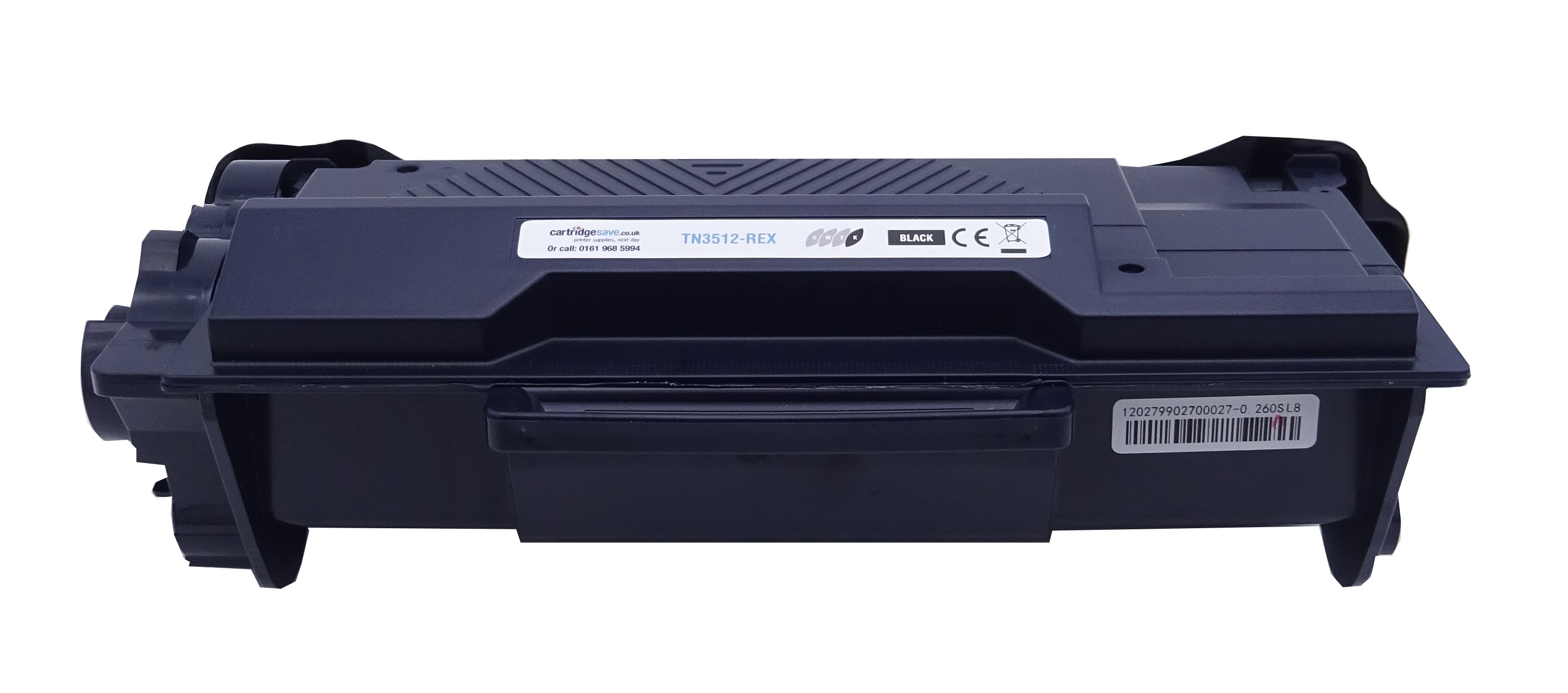

This image shows the front of the cartridge, the smaller label displays the batch code.

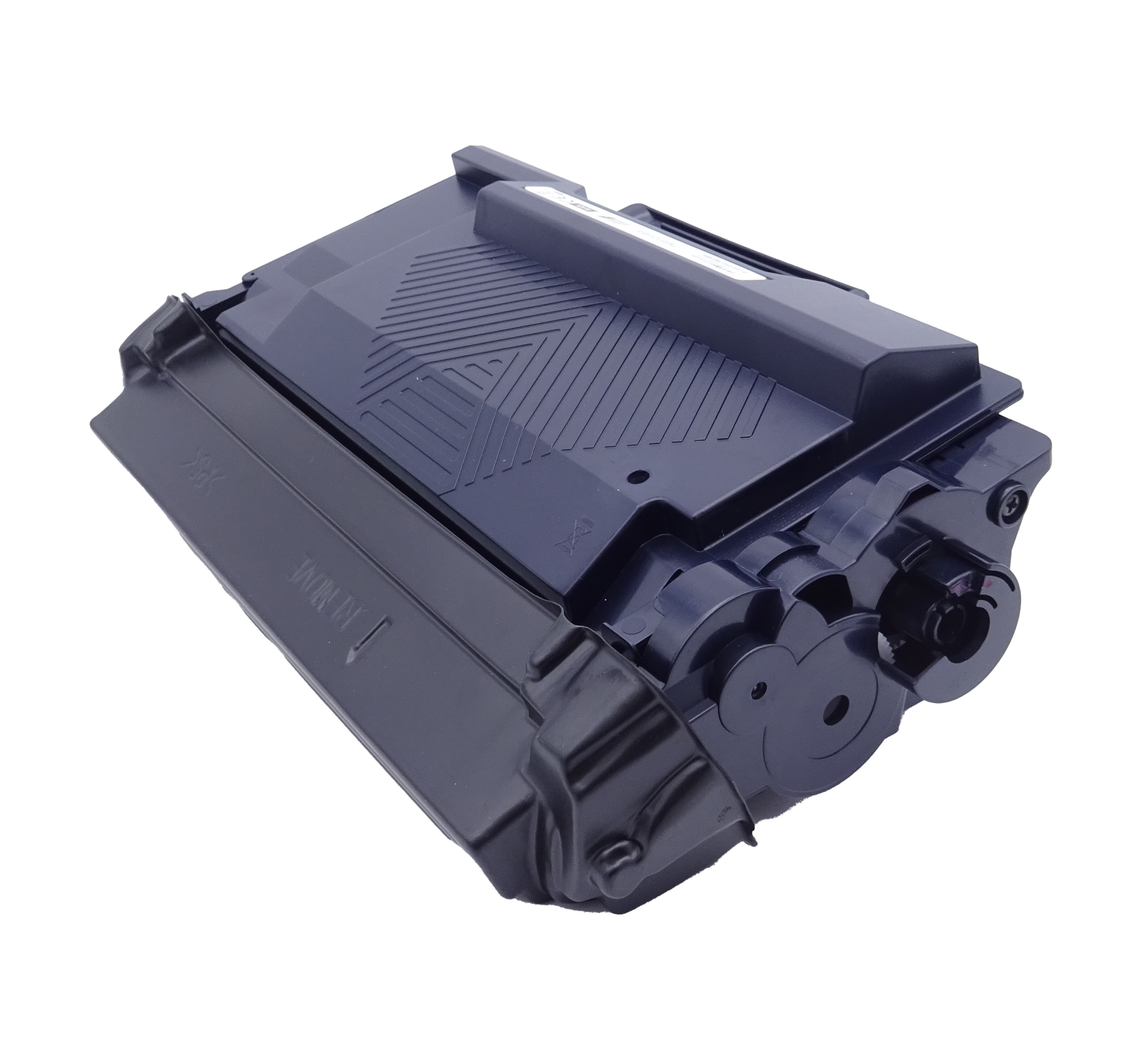

The back of the cartridge can be seen in this image, the plastic cover must be removed before installation.

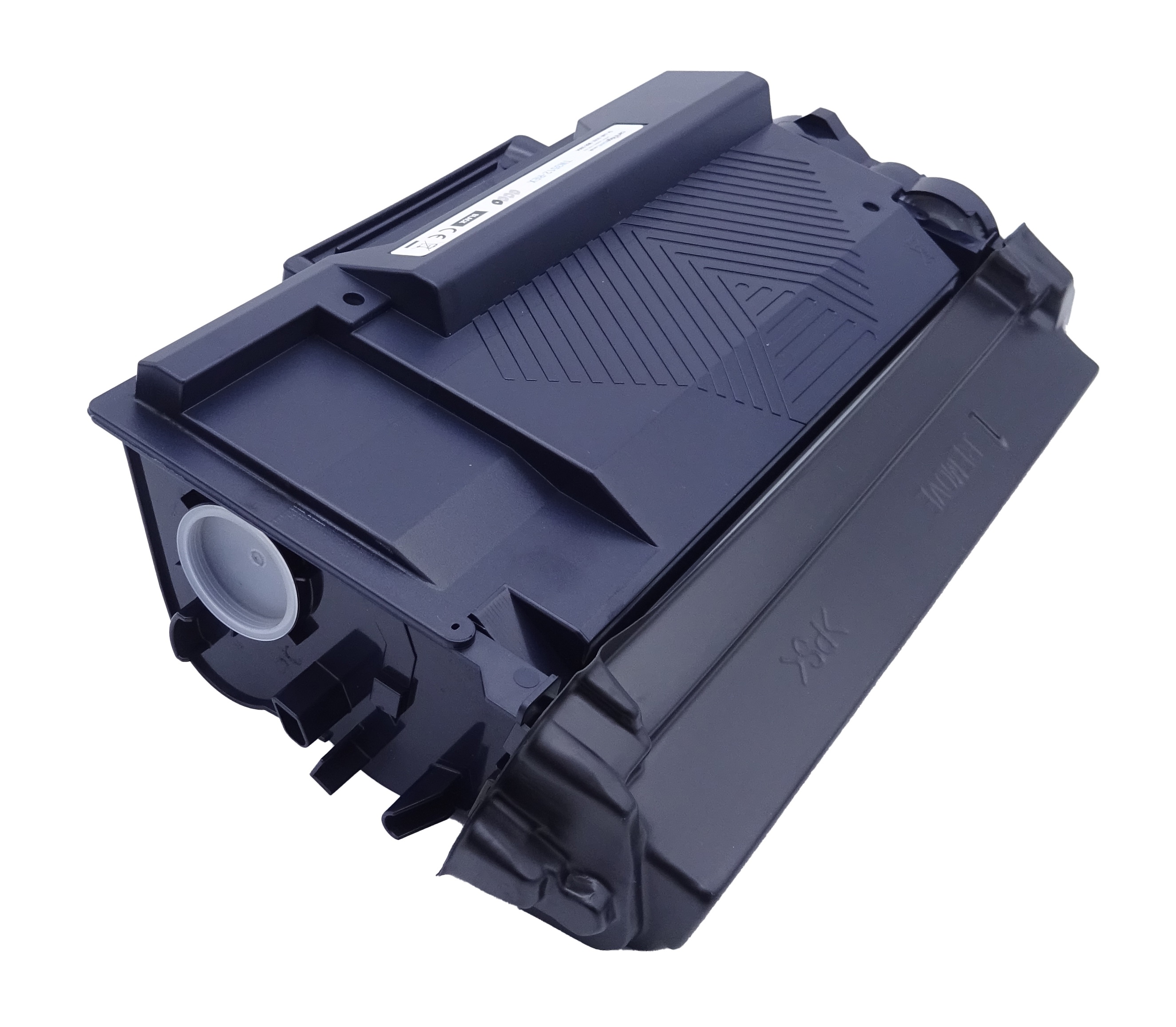

This image shows the left side of the cartridge, the round plastic cap does not need to be removed.

The right side of the cartridge can be seen in this image.

Printers that use Brother TN-3512 cartridges
