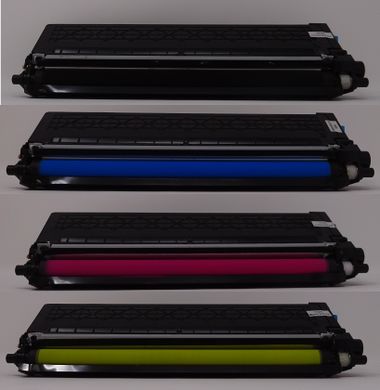

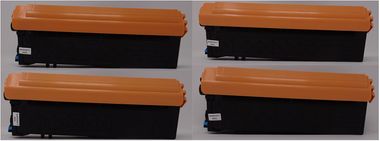

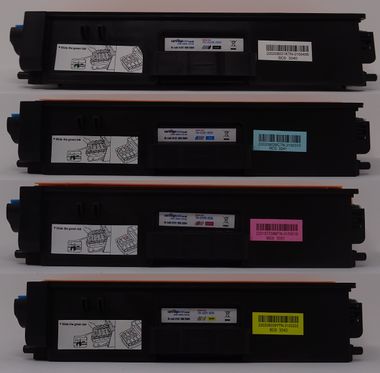

Compatible Brother TN-325 (Top View)
|
|
|
|

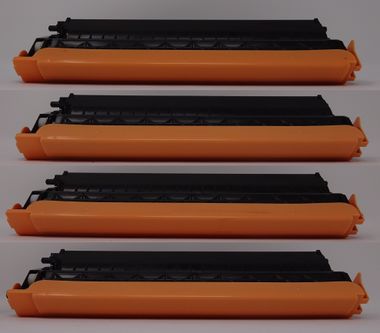

Compatible Brother TN-325 (Bottom View)
|
|
|
|

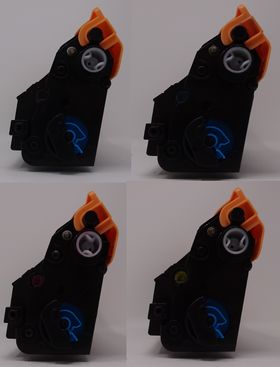

Compatible Brother TN-325
(Back View with clip on)
|

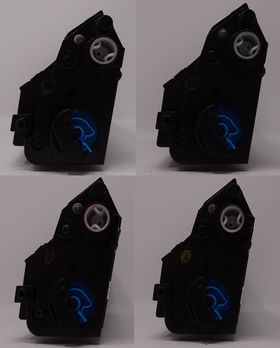

Compatible Brother TN-325
(Back View with clip removed)
|
|
|
|
|

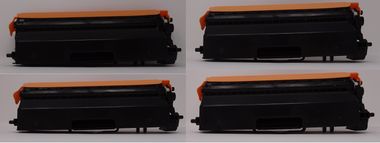

Compatible Brother TN-325 (Front View)
|

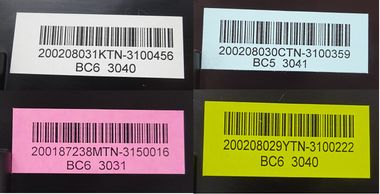

Compatible Brother TN-325
(Batch Code Examples)
|
|
|
|
|

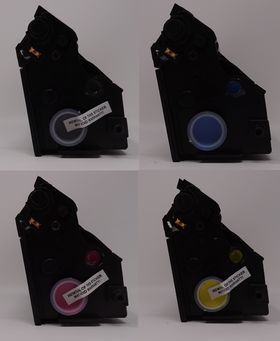

Compatible Brother TN-325
(Side View with Clip on)
|
Compatible Brother TN-325
(Side View with Clip removed)
|
|
|
|
|

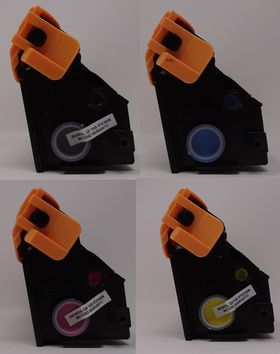

Compatible Brother TN-325
(Side View with Clip on)
|
Compatible Brother TN-325
(Side View with Clip removed)
|
|
|
|
Cartridge not recognised
Printer is reporting the Error (Replace Toner) or that the cartridge isn't being recognised
Resolution
- Note: This requires an old toner cartridge that has previously worked:
- Remove the faulty cartridge from the printer
- Re-install the old cartridge and turn the printer off and on
- Removed the old cartridge and re-install the faulty cartridge. This should clear the printers memory and allow the cartridge to work
Error: Replace Toner
Brother DCP-9055CDN, Brother DCP-9270CDN, Brother MFC-9460CDN, Brother MFC-9465CDN, Brother MFC-9970CDW & Brother DCP-9055CDW
- Make sure the printer is turned on.
- Open the cover using the blue 'handle' at the front of the machine.
- Press the Clear/Back button on the control panel.
- Press the up or down arrow key to scroll through the list of toners.
- Select the cartridge to reset, then press “OK”
Brother HL-4570CDW & Brother HL-4570CDWT
- Ensure the printer is switched on.
- Open the printer lid to reveal the toner cartridges.
- Press the “secure” and “cancel” buttons together.
- The LCD should display a new menu.
- Use the + and - keys to select the cartridge you wish to reset.
- Press the “OK” button.
- Close the printer lid.
Problem: Lines down page
There are bands or lines appearing down the page
Resolution
Your printer may require your corona wires cleaning.
-
- Open up the front of your printer and gain access to all the drum units
- On each drum unit there is a green (sometimes other coloured) tab
- Move this tab from left to right horizontally 5-6 times
- Return the tab to its home position after you have finished
- Retry printing
Problem: Faded Output
Printouts are coming out faded.
Resolution
- If the print quality is poor, remove the toner cartridge from the printer and gently rock the cartridge from side to side.
- This movement helps distribute to the toner evenly within the cartridge.
- After rocking the cartridge 5-6 times, re-insert the cartridge into the printer and print a test page.
Printers that use Brother TN-325 cartridges
- DCP-9055CDN
- DCP-9055CDW
- DCP-9270CDN
- HL-4140CN
- HL-4150CDN
- HL-4570CDW
- HL-4570CDWT
- MFC-9460CDN
- MFC-9465CDN
- MFC-9970CDW
All trademarks, photos and logos included on this information sheet are the property of their respective owners.
