Compatible Brother TN-2005 (TN-2005-REM)

  • Updated

Product_Information.svg

What_the_cartridges_should_look_like.svg

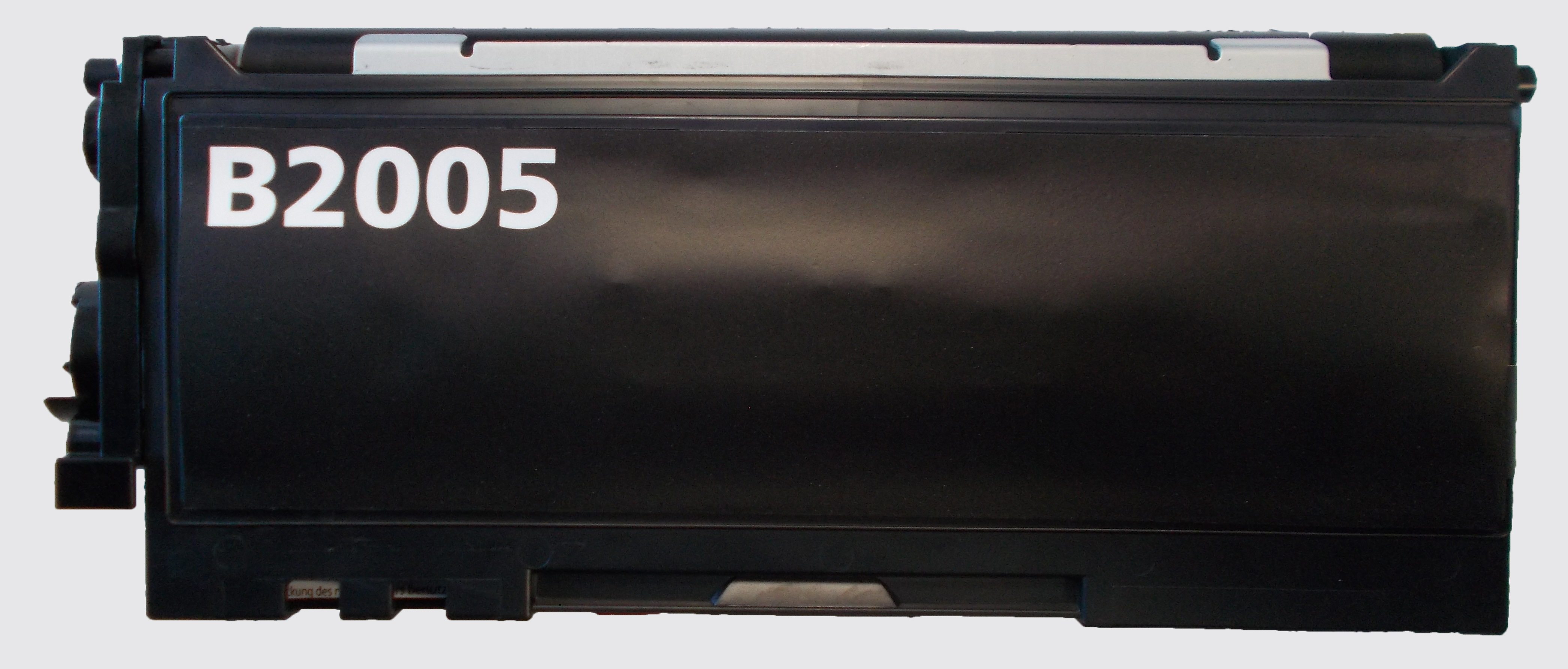

Compatible Brother TN-2005 (Top View)

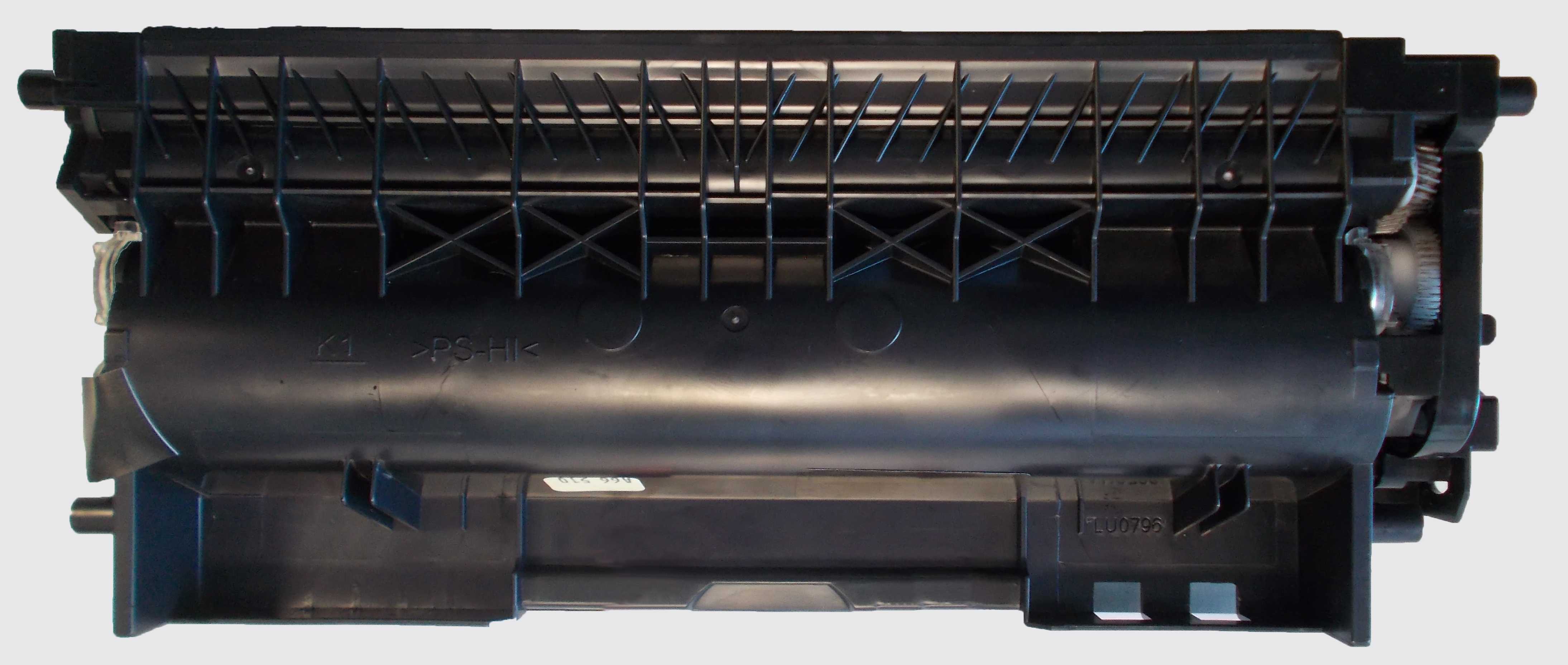

Compatible Brother TN-2005 (Bottom View)

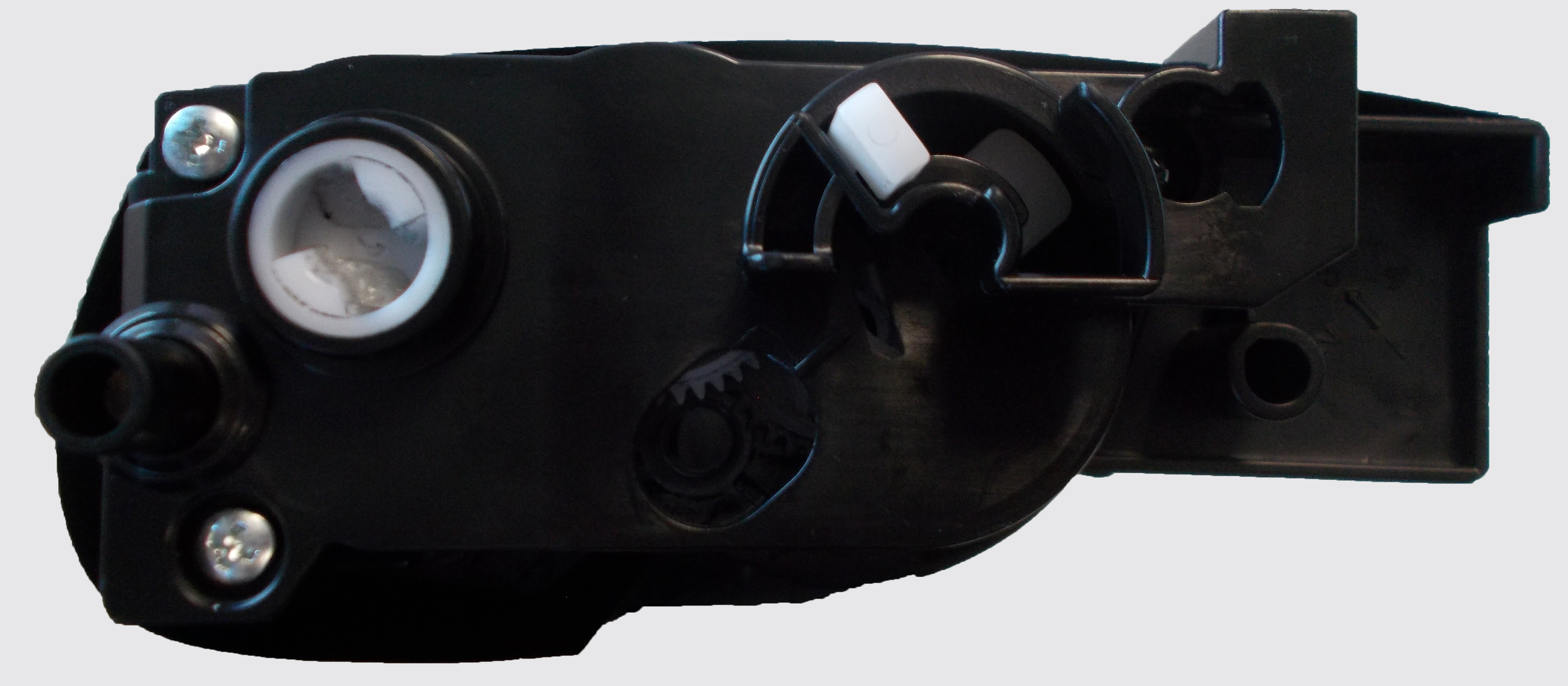

Compatible Brother TN-2005 (Side View)

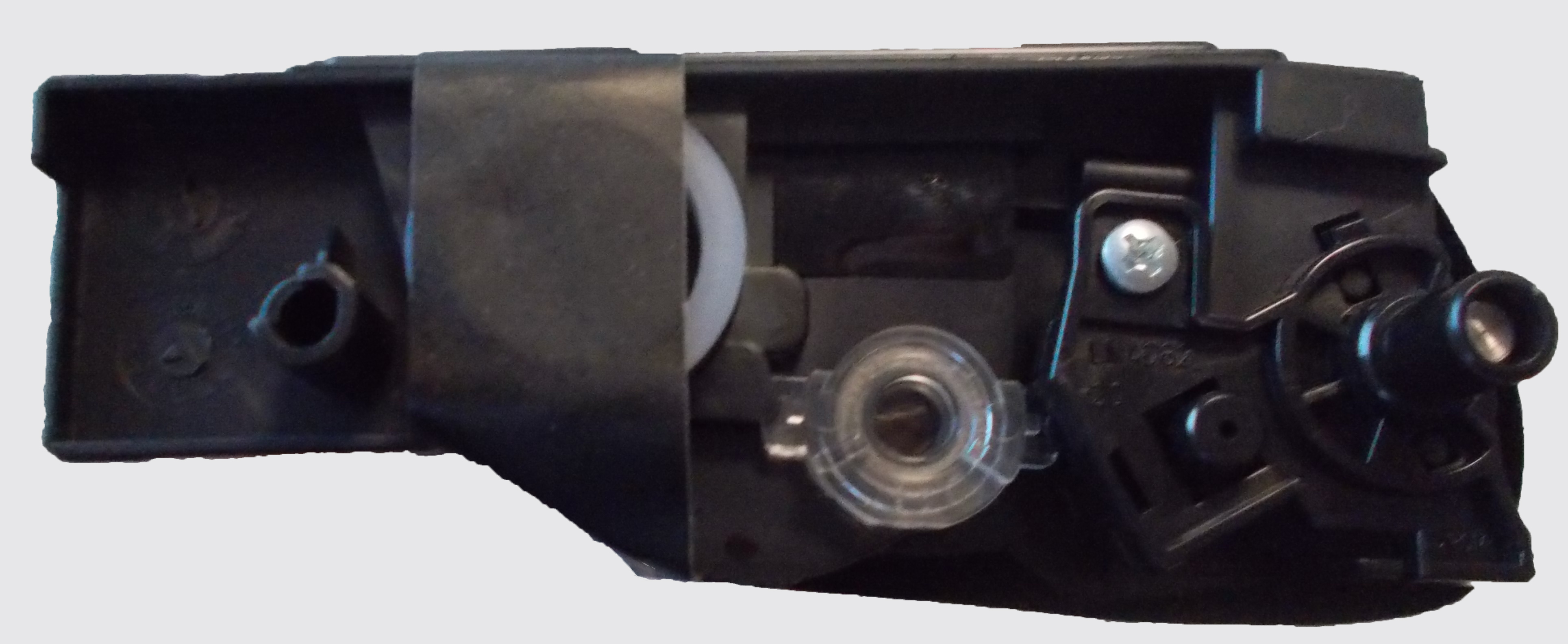

Compatible Brother TN-2005 (Side View)



Problems_you_may_encounter.svg Poor_Print_Quality.svg

Problem: Fading on print

Printouts are very faded print or there is a lack of print on the page

Resolution

  • 1. Remove the cartridge from the printer
  • 2. Gently rock the cartridge from side to side
  • 3. Re-insert the cartridge into the printer
  • 4. Move the green tab on the drum unit from left to right (3-4 times) to clean the corona wire



Problem: Streaks or bands down page

Printouts have coloured streaks or bands down page


Resolution

The Corona Wires may need cleaning, to do this follow the steps below.

  • Turn off the machine & unplug the telephone line cord first disconnect all cables and unplug the power cord
  • Open the top cover by lifting up on the handle - when the scanner is open you cannot open the top cover
  • Take out the drum unit and toner cartridge assembly and place on a clean flat surface with a sheet of disposable paper underneath in case toner is accidentally spilt
  • Clean the primary corona wire inside the drum unit by gently sliding the green tab from left to right and right to left several times
  • Return the tab to the home position so that the ^ images match up if not the pages printed may have a vertical stripe
  • Return the cartridge to the printer, repeat for all other remaining cartridges
  • Close the top cover of the machine
  • Plug the machine`s power cord back in to the electrical socket first and then reconnect all cables and telephone line cord.
  • Turn on machine



Problem: Coloured Lines across page

Printouts have Coloured Lines across page


Resolution

The distances between the lines give us an indication of which item is likely to be the cause of the problem

  • If Coloured lines appear at 30mm intervals, replace toner that matches the colour of line
  • If lines appear at 94mm intervals, put a new drum unit that matches the colour of the line





Printers that use Brother TN-2005 cartridges

HL-2035
HL-2037
